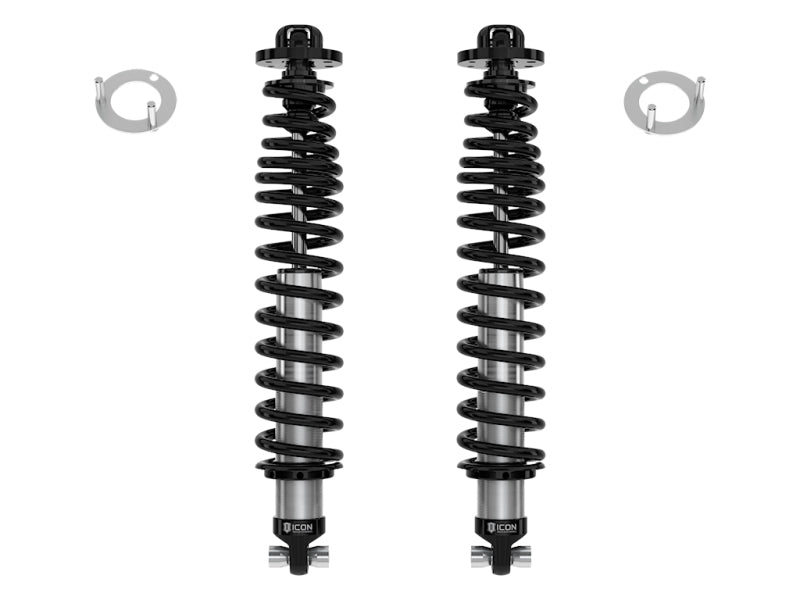

ICON V.S. 2.5 Series Rear Internal Reservoir Coilover Kit for 2021-2023 Ford Bronco (48610)

Fits select 2021-2023 Ford Bronco models including Badlands, Base, Big Bend, Black Diamond, Everglades, First Edition, Heritage, Outer Banks, and Wildtrak.

The ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks provide a significant suspension upgrade for the 2021-2023 Ford Bronco. These adjustable coilovers are designed to increase wheel travel up to 14 inches and improve ride quality across varied terrain. On 4-door Broncos without the Sasquatch package, these units provide 2-3 inches of rear lift; on Sasquatch-equipped 4-door models, they offer 1.25-2.25 inches of lift, facilitating the fitment of larger wheel and tire combinations.

Each coilover features a 2.5-inch diameter shock body and a 7/8-inch induction-hardened chrome-plated shaft for increased oil volume and thermal stability. The assembly utilizes ICON-engineered progressive triple-rate coil springs, which provide a compliant ride at standard height while increasing resistance during deep compression to prevent bottoming out. These coilovers are mounted in a shaft-up orientation to reduce unsprung weight and are fully rebuildable and re-tunable for long-term service.

• Adjustable rear lift height: 2-3" (Non-Sasquatch) or 1.25-2.25" (Sasquatch)
• Large 2.5" diameter CAD plated shock bodies for corrosion resistance
• 7/8" diameter induction hardened chrome plated shafts
• 6061 aircraft-grade aluminum CNC machined components
• FK rod end bearings for maximum longevity and minimal deflection
• Progressive triple-rate coil springs for optimized ride and bottom-out control
• 100% bolt-on installation; no drilling, cutting, or welding required
• Fully rebuildable and re-tunable design
• Manufacturer Part Number: 48610
