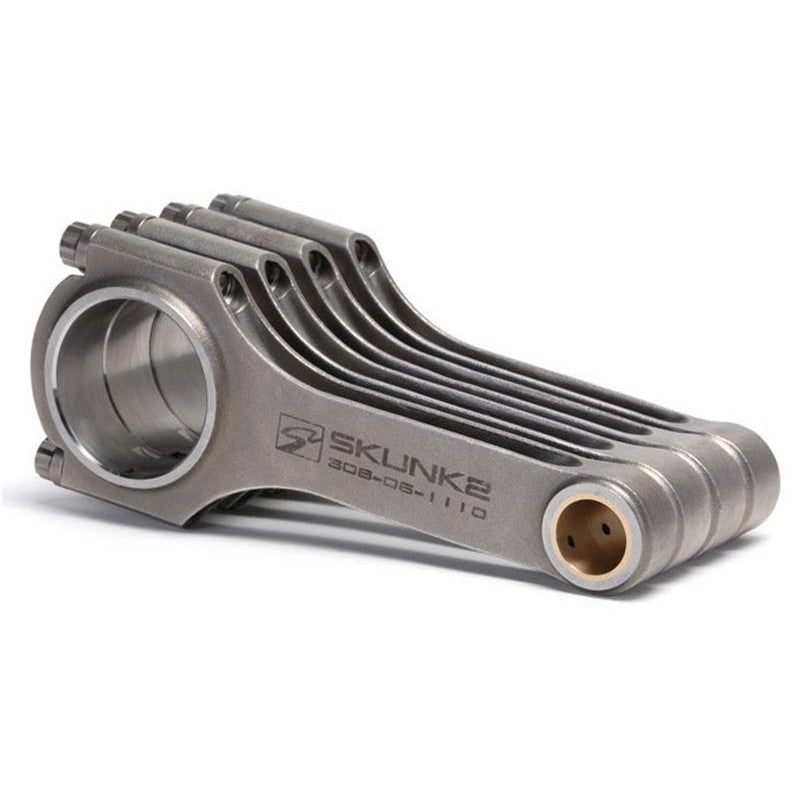

Skunk2 Alpha Series H-Beam Connecting Rods - 1992-1995 Honda Civic/del Sol (D16/ZC) 306-05-1110

Fits 1992-1995 Honda Civic (EX, Si) and Civic del Sol (Si) equipped with D16 or ZC engines.

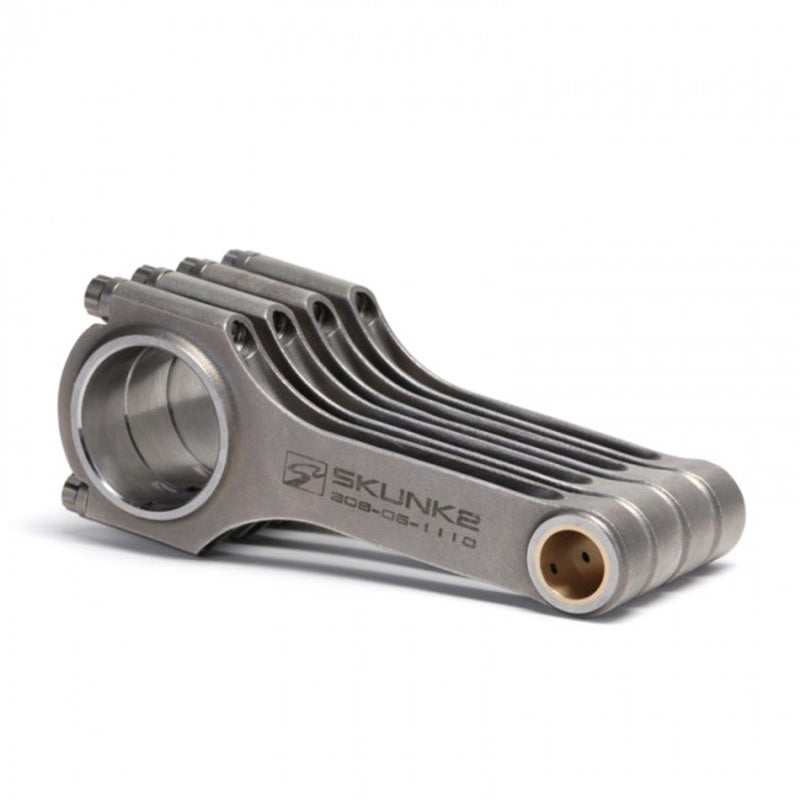

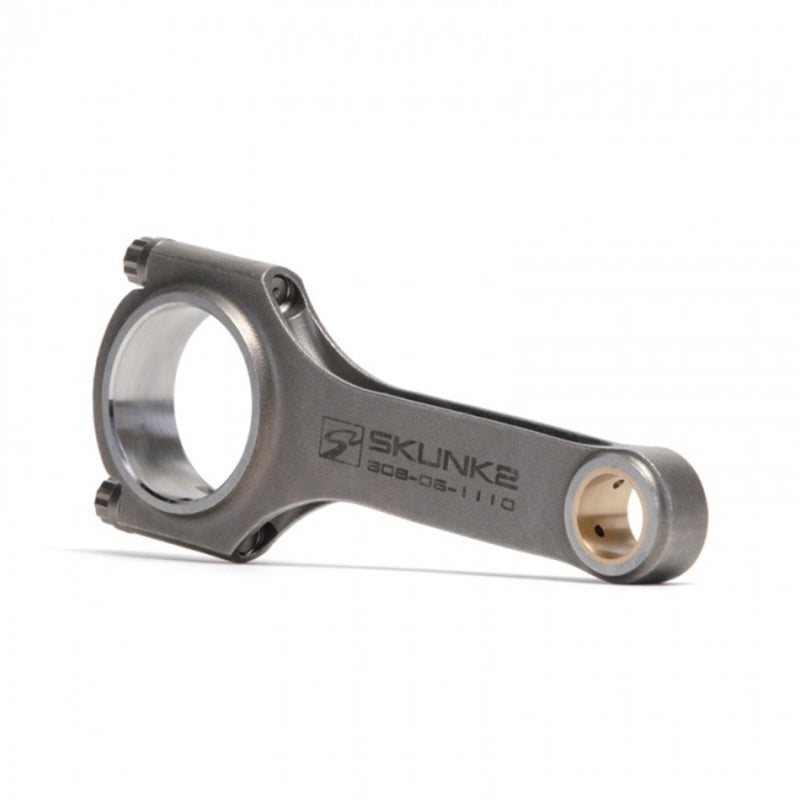

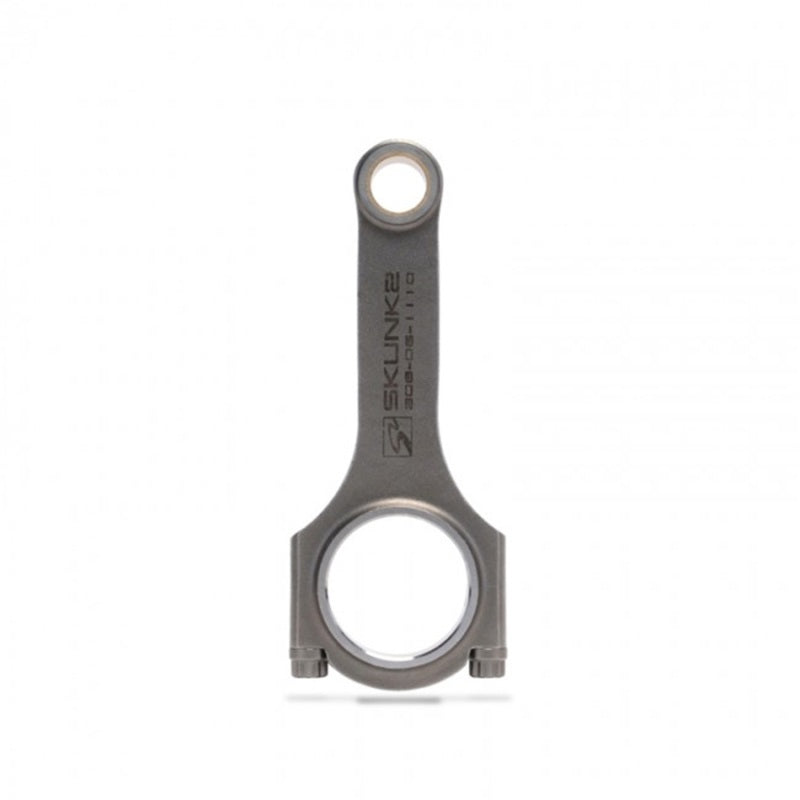

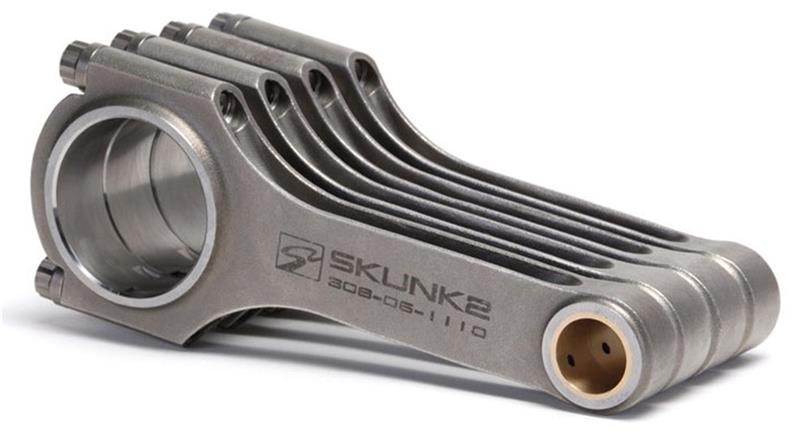

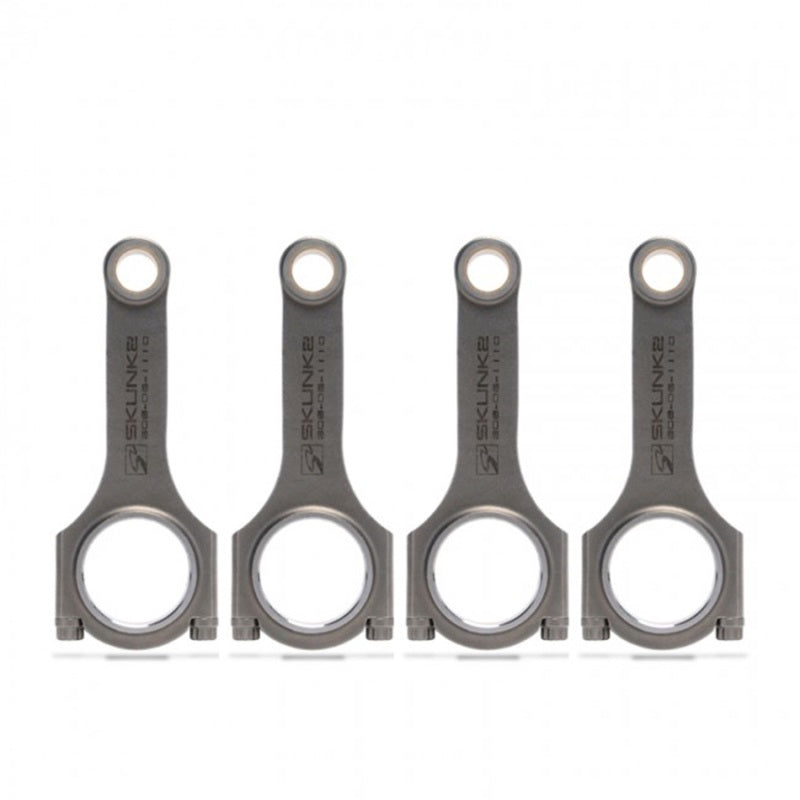

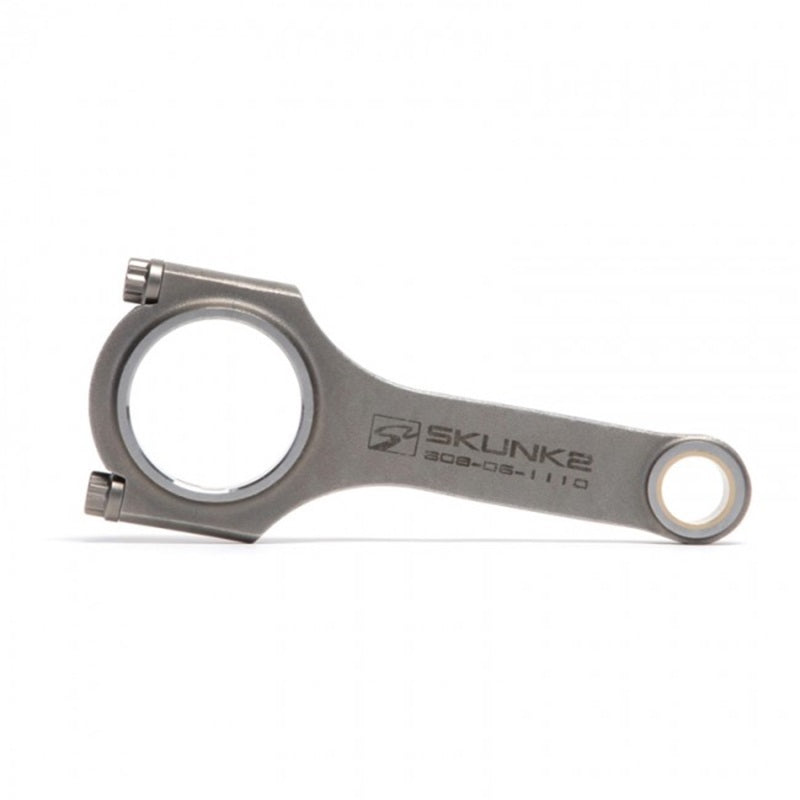

Skunk2 Alpha Series Connecting Rods provide a high-strength foundation for performance D-series builds. Forged from 4340 chromoly steel, these rods utilize a precision H-beam design developed through Finite Element Analysis (FEA) to identify and reinforce high-stress points. This straight-beam configuration distributes stress across a larger surface area than standard tapered rods, providing the structural integrity required to handle more than 900 HP.

These rods are manufactured using a two-piece forging process that optimizes grain orientation along the rod cap, increasing strength perpendicular to the stress exerted on the beam. To maximize durability, Skunk2 incorporates dual-offset oil passages at the pin end, ensuring consistent lubrication and cooling for the wrist pin during every phase of the engine cycle. Each rod is shot-peened for fatigue resistance, heat-treated, and magna-fluxed to ensure material integrity.

• Material: Forged 4340 Chromoly Steel
• Design: FEA-Optimized H-Beam

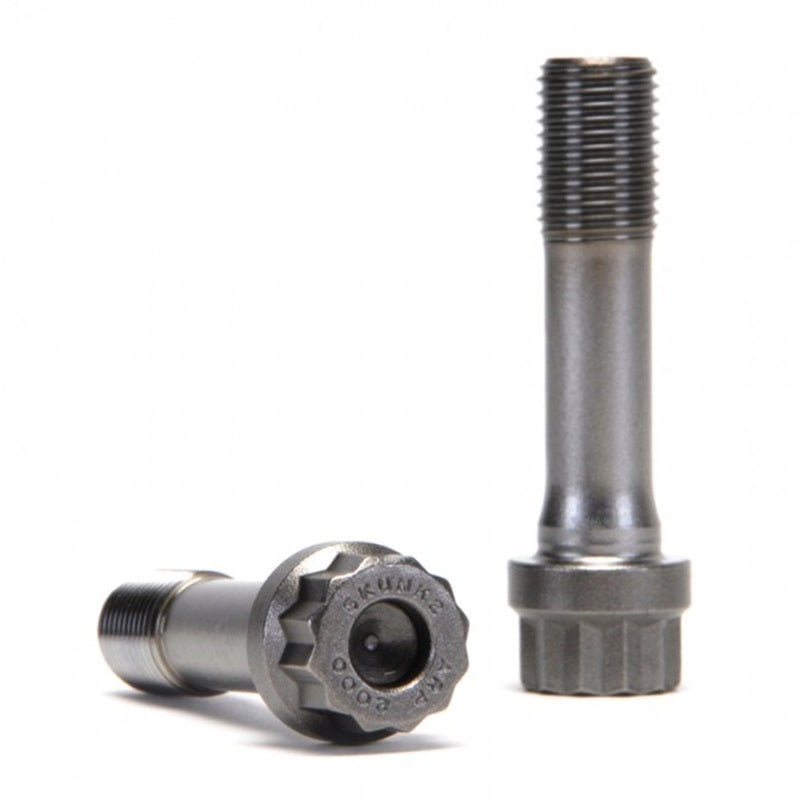

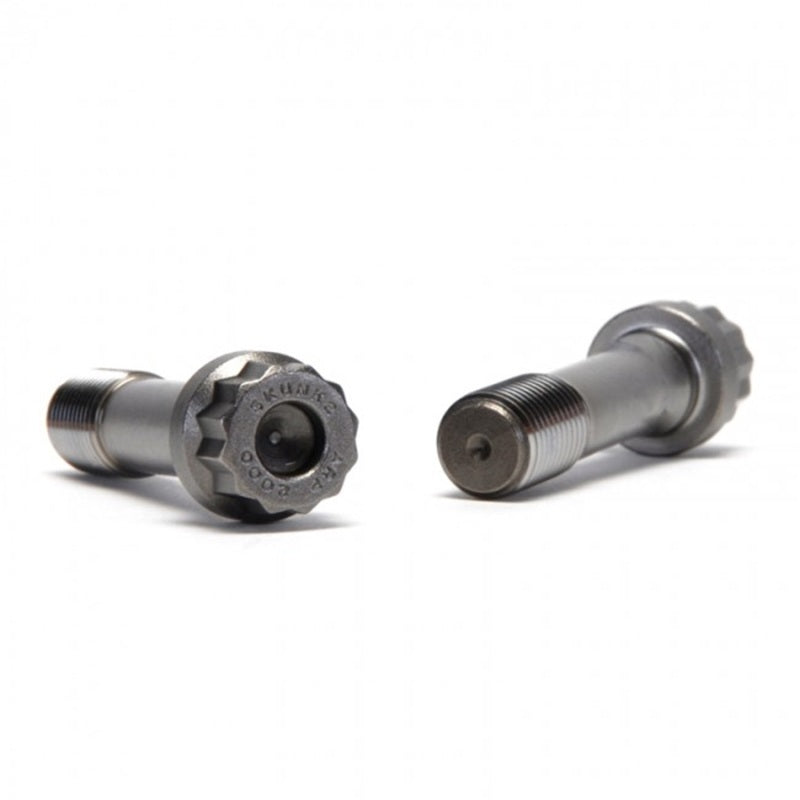

• Hardware: 3/8-in ARP2000/Skunk2 Bolts
• Length: 137.00mm
• Weight: 509g (Balanced +/- 1 Gram)
• Bushings: Bronze Wrist Pin Bushings
• Rating: 900+ HP Capable
• Finish: Shot-Peened and Magna-flux Inspected
• Manufacturer Part Number: 306-05-1110
