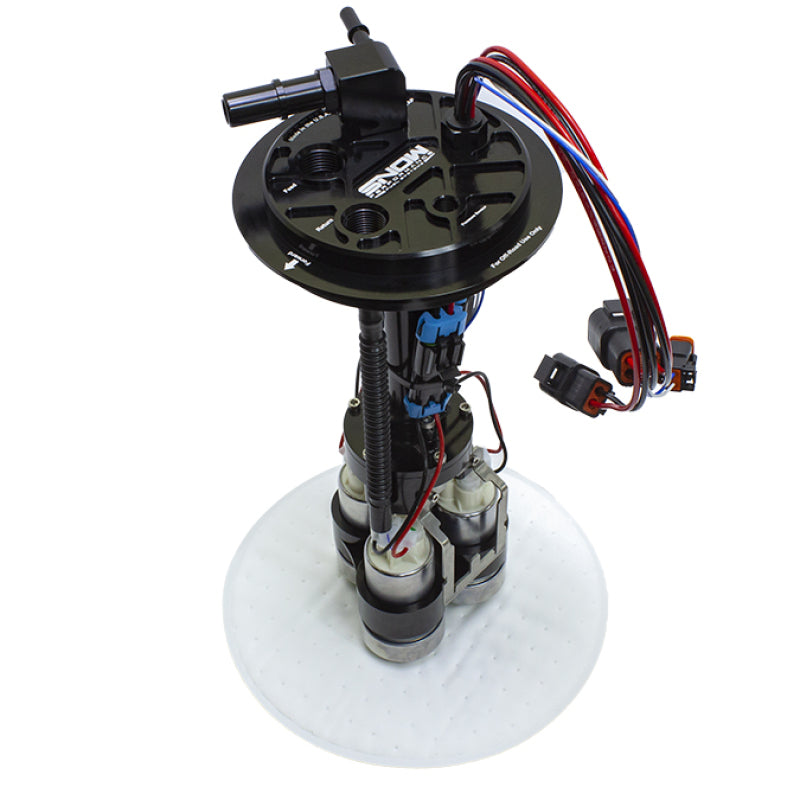

Snow Performance SNF-52700H Triple Pump Billet Fuel Hat for Select 2005-2019 GM Silverado/Sierra 1500

Fits select 2005-2019 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks, including HD, LD, Classic, and Limited models.

The Snow Performance SNF-52700H Multi-Pump Fuel Hat provides a high-output fueling solution for high-horsepower GM half-ton trucks. Engineered to replace the factory fuel hat assembly, this unit features a triple-pump manifold CNC-machined from 6061 billet aluminum. By utilizing internal machined passages and Viton chemical-resistant O-rings, it eliminates the need for failure-prone hose clamps and rubber or plastic lines that often deteriorate in harsh fuel environments.

This fuel hat is designed for durability and ease of installation, retaining essential factory features such as the fuel level sending unit (not included), EVAP system, filler neck, and saddle tank fuel transfer pump functionality where applicable. The black anodized finish ensures long-term corrosion resistance, making the assembly fully compatible with E85 and race fuels.

• Construction: 6061 Billet Aluminum with Black Anodized finish
• Configuration: Triple Pump (Manifold accommodates 2 or 3 pumps)
• Ports: 10AN ORB Feed and 8AN ORB Return
• Pump Compatibility: Designed for genuine TI Automotive (Walbro) 450LPH or 470LPH pumps
• Included: Pump wiring harnesses and fuel level sending unit harness
• Notes: Does NOT include fuel level sending unit or fittings (90-degree swivel adapters sold separately)
• MPN: SNF-52700H
