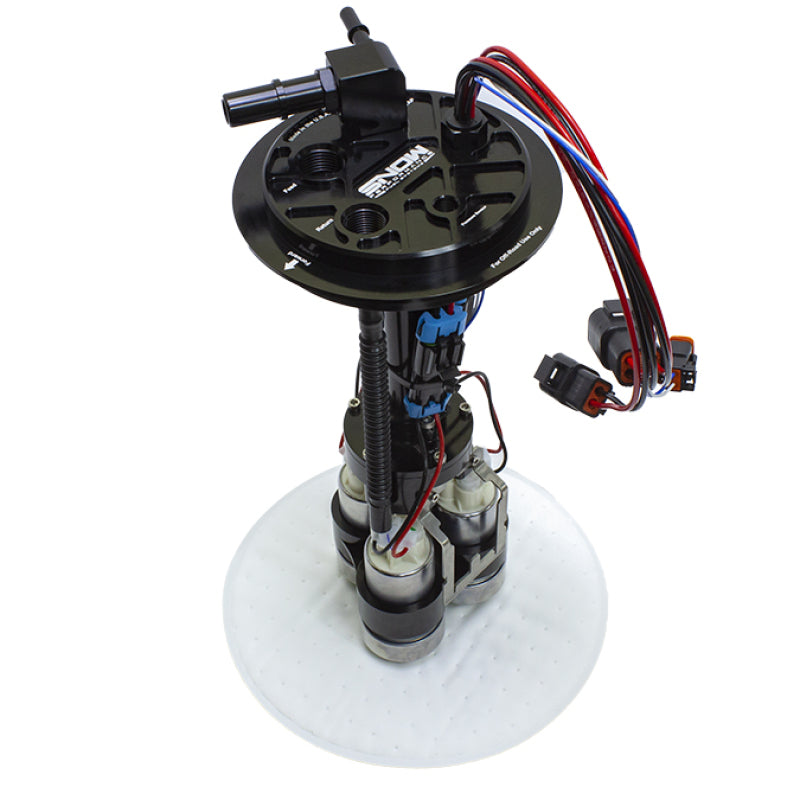

Snow Performance Race Triple Pump Fuel Hat for Select 2005-2019 Chevrolet Silverado & GMC Sierra 1500 - SNF-52700R

Fits select 2005-2019 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks (including Classic, HD, LD, and Limited models).

The Snow Performance Race Series Multi-Pump Fuel Hat provides a high-output fueling solution for high-horsepower GM half-ton trucks. Engineered to replace the restrictive factory fuel bucket, this assembly features a manifold CNC-machined from 6061 billet aluminum. By utilizing internal machined passages, this design eliminates the need for unreliable T-fittings, hose clamps, and rubber lines that often fail or deteriorate in high-performance applications. The assembly is finished in black anodizing for superior corrosion resistance and full compatibility with E85 and other oxygenated race fuels.

This triple-pump hat is designed for return-style fuel systems only and integrates seamlessly with your factory tank features. It retains the OE fuel level sending unit, EVAP system, filler neck, and fuel transfer functionality for saddle-style tanks. All pump mounts use chemical-resistant Viton O-rings to ensure a leak-free seal under high pressure.

• Material: CNC-Machined 6061 Billet Aluminum
• Finish: Black Anodized for E85/Methanol compatibility
• Feed Port: 10AN ORB (Female)
• Return Port: 8AN ORB (Female)
• Pumps: Supports up to 3 genuine TI Automotive (Walbro) fuel pumps
• Hardware: Includes wiring harnesses for pumps and fuel level sending unit
• Compatibility: Requires return-style fuel system conversion
• Origin: Built in the USA
• MPN: SNF-52700R

Note: Fuel level sending unit and 90-degree swivel adapter fittings are sold separately.
