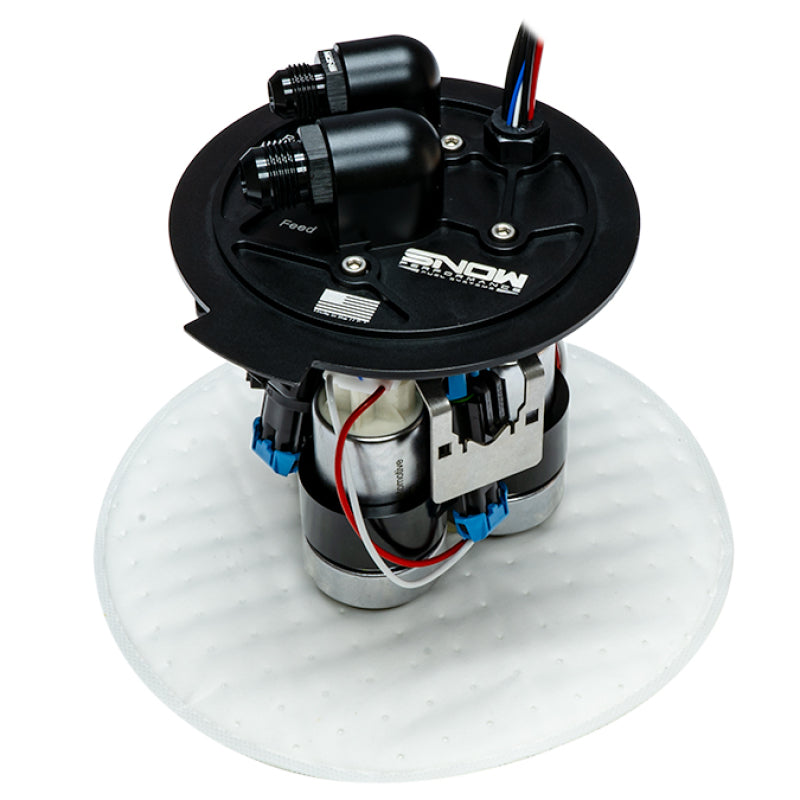

Snow Performance SNF-52200H High Output 3-Pump Fuel Hat for 2009-2015 Cadillac CTS-V & Chevrolet Camaro

Fits select 2009-2015 Cadillac CTS-V and 2010-2015 Chevrolet Camaro (LS, LT, SS, Z/28, ZL1) models. This Snow Performance high-output fuel hat provides a robust solution for high-horsepower builds requiring a multi-pump fuel system.

Engineered to eliminate the common failure points of universal multi-pump upgrades, this assembly replaces unreliable hoses, T-fittings, and hose clamps with a precision-machined 6061 billet aluminum manifold. The CNC-machined internal passages ensure maximum flow and structural integrity. For chemical resistance against harsh fuels like E85, the assembly features Viton O-rings and a durable black anodized finish. This drop-in unit is designed for return-style fuel systems and maintains critical factory functions, including the EVAP system, filler neck, and fuel transfer functionality for saddle-style tanks.

• Manufacturer Part Number: SNF-52200H
• Construction: CNC-machined 6061 billet aluminum with black anodized finish
• Pump Configuration: 3-pump capacity (compatible with TI Automotive/Walbro 450LPH or 470LPH pumps)
• Ports: Female 10AN ORB feed and 8AN ORB return ports
• Fuel Compatibility: 100% Gasoline, E10, E85, and E98 Ethanol blends
• Retention: Supports OE fuel level sending unit and EVAP system (sending unit not included)
• Installation: Includes wiring harnesses for pumps and level sender; requires return-style plumbing
• Origin: Designed and built in the USA
