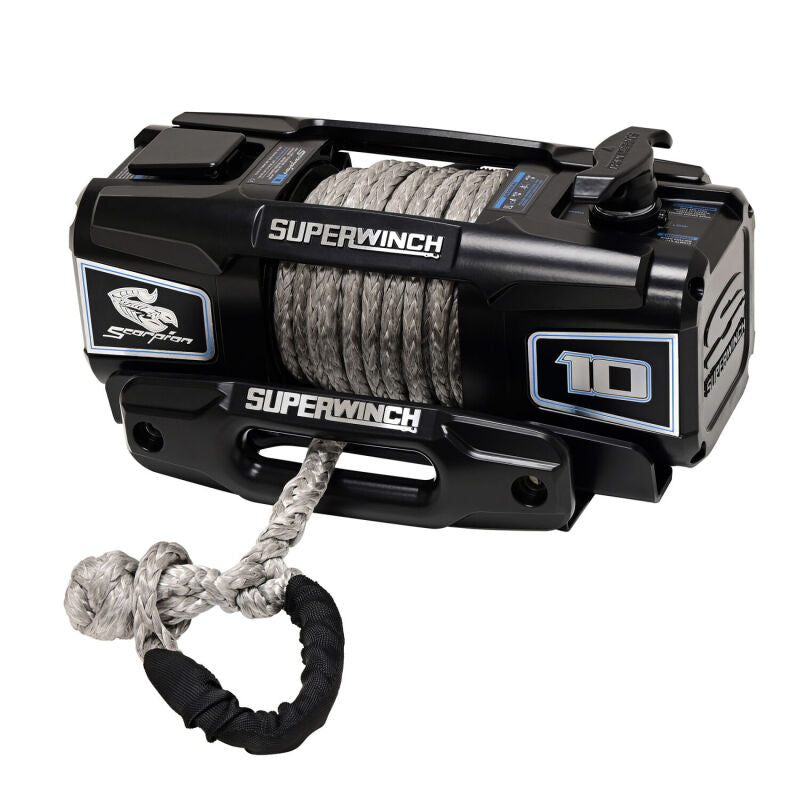

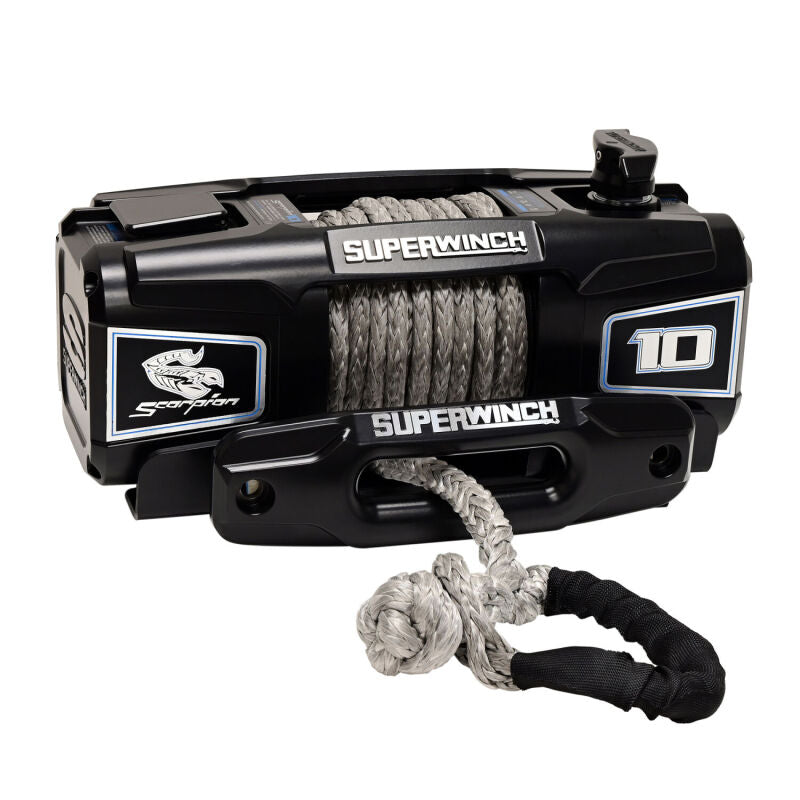

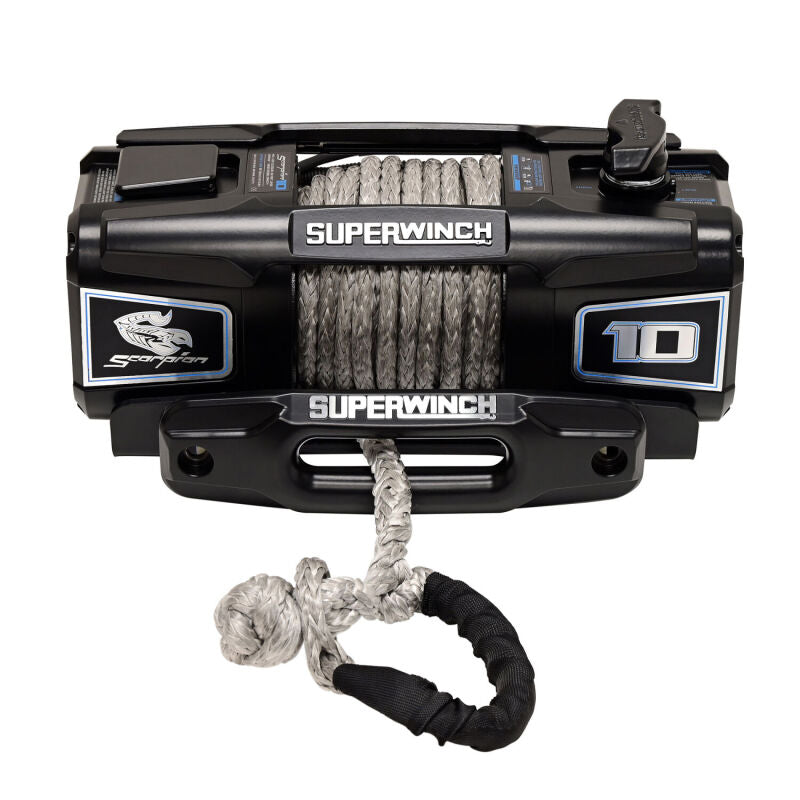

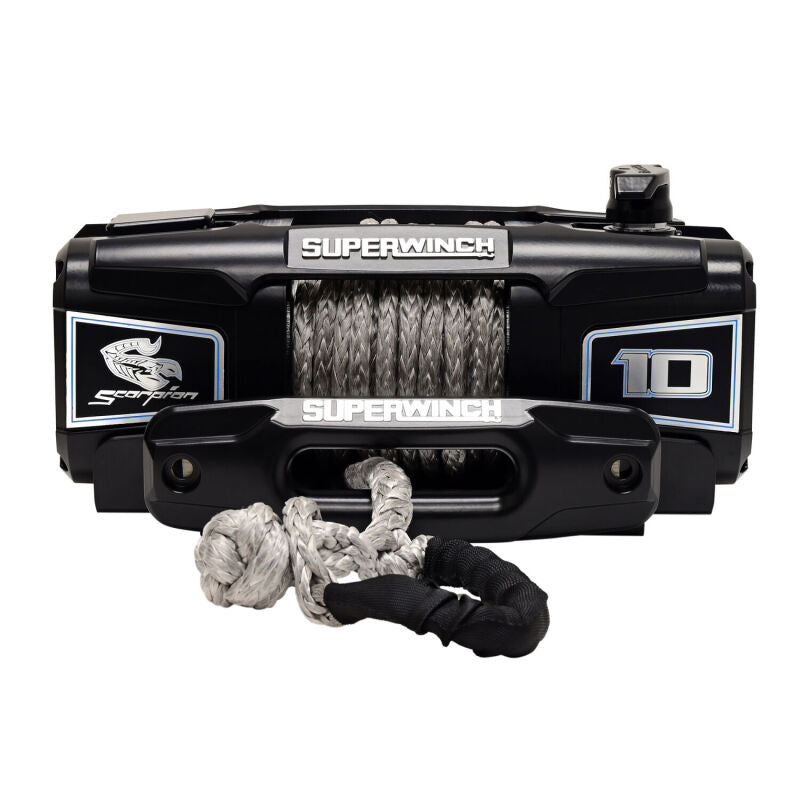

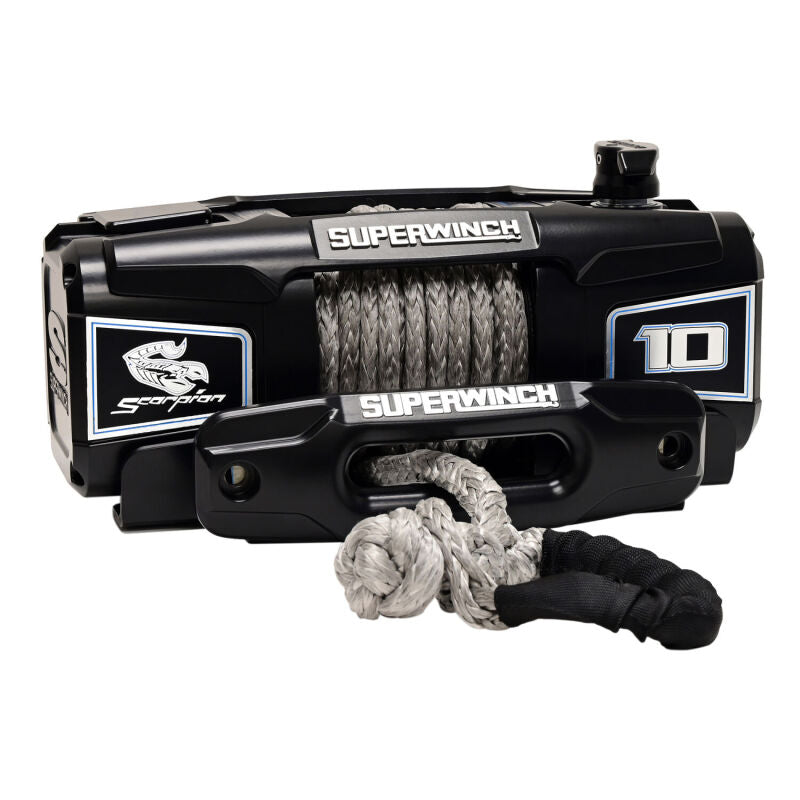

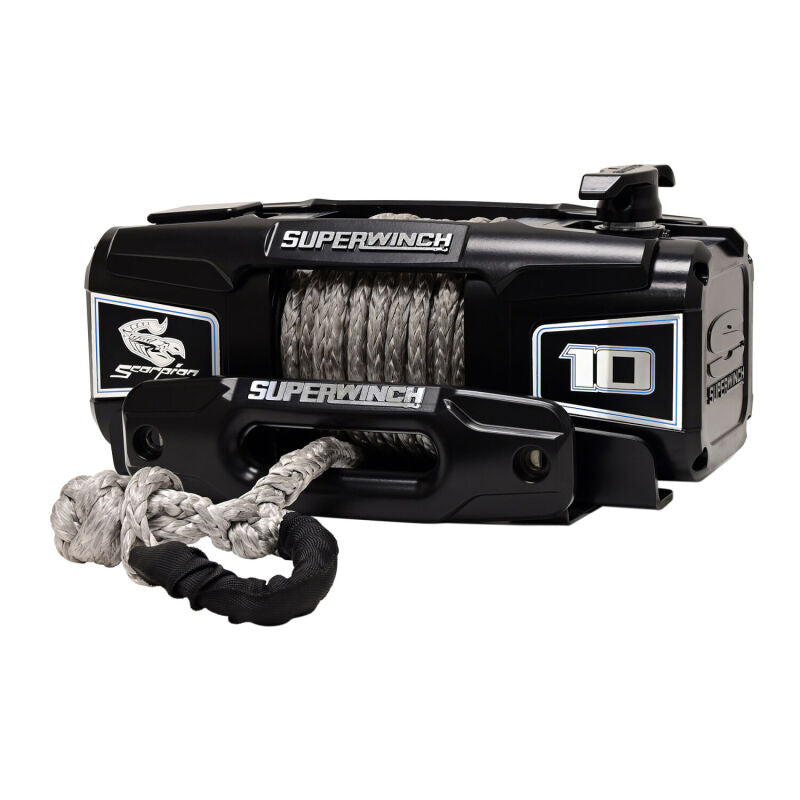

Superwinch Scorpion 10000SR 10,000 lbs 12V DC Winch with 3/8in x 54ft Synthetic Rope - 1155401

The Superwinch Scorpion 10000SR is engineered for high-capacity recovery in a compact footprint, delivering 10,000 lbs. of pulling power without the bulk of traditional winches. This 12V DC unit features a unique 4-stage planetary gear system with dual-range gearing: a 437:1 low gear for maximum torque and a 156:1 high gear for fast line speeds during lighter recoveries. The internal control box design minimizes obstruction, preserving radiator airflow and maintaining a clear field of view for front-facing vehicle cameras.

• Pulling Capacity: 10,000 lbs. (4,536 kg)

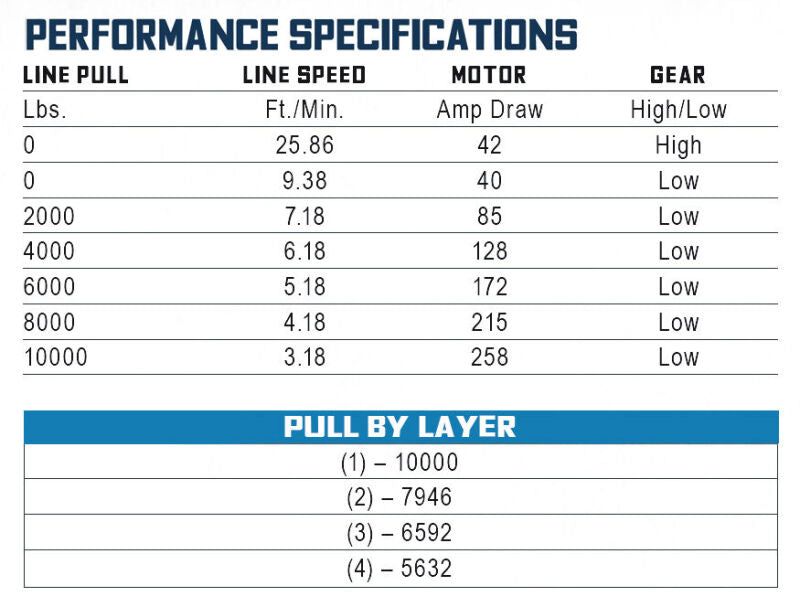

• Dual-Range Gearing: 437:1 (low) for maximum power; 156:1 (high) for speeds up to 3,500 lbs.
• Motor: 12V DC permanent magnet motor with instant dynamic braking.
• Rope: 3/8 in. x 54 ft. synthetic rope featuring an integrated soft shackle to eliminate metal-to-metal hazards.
• Safety Features: Overload Interrupter (OLI) auto-shutoff at 10,000 lbs. and a full load-holding automatic brake.
• Versatility: Clockable gearbox with four mounting orientations and an ergonomic pull-and-turn free-spool clutch.
• Included Accessories: Multi-function wired remote with integrated flashlight, ergonomic wireless remote with MOLLE loop, and a patented drum light for low-light operation.
• Part Number: 1155401

Built for efficiency, the Scorpion 10000SR maintains high performance with low amp draw, allowing for reliable operation from a single battery setup. The black powdercoat finish provides durable corrosion resistance for harsh off-road environments.
