Wilwood 340-12509 Reverse Swing Mount Dual MC Brake Pedal - 6.25:1 Ratio

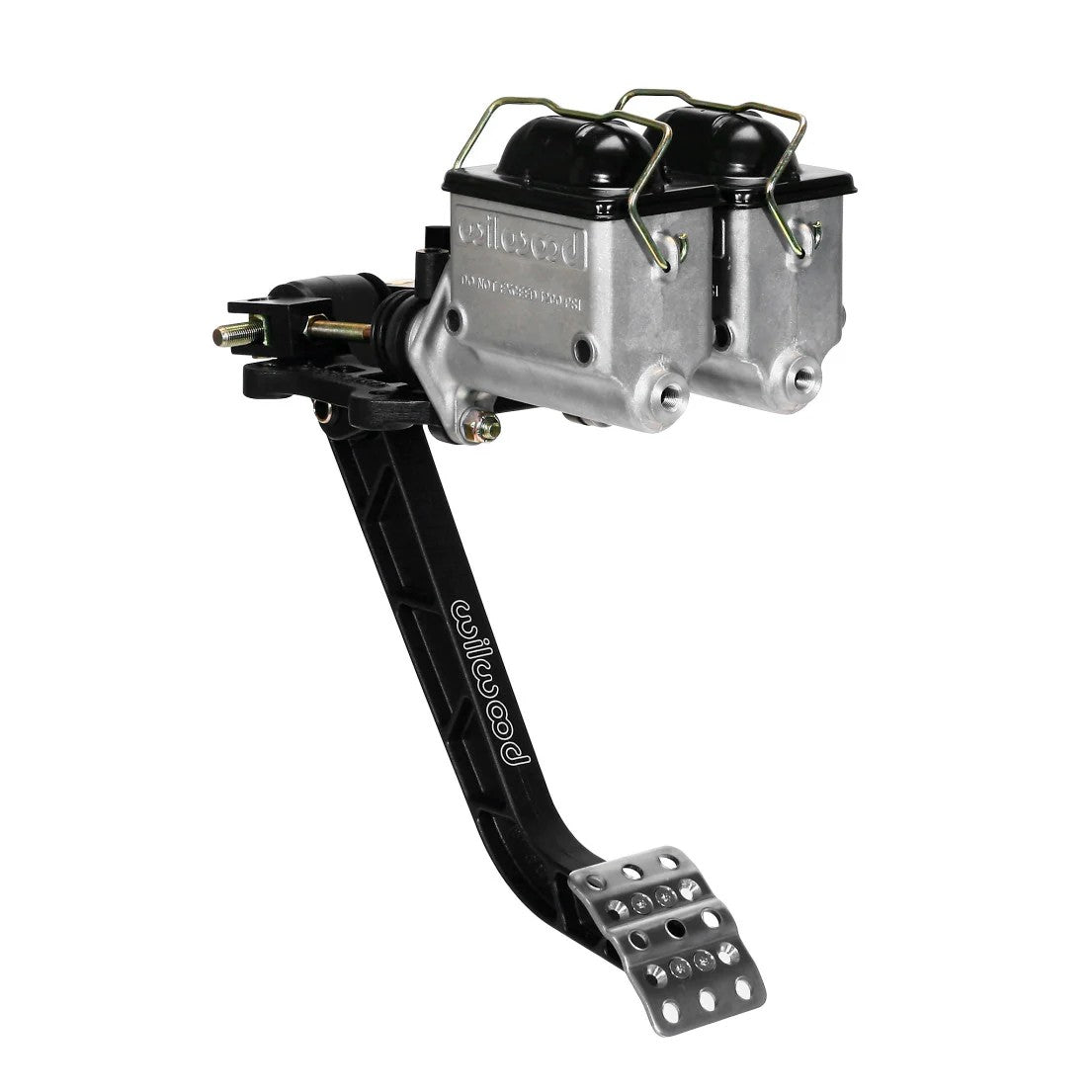

The Wilwood 340-12509 Reverse Swing Mount Brake Pedal assembly is engineered to house two single-outlet master cylinders in a space-saving reverse position inside the firewall. This lightweight, high-strength assembly features a forged I-Beam style aluminum pedal arm with a 6.25:1 ratio, providing the mechanical leverage and rigidity required for demanding performance braking applications.

This pedal offers significant adjustability, including a non-skid waffled pedal pad that can be moved laterally to suit driver ergonomics or clear steering column obstructions. The integrated balance bar uses a positive detent stop system every full turn for precise bias control, which can be locked via the included jam nut or linked to an optional remote cable for on-the-fly adjustments. A specialized pin and clevis pushrod attachment ensures a high degree of misalignment clearance for bind-free operation through the entire range of travel.

• Manufacturer Part Number: 340-12509
• Mounting Style: Reverse Swing
• Pedal Ratio: 6.25:1
• Material: Forged aluminum I-Beam frame and arm
• Hardware: Includes balance bar with positive detent stops and jam nut
• Compatibility: Accepts Wilwood vertical mount flange single-outlet master cylinders (sold separately)
