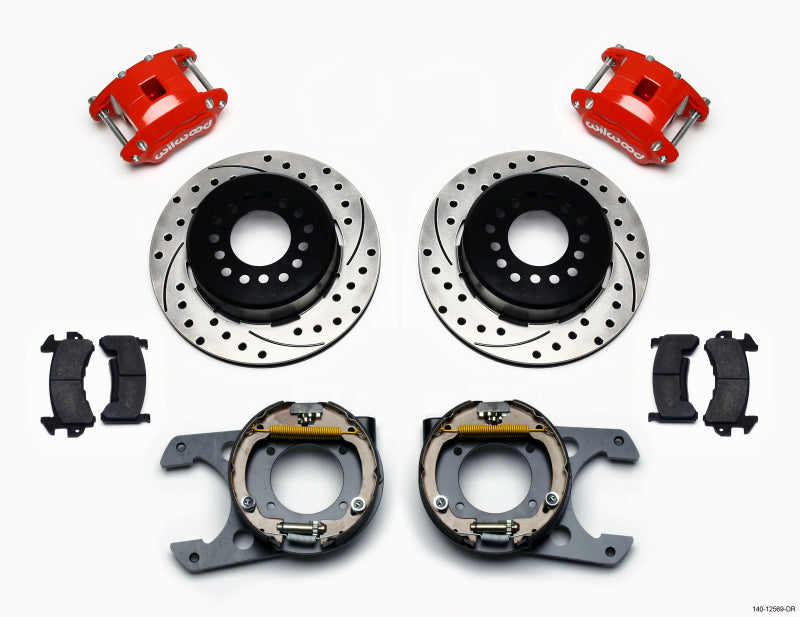

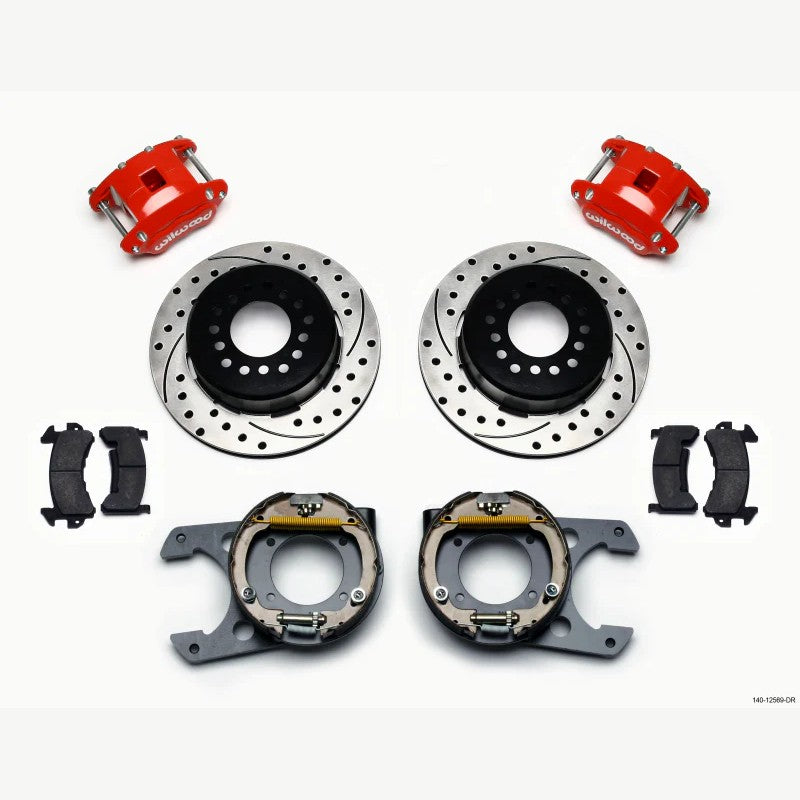

Wilwood D154 Pro-Series Rear Parking Brake Kit with Red Calipers & Drilled Rotors for Select 1975-1987 Chevrolet/GMC (2.42 Offset, 5-Lug)

Fits select 1975-1987 Chevrolet C10, C10 Suburban, K5 Blazer, R10 and GMC C15, C1500, Jimmy, P15, and R1500 models (5-lug with 2.42-inch offset).

The Wilwood D154 Pro-Series rear disc kit provides a comprehensive braking solution for classic GM truck and SUV axles requiring an integrated parking brake. This kit features forged D154 dual-piston calipers in a red powder-coat finish, engineered for balanced clamping force and modern performance. The 12.19-inch one-piece drilled and slotted drum/rotors enhance cooling and gas dissipation while providing a performance aesthetic behind the wheels.

For a clean installation, the internal shoe system is neatly hidden within the rotor hat, offering superior static holding power for parking without cluttering the caliper assembly. These kits are specifically designed to compliment vehicles already utilizing Wilwood D52 or D154 calipers on front OE spindles, ensuring consistent pedal feel and bias.

• Manufacturer Part Number: 140-12569-DR
• Caliper Type: Forged D154 Dual Piston
• Caliper Finish: Red Powder Coat
• Rotor Diameter: 12.19 Inches
• Rotor Style: One-Piece Drilled and Slotted Drum/Rotor
• Axle Offset: 2.42 Inches
• Wheel Lug Pattern: 5-Lug
• Parking Brake: Internal Shoe System
• Hardware: High-friction pads and mounting brackets included
