Wilwood

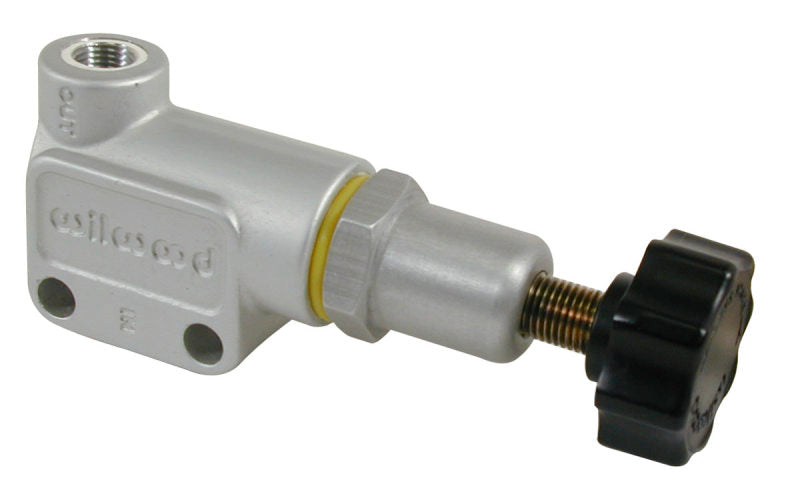

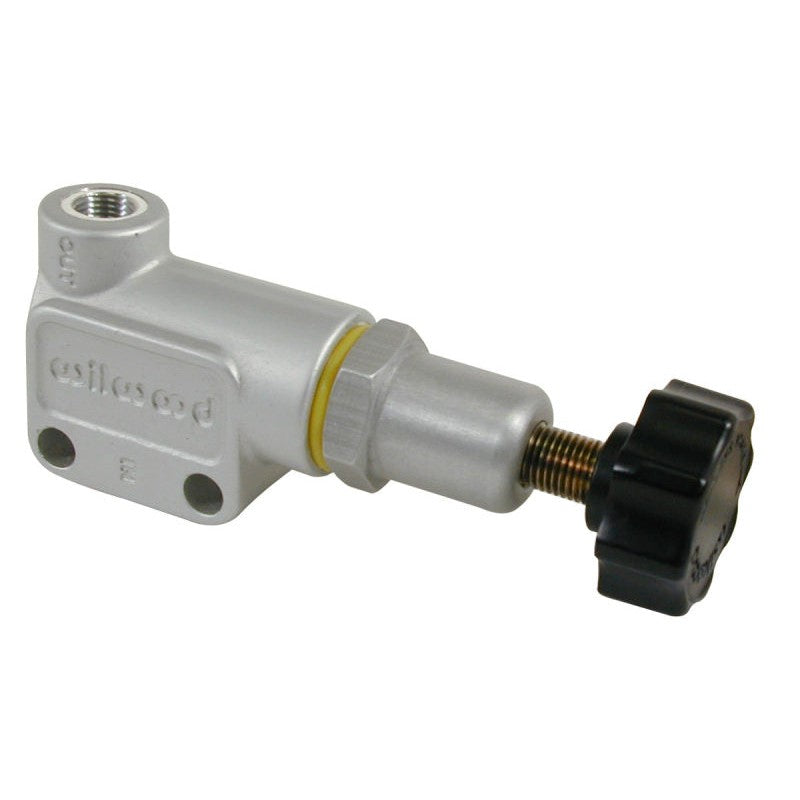

Wilwood Adjustable Knob-Style Proportioning Valve - 3/8-24 IF Inlet/Outlet (260-10922)
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fine-tune your vehicle's braking bias with the Wilwood 260-10922 adjustable proportioning valve. This valve allows for precise pressure metering to the rear brakes, helping to eliminate rear-wheel lockup during heavy braking by proportionally decreasing line pressure. Designed for performance and longevity, it features a compact forged billet body for superior strength and a fine-thread adjustment knob for accurate tuning.
This specific model is engineered with 3/8-24 inverted flare (IF) inlet and outlet ports, allowing for the direct installation of 3/16-inch brake tubing without the need for additional tube nut adapters. The internal mechanism provides the widest range of adjustment on the market, capable of reducing line pressure by up to 57%.
- Manufacturer Part Number: 260-10922
- Pressure Range: 100 - 1000 PSI
- Pressure Reduction: Up to 57% maximum decrease
- Port Size: 3/8-24 Inverted Flare (IF) Inlet and Outlet
- Construction: Forged billet aluminum body
- Weight: 5.2 ounces
- Mounting: Two 0.25-inch side holes spaced 1.00-inch apart
- Compatibility: Direct fit for 3/16-inch tubing with 3/8-24 nuts
Choose your Location
-
Atlus
1340 Cobb Dr, Unit 1, Eustis, FL 32736
352-234-4458
Mon – Fri: 8:30 am – 4:30 pm
Sat: 9:00 am – 2:00 pm
Sun: Closed
Product Comparison
How they are Different
|
__ __ |
|
|---|---|
| Description |
Description - __ |
| Rating |
Rating - __ |
| Vendor |
Vendor - __ |
| Color |
Color - __ |
|
|
Compare products ( / )
The Atlus Price Guarantee
If you can find the part for a lower price from an authorized dealer/shop, we'll match the price! Reach out to Hello@AtlusAuto.com, our live chat located at the bottom right of your screen, or request an Atlas Price Guarantee, or visit our dedicated APG page to submit a request.
Wilwood Adjustable Knob-Style Proportioning Valve - 3/8-24 IF Inlet/Outlet (260-10922)
This product will be available soon, but you can pre-order now to get on the list before others!
US Based Support - In Florida
30 Days Satisfaction Guarantee
Price Match
Our prices are updated daily to ensure we can offer you the best possible price. In the unlikely case that you have found a lower price, please contact us at hello@atlusauto.com and we'll do our best to answer your query right away!
Easy Financing
We've partnered up with Affirm/Shop!
Why use Affirm/Shop?
- Clear application process
- Friendly support team
- Spread a big payment interest-free
- Ability to buy what you want
How does it work?
- Add your purchase to cart
- Select Shop Payments at checkout
- Complete the application
- Compare any available finance options
Share:
Fine-tune your vehicle's braking bias with the Wilwood 260-10922 adjustable proportioning valve. This valve allows for precise pressure metering to the rear brakes, helping to eliminate rear-wheel lockup during heavy braking by proportionally decreasing line pressure. Designed for performance and longevity, it features a compact forged billet body for superior strength and a fine-thread adjustment knob for accurate tuning.
This specific model is engineered with 3/8-24 inverted flare (IF) inlet and outlet ports, allowing for the direct installation of 3/16-inch brake tubing without the need for additional tube nut adapters. The internal mechanism provides the widest range of adjustment on the market, capable of reducing line pressure by up to 57%.
- Manufacturer Part Number: 260-10922
- Pressure Range: 100 - 1000 PSI
- Pressure Reduction: Up to 57% maximum decrease
- Port Size: 3/8-24 Inverted Flare (IF) Inlet and Outlet
- Construction: Forged billet aluminum body
- Weight: 5.2 ounces
- Mounting: Two 0.25-inch side holes spaced 1.00-inch apart
- Compatibility: Direct fit for 3/16-inch tubing with 3/8-24 nuts
Authencity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
Can’t Find the Part You Need?
Our catalog represents only a portion of the automotive products available through our supplier network. If you cannot find a specific part, brand, or application on our website, submit a request below, and our team will help source it for you.
Please include as much information as possible, such as your vehicle's year, make, model, trim, engine, desired brand, or part number, to help us quickly identify the correct product.
