The Aeromotive A1000 Series Adjustable EFI Fuel Pressure Regulator (MPN 13138) delivers precise fuel delivery for medium to high horsepower EFI applications. This next-generation design features a compact, lightweight profile finished in a deep black bright-dip anodize on both the cap and base. Engineered to complement A1000-class pumps and smaller, it maintains stable rail pressure under demanding flow conditions.

Constructed with (2) -6 AN ORB inlet/outlet ports and (1) -6 AN ORB return port, this regulator provides flexible plumbing options for custom fuel systems. The integrated 1:1 vacuum/boost reference ratio makes it ideal for forced induction setups, while the dedicated 1/8-inch NPT port allows for the direct installation of a fuel pressure gauge.

• Manufacturer Part Number: 13138
• Adjustable base pressure range: 40-75 PSI
• 1:1 vacuum/boost reference ratio for forced induction
• Ports: (2) -6 AN ORB Inlet/Outlet; (1) -6 AN ORB Return
• Gauge Port: 1/8-inch NPT
• Compatible with gasoline, ethanol (E85), methanol, and diesel
• CNC-machined aluminum construction with black anodized finish

The Aeromotive 13137 Extreme-Flow EFI Regulator is engineered to manage the high-volume requirements of belt-driven or hex-drive fuel pumps. Featuring a massive 0.500-inch high-flow valve and seat assembly, this regulator is capable of handling fuel pumps with flow rates between 7 and 32 GPM. Its compact, two-port body design utilizes dual ORB-12 inlet ports and a single ORB-12 return port to minimize flow restriction in high-horsepower applications.

This regulator utilizes a dual-spring design to provide a wide operating pressure range while maintaining a low-profile, lightweight housing. The pre-installed standard spring supports base pressures from 30 to 75 PSI, while the included high-pressure spring extends that range from 75 to 120 PSI. It features a 1:1 vacuum/boost reference ratio for precise fuel mapping under forced induction.

• Manufacturer Part Number: 13137
• Flow Capacity: 7-32 GPM
• Pressure Range: 30-120 PSI (Adjustable via included dual springs)
• Valve/Seat Diameter: 0.500 inches
• Inlet Ports: Dual ORB-12
• Return Port: Single ORB-12
• Reference Ratio: 1:1 Vacuum/Boost

The Aeromotive 13136 Billet EFI Bypass Regulator delivers precise fuel pressure control in a compact, lightweight package designed for space-constrained engine bays. Engineered to support applications up to 1000 HP, this regulator is built to handle high-flow EFI fuel pumps and the demands of aggressive street or track machines.

Constructed from CNC-machined 6061 T6 billet aluminum, the 13136 features a 1:1 boost reference ratio and a base pressure range of 40-75 psi. The dual ORB-06 inlet ports and single ORB-06 return port provide flexible plumbing options, finished in a bright dip black anodized coating for superior corrosion resistance and a clean aesthetic.

• Manufacturer Part Number: 13136
• Pressure Range: Adjustable from 40-75 psi
• Ratio: 1:1 fuel pressure rise with boost
• Ports: (2) ORB-06 inlets, (1) ORB-06 return
• Gauge Port: 1/8" NPT
• Vacuum Port: Integrated vacuum/boost port
• Material: CNC-machined 6061 T6 billet aluminum
• Finish: Bright dip black anodized
• Capacity: Supports up to 1000 HP

The Aeromotive 13134 Extreme Flow EFI Regulator is engineered to manage high-volume fuel delivery in high-performance EFI systems. This regulator is specifically optimized for use with Aeromotive Eliminator, Pro Pump, and Dual A1000 fuel systems. Featuring a massive 0.313-inch high-flow valve and seat assembly, it is capable of handling fuel pumps with outputs ranging from 3 to 9 GPM.

Built with a compact 2-port body, the 13134 includes dual AN-10 inlet/outlet ports and one AN-10 bypass (return) port. The regulator utilizes a dual-spring design to provide a wide operating pressure range without increasing the physical footprint or weight. It includes a standard spring for base pressures of 30-75 PSI and a high-pressure spring for 75-120 PSI. For forced induction applications, it provides a precise 1:1 vacuum/boost reference ratio.

• Manufacturer Part Number: 13134
• Inlet/Outlet Ports: Dual AN-10
• Return/Bypass Port: AN-10
• Valve/Seat Size: 0.313" High Flow
• Flow Capacity: Supports 3-9 GPM pumps
• Adjustable Pressure Range: 30-75 PSI (Standard) or 75-120 PSI (High Pressure)
• Reference: 1:1 Vacuum/Boost reference

The Aeromotive 13133 Extreme Flow EFI Regulator is engineered specifically for high-volume fuel systems utilizing belt or hex drive fuel pumps. Featuring an expanded 5-port body and a massive 0.500-inch high-flow valve and seat assembly, this regulator is capable of managing high-output fuel pumps with flow rates ranging from 7 to 26 GPM.

Equipped with a dual-spring design, this unit maintains a low profile and reduced weight while offering an exceptionally broad operating range. The pre-installed standard spring supports base pressures from 30-75 PSI, while the included high-pressure spring extends that range from 75-120 PSI. It provides a true 1:1 vacuum and boost reference ratio for precise fuel management under forced induction.

• Manufacturer Part Number: 13133
• Inlet Port: (1) AN-10
• Outlet Ports: (4) AN-08
• Return/Bypass Port: (1) AN-10
• Valve/Seat Size: 0.500 inch
• Flow Rating: 7-26 GPM
• Pressure Range: 30-120 PSI (standard and high-pressure springs included)
• Reference: 1:1 Vacuum/Boost

The Aeromotive 13132 High-Flow Fuel Pressure Regulator provides precise fuel pressure management for high-horsepower applications. Engineered to handle high-volume fuel systems, this regulator features a massive .500-inch internal valve specifically designed to prevent pressure creep by efficiently bypassing excess fuel back to the tank.

• Adjustable pressure range from 30 to 120 PSI
• High-flow .500-inch internal valve/orifice
• Dual AN-10 inlet ports and one AN-10 bypass port
• CNC-machined from 6061-T6 billet aluminum for durability
• Compatible with gasoline, E85, and alcohol-based fuels
• Ideal for use with high-volume electric or belt-driven fuel pumps
• Manufacturer Part Number: 13132

The Aeromotive A1000-6 Injected Bypass Regulator (MPN 13131) provides precise, adjustable fuel pressure control for high-performance EFI systems. This bypass-style regulator is engineered to handle high-flow fuel pumps, maintaining consistent rail pressure by returning excess fuel to the tank, which helps prevent pump overheating and cavitation.

• Bypass design ensures superior pressure stability and fuel pump longevity
• CNC-machined from 6061-T6 billet aluminum for precision and durability
• Two -6 AN ORB inlet ports and one -6 AN ORB return port
• Adjustable EFI pressure range to suit various performance fuel injection requirements
• Black anodized finish for maximum corrosion resistance
• Manufacturer Part Number: 13131

The Aeromotive 13130 kit is a high-performance fuel management solution centered around the race-proven A1000 EFI Bypass Regulator. Designed to handle high-flow fuel pumps and demanding street or track conditions, this kit utilizes aerospace-grade tolerances and meticulous engineering to maintain precise, stable fuel pressure at the rail.

• CNC-machined billet aluminum construction for maximum durability and corrosion resistance
• Bypass design ensures consistent pressure regulation even under fluctuating loads
• Comprehensive kit includes the A1000 regulator and necessary adapter fittings
• Engineered for EFI applications requiring high-volume fuel delivery
• Manufacturer Part Number: 13130

The Aeromotive 13129 EFI Bypass Regulator provides professional-grade fuel pressure management in a compact, lightweight package designed for high-performance EFI applications. Capable of supporting up to 1000 HP, this regulator is engineered to handle high-flow fuel pumps while fitting into tight engine bays where space is limited. It features a base pressure range of 40-75 psi and maintains a consistent 1:1 fuel pressure rise in response to manifold boost.

Constructed from CNC-machined 6061 T6 billet aluminum and finished in a durable bright dip black anodizing, this unit offers both aesthetic appeal and long-term corrosion resistance. The bypass design ensures stable rail pressure by returning excess fuel to the tank, making it an ideal choice for aggressive street machines and track builds.

• Manufacturer Part Number: 13129
• Material: CNC-machined 6061 T6 billet aluminum
• Inlet/Outlet Ports: Two (2) -06 ORB
• Return Port: One (1) -06 ORB
• Gauge Port: 1/8-inch NPT
• Adjustment Range: 40-75 PSI base pressure
• Boost Reference: 1:1 manifold pressure ratio
• Horsepower Rating: Supports up to 1000 HP
• Finish: Bright dip black anodized
• Vacuum boost port included

The Aeromotive 13128 is a high-flow adjustable EFI fuel pressure regulator engineered for medium to high horsepower applications. Designed for both street and track use, this regulator provides precise pressure control and features a bright dip black anodized finish. It supports a base pressure range of 40-75 psi and includes a vacuum/boost port for a 1:1 rising rate ratio.

• Manufacturer Part Number: 13128
• Inlet Ports: (2) -10 ORB
• Return Port: (1) -06 ORB
• Gauge Port: 1/8-inch NPT
• Adjustable Pressure Range: 40-75 psi
• Boost Reference: 1:1 Ratio
• Fuel Compatibility: Gasoline and alcohol/ethanol
• Finish: Bright Dip Black Anodized

The Aeromotive 13113 Belt Drive EFI Regulator is an ultra-high flow solution engineered specifically for high-output engines utilizing mechanical belt-drive or hex-drive fuel pumps. Designed to manage extreme fuel volume, this regulator is capable of supporting up to 4,000 HP on gasoline and is fully compatible with both gasoline and methanol fuel systems. It is the ideal choice for any mechanically driven EFI setup delivering over 200 GPH at EFI pressures.

This regulator features a 1:1 vacuum/boost reference ratio and includes two distinct boost line adapters: a barbed fitting for standard rubber hoses and an AN-04 adapter for braided lines to prevent blow-off in high-boost applications. Integrated ports accommodate nitrous fuel supplies, pressure gauges, and data transducers for comprehensive system monitoring.

• Base pressure adjustable from 40-100 PSI
• (4) ORB-08 inlet ports and (1) ORB-10 inlet port
• (1) ORB-10 return port
• Compatible with gasoline and methanol fuels
• Supports up to 4,000 HP on gasoline
• Includes barbed and AN-04 boost line adapters
• Manufacturer Part Number: 13113

The Aeromotive 13110 Pro-Series EFI Boost Reference Regulator is engineered for high-horsepower EFI applications, capable of supporting fuel delivery for engines up to 2000 HP. Designed for high-volume and high-pressure systems, it is an ideal match for Aeromotive Pro-Series, Brushless 3.5, and Brushless 5.0 electric pumps, as well as 6-GPM mechanical pumps. The regulator provides a stable 1:1 vacuum/boost reference ratio to ensure precise fueling under load.

• Pressure Range: Adjustable 30-75 PSI (standard spring) or 75-125 PSI (included high-pressure spring)
• Inlet Ports: Three ORB-08 and one ORB-10 inlet ports for versatile plumbing
• Return Port: One ORB-10 return port
• Included Hardware: Two AN-08 flare adapters, one AN-10 flare adapter, port plugs, and two boost line adapters (barbed and AN-04)
• Auxiliary Port: Dedicated 1/8-inch NPT port for pressure gauges or transducers
• Construction: Electroless nickel-plated body for corrosion resistance with a Type II black anodized cap
• Part Number: 13110

The Aeromotive A1000-6 Injected Bypass Adjustable EFI Regulator (MPN 13109) is engineered for medium to high horsepower builds requiring precise fuel management. Featuring a high-flow internal design, this regulator handles both gasoline and alcohol-based fuels while maintaining a stable base pressure between 40 and 75 PSI. The integrated vacuum/boost port provides a true 1:1 compensation ratio, making it an ideal choice for forced induction or high-performance naturally aspirated EFI systems.

• Manufacturer Part Number: 13109
• Adjustable Base Pressure: 40-75 PSI
• Boost/Vacuum Reference Ratio: 1:1
• Inlet Ports: (2) ORB-06
• Return Port: (1) ORB-06
• Gauge Port: 1/8-inch NPT
• Fuel Compatibility: Gasoline and alcohol
• Application: Medium to high horsepower EFI systems

Fits select 1994-1997 Chevrolet Camaro, Impala SS, and Pontiac Firebird (3.1L / 3.4L).

Designed for precise fuel management, the Aeromotive 13107 Billet LT1 Regulator allows you to fine-tune your fuel system to match your engine's specific requirements. This rail-mount EFI regulator replaces the factory unit, providing a stable 30-70 PSI adjustment range. It features a 1:1 ratio for boost-referenced applications, ensuring fuel pressure rises at the same rate as manifold pressure for forced induction setups.

Constructed from CAD-designed and CNC-machined billet aluminum, this regulator is built for durability and consistent performance. The internal stainless steel spring is custom-engineered for exact pressure control, eliminating the variance common with stock stamped-steel regulators. For those upgrading their fuel system, the return adapter can be replaced with Aeromotive P/N 15606 to accommodate a -06 AN return line.

• Manufacturer Part Number: 13107
• Adjustment Range: 30-70 PSI
• Ratio: 1:1 Boost Reference
• Material: CNC-machined billet aluminum
• Spring: Stainless steel for precise control
• Mounting: Direct rail mount
• Compatibility: Compatible with factory fuel rails; adaptable to -06 AN return with P/N 15606

The Aeromotive 13105 Compact Billet Adjustable EFI Fuel Pressure Regulator is engineered for high-performance applications where engine bay space is limited. Capable of supporting fuel systems for engines up to 1,000 HP, this regulator is the ideal solution for EFI delivery systems designed with a single inlet port. It utilizes a 1:1 boost reference ratio, providing a precise increase in fuel pressure relative to manifold pressure for forced induction setups.

• Adjustable from 30 to 70 PSI
• Includes removable AN-06 male fittings for both inlet and return ports to simplify plumbing
• Equipped with a dedicated 1/8" NPT gauge port opposite the side inlet
• CNC-machined billet aluminum construction for durability and pressure stability
• 1:1 manifold pressure reference ratio
• Manufacturer Part Number: 13105

Fits 1986-1995 Ford Mustang GT, LX, SVO, GTS, and SVT Cobra.

The Aeromotive 13103 Billet Adjustable Fuel Pressure Regulator is a high-performance solution for enthusiasts needing precise control over their fuel system. Designed to bolt directly to the factory fuel rail, this regulator replaces the fixed-pressure OEM unit, allowing you to fine-tune rail pressure to accommodate engine modifications and optimize air-fuel ratios.

Engineered with aerospace-grade tolerances, this regulator is CNC-machined from 6061 T6 billet aluminum for exceptional durability and a professional finish. It provides the reliable, stable pressure regulation required for both naturally aspirated and forced induction Ford platforms.

• Direct bolt-on installation to factory Ford fuel rails
• CNC-machined 6061 T6 billet aluminum construction
• Fully adjustable design for precise fuel pressure tuning
• Manufactured to aerospace-grade tolerances for maximum reliability
• Manufacturer Part Number: 13103

Fits select 1994-1999 Ford vehicles (4.6L / 5.0L / 5.4L).

The Aeromotive 13102 Billet Adjustable Fuel Pressure Regulator is engineered to handle the increased fueling demands of high-performance Ford engines. Designed for a straightforward installation, this unit bolts directly to the factory fuel rail, replacing the non-adjustable stock regulator to provide precision tuning of your fuel system.

CNC-machined from billet aluminum for durability, this regulator features a custom-designed stainless steel spring that ensures accurate fuel control across the entire pressure range. It utilizes a 1:1 vacuum/boost reference ratio, providing a pound-for-pound increase in fuel pressure relative to manifold boost—critical for maintaining safe air-fuel ratios in forced induction applications.

• Part Number: 13102
• Adjustable range: 30-70 PSI
• 1:1 fuel pressure rise ratio for boost reference
• Integrated 1/8-inch NPT gauge port
• Direct-fit mounting for stock Ford fuel rails
• Includes installation hardware (O-rings and gaskets)

The Aeromotive A1000 Adjustable EFI Bypass Regulator is engineered for medium to high horsepower applications, providing the high-flow capacity and precise pressure control required for demanding street and track environments. This regulator is designed to maintain consistent fuel rail pressure even under extreme conditions, featuring a vacuum/boost reference port to provide a 1:1 ratio rise in fuel pressure.

• Base pressure adjustable from 40-75 PSI
• Fuel pressure rises on a 1:1 ratio with boost/vacuum reference
• Two (2) ORB-10 inlet ports and one (1) ORB-06 return port
• Integrated 1/8" NPT gauge port
• Compatible with gasoline, ethanol (E85), and alcohol-based fuels
• High-flow design suitable for medium to high horsepower EFI systems
• Manufacturer Part Number: 13101

Maintain consistent fuel pressure and restore the performance of your Aeromotive regulator with the Aeromotive 13009 Fuel Pressure Regulator Repair Kit. Designed specifically for servicing and rebuilding high-performance fuel systems, this kit ensures your regulator continues to operate within precise aerospace-grade tolerances.

This genuine Aeromotive service kit provides the essential internal components to refresh a worn or leaking regulator, helping to eliminate erratic fuel pressure and potential engine performance issues. It is engineered as a direct replacement for the internal assemblies of the 13301 and 13351 series regulators.

• Direct repair kit for Aeromotive 13301 and 13351 regulators
• Restores precise fuel pressure control and stability
• Manufactured to exacting aerospace-grade tolerances and procedures
• Includes necessary internal service components for a complete refresh
• Manufacturer Part Number: 13009

Restore the precision and reliability of your fuel system with the Aeromotive 13006 Carbureted Fuel Pressure Regulator Service Kit. This kit provides the critical internal components needed to rebuild your existing regulator, allowing you to maintain consistent fuel delivery and eliminate issues like pressure creep or external leaks without replacing the entire unit.

Over time, diaphragms and seals can wear due to fuel exposure and high-cycle use. This service kit is engineered to Aeromotive's exacting standards to ensure a perfect fit and factory-spec performance. It is a vital maintenance solution for racers and performance enthusiasts running high-flow carbureted setups.

• Manufacturer Part Number: 13006
• Direct replacement internal components for carbureted regulators
• Restores accurate fuel pressure regulation and sealing integrity
• Designed for high-flow performance applications

Compatible Aeromotive Regulator Models:

• 13202, 13113, 13209, 13214, 13212, 13133, and 13137

Restore the precision and reliability of your Aeromotive fuel system with the 13003 EFI Fuel Pressure Regulator Service Kit. This genuine Aeromotive rebuild kit allows you to refresh internal components rather than replacing the entire regulator housing, ensuring consistent fuel pressure delivery and preventing leaks caused by worn diaphragms or seals.

Designed specifically for high-performance EFI applications, this kit includes the essential internal hardware and soft goods required to overhaul several popular Aeromotive regulator models. Using genuine Aeromotive parts ensures that tolerances and material compatibility remain consistent with the original equipment standards.

• Manufacturer Part Number: 13003
• Compatible with Aeromotive Regulator P/Ns: 13105, 13106, 13107, 13115, 13116, 13129, 13136, 13155
• Includes genuine replacement diaphragm and internal components
• Restores consistent fuel pressure regulation
• Engineered for high-pressure EFI fuel systems

Maintain the peak performance and reliability of your Aeromotive EFI fuel pressure regulator with the Aeromotive 13001 EFI Fuel Pressure Regulator Repair Kit. Over time, the internal seals and diaphragm within any fuel pressure regulator can degrade due to fuel additives, heat cycles, and general wear, leading to inconsistent fuel pressure, potential leaks, or poor engine performance.

This service kit provides the necessary components to restore precise fuel pressure regulation, ensuring your fuel system delivers consistent pressure to your injectors. By replacing worn internal components, you can extend the service life of your existing Aeromotive regulator, saving the expense of a full replacement.

• Restores optimal fuel pressure regulation
• Replaces critical internal wear components
• Ensures consistent fuel delivery

This repair kit is specifically designed for use with the following Aeromotive EFI Fuel Pressure Regulators:

• Aeromotive P/N 13101
• Aeromotive P/N 13109
• Aeromotive P/N 13114
• Aeromotive P/N 13151
• Aeromotive P/N 13159

Refer to your regulator's installation instructions for detailed rebuild procedures.

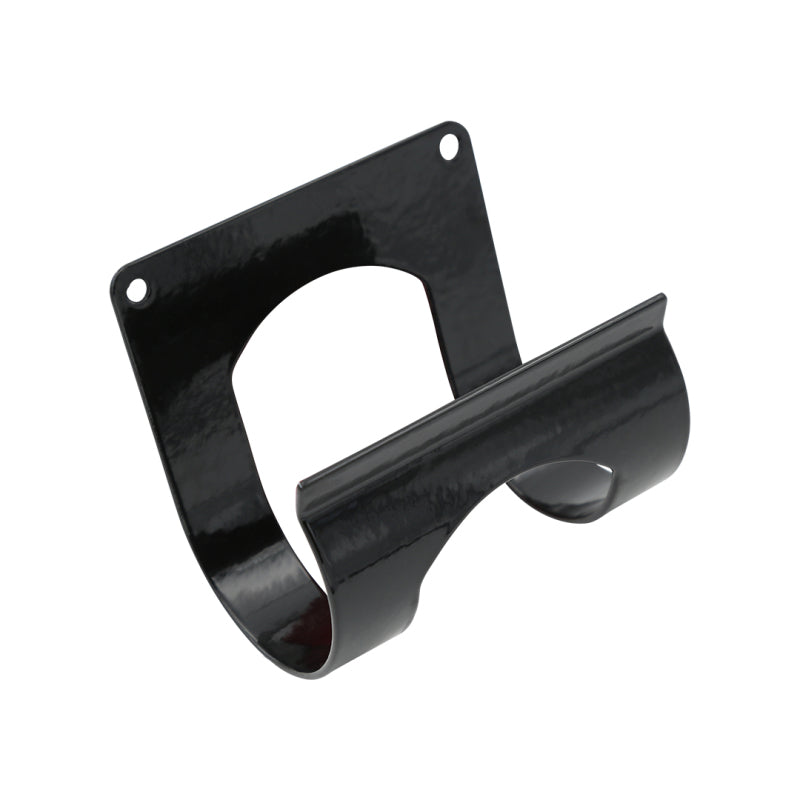

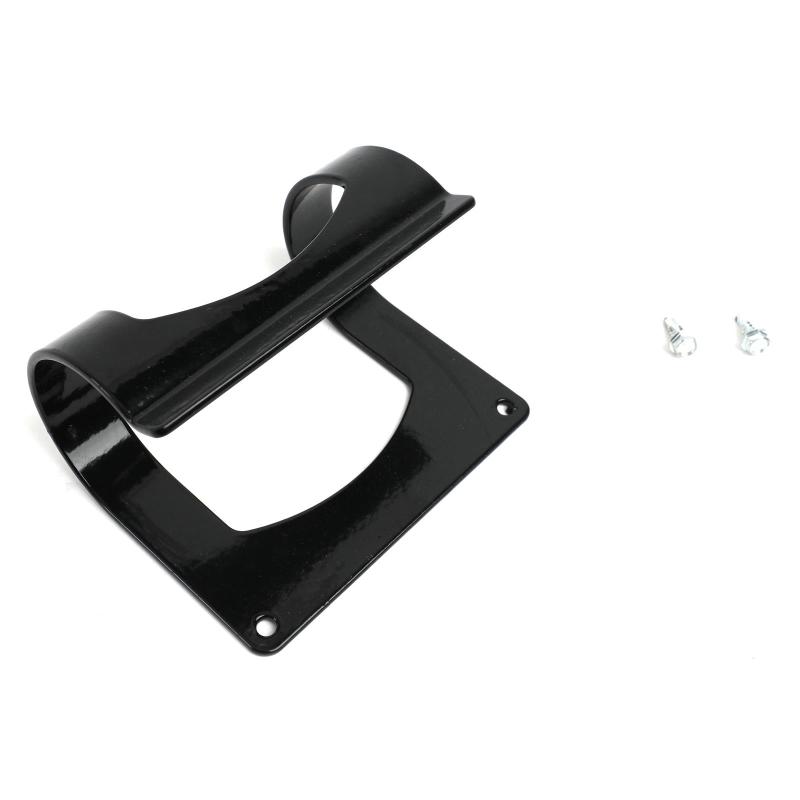

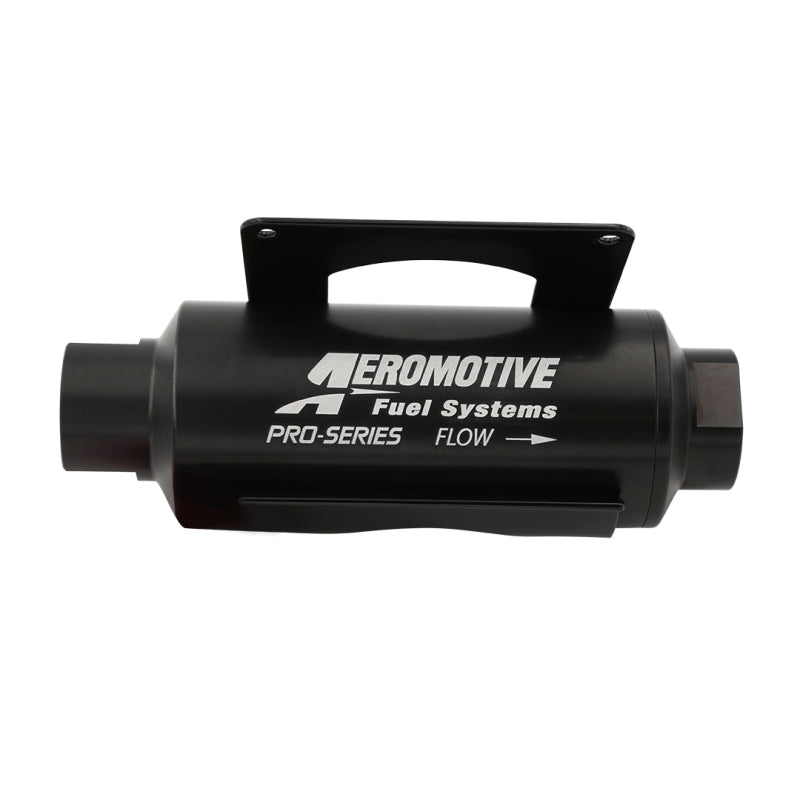

Secure your fuel system's filtration with the Aeromotive 2-5/8in Spring Steel Fuel Filter Bracket (P/N 12705). Engineered specifically to firmly hold fuel filters with a 2-5/8 inch (66.675mm) outside diameter, including popular ORB-16 filters, this bracket ensures stable mounting even under demanding conditions.

• Designed for 2-5/8in Diameter Filters: Perfectly fits fuel filters with a 2-5/8 inch (66.675mm) outer housing diameter.
• Spring Steel Construction: Provides robust, long-lasting support and vibration damping.
• Durable Rubber Coating: Protects the filter housing from abrasion while enhancing grip and reducing noise.
• Simple Installation: Designed for straightforward mounting to your vehicle's chassis or frame.
• Easy Filter Maintenance: Allows quick and hassle-free removal and reinstallation of your fuel filter.

Crafted from resilient spring steel with a protective rubber coating, this bracket is built to withstand the rigors of high-performance automotive environments, ensuring your fuel filter remains securely in place for consistent fuel delivery.

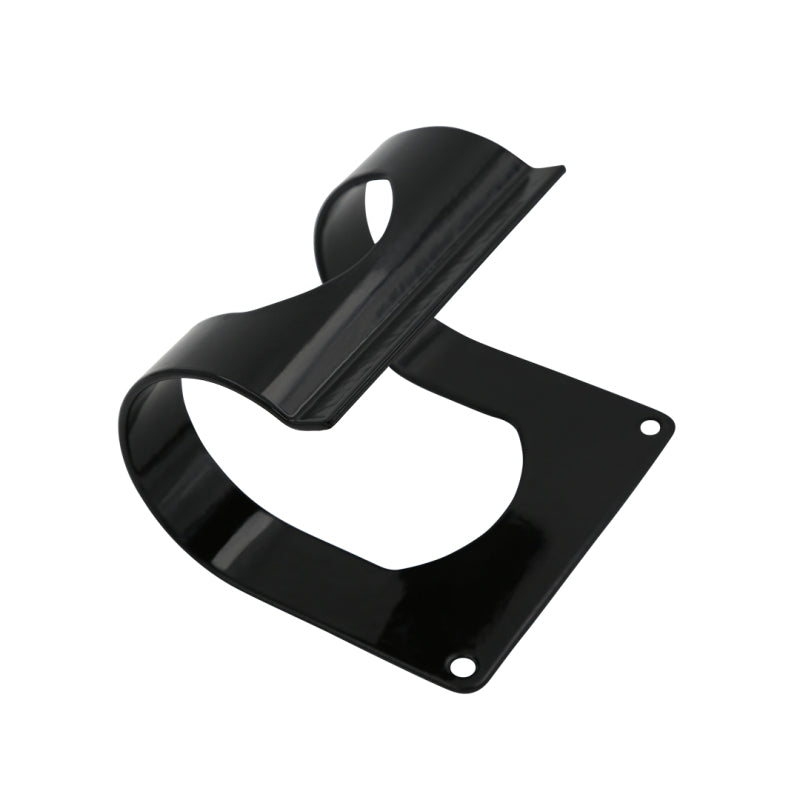

The Aeromotive 12704 Spring Steel Fuel Filter Bracket provides a secure, vibration-resistant mounting solution for high-performance fuel systems. Engineered specifically for filters with a 2-3/8 inch (2.375") outside diameter, this bracket uses a tension-based spring steel design to maintain a constant grip on the filter housing.

To protect the finish of your fuel filter and prevent slippage, the bracket is finished with a durable, thick rubber coating. This coating also helps isolate the filter from chassis vibrations that can lead to component fatigue. Designed for simple installation and easy filter maintenance, it is a direct fit for several popular Aeromotive filter assemblies.

• Specifically sized for 2-3/8" diameter fuel filter housings
• Compatible with Aeromotive fuel filters: 12361, 12362, 12363, and 12364
• Durable spring steel construction provides high clamping force
• Protective rubber coating prevents scratching and provides additional grip
• Manufacturer Part Number: 12704

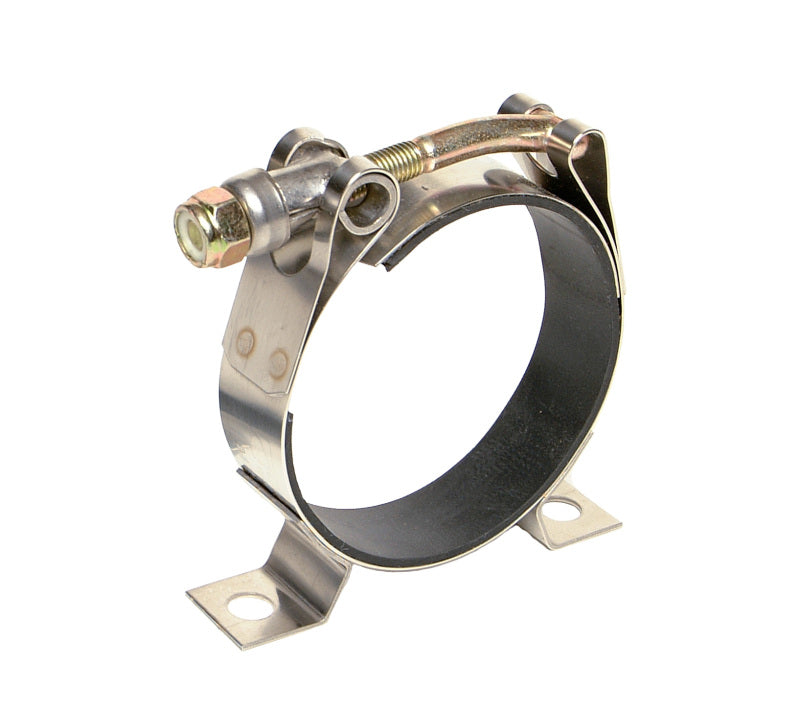

The Aeromotive 12702 T-bolt clamp is engineered to provide superior clamping force and a consistent, leak-proof seal for high-pressure fuel and intake applications. Unlike standard worm-gear clamps that can strip or bite into hose material, this T-bolt design provides 360-degree uniform pressure to ensure secure hose retention under extreme conditions.

Built to meet the rigorous standards of Aeromotive’s fuel delivery systems, this clamp is ideal for performance plumbing where reliability is non-negotiable. It features a wide band to distribute tension evenly and a heavy-duty bolt for high-torque tightening without failure.

• Manufacturer Part Number: 12702
• Clamp Diameter: 2.5 inches (2-1/2")
• Band Width: 0.75 inches (3/4")
• Application: High-pressure fuel lines, coupler connections, and induction systems
• Material: Corrosion-resistant construction for long-term durability

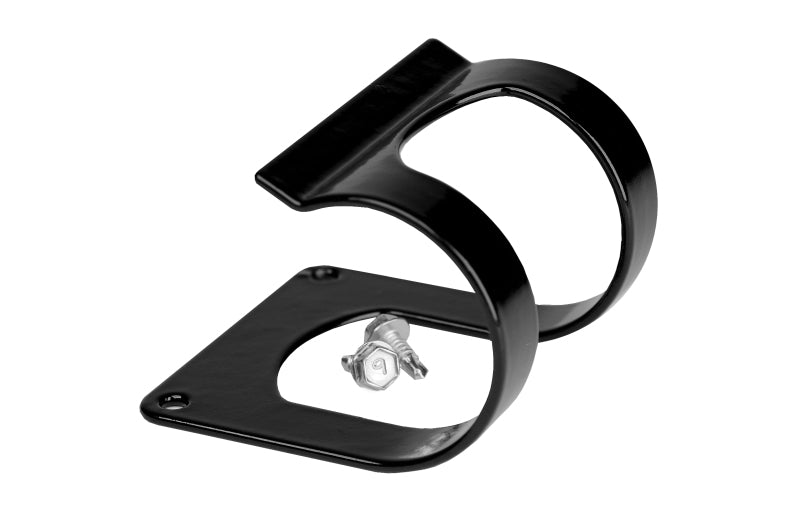

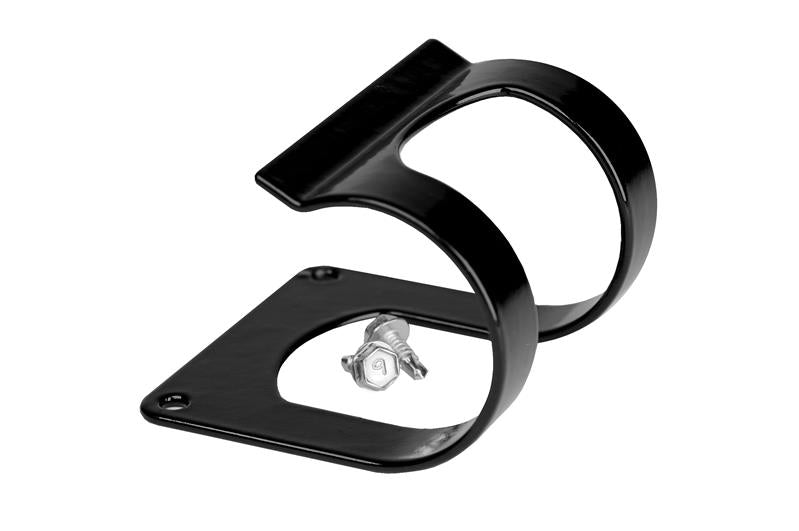

Securely mount your Aeromotive 2-inch fuel filter with the Aeromotive 12701 Spring Steel Mounting Bracket. Engineered for durability and ease of use, this bracket provides a robust solution for securing fuel system components.

• Constructed from genuine spring steel for superior strength and vibration resistance, ensuring a secure hold even in demanding applications.
• Features a durable rubberized coating to protect both the bracket and your fuel filter from abrasion, corrosion, and road debris.
• Designed for straightforward installation, allowing quick and efficient mounting of 2-inch diameter fuel filters to your vehicle's chassis or frame.
• Facilitates easy filter maintenance and replacement, ensuring your fuel system remains efficient with minimal downtime.
• Precisely sized for 2-inch (50.8mm) diameter fuel filters.
• Aeromotive Part Number: 12701

The Aeromotive 12650 is a high-capacity 10-micron microglass filter element designed for use in Aeromotive 12340 and 12350 filter housings. Featuring over 60 square inches of surface area, this element ensures maximum filtration efficiency and long service life with a minimal pressure drop of less than 1 PSI at flow rates up to 250 GPH (4.17 GPM).

This versatile element is engineered for compatibility with a wide range of fuels, including pump gas, racing gas, diesel, jet fuel, and alcohol-based fuels such as ethanol (E85) and methanol. It is an ideal choice for high-horsepower EFI applications using Aeromotive Phantom, Stealth, or Eliminator pumps, as well as carbureted systems using HO-Series, SS-Series, or A2000 pumps.

• Manufacturer Part Number: 12650
• Filter Media: 10-Micron Microglass
• Surface Area: Over 60 sq. inches
• Flow Rating: Up to 250 GPH (4.17 GPM) with <1 PSI drop
• Gasoline Rating: Supports up to 2,000 Flywheel HP (Forced Induction)
• E85 Rating: Supports up to 1,400 Flywheel HP (Forced Induction)
• Housing Compatibility: Replaces elements in Aeromotive 12340 and 12350 housings

The Aeromotive 12639 is a high-capacity replacement fuel filter element designed for Aeromotive 12339 and 12341 housings. Utilizing 10-micron microglass media, this element provides precision filtration for high-performance fuel systems without restricting volume. With over 90 square inches of surface area, it maintains a massive flow capacity of up to 400 GPH (6.66 GPM) with less than 1 PSI of pressure drop, ensuring consistent fuel delivery even in extreme power applications.

This element is engineered for versatility and is compatible with pump gas, racing gas, diesel, and alcohol-based fuels, including ethanol and methanol. It is the recommended filtration solution for systems running Aeromotive Eliminator, A2000, A3000, or 6 and 12 Series mechanical fuel pumps.

• MPN: 12639
• Media Type: 10-Micron Microglass
• Surface Area: 90+ sq. inches
• Flow Rate: 400 GPH (6.66 GPM) at <1 PSI drop
• Horsepower Support (Forced Induction): Up to 4,000 HP (Gasoline), 2,800 HP (Ethanol/Methanol)
• Compatibility: Replaces element in Aeromotive 12339 and 12341 filter housings
• Fuel Compatibility: Gasoline, Diesel, Ethanol, and Methanol

Ensure maximum flow and protection for high-horsepower fuel systems with the Aeromotive 12635 40-micron stainless steel filter element. This high-capacity replacement element is designed specifically for use in Aeromotive 12335 filter housings, providing over 60 square inches of surface area to maintain high flow rates while extending service life. It is an ideal post-pump filtration solution for engines utilizing medium to large electric pumps or Aeromotive 6 and 12 Series mechanical fuel pumps.

• Manufacturer Part Number: 12635
• Micron Rating: 40 Micron
• Filter Media: Stainless Steel Mesh (reusable/cleanable)
• Surface Area: 60+ sq. in.
• Flow Capacity: Up to 900 GPH (15.0 GPM) with less than 1-PSI pressure drop
• Fuel Compatibility: Pump gas, racing gas, diesel, jet fuel, av-gas, ethanol, and methanol
• Forced Induction HP Support: Up to 8,300 HP (Gasoline), 6,000 HP (Ethanol), 2,800 HP (Methanol)
• Fitment: Fits Aeromotive 12335 filter housings

This replacement 10-micron fabric fuel filter element is designed specifically for Aeromotive 12310 filter assemblies, offering superior filtration for high-flow EFI and carbureted systems. Featuring over 90 square inches of element surface area, this component ensures maximum flow capacity with a minimal pressure drop of less than 1 PSI.

Constructed to meet the demands of high-output racing environments, the 12610 supports up to 4,000 flywheel horsepower on forced-induction gasoline applications. It is the recommended service part for systems running Aeromotive Eliminator, A2000, A3000, or 6 and 12 Series mechanical fuel pumps. The fabric media provides a balance of high-volume throughput and fine-particulate protection for sensitive fuel injectors and carburetors.

• Filtration Rating: 10 Micron
• Flow Capacity: Up to 400 GPH (6.66 GPM) at <1 PSI drop
• Surface Area: 90+ sq. in.
• Fuel Compatibility: Pump gas, racing gas, diesel, jet fuel, and av-gas
• Housing Compatibility: Aeromotive 12310 filter assemblies
• Manufacturer Part Number: 12610

Note: This element is not recommended for use with alcohol-based fuels, including ethanol or methanol blends.
