The Wilwood 260-12627 adjustable proportioning valve provides precise brake bias control in a compact, forged billet design. This valve allows for fine-tuning of the front-to-rear braking balance by proportionally decreasing rear line pressure, ensuring optimal stopping performance and stability under heavy braking. The fine-thread adjustment knob offers an industry-leading pressure reduction of up to 57%.

This specific model features M10x1.0 bubble flare (BBF) inlet and outlet ports, allowing for direct connection to metric brake lines without the need for additional tube nut adapters. This streamlines installation and reduces potential leak points in your hydraulic system.

• Pressure Range: 100 - 1000 PSI
• Maximum Reduction: 57% decrease in line pressure
• Construction: Forged billet aluminum body
• Port Type: M10x1.0 Bubble Flare (Inlet & Outlet)
• Mounting: Two 0.25-inch side holes spaced 1.00-inch apart
• Weight: 5.2 ounces
• Manufacturer Part Number: 260-12627

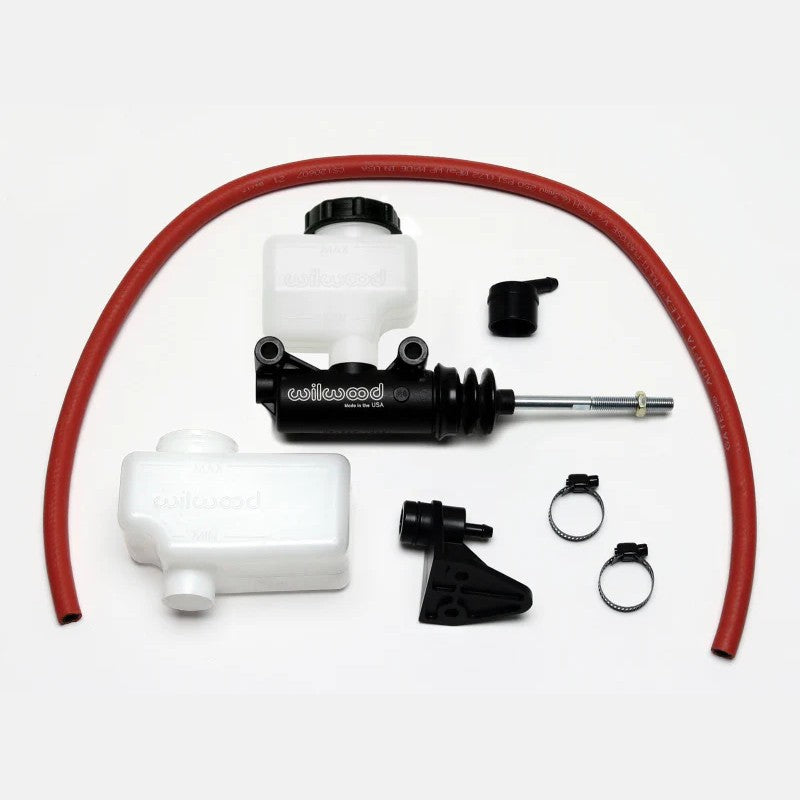

Wilwood’s Compact Combination Side Mount Master Cylinder (MPN 260-12384) is engineered for limited-space applications that require the hydraulic output of a full-size cylinder in a fraction of the footprint. This master cylinder features an ultra-short 3.37-inch body, providing an additional 2.16 inches of clearance compared to traditional units. By utilizing integral side mounting lugs with 3.00-inch center-to-center spacing instead of a standard flange, it allows for versatile installation in tight chassis and firewall environments.

• Bore Size: 5/8in (0.625")
• Stroke: 1.12in piston stroke for maximum fluid displacement
• Body Length: 3.37in compact aluminum body
• Mounting: Side mount lugs with 3.00in spacing (no traditional flange)
• Fluid Outlet: 1/8-27 NPT port at the top radius to prevent trapped air
• Fluid Inlet: 11/16-20 internal threads for included or custom reservoirs
• Finish: Durable black E-coating for superior corrosion resistance
• Included Components: Master cylinder, standard remote reservoir, and mounting hardware

The black E-coated finish ensures long-lasting protection against brake fluid and environmental wear. Designed for performance and reliability, this kit is an ideal solution for custom pedal boxes or racing applications where engine bay or cockpit real estate is at a premium.

The Wilwood 260-11593 Master Cylinder Bench Bleeding Kit provides the essential hardware required to properly purge air from a new or rebuilt master cylinder before it is bolted to the vehicle. Bench bleeding is a critical installation step to ensure a firm pedal and prevent trapped air from migrating into the brake lines, which often causes a spongy feel or compromised hydraulic pressure.

Engineered for versatility, this kit is compatible with both single and tandem outlet master cylinders. By looping fluid back into the reservoir using the included fittings and hoses, you can effectively cycle the piston until all air bubbles are eliminated from the bore and internal circuits.

• Compatible with single and tandem outlet master cylinders
• Includes specialized threaded fittings and flexible clear hoses
• Essential for ensuring a 100% air-free brake hydraulic system
• Simplifies the bleeding process and reduces fluid mess
• Manufacturer Part Number: 260-11593

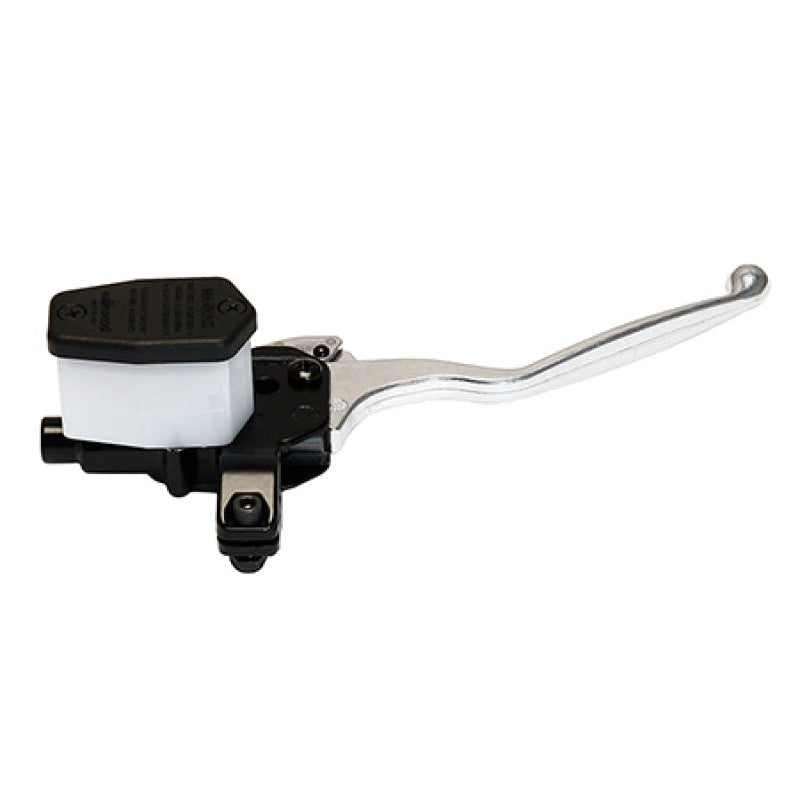

The Wilwood 260-11218 Handlebar Master Cylinder features a 5/8-inch bore and a right-hand (R/H) configuration, specifically engineered for recreational, sport, and outdoor equipment. This compact, lightweight unit is built with corrosion-resistant materials and finishes to withstand harsh operating environments. It utilizes a split clamp design for direct mounting to standard 7/8-inch diameter handlebars.

Designed for functionality and safety, the impact-resistant lever assembly includes an integrated three-position hydraulic parking brake lock. The housing is pre-machined to accept a 1/4-32 threaded brake light switch, while the translucent large-capacity reservoir allows for quick fluid level inspections without removing the cap.

• Bore Size: 5/8in
• Mounting: Fits standard 7/8" diameter handlebars via split clamp
• Orientation: Right Hand (R/H)
• Fluid Inlet: M10 x 1 thread (Banjo type fitting)
• Brake Light Switch Port: 1/4-32 thread
• Parking Brake: Integrated 3-position hydraulic lock
• Manufacturer Part Number: 260-11218

The Wilwood 260-11179 Combination Proportioning Valve substantially simplifies the plumbing, mounting, and wiring required for custom brake systems. This compact block maintains full fluid isolation between the front and rear circuits and is compatible with most tandem outlet or dual mount master cylinder assemblies. It is an ideal solution for builders looking to streamline their brake system layout while retaining precise control over brake bias.

The rear circuit features a single inlet and outlet controlled by a heavy-duty adjustment knob for fine-tuning rear brake pressure. The front circuit provides a single inlet with dual outlets, which can be used to split the lines directly to the front calipers or converted to a single outlet by plugging one port. A built-in pressure switch is included to simplify the integration of brake light circuits.

• Manufacturer Part Number: 260-11179
• Adjustment Style: Rotary Knob
• Inlet/Outlet Size: 3/8-24 Inverted Flare (IF)
• Front Circuit: 1 Inlet, 2 Outlets (pluggable for single-line use)
• Rear Circuit: 1 Inlet, 1 Outlet (adjustable)
• Circuit Isolation: Maintains full isolation between front and rear
• Included Hardware: Integrated brake light switch

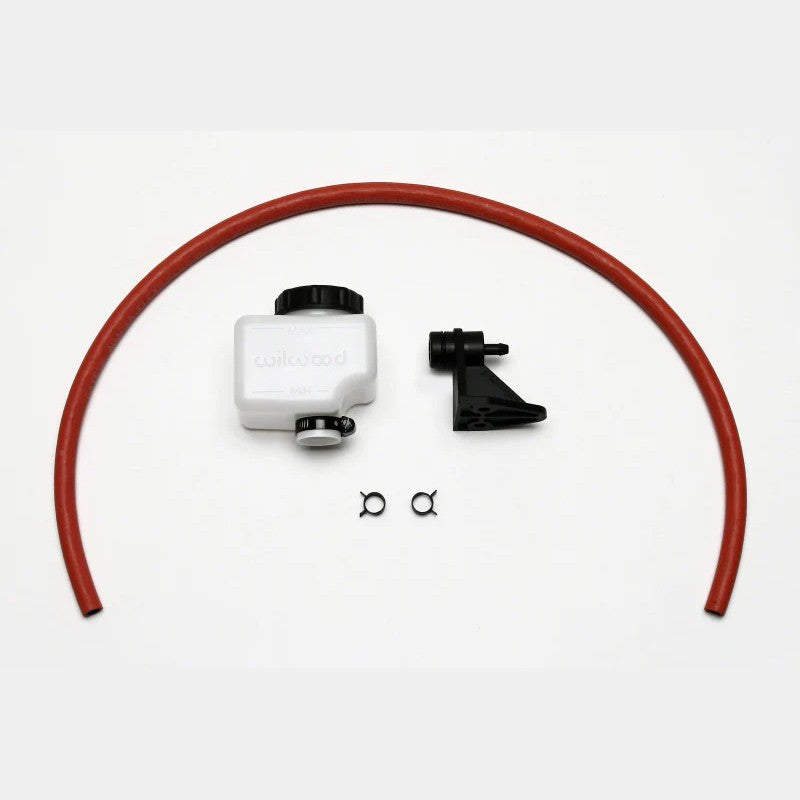

The Wilwood 260-11098 Remote Reservoir Kit is engineered to provide a reliable external fluid supply for TM1 series master cylinders. This 7.0-ounce kit allows for flexible mounting in applications where master cylinder access is restricted or where space constraints require relocating the fluid supply.

Each kit includes a specialized 30-inch length of 1/4-inch ID fluid supply hose. This hose is specifically formulated for constant exposure to brake fluid, ensuring it will not swell, sweat, or leak like standard rubber lines. Please note that for a complete TM1 master cylinder installation, two separate reservoir kits are required.

• 7.0 oz capacity reservoir and secure cap
• Includes 30 inches of 1/4" ID brake-fluid-rated supply hose
• Steel mounting bracket included for easy installation
• Compatible with Wilwood TM1 series master cylinders
• Includes necessary fittings for remote connection
• Manufacturer Part Number: 260-11098

Fine-tune your vehicle's braking bias with the Wilwood 260-10922 adjustable proportioning valve. This valve allows for precise pressure metering to the rear brakes, helping to eliminate rear-wheel lockup during heavy braking by proportionally decreasing line pressure. Designed for performance and longevity, it features a compact forged billet body for superior strength and a fine-thread adjustment knob for accurate tuning.

This specific model is engineered with 3/8-24 inverted flare (IF) inlet and outlet ports, allowing for the direct installation of 3/16-inch brake tubing without the need for additional tube nut adapters. The internal mechanism provides the widest range of adjustment on the market, capable of reducing line pressure by up to 57%.

• Manufacturer Part Number: 260-10922
• Pressure Range: 100 - 1000 PSI
• Pressure Reduction: Up to 57% maximum decrease
• Port Size: 3/8-24 Inverted Flare (IF) Inlet and Outlet
• Construction: Forged billet aluminum body
• Weight: 5.2 ounces
• Mounting: Two 0.25-inch side holes spaced 1.00-inch apart
• Compatibility: Direct fit for 3/16-inch tubing with 3/8-24 nuts

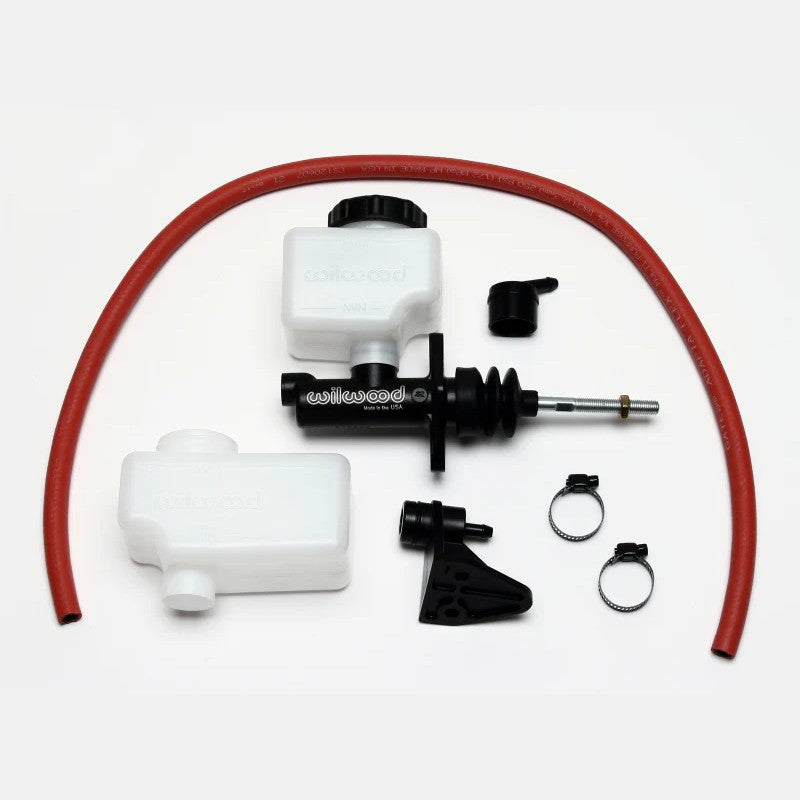

The Wilwood Compact Combination Master Cylinder Kit is engineered for high-performance applications where mounting space is restricted but full-size output capacity is required. With an ultra-short 3.37-inch body, this unit provides 2.16 inches of additional clearance between the mounting flange and fluid outlet compared to standard cylinders.

Constructed from lightweight aluminum with a corrosion-resistant black E-coat finish, this master cylinder features a 1-1/8 inch bore and a full 1.12-inch piston stroke. The 1/8-inch NPT fluid outlet is positioned at the top radius of the bore to minimize trapped air and simplify the bleeding process. The inlet port features 11/16-20 internal threads, making it compatible with the included standard reservoir or custom remote fluid arrangements.

• Manufacturer Part Number: 260-10376
• Bore Size: 1-1/8 inch
• Piston Stroke: 1.12 inches
• Body Length: 3.37 inches
• Material: Aluminum with Black E-Coat finish
• Outlet Port: 1/8-27 NPT
• Inlet Thread: 11/16-20
• Includes: Master cylinder and standard fluid reservoir

The Wilwood Compact Combination Master Cylinder Kit (260-10375) is designed for high-performance applications where engine bay or pedal box space is limited. By utilizing an ultra-short 3.37-inch body, this master cylinder provides an additional 2.16 inches of clearance over standard-sized units while maintaining a full-size output capacity. The black E-coated aluminum body ensures long-term corrosion resistance and a durable finish.

• Bore Size: 1.00 inch
• Piston Stroke: 1.12 inch capacity to meet or exceed full-size cylinders
• Body Length: 3.37 inches from mounting flange to end
• Ports: 1/8-27 NPT fluid outlet located at the top radius to minimize trapped air
• Fluid Inlet: 11/16-20 internal threads allow for custom reservoir plumbing or the included standard reservoir
• Finish: Corrosion-resistant black E-coat

Each kit includes the master cylinder and a standard fluid reservoir, making it a versatile solution for custom builds and space-constrained braking systems.

The Wilwood Compact Combination Master Cylinder Kit (MPN 260-10374) is specifically engineered for high-performance applications with limited mounting space. This ultra-short 3.37-inch body provides an additional 2.16 inches of clearance over standard cylinders without sacrificing output capacity. Its 1.12-inch piston stroke meets or exceeds the requirements of most full-size braking systems, ensuring consistent pedal feel and fluid displacement.

Constructed from lightweight aluminum and finished in a durable black E-coat, this cylinder is built to resist corrosion in harsh environments. The 1/8-inch NPT fluid outlet is positioned at the top radius of the bore to minimize the risk of trapped air during the bleeding process. The inlet port features 11/16-20 internal threads, making it compatible with both the included reservoir and custom plumbing for remote fluid mounting.

• Manufacturer Part Number: 260-10374
• Bore Size: 7/8-inch (0.875")
• Body Length: 3.37"
• Piston Stroke: 1.12"
• Material: Aluminum with Black E-Coat finish
• Outlet Port: 1/8-27 NPT
• Inlet Thread: 11/16-20
• Includes: Master cylinder and standard fluid reservoir

The Wilwood Compact Combination Master Cylinder Kit is engineered for high-performance applications where engine bay or pedal box space is limited. By utilizing an ultra-short 3.37-inch body, this cylinder provides 2.16 inches of additional clearance between the mounting flange and fluid outlet compared to full-size units, without sacrificing output capacity.

• Bore Size: 13/16 inch
• Body Length: 3.37 inches (mounting flange to outlet)
• Piston Stroke: 1.12 inches, meeting or exceeding most full-size cylinders
• Material: Lightweight aluminum with a durable black E-coat finish for corrosion resistance
• Fluid Outlet: 1/8-27 NPT port located at the top radius to minimize trapped air during bleeding
• Fluid Inlet: 11/16-20 internal threads; compatible with custom setups or the included reservoir
• Included Components: Master cylinder and standard reservoir kit

This Wilwood 260-10373 kit is a reliable solution for custom builds and race applications that require precise brake pressure in tight configurations.

The Wilwood Compact Combination Master Cylinder (MPN 260-10372) is engineered for high-performance applications where space is limited but full-size output capacity is required. With an ultra-short 3.37-inch body, this unit provides an additional 2.16 inches of clearance compared to standard master cylinders, making it ideal for tight engine bays or custom pedal box assemblies.

Constructed from lightweight aluminum with a corrosion-resistant black E-coat finish, this master cylinder delivers a full 1.12-inch piston stroke, meeting or exceeding the stroke capacity of many full-sized cylinders. The 1/8-27 NPT fluid outlet is specifically positioned at the top radius of the bore to prevent air from becoming trapped, simplifying the bleeding process. This kit includes a standard remote reservoir and features 11/16-20 internal inlet threads for versatile mounting configurations.

• Bore Size: 3/4in (0.75")
• Piston Stroke: 1.12in
• Body Length: 3.37in
• Material: Aluminum
• Finish: Black E-Coat
• Fluid Outlet: 1/8-27 NPT
• Fluid Inlet: 11/16-20 Threaded
• Manufacturer Part Number: 260-10372

The Wilwood 260-10204 is a dedicated replacement reservoir for Wilwood Compact Remote Master Cylinders. This 7 oz. short-profile unit is specifically engineered for installations with limited vertical clearance, providing a reliable fluid source for brake or clutch systems in tight engine bays or custom pedal box configurations.

Constructed from high-strength, translucent plastic, this reservoir allows for quick visual fluid level inspections while resisting the corrosive properties of brake fluid. The threaded neck is designed to accept Wilwood screw-type lid part number 330-7641, ensuring a secure, leak-free seal under demanding performance conditions.

• Capacity: 7 oz. (Ounces)
• Configuration: Short profile for remote mounting
• Material: High-strength impact-resistant polymer
• MPN: 260-10204
• Compatible Lid: Wilwood 330-7641 (Screw-type)

The Wilwood Caliper Pressure Gauge is a precision diagnostic tool designed for professional brake bias setup and hydraulic system troubleshooting. This gauge provides rapid, accurate brake line pressure readings from 0-1,500 PSI (0-10,000 kPa), allowing technicians to verify proportioning valve settings and identify master cylinder or caliper issues with confidence.

Built for the rigors of the track and shop, the 2-inch diameter face features a non-hazing lens to ensure long-term clarity. The 20 PSI graduations combined with a 1.5% accuracy rating provide the high-resolution feedback necessary for fine-tuning racing brake systems. The housing is durable and corrosion-resistant for a long service life in demanding environments.

• Manufacturer Part Number: 260-0966
• Pressure Range: 0-1,500 PSI / 0-10,000 kPa
• Accuracy: 1.5%
• Face Diameter: 2.00 inches
• Graduations: 20 PSI increments
• Lens: Non-hazing face for maximum visibility
• Features: Durable, corrosion-resistant construction

This Wilwood front bracket kit is engineered to mount lug mount calipers with a 5.25-inch center-to-center mounting distance to Acura Integra and Honda Civic models equipped with 262mm drag rotors. Precision-machined from high-strength aluminum alloy, these brackets provide a rigid, lightweight interface for high-performance braking applications.

• Manufacturer Part Number: 250-8404
• Caliper Fitment: Designed for Wilwood SL6R and other 5.25-inch lug mount calipers
• Rotor Compatibility: 262mm (10.31-inch) Drag Rotors
• Material: High-strength aluminum alloy
• Hardware: Includes 3/8-24 clinch nuts for secure caliper mounting
• Application: Vehicle-specific for select Acura and Honda models

The Wilwood FSL6R bracket kit (250-6309) is designed to mount Forged Superlite Radial Mount calipers to 3.50-inch center-to-center lug mount points. This kit is precision-engineered with an optimized mounting height, allowing for the installation of radial mount calipers in various applications that were originally configured for Superlite series lug-mount calipers.

• Manufacturer Part Number: 250-6309
• Caliper Compatibility: Wilwood Forged Superlite Radial Mount (FSL6R) series
• Mounting Dimension: 3.50-inch center-to-center lug mount
• Materials: High-strength bracket construction for rigid caliper positioning
• Included Components: Caliper brackets, mounting studs, adjustment shims, and all necessary mounting hardware

This Wilwood lug mount front bracket is engineered specifically for select Honda and Acura applications utilizing a 262mm rotor. It provides a precise mounting solution for Wilwood Forged Dynalite (FDL) and other calipers featuring a 5.25-inch lug mount center-to-center spacing.

Precision-machined from high-strength aluminum alloy, this bracket is designed to withstand the stresses of high-performance braking while maintaining rigid caliper alignment. Each bracket includes pre-installed 3/8-24 clinch nuts to streamline the installation of your Wilwood calipers to the factory spindle points.

• Fits Honda and Acura applications with 262mm diameter rotors
• Compatible with Wilwood calipers using a 5.25" lug mount spread
• CNC-machined from high-strength aluminum alloy
• Pre-installed 3/8-24 clinch nuts for secure caliper mounting
• Sold individually (each)
• Manufacturer Part Number: 250-6289

The Wilwood 250-3677 Tandem Master Cylinder Bracket Adapter Kit is engineered to adapt Wilwood Chrysler-style or Tandem master cylinders to a single clutch pedal assembly. This kit provides a secure mounting interface and ensures proper pushrod alignment for consistent pedal feel and hydraulic engagement.

• Adapts Chrysler-style or Tandem master cylinders to single clutch pedal configurations
• High-strength adapter bracket designed for rigid mounting and reduced firewall flex
• Includes a complete pushrod assembly with clevises for precise linkage adjustment
• Comprehensive hardware kit with necessary mounting bolts included
• Manufacturer Part Number: 250-3677

This Wilwood backing plate is specifically engineered for Big Ford "New Style" (Torino) rear axle housings. Designed for integration with Wilwood Electric Parking Brake (EPB) systems, this plate provides the necessary mounting foundation for precise caliper alignment and reliable parking brake engagement.

• Axle Flange: Big Ford New Style (Torino)
• Offset: 2.50 inches (.761)
• System Compatibility: Wilwood EPB (Electric Parking Brake)
• Manufacturer Part Number: 250-15858

Constructed to rigorous tolerances, this backing plate ensures your brake conversion or repair maintains correct geometry. It is an essential component for builders and technicians installing EPB-equipped rear disc brake kits on Ford-style rear ends.

Ensure precise caliper alignment and rigid mounting with the Wilwood FNSLR Series Rear Radial Mount Caliper Bracket (MPN: 250-10212). Engineered for strength and weight savings, this bracket is designed to mount FNSLR series radial mount calipers on 5.98-inch mounting centers, accommodating rear rotor diameters ranging from 11.00 to 12.19 inches.

Constructed from high-strength aluminum alloy, this bracket provides a durable interface for high-performance braking systems. The radial mount design allows for fine-tuning the caliper position over the rotor for optimal pad sweep and thermal management. This bracket is compatible with either the left-hand or right-hand side of the vehicle and includes necessary mounting studs and caliper hardware to complete the installation.

• Manufacturer Part Number: 250-10212
• Fitment: Rear (L/H or R/H)
• Compatible Rotors: 11.00" to 12.19" diameter
• Caliper Series: Wilwood FNSLR radial mount
• Mounting Centers: 5.98"
• Material: High-strength aluminum alloy
• Includes: Mounting studs and caliper hardware

This Wilwood Pro Street Rear Brake Bracket Kit (249-2105/06) provides a robust, lightweight mounting solution for Big Ford axle housings with a 2.50-inch offset. These brackets are essential for maintaining precise caliper-to-rotor alignment in Pro Street rear disc brake conversions, ensuring reliable clamping force and even pad wear.

Each bracket is precision-machined from a high-strength aluminum alloy for durability without excessive unsprung weight. The assembly includes integrated 3/8-24 steel clinch nuts and an additional lug mount caliper bracket featuring 5.25-inch mounting centers. This kit is specifically optimized for systems utilizing 12.19-inch diameter rotors and Wilwood FDL calipers.

• Application: Fits Big Ford rear axle housings with 2.50in offset
• Caliper Compatibility: 5.25in mount centers (designed for FDL calipers)
• Rotor Diameter: Optimized for 12.19in rotors
• Material: High-strength aluminum alloy
• Hardware: Pre-installed 3/8-24 steel clinch nuts
• Manufacturer Part Number: 249-2105/06

Fits 1974-1978 Ford Mustang II and Ford Pinto models.

This Wilwood front lug-mount bracket kit is engineered from high-strength aluminum alloy to provide a rigid, lightweight mounting solution for performance brake upgrades. Designed specifically for applications using 12.19-inch diameter rotors, these brackets facilitate the installation of calipers with a 5.25-inch center-to-center lug mount spacing. Each bracket is precision-machined for vehicle-specific fitment and includes integrated 3/8-24 clinch nuts for secure caliper attachment.

• Material: High-strength aluminum alloy
• Mounting Type: Lug mount, 5.25-inch center-to-center
• Rotor Diameter: 12.19 inches
• Hardware: Integrated 3/8-24 clinch nuts included
• Placement: Front axle
• Manufacturer Part Number: 249-10404/05

Wilwood 240-1159 washers are engineered for precision spacing and secure hardware mounting in high-performance braking systems and automotive assemblies. Manufactured from high-strength alloy steel, these washers provide the structural integrity required to maintain consistent clamping force under load.

• Inner Diameter (ID): .375 in
• Outer Diameter (OD): .875 in
• Thickness: .035 in
• Material: High-strength alloy steel
• Finish: Type II Gold Zinc plating for superior corrosion resistance
• Manufacturer Part Number: 240-1159

The Wilwood 230-8390 Brake Hat and Rotor Bolt Kit is a specialized hardware set designed for the secure attachment of brake rotors to their corresponding hats or adapters. These high-strength fasteners are engineered to withstand the significant shear forces and thermal cycles inherent in high-performance braking applications.

• Thread Size: 5/16-18
• Length: 1.00 Inch
• Quantity: 8 Pack
• Application: Rotor to hat or adapter mounting
• Manufacturer Part Number: 230-8390

This Wilwood Rotor Bolt Kit (MPN 230-8217) provides the specialized hardware required to securely mount brake rotors to their corresponding hats or adapters. Designed for high-performance braking systems, these fasteners ensure a precise fit and reliable retention under the thermal stresses and vibrations inherent to heavy braking environments.

The bolts are manufactured from high-grade stainless steel, offering superior corrosion resistance compared to standard zinc-plated hardware. The 12-point head design provides increased surface area for tool engagement, allowing for accurate torque application while maintaining a compact profile for better clearance in tight rotor hat assemblies.

• Thread Pitch: 1/4-28
• Length: 0.75 inch
• Head Style: 12-Point
• Material: Stainless Steel
• Function: Secures rotor to hat or adapter
• Manufacturer Part Number: 230-8217

The Wilwood 230-8037 is a high-strength stainless steel rotor bolt designed for precision assembly of brake hats and rotors. The 12-point head design offers superior socket engagement and allows for more consistent torque application compared to standard hex fasteners, which is critical in high-heat braking environments. These bolts are manufactured to strict tolerances to ensure reliable clamping force and resistance to vibration.

• Manufacturer Part Number: 230-8037
• Material: High-strength stainless steel for maximum corrosion resistance
• Thread Size: 1/4-20
• Underhead Length: 0.75 inch
• Head Style: 12-Point (12pt)
• Application: Ideal for securing rotor rings to hats or hubs in performance brake systems

Ensure a secure and precise interface between your brake components with the Wilwood ProMatrix Rotor Bolt Kit (230-8008). Specifically engineered for ProMatrix series applications, this hardware kit provides the essential high-strength fasteners required to mount rotors to their designated hats or adapters.

Each kit is manufactured to Wilwood's exacting standards, ensuring consistent clamping force and reliable performance under the high-thermal loads of performance braking. Replacing hardware during rotor service is critical for maintaining proper rotor alignment and preventing fastener fatigue or vibration.

• Manufacturer Part Number: 230-8008
• Specifically designed for Wilwood ProMatrix Hat and Rotor assemblies
• High-strength fasteners for critical brake system mounting
• Direct replacement for ProMatrix series rotor hardware

The Wilwood Dynamic Mount Rotor Bolt Kit (230-6656) provides the specialized hardware required for high-performance floating rotor assemblies. This kit is engineered to facilitate dynamic mounting for specific Wilwood hat or rotor adapters, allowing the brake rotor to expand and contract under extreme thermal loads without distorting the hat or causing pedal pulsation.

Built to handle the rigorous shear and heat of performance braking, this 12-bolt front kit includes the necessary fasteners and a dedicated T-Nut installation tool. Using the correct T-Nut tool ensures proper seating and torque, maintaining the mechanical integrity of the floating system during installation and service.

• Designed for front 12-bolt dynamic mount rotor configurations
• Maintains rotor-to-hat alignment while allowing thermal expansion
• Includes specialized T-Nut installation tool for precise assembly
• Direct replacement hardware for specific Wilwood brake systems
• Manufacturer Part Number: 230-6656

Ensure a reliable mechanical connection in your braking system with the Wilwood 230-6171 Push Rod. Engineered specifically for Wilwood Combination Remote Master Cylinders, this component translates pedal force into hydraulic pressure with precision and minimal deflection.

• High-Strength Material: Manufactured from premium alloy steel to withstand high-stress braking loads in both street and performance applications.
• Corrosion Resistance: Features a durable zinc-plated finish to prevent oxidation and ensure smooth operation over a long service life.
• Precision Fit: Designed to interface perfectly with Wilwood-series master cylinder pistons for consistent pedal feel.
• Part Number: 230-6171

The Wilwood 230-4900 Dynamic Mount Rotor Bolt Kit is engineered to provide the specialized hardware necessary for securing brake rotors to specific dynamic hats or rotor adapters. This hardware set is critical for high-performance braking systems where thermal expansion is a factor; the dynamic mounting design allows the rotor to expand and contract independently of the hat, reducing heat-induced stress and rotor distortion during extreme use.

• Mounting Configuration: 12-bolt dynamic front mounting pattern
• Included Hardware: High-strength bolts and specialized T-nuts
• Function: Facilitates controlled rotor movement to prevent warping and cracking
• Manufacturer Part Number: 230-4900

This kit replaces worn or single-use hardware and ensures your braking assembly maintains correct tolerances. Designed specifically for use with Wilwood dynamic hats, this kit provides the precise fitment required for competitive and heavy-duty applications.
