The Garrett GTX2867R Gen II Super Core is a high-output turbocharger assembly engineered for rapid boost response and increased airflow capacity. As a Gen II unit, it features advanced compressor wheel aerodynamics capable of producing more horsepower than previous generations. This Super Core includes the center housing rotating assembly (CHRA) and the compressor housing, providing a high-performance foundation for custom turbo builds. It serves as a direct replacement for the older 836040-5004S part number.

Equipped with a dual ceramic ball bearing system, the GTX2867R Gen II minimizes friction and maximizes transient response. The forged, fully-milled compressor wheel is designed to handle higher pressure ratios while maintaining efficiency across the powerband. To ensure long-term reliability in high-heat environments, the assembly is both water and oil cooled.

• Manufacturer Part Number: 849894-5002S
• Gen II Aero: Forged fully-milled compressor wheel with optimized blades for increased flow.
• Dual Ceramic Ball Bearings: Enhanced durability and significantly faster spool-up compared to journal bearing units.
• Water & Oil Cooled: Standard ports for thermal management and bearing longevity.
• Component Specs: Includes compressor housing and CHRA; turbine housing sold separately.

The Garrett GTX2860R Gen II Super Core (849894-5001S) is a high-performance center housing rotating assembly (CHRA) and compressor stage designed for enthusiasts demanding rapid spool and high efficiency. As a Gen II unit, it features updated aerodynamics and an optimized compressor wheel capable of producing more power than the original GTX series.

• Gen II Aerodynamics: Features a forged, fully-machined billet compressor wheel with advanced aero for increased flow and pressure ratios.
• Dual Ball Bearing: Equipped with a ceramic dual ball bearing cartridge for exceptional transient response and reliability under high boost.
• Configurable Assembly: This Super Core includes the compressor housing and CHRA, allowing for seamless integration with your choice of turbine housing.
• Cooling: Utilizes a water and oil-cooled center housing to maintain thermal stability during aggressive driving.
• Direct Replacement: This unit is the updated replacement for manufacturer part number 836040-5002S.

Note: This is a Super Core only; the turbine housing is sold separately. Manufacturer Part Number: 849894-5001S.

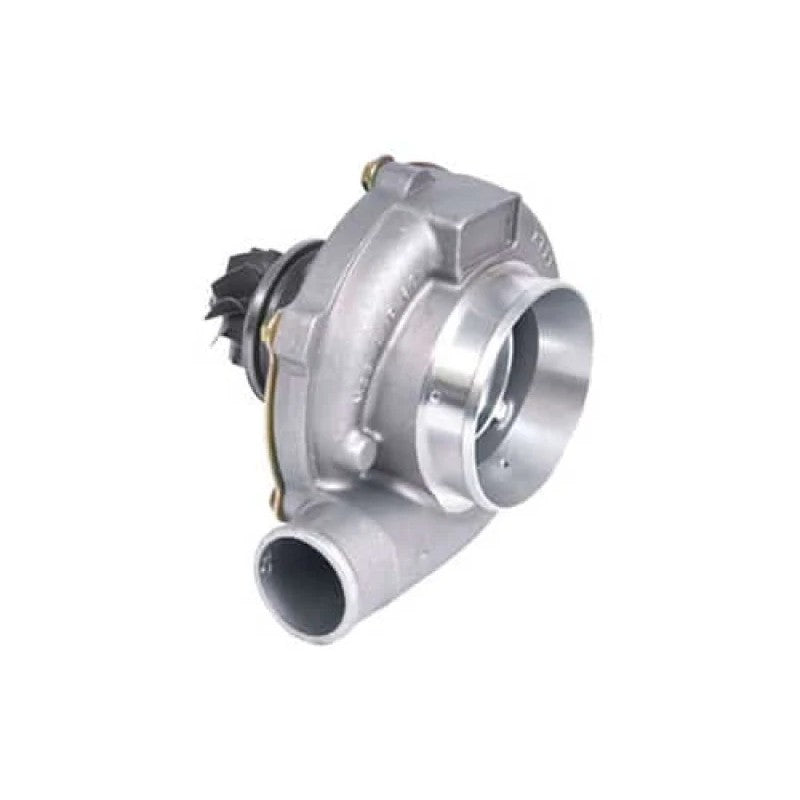

The Garrett GT3076R Super Core (MPN 836028-5003S) is the engineered heart of a high-performance turbocharger system. This Super Core configuration includes the fully balanced Center Housing Rotating Assembly (CHRA) and the compressor housing, allowing you to select and pair it with the specific turbine housing that best fits your exhaust configuration and A/R requirements.

Built on Garrett's legendary dual ball-bearing platform, this assembly is designed for rapid transient response and high-speed stability under boost. The oil and water-cooled bearing system ensures long-term durability even in demanding motorsport environments.

• Genuine Garrett GT-Series dual ball-bearing cartridge
• Includes factory-assembled CHRA and compressor housing
• Designed for custom turbine housing pairing
• Water and oil-cooled bearing system for thermal management
• Manufacturer Part Number: 836028-5003S

The BorgWarner EFR 6758 B1 Series Super Core (MPN 179375) is the core assembly of choice for builders seeking elite transient response and mid-range power. As a Super Core, this package includes the complete center housing rotating assembly (CHRA) and compressor housing, allowing you to select the specific turbine housing (A/R and flange) required for your custom manifold setup.

• Gamma-Ti Turbine Wheel: Constructed from Titanium Aluminide to drastically reduce rotational inertia, providing near-instantaneous boost response.
• Forged Milled Compressor Wheel (FMW): Features a 53.9mm inducer and 67mm exducer, engineered for high-pressure efficiency and durability.
• Dual Ceramic Ball Bearings: Offers minimal friction and high load capacity for improved spool and long-term reliability under racing conditions.
• Integrated Components: Equipped with a built-in Compressor Recirculation Valve (CRV) and Boost Control Solenoid (BCS) to simplify plumbing and reduce engine bay clutter.
• Technical Specs: B1 frame size; 58mm turbine wheel; includes speed sensor port and pre-machined mounting points.

Designed for the EFR (Engineered For Racing) line, this 6758 Super Core replaces worn units or serves as the heart of a new high-performance forced induction system.

The BorgWarner AirWerks S400SX SX Super Core (MPN 179352) provides the foundation for high-performance turbocharging on a heavy-duty frame. As a Super Core assembly, this unit includes the compressor housing, center housing rotating assembly (CHRA), and compressor wheel. It is designed for builders who want to pair a reliable S400 chassis with a specific turbine housing suited to their engine displacement and backpressure requirements.

This S400SX configuration features a 67.7mm inducer compressor wheel paired with a 91mm exducer. The 83mm turbine wheel provides excellent flow capacity for mid-to-high horsepower builds, utilizing BorgWarner’s proven journal bearing technology and severe-duty thrust bearings for long-term durability under high boost.

• Manufacturer Part Number: 179352
• Product Series: AirWerks S400SX SX
• Compressor Inducer: 67.7mm
• Compressor Exducer: 91mm
• Turbine Wheel Exducer: 83mm
• Assembly Type: Super Core (No turbine housing included)

The BorgWarner AirWerks SX-E S400SX-E SuperCore Assembly (MPN 14009097014) is a professional-grade turbocharger component designed for high-horsepower applications. As a SuperCore, this unit includes the compressor housing and the complete rotating assembly (CHRA), allowing you to select the specific turbine housing A/R and flange configuration that best suits your engine's exhaust flow requirements.

This S400SX-E model features Forged Milled Wheel (FMW) technology for superior aerodynamics and durability over traditional cast wheels. The 76mm inducer is paired with a heavy-duty 360-degree thrust bearing system to handle extreme boost levels and ensure longevity in demanding performance environments. It includes integrated speed sensor and boost ports for precise monitoring and control.

• Manufacturer Part Number: 14009097014
• Series: AirWerks SX-E (S400 Frame)
• Compressor Wheel Inducer: 76mm
• Turbine Wheel Dimensions: 100mm Inducer / 87mm Exducer
• Compressor Design: Forged Milled Wheel (FMW)
• Bearing Type: 360-Degree Performance Thrust Bearing
• Features: Pre-machined speed sensor and boost ports

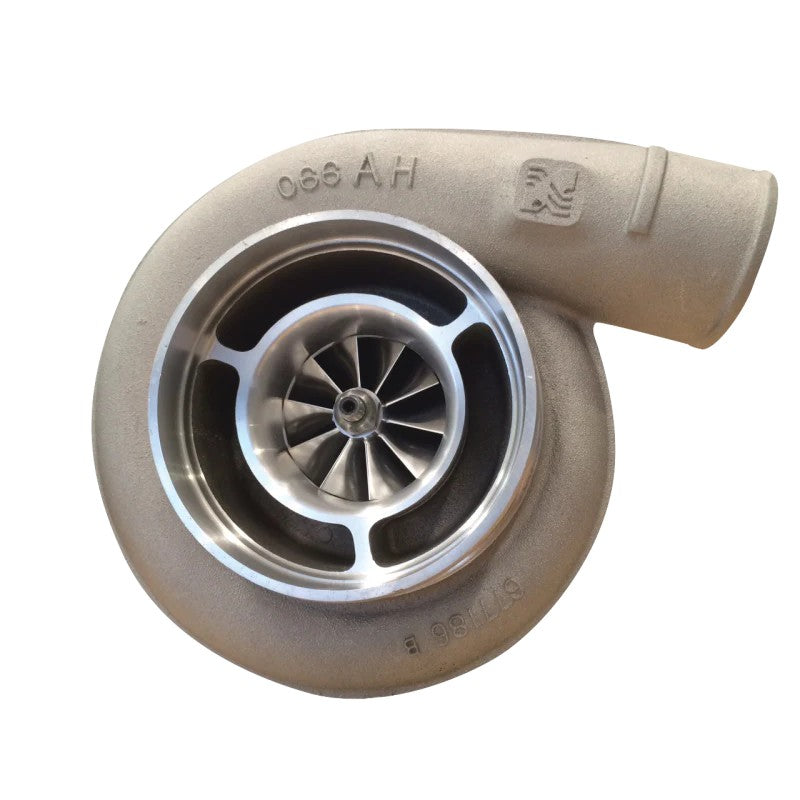

The BorgWarner AirWerks SX-E series is engineered for high-performance forced induction applications, and this S476 SuperCore (MPN 14009097013) delivers massive airflow in the S400 frame. This SuperCore assembly includes the compressor housing and the complete cartridge (CHRA), providing a modular solution that allows you to select the specific S400 turbine housing needed for your engine’s exhaust flow requirements.

• Forged Milled Wheel (FMW): Features a 76mm inducer and 100mm exducer compressor wheel for increased durability and aerodynamic efficiency over cast alternatives.
• Heavy-Duty Bearings: Upgraded with a 360-degree thrust bearing to withstand high boost pressures and provide long-term reliability.
• Turbine Specs: Equipped with a 100mm inducer / 96mm exducer turbine wheel designed for high-horsepower builds.
• Integrated Ports: Includes a pre-machined speed sensor port and boost signal port for easy monitoring and plumbing.
• Manufacturer Part Number: 14009097013

The BorgWarner AirWerks S400SX-E 72mm SuperCore (MPN 14009097006) is a high-output rotating assembly engineered for high-performance forced induction systems. As part of the SX-E series, this unit features a 72mm compressor inducer paired with a large 96/87mm turbine wheel, designed to deliver significant airflow and reduced backpressure for high-horsepower builds. This SuperCore assembly includes the compressor cover and the complete center rotating housing assembly (CHRA), providing a versatile foundation for tuners who need to select a specific turbine housing A/R to match their manifold and displacement requirements.

• Manufacturer Part Number: 14009097006
• Series: AirWerks SX-E (S400SX-E)
• Compressor Inducer: 72mm
• Turbine Wheel: 96mm Inducer / 87mm Exducer
• Assembly Type: SuperCore (Includes compressor cover and cartridge; turbine housing not included)

The BorgWarner AirWerks SX-E S300SX-E 8376 SuperCore assembly (MPN 13009097056) is a purpose-built solution for high-performance applications requiring superior flow and faster transient response. As a SuperCore, this unit includes the complete compressor housing and the Center Housing Rotating Assembly (CHRA), allowing you to select and install the specific turbine housing that matches your engine's displacement and backpressure requirements.

Designed as part of the SX-E performance line, the 8376 features advanced aerodynamics, including a forged milled compressor wheel (FMW) that offers increased durability and efficiency over traditional cast components. The compressor housing is equipped with a pre-machined speed sensor port, enabling precise data logging of turbocharger shaft speed for optimal tuning and safety.

• Manufacturer Part Number: 13009097056
• Product Series: AirWerks SX-E S300SX-E
• Model Identifier: 8376
• Compressor Wheel: Forged Milled Wheel (FMW)
• Assembly Type: SuperCore (Compressor Housing + CHRA)
• Features: Pre-machined speed sensor port and enhanced aerodynamic design
• Note: Turbine housing and speed sensor are sold separately

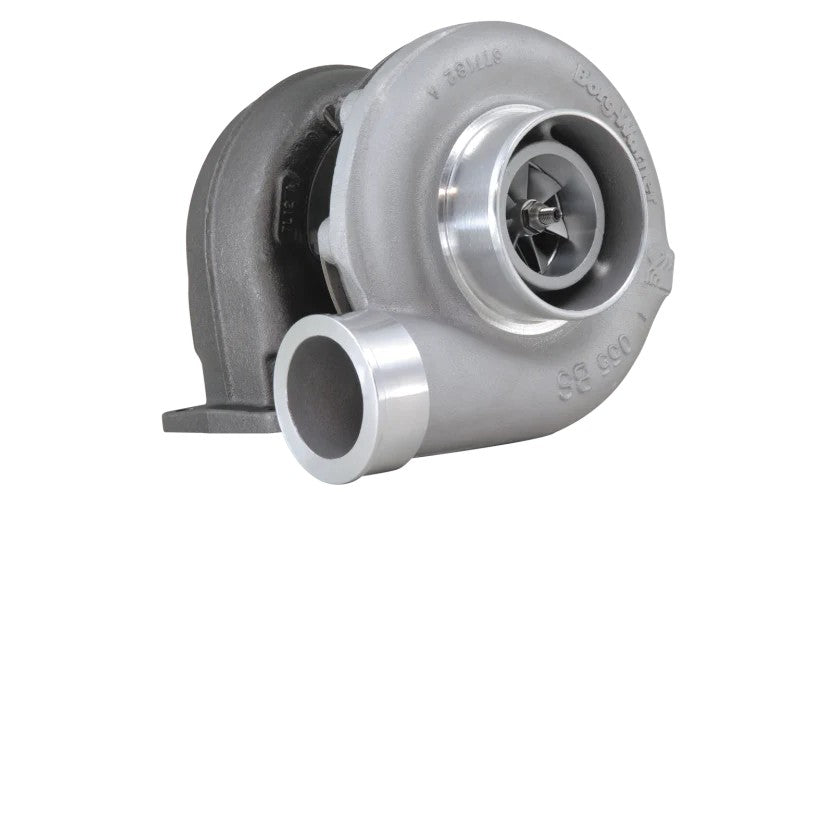

The BorgWarner AirWerks SX-E S300SX-E 8780 SuperCore Assembly (MPN 13009097055) is a high-performance turbocharger component designed for builders who require maximum airflow and durability. As a SuperCore configuration, this unit includes the complete compressor housing and a balanced center housing rotating assembly (CHRA), allowing for customized pairing with a variety of turbine housings (sold separately).

The S300SX-E 8780 is equipped with a Forged Milled Wheel (FMW) compressor and enhanced aerodynamics that provide a wider map range compared to standard S300 units. It features a heavy-duty 360-degree thrust bearing to handle the high axial loads found in high-boost applications. This assembly also includes an integrated speed sensor port and a pre-machined boost signal port for precise tuning and monitoring.

• Series: AirWerks SX-E (S300SX-E)
• Compressor Inducer: 69.00mm
• Turbine Wheel Outer Diameter: 80.00mm
• MPN: 13009097055
• Construction: Forged Milled Wheel (FMW) compressor technology
• Bearing Type: Heavy-duty 360-degree thrust bearing

The BorgWarner SX-E S300SX-E 8380 SuperCore assembly (MPN 13009097053) represents the pinnacle of the AirWerks performance line, engineered for high-output applications that demand superior aerodynamics and durability. As an "Enhanced" (SX-E) model, this unit features a redesigned compressor stage for increased efficiency and airflow compared to the standard S300SX series.

This SuperCore consists of the complete center housing rotating assembly (CHRA) and the compressor housing. It is designed for enthusiasts building custom turbocharger configurations, allowing you to pair this optimized core with a turbine housing that matches your specific displacement and A/R requirements. The core features a forged milled compressor wheel (FMW) and an integrated speed sensor port for precise monitoring.

• Manufacturer Part Number: 13009097053
• Series: AirWerks S300SX-E (S300 High-Flow)
• Compressor Type: Forged Milled Wheel (FMW) with Extended Tip Technology
• Integrated speed sensor port and pre-machined boost port
• 360-degree thrust bearing for improved reliability at high boost pressures
• Note: Turbine housing is not included and must be sourced separately

The BorgWarner AirWerks S300SX-E 9180 SuperCore is a high-performance turbocharger assembly designed for custom engine builds that demand rapid spooling and significant airflow. As part of the SX-E series, this unit features an aerodynamic Forged Milled Wheel (FMW) compressor that provides increased durability and higher pressure ratios compared to traditional cast wheels.

This SuperCore assembly includes the compressor housing and the center rotating assembly (CHRA), allowing builders to pair it with the specific turbine housing A/R required for their application. It comes standard with an integrated speed sensor port and a pre-machined boost control solenoid boss to simplify high-end tuning and monitoring.

• Manufacturer Part Number: 13009097051
• Compressor Inducer: 69.00mm
• Compressor Exducer: 91.44mm
• Compressor Wheel Material: Forged Milled Wheel (FMW)
• Bearing Type: 360-degree thrust bearing for improved reliability
• Series: AirWerks SX-E S300
• Inlet/Outlet: Hose bead compressor inlet and v-band discharge

The BorgWarner AirWerks S300SX-E 9180 SuperCore (MPN 13009097049) is a purpose-built performance assembly designed for high-power applications where reliability and rapid spool are critical. Part of the enhanced SX-E series, this SuperCore features a Forged Milled Wheel (FMW) and a 360-degree thrust bearing to handle the elevated boost pressures and temperatures common in race and high-performance street builds.

This assembly includes the compressor housing and center housing rotating assembly (CHRA). Please note that the turbine housing is sold separately, allowing you to select the precise A/R ratio and flange type required for your specific exhaust manifold and power goals.

• Compressor Wheel Inducer: 66mm
• Compressor Wheel Exducer: 91mm
• Compressor Feature: Forged Milled Wheel (FMW) for increased durability and aerodynamic efficiency
• Thrust Bearing: Heavy-duty 360-degree thrust bearing for high-load stability
• Sensor Ports: Pre-machined integrated speed sensor port and boost port
• Series: AirWerks S300SX-E
• Manufacturer Part Number: 13009097049

The BorgWarner AirWerks S300SX-E 8780 SuperCore (MPN 13009097047) provides a high-performance foundation for custom turbocharger builds. Engineered for extreme efficiency, this SuperCore assembly is part of the SX-E series, designed to deliver higher flow rates and faster transient response compared to standard AirWerks models.

• Forged Milled Wheel (FMW): Utilizes an extended-tip compressor wheel design for improved pressure ratios and durability under high boost.
• Advanced Thrust Bearing: Equipped with a 360-degree thrust bearing to maintain reliability during high-load performance applications.
• Enhanced Compressor Housing: Features a pre-machined speed sensor port and a boost port for easy integration of data logging equipment.
• Assembly Details: This SuperCore includes the compressor housing, center section, and rotating assembly; the turbine housing is sold separately to allow for custom A/R selection.

Manufacturer Part Number: 13009097047

The BorgWarner AirWerks S300SX-E 64mm SuperCore (8776) is a high-performance turbocharger assembly engineered for increased airflow and improved transient response. This SX-E series unit features a Forged Milled Wheel (FMW) and optimized compressor aerodynamics, providing superior durability and efficiency over standard cast alternatives.

As a SuperCore assembly, this unit (MPN 13009097008) includes the compressor housing and the rotating assembly (CHRA) but requires a separate turbine housing for complete installation. This allows builders to select the specific A/R ratio and flange type required for their application. The housing includes a pre-machined speed sensor port and a 360-degree thrust bearing for high-boost reliability.

• Manufacturer Part Number: 13009097008
• Compressor Inducer: 64mm
• Compressor Exducer: 87.37mm
• Series: AirWerks SX-E (S300SX-E)
• Wheel Material: Forged Milled Aluminum (FMW)
• Includes: Compressor housing and bearing assembly (SuperCore)

The BorgWarner AirWerks SX-E S300SX-E SuperCore assembly (MPN 13009097006), specifically the 8776 configuration, is engineered for high-performance forced induction applications. As a cornerstone of the SX-E line, this unit features a 62mm inducer Forged Milled Wheel (FMW) that provides superior aerodynamics and increased durability compared to traditional cast alternatives.

• 62mm compressor inducer diameter for optimized airflow
• Forged Milled Wheel (FMW) compressor technology
• Integrated speed sensor port for precise turbo speed monitoring
• Pre-machined boost port for simplified plumbing
• 360-degree thrust bearing for enhanced reliability under high-load conditions
• Complete SuperCore includes the compressor cover and CHRA

The SX-E series represents an evolution in turbocharger technology, offering improved compressor efficiency and faster spool times. This SuperCore assembly allows you to select a compatible turbine housing separately to match your specific engine displacement and A/R requirements.

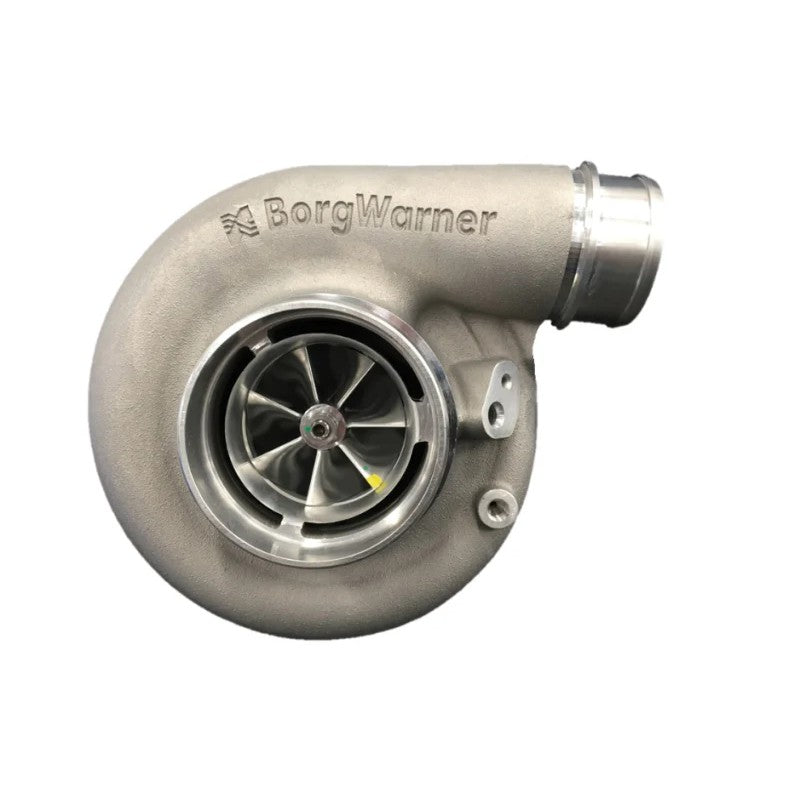

The BorgWarner AirWerks SX-E S300SX-E 9180 72mm SuperCore Assembly is engineered for high-output performance applications where efficiency and durability are paramount. As part of the SX-E line, this unit features a Forged Milled Wheel (FMW) and an optimized compressor cover design that delivers increased airflow and pressure ratios compared to standard S300 models.

This SuperCore is designed for builders and tuners looking to custom-match a high-flow compressor with a specific turbine housing. It incorporates a 360-degree thrust bearing for enhanced reliability under high boost pressures and includes an integrated speed sensor port for precise monitoring of shaft RPM. Note: This assembly includes the compressor housing and cartridge; a turbine housing is required for a complete installation.

• Series: AirWerks SX-E (S300SX-E)
• Model: 9180
• Compressor Wheel Inducer: 72mm
• Compressor Wheel Exducer: 91mm
• Forged Milled Wheel (FMW) for maximum durability
• High-load 360-degree thrust bearing
• Integrated speed sensor port and pre-machined boost port
• Manufacturer Part Number: 13009095091

The BorgWarner EFR 9280 B2 SuperCore assembly provides a high-performance foundation for custom turbocharger configurations. As a SuperCore, this unit includes the complete rotating assembly (CHRA) and compressor housing but excludes the turbine housing, allowing you to select the specific A/R and flange type required for your exhaust manifold setup.

Built on the B2 frame, the EFR 9280 features a forged milled compressor wheel (FMW) and a lightweight Gamma-Ti turbine wheel for rapid spool-up and high-flow efficiency. This specific model utilizes a rugged cast iron bearing housing, providing exceptional thermal stability and durability for high-heat applications. Dual ceramic ball bearings minimize friction and improve transient response across the entire powerband.

• Manufacturer Part Number: 12807100005
• Series: EFR B2 9280
• Housing Material: Heavy-duty cast iron bearing housing
• Core Components: Gamma-Ti turbine wheel and forged milled compressor wheel
• Bearings: Dual ceramic ball bearing cartridge
• Integrated Features: Includes compressor recirculation valve (CRV) and boost control solenoid

The BorgWarner EFR 8474 B2 SuperCore Assembly (12747100017) is the high-performance heart of the Engineered For Racing series, designed for maximum response and thermal efficiency. This SuperCore includes the compressor cover and center housing rotating assembly (CHRA), allowing you to pair it with the specific turbine housing that best suits your engine's displacement and power goals.

Built on the B2 frame, this unit features a lightweight aluminum bearing housing, providing significant weight savings over traditional cast iron components while maintaining the high structural integrity required for high-boost applications. The EFR 8474 is engineered for professional motorsport use, balancing high-flow compressor technology with the reliability expected from BorgWarner's premium turbocharger line.

• Manufacturer Part Number: 12747100017
• Series: EFR (Engineered For Racing)
• Model: 8474
• Frame Size: B2
• Bearing Housing: Aluminum for reduced overall weight
• Inclusions: Complete SuperCore (Compressor Cover and CHRA)

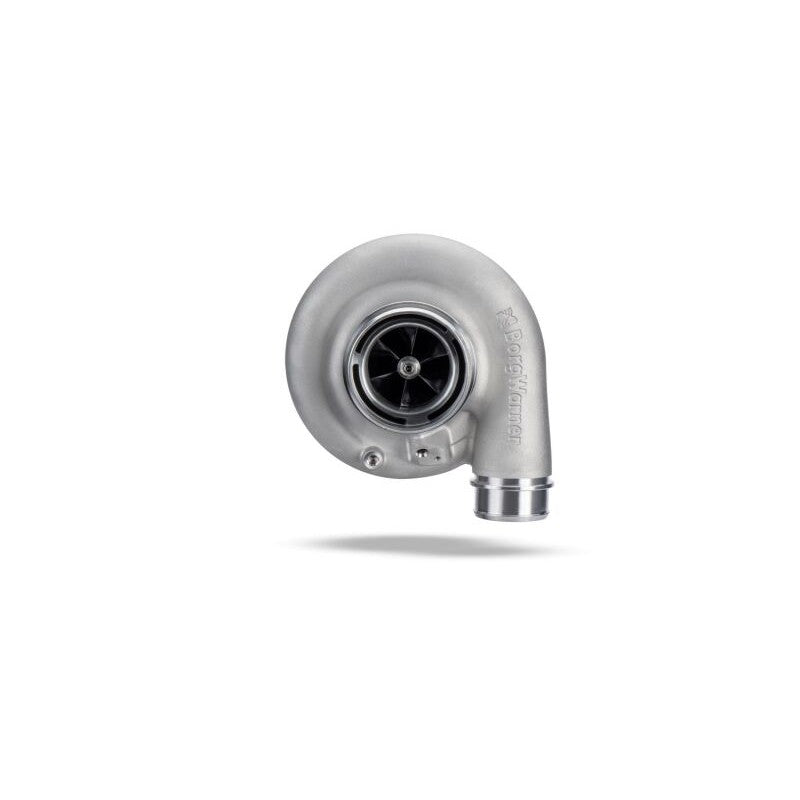

The BorgWarner AirWerks S200SX-R 7670 SuperCore (12707105086) provides a high-performance foundation for custom turbocharger configurations. This SuperCore assembly includes the compressor housing and a fully balanced Center Housing Rotating Assembly (CHRA), allowing builders to pair the unit with their choice of turbine housing to meet specific backpressure and spool requirements.

Engineered for professional racing and high-performance street applications, the S200SX-R series features optimized compressor blade geometry to maximize airflow while maintaining structural integrity under high boost. This unit is an ideal solution for replacing a damaged core or upgrading an existing setup to the latest SX-R aerodynamics.

• Manufacturer Part Number: 12707105086
• Series: AirWerks S200SX-R (7670)
• Compressor Inducer: 58mm
• Compressor Exducer: 76mm
• Turbine Wheel Diameter: 70mm
• Assembly Type: SuperCore (CHRA and Compressor Housing)

The BorgWarner EFR 7163 B1 Super Core is a high-performance turbocharger assembly designed for rapid transient response and significant power overhead. As a Super Core, this unit includes the compressor cover and the center housing rotating assembly (CHRA), allowing you to select the specific turbine housing that best fits your manifold and A/R requirements. It is an ideal choice for applications demanding the flow of a large turbo with the spool-up characteristics of a much smaller unit.

Built for the rigors of professional racing, the EFR 7163 utilizes a Gamma-Titanium aluminide (Gamma-Ti) turbine wheel, which drastically reduces rotational inertia compared to traditional Inconel wheels. This is supported by a dual ceramic ball bearing cartridge for minimal friction and maximum durability under high boost. The B1 frame size integrates essential components like the compressor recirculation valve (CRV) and boost control solenoid (BCS) directly into the housing to simplify plumbing and improve reliability.

• Manufacturer Part Number: 11637105000
• Compressor Wheel: 71mm outer diameter forged milled wheel (FMW) for high-pressure efficiency.
• Turbine Wheel: 63mm Gamma-Ti construction for ultra-low inertia and instant spool.
• Bearing System: Dual ceramic ball bearings with a water-cooled center housing.
• Integrated Features: Built-in compressor recirculation valve and electronic boost control solenoid.
• Material: Stainless steel bearing housing for superior corrosion resistance and strength.

The BorgWarner EFR 6758 B1 Super Core (11587105001) is engineered for high-performance applications demanding rapid boost response and professional-grade reliability. As a Super Core assembly, this unit includes the compressor housing and the complete rotating group, providing a versatile foundation that allows you to pair it with the specific turbine housing required for your vehicle's exhaust configuration.

Built on the B1 frame, the EFR 6758 utilizes cutting-edge materials and design features from BorgWarner's Engineered For Racing (EFR) line to maximize efficiency and minimize lag.

• Gamma-Ti Turbine Wheel: Manufactured from Titanium Aluminide for extremely low rotational inertia, enabling near-instantaneous throttle response.
• Dual Ceramic Ball Bearings: Features ceramic balls for superior durability under extreme heat and high-load conditions compared to standard journal bearings.
• Integrated Compressor Recirculation Valve (CRV): Built into the compressor housing to prevent compressor surge and simplify plumbing.
• Robust Construction: Precision-engineered for the rigors of competitive racing and high-performance street use.
• Manufacturer Part Number: 11587105001
