ICON K213003 Stage 3 Suspension System for Select 2009-2022 Ram 1500 4WD (0.75-2.5" Lift)

Fits select 2009-2022 Dodge/Ram 1500 and 1500 Classic 4WD models including Laramie, Sport, Big Horn, Rebel, and Tradesman trims.

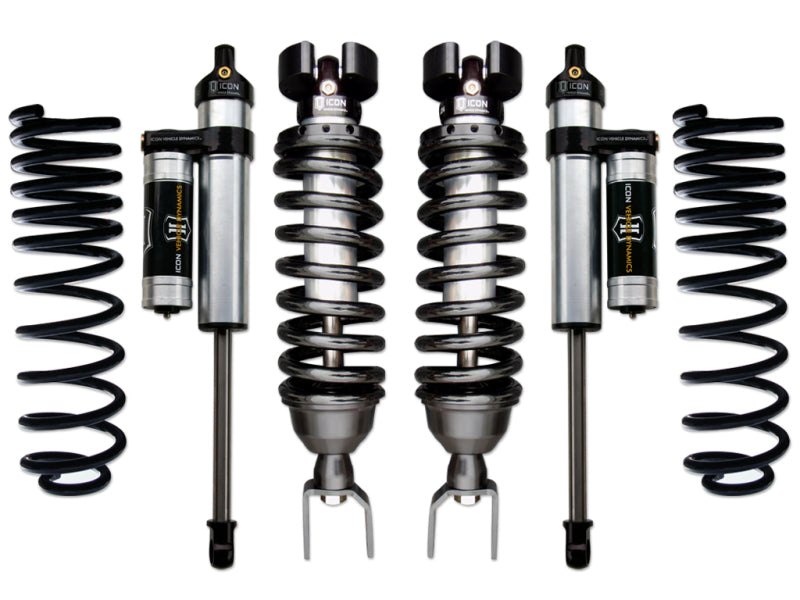

The ICON Vehicle Dynamics Stage 3 suspension system is designed to significantly improve the wheel travel and damping performance of your Ram 1500. This system features vehicle-specific tuned 2.5-inch coilover shocks equipped with internal reservoirs and ICON-engineered Eibach coil springs. These front coilovers provide 0.75 to 2.5 inches of adjustable lift height, allowing for the installation of larger wheel and tire combinations while maintaining superior ride quality.

Complementing the front coilovers, this kit includes ICON 2.5 Aluminum Series piggyback reservoir rear shocks. These shocks utilize a one-piece impact-extruded aluminum cylinder for maximum corrosion resistance and thermal management. Every component is valved specifically for the Ram 1500 to ensure a balanced feel whether you are on the pavement or in the dirt.

• Manufacturer Part Number: K213003
• Adjustable lift height from 0.75" to 2.5"
• 2.5 Aluminum Series rear shocks with piggyback reservoirs for consistent damping
• CAD plated coilover shock bodies with 7/8" shafts for heavy-duty durability
• 6061 Aircraft-grade aluminum CNC-machined components
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system—no drilling, cutting, or welding required for installation
• Maintains factory towing capacity while increasing off-road capability
