ICON Stage 4 Suspension System 0.75-2.5" Lift for 2009-2022 Dodge/Ram 1500 4WD (K213004)

Fits 2009-2010 Dodge Ram 1500, 2011-2018 Ram 1500, and 2019-2022 Ram 1500 Classic 4WD models.

The ICON Stage 4 Suspension System provides a significant performance upgrade for the Ram 1500, delivering increased wheel travel and superior damping control without compromising towing capacity. This system features ICON's patented Delta Joint Upper Control Arms, which bridge the gap between the high articulation of a uniball and the weather-sealed longevity of a ball joint. The Delta Joint's zinc-plated housing and grease seal ensure noise-free operation and protection against the elements, making it ideal for both off-road use and daily driving.

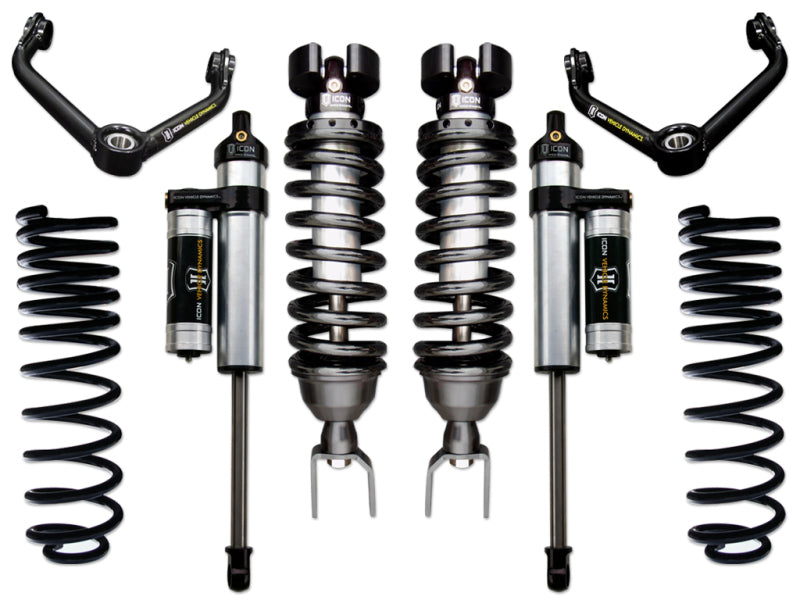

This 100% bolt-on system includes adjustable front coilovers capable of 0.75 to 2.5 inches of lift, featuring CAD-plated bodies and heavy-duty 7/8-inch shafts. The rear is supported by 2.5 Aluminum Series shocks, utilizing one-piece impact-extruded cylinders for exceptional heat dissipation and corrosion resistance. All components are CNC-machined from 6061 aircraft-grade aluminum and utilize FK rod end bearings for maximum durability.

• Fits 2009-2022 Dodge/Ram 1500 4WD (including Classic models)
• Adjustable lift height: 0.75" to 2.5"
• Delta Joint UCAs for high-angle articulation and sealed durability
• 2.5 Aluminum Series rear shocks with impact-extruded cylinders
• Corrosion-resistant CAD plated coilover bodies with 7/8" shafts
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for minimal deflection and extended life
• 100% Bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K213004
