The AEM Electronics 4-Port AEMnet CAN Hub (30-2225) provides a centralized, reliable docking station for connecting multiple AEMnet CAN bus-enabled devices. By using integrated 4-way DTM-style housings, this hub simplifies the integration of sensors, displays, and controllers into your vehicle's communication network while maintaining secure, professional-grade connections.

Designed for durability in demanding environments, the module features a rugged IP67-rated enclosure suitable for engine bay mounting. It can provide power to connected devices through a single port with a maximum current capacity of 3A (note: this is not for use with UEGO sensor heaters). For expanded setups, two hubs can be daisy-chained to accommodate up to six AEMnet devices.

• Interface: Four integrated 4-way DTM-style housings for reliable CAN communication.
• Power Capacity: 3A maximum current capacity for connected AEMnet devices.
• Protection: IP67-rated enclosure for dust and moisture resistance.
• Dimensions: Compact 3.45" (87.63mm) L x 1.18" (29.85mm) H footprint.
• Expansion: Daisy-chain support for connecting up to six devices across two hubs.
• Included Hardware: Two 4-40 x 7/8" flat head screws, two 4-40 x 0.375" washers, and two 4-40 x 9/64" Nylock nuts.

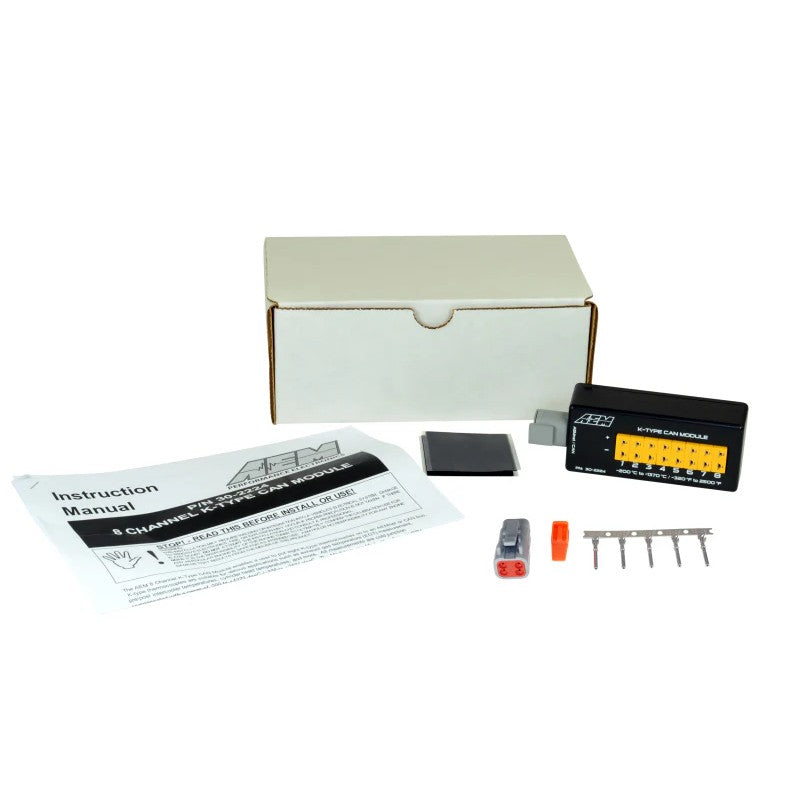

The AEM 8-Channel K-Type Thermocouple EGT CAN Module provides a precise, high-speed solution for monitoring multiple temperature points across your vehicle's engine and drivetrain. This module converts signals from up to eight K-type thermocouple sensors into a digital data stream for transmission over the AEMnet CAN bus, making it an essential tool for high-performance tuning, individual cylinder EGT monitoring, and fluid temperature tracking.

Engineered for professional-level data acquisition, the 30-2224 module features cold junction compensation to ensure lab-grade accuracy of +/- 0.15% full scale. It integrates seamlessly with AEM CD Digital Dashes, Infinity ECUs, and AQ-1 Data Loggers via a plug-and-play CAN connection. For complex setups, two modules can be daisy-chained together to provide up to 16 temperature inputs through a single plug.

• Wide Range: Measures temperatures from -200 to 1372°C (-328 to 2501°F) with 0.1°C resolution.
• Connectivity: Pre-configured AEMnet CAN bus for plug-and-play integration with compatible AEM hardware.
• Fault Detection: Integrated open circuit and fault detection for reliable sensor monitoring.
• Standardized Inputs: Utilizes eight common miniature thermocouple sockets for compatibility with various K-type sensors.
• Compact Build: Includes 4-pin DTM-style connector plug and Velcro mounting tabs for secure in-vehicle installation.

Included in Box: 8-Channel K-Type EGT CAN Module, 4-pin DTM-style connector plug, instructions, and Velcro mounting tab. (K-type sensors and DTM connection cables sold separately).

Note: This module is not compatible with AEM Series 2 ECUs.

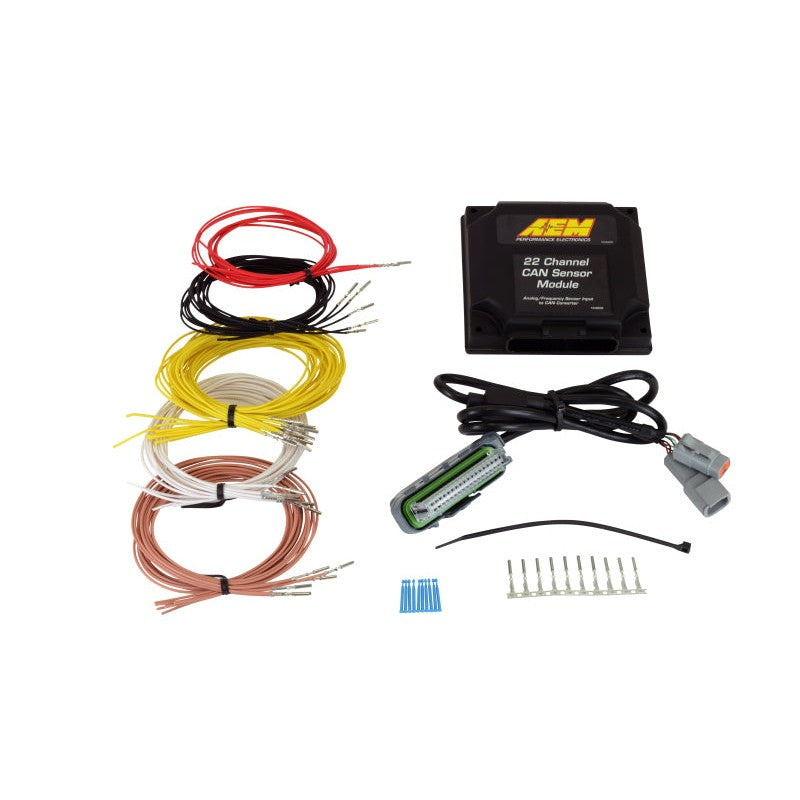

The AEM 30-2212 22-Channel CAN Sensor Module provides a robust solution for integrating analog, digital, and frequency-based inputs into the AEMnet CAN bus. Engineered specifically for the CD-5 Carbon and CD-7 Digital Dashes, this module allows owners of carbureted vehicles to utilize modern digital displays and enables EFI users to expand their data logging and viewing capabilities without multiple CAN-based devices.

Housed in a rugged IP65-rated enclosure that is dust-tight and water-resistant, this expander is built to withstand the rigors of performance driving. It includes a 36-inch flying lead wiring harness and a pre-wired CAN cable for a clean installation. For complex builds, two modules can be daisy-chained together to double the available input channels. Note: This module is exclusively compatible with AEM CD Dashes and is not compatible with AEM AQ-1, Series 2, or Infinity ECUs.

• Four dedicated 0-5V analog inputs
• Four user-configurable analog inputs (jumper selectable: 0-5V, thermistor, or RTD)
• Four temperature (thermistor) inputs
• One dedicated fuel level input (0 to 250 ohm range)
• Six digital inputs (active low, protected to ~18V; frequency, duty cycle, or switch)
• Two VR pair frequency inputs for crank, wheel, or driveshaft speed
• One tachometer input
• Jumper selectable CAN bus speeds: 250k, 500k, 1M
• Jumper selectable header length (11-bit or 29-bit) and terminating resistor
• IP65-rated enclosure and 36-inch flying lead harness included
• Manufacturer Part Number: 30-2212

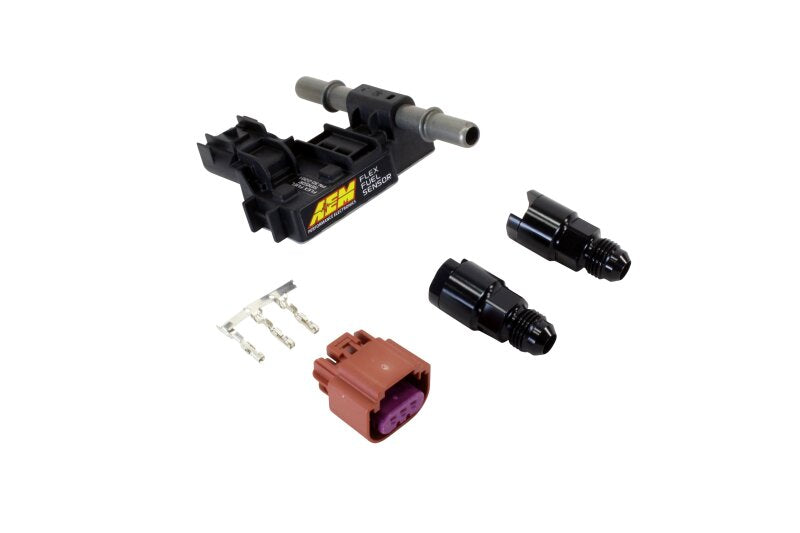

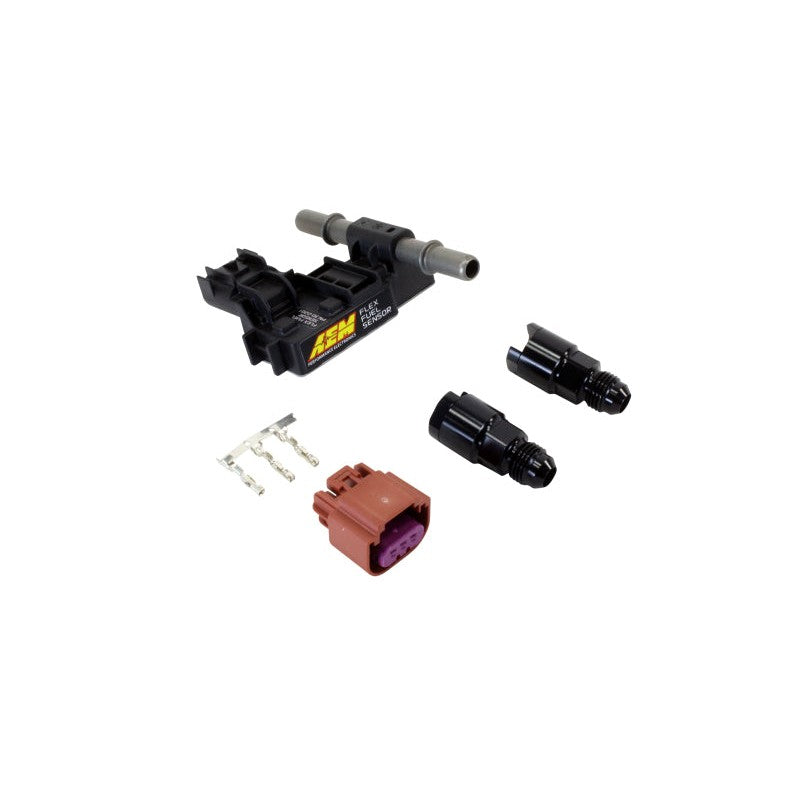

The AEM Flex Fuel Ethanol Content Sensor Kit (30-2201) provides precision monitoring of fuel ethanol percentage and temperature. Designed for use with programmable standalone engine management systems, this kit allows tuners to optimize engine calibrations in real-time based on the actual fuel blend. Since pump E85 can vary significantly from the labeled 85% ethanol, this sensor is a critical component for maintaining consistent performance and engine safety on flex-fuel builds.

This kit simplifies plumbing into existing fuel systems by including high-quality -6AN adapter fittings. The sensor outputs a frequency-based signal that communicates both ethanol concentration and fuel temperature to the ECU, enabling dynamic adjustments to ignition timing and fuel delivery. This is a vehicle-neutral kit compatible with most aftermarket engine management systems.

• Accurately measures ethanol content and fuel temperature in real-time
• Includes -6AN adapter fittings for easy fuel line integration
• Includes electrical connector, terminals, and wire seals for a secure harness
• Compatible with most aftermarket standalone ECUs capable of flex-fuel tuning
• Essential for protecting engines running variable ethanol blends
• Manufacturer Part Number: 30-2201

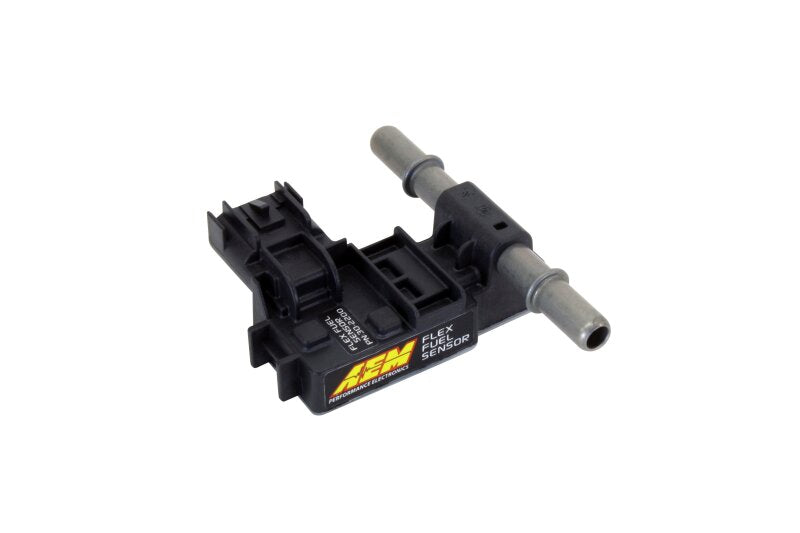

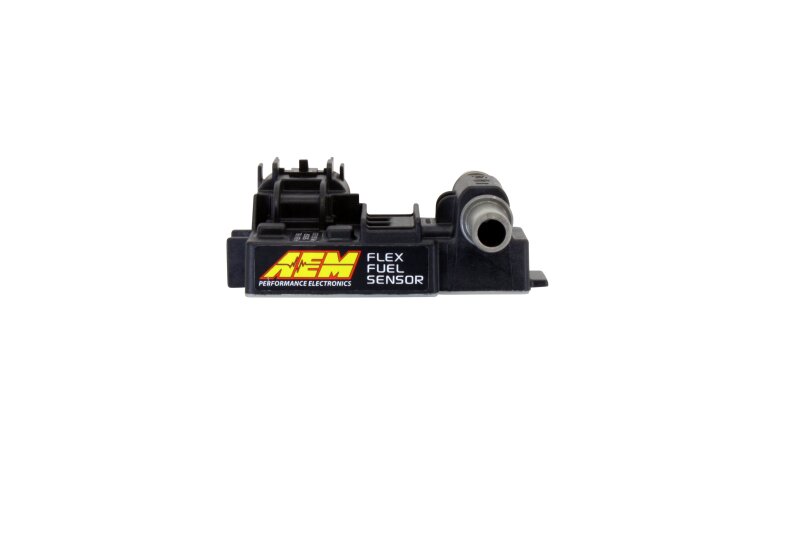

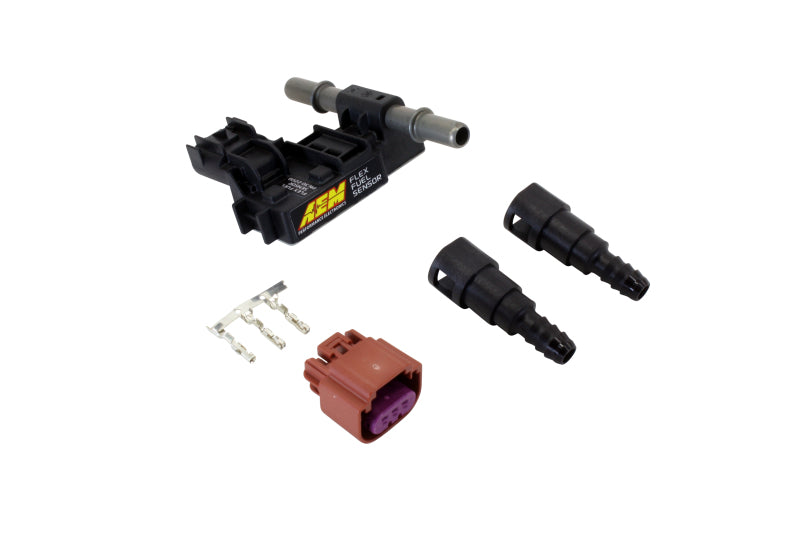

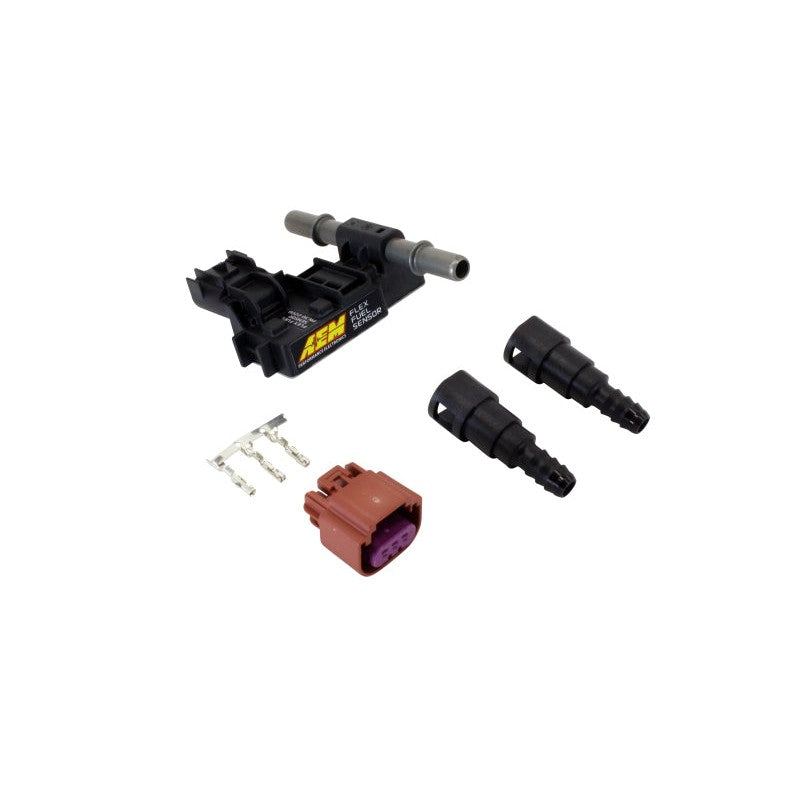

Optimize your engine's tune for varying ethanol blends with the AEM Flex Fuel Ethanol Content Sensor Kit. This essential component allows programmable engine management systems to precisely measure the fuel's ethanol percentage and temperature in real-time. Since "E85" fuel can vary significantly from the stated 85% ethanol content, this sensor provides accurate data, enabling your ECU to adjust tuning calibrations for consistent performance and engine safety.

• Measures fuel ethanol content percentage and fuel temperature.
• Enables dynamic ECU tuning calibration based on actual ethanol blend.
• Constructed with a durable brass body for excellent fluid resistance and sealing.
• Features a high-quality, weather-resistant connector and pins for reliable operation.
• Provides accurate readings with a precision of +/- 3%.
• Outputs analog data scaled in charts for easy integration with ECUs.
• AEM Part Number: 30-2200.

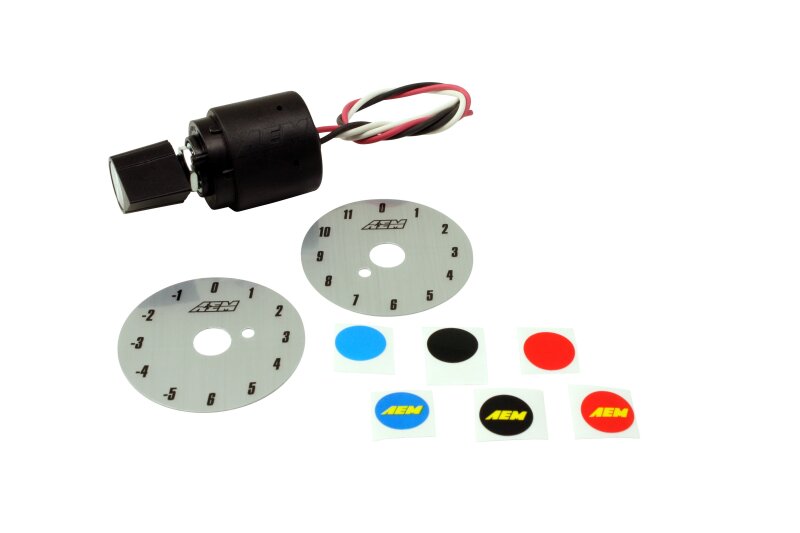

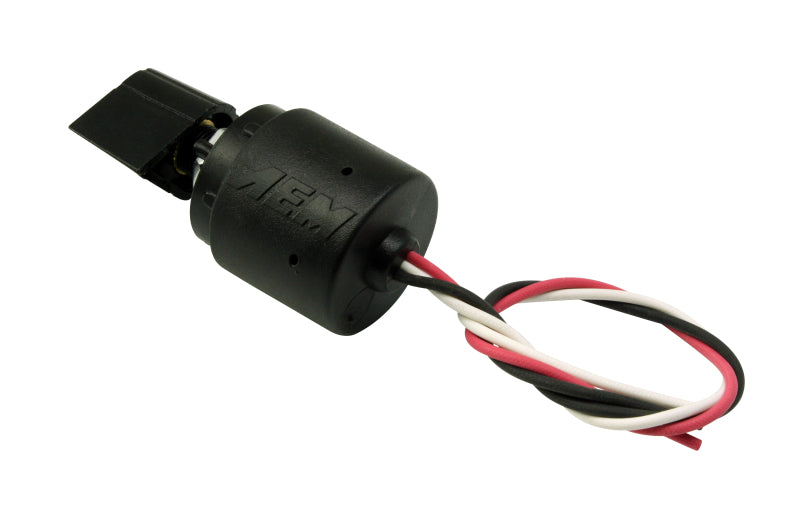

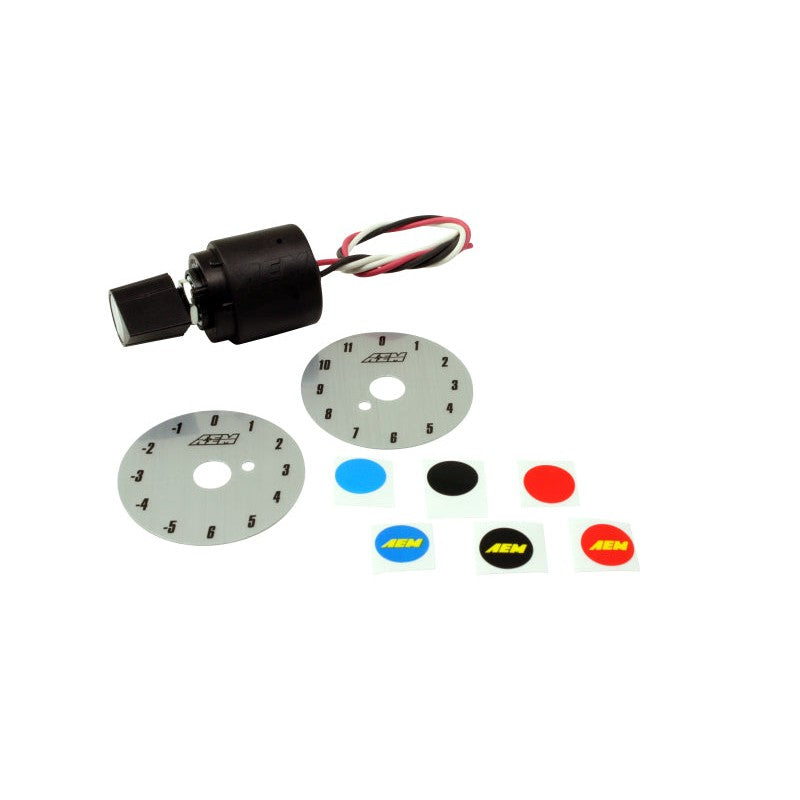

The AEM Electronics 30-2056 Universal 12-Position Trim Pot provides precise, on-the-fly adjustment for virtually any engine management system (EMS). Designed for high-performance tuning environments, this potentiometer allows drivers or tuners to toggle between different fuel maps, ignition timing offsets, boost levels, or traction control settings without needing a laptop connected to the vehicle.

• Durable Construction: Features an over-molded weatherproof body to protect internal components from environmental exposure.

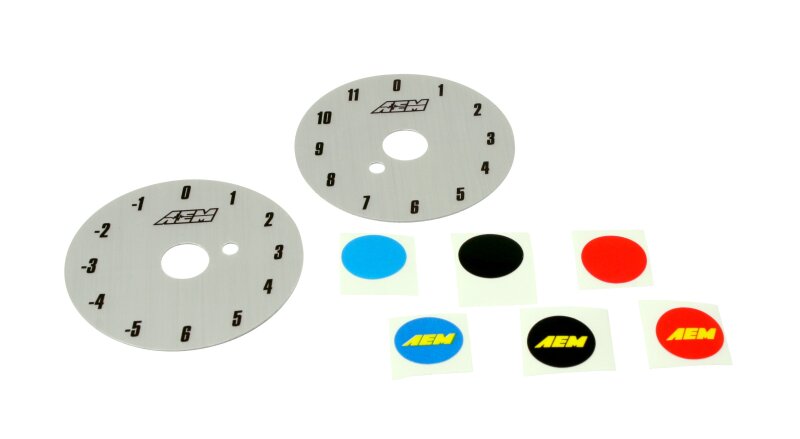

• Complete Adjustment Kit: Includes two brushed silver decals with ranges from -5 to +6 and 0 to +11, along with a variety of AEM logo and colored knob decals for clear position identification.
• Technical Precision: Delivers a total resistance of 14.3kΩ through a 330-degree rotation, rated for a minimum of 10,000 cycles.
• Wiring & Mounting: Comes with 12-inch flying leads (Red for 5Vdc supply, Black for ground, and White for signal output) and mounts into a standard 3/8-inch hole.

Included Hardware & Specs:

• Manufacturer Part Number: 30-2056
• Positions: 12
• Total Resistance: 14.3kΩ
• Supply Voltage: 5Vdc +/- .5V
• Lead Length: 12 inches
• Mounting: 3/8" Hole with 1/2" Hex Jam Nut
• Knob Set Screw: 1/16" Allen
