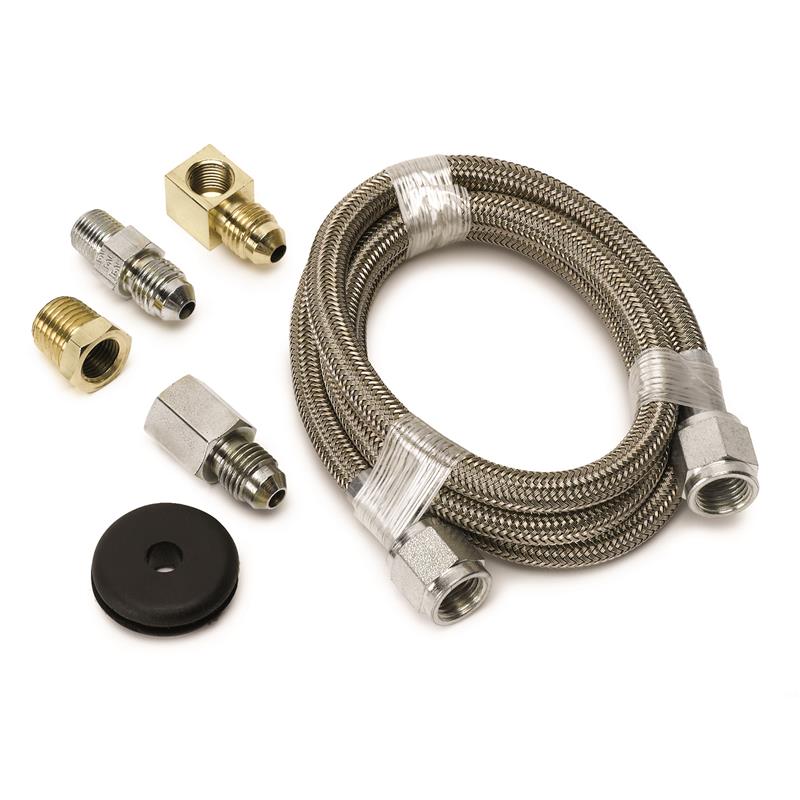

The AutoMeter 3227 is a heavy-duty -4AN braided stainless steel line kit designed for high-pressure automotive gauge applications. This 3ft hose is specifically recommended for mechanical fuel pressure gauges or for the remote mounting of electric gauge pressure senders to protect them from engine vibration and heat. The kit includes a comprehensive selection of 1/8" NPT and 1/4" NPT fittings and a firewall pass-through grommet for a clean, professional installation.

• Line Type: #4 Braided Stainless Steel (-4AN)
• Line Length: 3 Feet
• MPN: 3227
• Included Fittings: 1/8" NPT female right angle to -4AN male, -4AN male to 1/8" NPT male, -4AN male to 1/8" NPT female, and 1/8" NPT to 1/4" NPT adapter bushing
• Installation Hardware: Firewall pass-through grommet included
• Application: Mechanical fuel/oil pressure gauges or remote electric sender mounting

The AutoMeter 3224 mechanical pressure gauge installation kit provides a durable, heat-resistant alternative to standard nylon tubing. This kit features six feet of 1/8-inch copper line, engineered to withstand the high temperatures and vibration common in high-performance engine bays. It is an ideal solution for plumbing mechanical oil or water pressure gauges where plastic lines may be prone to melting or brittle failure.

This comprehensive kit includes all necessary adapters and compression fittings to establish a secure, leak-free connection between your engine block and the gauge. Note that this copper line is intended for oil and water pressure applications only; it must not be used for fuel, nitrous, or brake pressure systems.

• Manufacturer Part Number: 3224
• 6 feet of 1/8" diameter copper tubing
• 1/8" NPT Male to 1/8" compression fitting
• 1/8" NPT Female to 1/8" compression fitting
• 1/8" NPT to 1/4" NPT adapter bushing
• Protective firewall grommet included

The AutoMeter 3223 mechanical pressure gauge tubing kit is designed for plumbing mechanical oil or boost pressure gauges. This comprehensive kit provides 10 feet of 1/8-inch nylon line, offering a flexible and durable alternative to rigid copper tubing for standard automotive monitoring applications. It includes all necessary brass compression hardware and NPT adapters to ensure a leak-free connection between your engine block and the gauge.

• Manufacturer Part Number: 3223
• Tubing Material: Nylon
• Tubing Diameter: 1/8 in.
• Length: 10 ft.
• Operating Pressure: 250 PSI max
• Burst Pressure: 1,000 PSI
• Temperature Range: -65°F to 150°F
• Included Hardware: 1/8" NPT male to 1/8" compression fitting, 1/8" NPT female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, and compression ferrules.

Usage Note: This nylon tubing is intended for mechanical pressure gauges only. Do NOT use with fuel pressure, brake pressure, or nitrous oxide applications.

Ensure your gauges remain visible under all driving conditions with the AutoMeter T3 Wedge Twist-In Light Bulb and Socket Assembly. This assembly (MPN 3220) is designed to provide reliable illumination for compatible gauge housings, utilizing a secure twist-in socket that maintains electrical contact even under vibration.

Depending on the specific bulb used within this assembly, performance specifications vary to meet your needs for brightness or longevity. This assembly is compatible with #161, #194, and #168 wedge bulbs, offering a range of lumen outputs and current draws.

• Bulb #161: 2.7 Watts, 0.19 Amp draw, 12.5 Lumens, 4,000-hour life expectancy
• Bulb #194: 4.6 Watts, 0.27 Amp draw, 25 Lumens, 2,500-hour life expectancy
• Bulb #168: 4.9 Watts, 0.35 Amp draw, 37 Lumens, 1,500-hour life expectancy
• Base Type: T3 Wedge Twist-In
• Manufacturer Part Number: 3220

The AutoMeter Z-Series Digital Street Wideband Air/Fuel Ratio Gauge (MPN 2679) provides essential tuning data for gasoline engines, allowing you to monitor combustion for maximum power and engine safety. This 2-1/16-inch (52.4mm) gauge utilizes an advanced auto-calibration system that automatically zeroes the sensor on every startup, ensuring consistent accuracy over the life of the sensor without the need for manual free-air calibration.

Designed for easy integration into high-performance street and race vehicles, the Z-Series wideband features a dual-display interface: a precise digital segment readout and a quick-glance LED radial bar graph. The unit includes a data logging output compatible with one-wire or two-wire systems, making it a versatile tool for ECU integration and laptop tuning. This complete kit includes a specially calibrated wideband O2 sensor and a dedicated wiring harness for a reliable installation.

• AFR Range: 10:1 to 17:1
• Compatible with 12V and 16V electrical systems
• 0-4V analog data output for ECUs and data acquisition
• Digital and LED radial bar graph display
• Optimized for gasoline-powered applications
• Includes wideband oxygen sensor and wiring harness
• Manufacturer Part Number: 2679

The Autometer Z Series Digital Stepper Motor Fuel Level Gauge simplifies fuel monitoring by providing a highly configurable solution for nearly any sending unit. Engineered for precision, this 2-1/16 inch (52.4mm) gauge utilizes a race-proven digital stepper motor and a self-calibration sequence at power-up to ensure unmatched accuracy across the dial.

This programmable instrument features seven common factory-stored resistance ranges and an innovative custom calibration mode. Using the "Snapshot" programming method, users can capture empty and full readings from any sending unit operating between 0 and 280 Ohms, making it compatible with a vast array of OE and aftermarket applications. The gauge is compatible with both 12V and 16V electrical systems found in street and race vehicles.

• Manufacturer Part Number: 2656
• Diameter: 2-1/16in (52.4mm)
• Resistance Range: 0-280 Ohms (User-definable)
• Seven Preset Ranges: 73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F
• Digital stepper motor movement for maximum accuracy and durability
• Compatible with 12-volt and 16-volt electrical systems
• Includes 20 ft. wiring harness, bulb and socket assembly, and mounting hardware
• Includes red and green bulb covers for custom backlighting

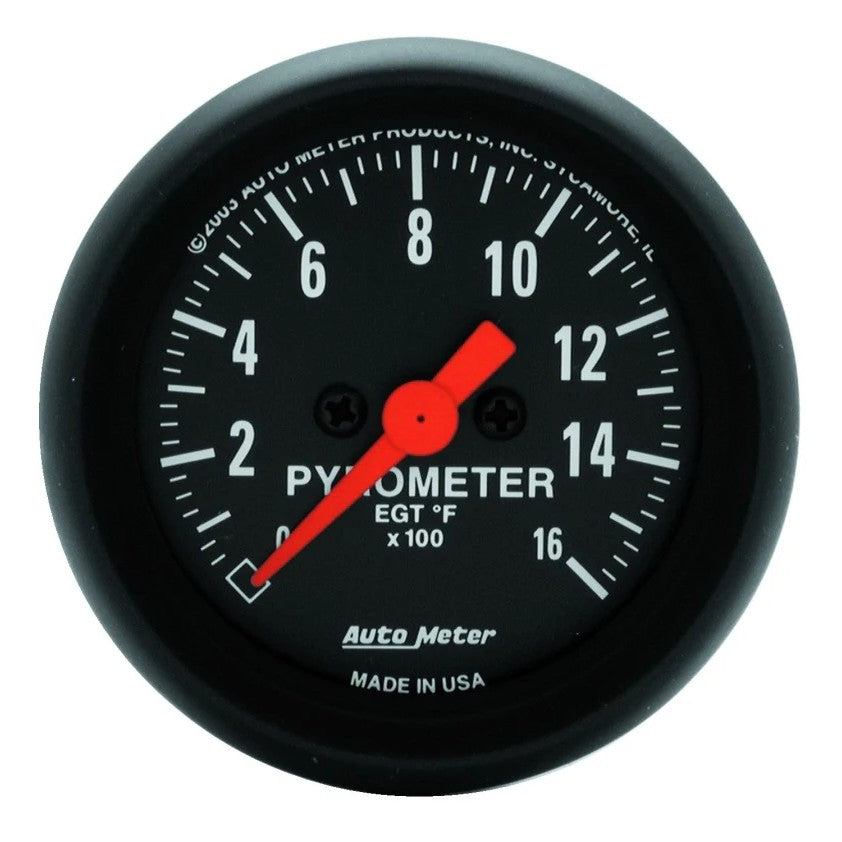

Monitoring precise exhaust gas temperature (EGT) is critical for high-output diesel and forced induction engines where excessive heat can lead to catastrophic damage. The AutoMeter Z-Series 2654 pyrometer provides a professional-grade solution, utilizing a race-proven digital stepper motor to deliver unmatched accuracy and effortless readability.

Each gauge features a self-calibration sequence upon power-up to ensure the pointer is perfectly indexed. The included Type K thermocouple is engineered for maximum accuracy and minimum response time, providing real-time data when it matters most. This kit is designed for versatile installation, featuring a direct plug-in harness and compatibility with both 12V and 16V electrical systems.

• Range: 0-1600°F
• Diameter: 2-1/16 in. (52.4mm)
• Movement: Full Sweep Digital Stepper Motor
• Compatibility: 12V and 16V electrical systems
• Includes: Type K Thermocouple and wiring harness
• Includes: Bulb and socket assembly with red and green covers
• Includes: Mounting hardware and installation instructions
• Manufacturer Part Number: 2654

Monitor your vehicle's electrical health with the Autometer Z-Series 52mm (2-1/16") Electric Voltmeter. Designed for high-accuracy monitoring of negative ground electrical systems, this gauge provides real-time data on battery and alternator output, helping you identify charging issues before they lead to a breakdown.

At the heart of the Autometer 2645 is a patented air-core meter movement, engineered for precision and durability in both street and racing environments. The Z-Series aesthetic features a classic black face with white numbering and a slim profile bezel for a clean, professional look in any dashboard or gauge pod.

• Measurement Range: 8-18 Volts
• System Compatibility: Compatible with 12-volt and 16-volt negative ground systems
• Air-Core Movement: Provides quick, accurate needle response for critical monitoring
• Size: 2-1/16 inch (52.4mm) diameter
• Part Number: 2645

Includes: Bulb and socket assembly, red and green bulb covers for custom backlighting, mounting hardware, and detailed installation instructions.

Protect your automatic transmission from heat-related failure with the AutoMeter Z Series 52mm (2-1/16") Transmission Temperature Gauge. Since fluid temperature is the primary factor in transmission longevity, this air-core electric instrument provides real-time monitoring essential for towing, high-performance builds, or forced induction applications. The race-proven air-core design ensures quick, accurate readings while keeping hazardous fluids outside the cabin.

This 52mm gauge is compatible with both 12-volt and 16-volt electrical systems, making it a versatile choice for street vehicles and dedicated race cars. The kit includes a 1/8" NPT temperature sender which can be installed in the transmission housing, pan, or via an optional cooler line manifold.

• Measurement Range: 100-250°F
• Gauge Diameter: 52mm (2-1/16")
• Operation: Air-Core Electric
• Electrical Compatibility: 12V and 16V systems
• Included Sender: 1/8" NPT temperature sender
• Included Adapters: 3/8" and 1/2" NPT
• Lighting: Bulb and socket assembly with red and green covers
• Installation Hardware: Mounting bracket and detailed instructions included
• Manufacturer Part Number: 2640

Protect your engine from thermal breakdown by monitoring oil temperature, a critical parameter for verifying oil viscosity and cooling system efficiency. The AutoMeter Z-Series (MPN 2638) provides precise 100-250°F readings using a patented air-core meter movement, designed for the durability required in both street and race environments. This short sweep electric (SSE) gauge keeps hazardous fluids out of the cabin while delivering quick, accurate data.

• Precision Range: 100-250°F scale for accurate monitoring of engine lubricants.
• Advanced Movement: Features AutoMeter’s race-proven air-core electric movement for consistent performance.
• System Compatibility: Works with both 12V and 16V electrical systems, making it compatible with nearly any vehicle.
• Complete Kit: Includes a 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, and all necessary mounting hardware.
• Custom Lighting: Includes a bulb and socket assembly with red and green bulb covers to match your dashboard aesthetic.

Protect your engine from the damaging effects of overheating with the AutoMeter Z-Series 52mm short sweep electric water temperature gauge. Designed for precision and reliability, this gauge utilizes a race-proven air-core electric movement to deliver accurate readings from 100°F to 250°F while ensuring hazardous fluids remain outside the vehicle cabin.

The AutoMeter 2635 is engineered for versatility, featuring full compatibility with both 12V and 16V electrical systems, making it suitable for nearly any street or race application. The kit includes a high-accuracy 1/8-inch NPT temperature transducer and multiple adapters to simplify the plumbing process into your engine's cooling system.

• Range: 100-250°F
• Diameter: 52mm (2-1/16 in.)
• Movement: Short Sweep Electric Air-Core
• Voltage: 12V and 16V compatible
• Included Sender: 1/8" NPT temperature sender
• Included Adapters: 3/8" and 1/2" NPT adapters
• Lighting: Bulb and socket assembly with red and green bulb covers
• Installation: Includes mounting hardware and detailed instructions
• Manufacturer Part Number: 2635

Monitor your engine's most critical vital with the AutoMeter Z-Series 2634 electric oil pressure gauge. Utilizing a patented air-core meter movement, this 52mm gauge provides the durability and precision required for both high-performance street and competition use. By using an electric sender, this gauge keeps hazardous pressurized fluids out of the passenger compartment while delivering rapid, accurate readings.

• Range: 0-100 PSI operation
• Movement: Race-proven air-core electric movement for maximum accuracy
• Electrical Compatibility: Designed for 12-volt and 16-volt electrical systems
• Included Hardware: 1/8" NPT pressure sender and 1/4" NPT adapter
• Customizable Lighting: Includes bulb and socket assembly with red and green bulb covers
• Installation: Comes with mounting hardware and detailed instructions

The Z-Series offers a classic, understated look that integrates seamlessly into any dashboard or gauge pod while providing the benchmark performance AutoMeter has refined over five decades.

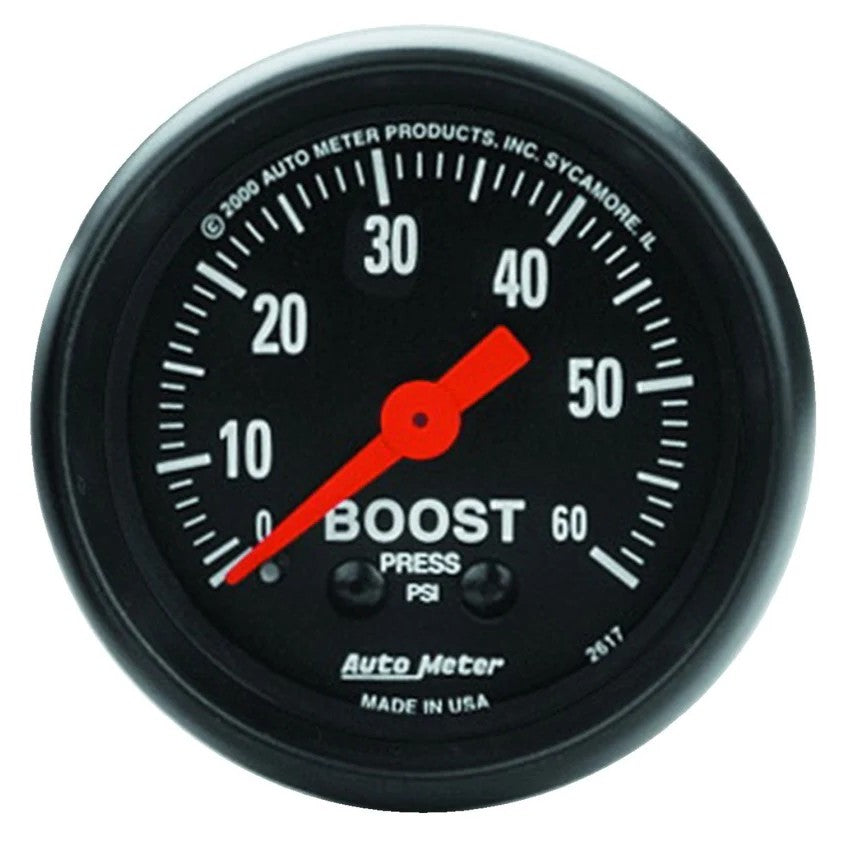

Monitor your engine's turbocharger or supercharger performance with the Autometer Z Series mechanical boost gauge. Designed for both gasoline and diesel applications, this gauge utilizes a precision bourdon tube meter movement to provide accurate, real-time pressure readings from 0 to 60 PSI. Because it is a fully mechanical instrument, it requires no electrical hookup for pressure operation, making it a reliable choice for harsh racing environments or simplified street installs.

• Series: Z Series
• Type: Mechanical Bourdon Tube
• Size: 2-1/16 inch (52mm)
• Range: 0-60 PSI
• Fitting: 1/8 inch NPT pressure connection
• Illumination: Incandescent bulb with red and green bulb covers included
• MPN: 2617

The kit includes everything needed for a standard installation: a 1/8-inch nylon line kit, 1/8-inch NPT compression fittings, a 1/4-inch NPT adapter, a bulb and socket assembly, and all necessary mounting hardware.

The AutoMeter Z Series Mechanical Boost Gauge (MPN 2616) provides reliable, high-accuracy pressure monitoring for any turbocharged or supercharged engine. This gauge uses a precision bourdon tube meter movement to deliver consistent mechanical readings without requiring an electrical hookup for operation. Its 52mm diameter and black-on-white Z Series styling ensure it integrates seamlessly into a wide range of interior dash or pod configurations.

• Pressure Range: 0-35 PSI
• Gauge Diameter: 2-1/16 inch (52.4mm)
• Movement Type: High-precision mechanical bourdon tube
• Connection: 1/8 inch NPT pressure connection
• Lighting: 12V incandescent bulb with red and green covers for customized backlighting
• Included Hardware: 1/8 inch nylon line kit, 1/8 inch NPT compression fittings, 1/4 inch NPT adapter, mounting hardware, and bulb/socket assembly
• MPN: 2616

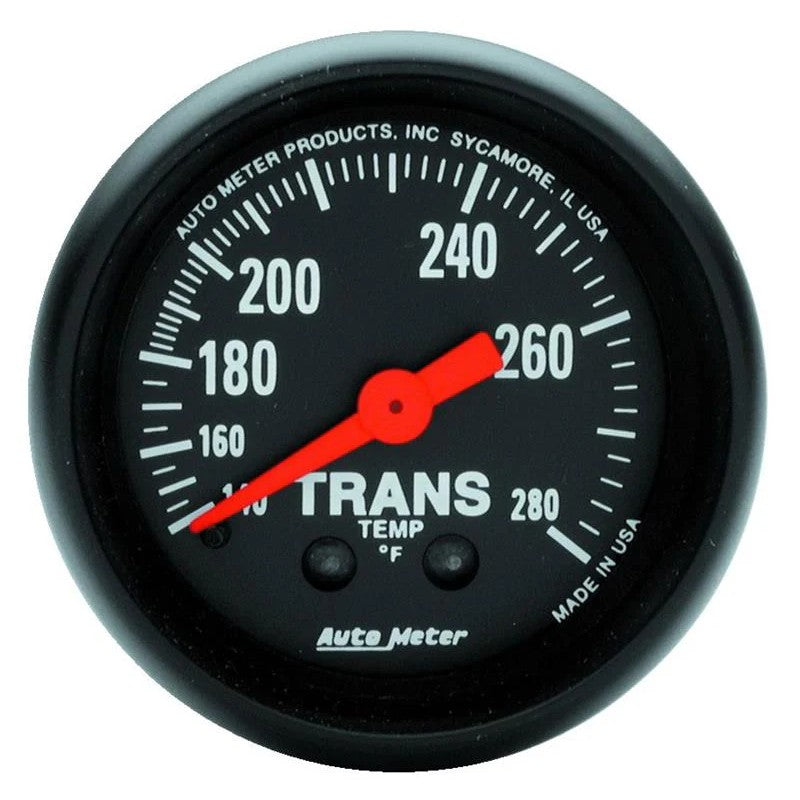

Monitor your automatic transmission's health with the AutoMeter Z Series Mechanical Transmission Temperature Gauge (MPN 2615). Since fluid temperature is the leading factor in transmission longevity, this gauge provides the real-time data necessary to know when to adjust your driving or downshift, especially when towing or operating a high-output engine. The 52mm (2-1/16 in.) Z Series gauge offers a clean, professional look that integrates seamlessly with most interiors.

• Highly accurate mechanical bourdon tube movement for reliable temperature tracking
• Operating range: 140°F to 280°F
• Includes an 8" capillary tube with a 1/2" NPT mounting nut for transmission pan installation
• Complete gauge kit includes a 1/2" NPT adapter, bulb and socket assembly, and mounting hardware
• Customizable illumination with included red and green bulb covers
• Installation instructions included; compatible with optional trans cooler line manifolds

The AutoMeter Z Series mechanical boost/vacuum gauge (MPN 2614) is a performance-grade instrument designed for precise manifold pressure monitoring in forced induction applications. Utilizing a patented, high-precision Bourdon tube meter movement, this gauge delivers consistent accuracy and mechanical durability that withstands the vibration and temperature fluctuations of a performance cockpit.

• Measurement Range: 30 In Hg. Vacuum to 30 PSI Boost
• Gauge Diameter: 52mm (2-1/16")
• Movement Type: High-precision mechanical Bourdon tube
• Connection: 1/8" NPT male pressure port
• Installation: Direct mechanical hookup requires no electrical wiring for operation
• Included Hardware: 1/8" NPT fittings and nylon line kit

This Z Series gauge features a classic aesthetic that integrates seamlessly into most vehicle interiors, providing critical data for tuning and safe engine operation. The mechanical design ensures real-time response without the lag or complexity of electronic sensors.

Protect your engine from catastrophic failure with the AutoMeter Z Series mechanical oil pressure gauge (MPN: 2605). This 52mm (2-1/16") gauge utilizes a high-performance Bourdon tube meter movement to deliver the precise, real-time pressure readings essential for monitoring engine health in both street and race applications. Because it is fully mechanical, this gauge operates independently of the vehicle's electrical system for maximum reliability.

The Z Series gauge features a clean, easy-to-read face and includes everything needed for a standard installation. It connects via a 1/8" NPT fitting and comes supplied with a nylon pressure line and a 1/4" NPT adapter for versatile plumbing options. For nighttime visibility, the included bulb and socket assembly comes with both red and green bulb covers to match your existing dashboard lighting.

• Range: 0-200 PSI
• Diameter: 2-1/16" (52.4mm)
• Movement: Mechanical Bourdon Tube
• Installation: 1/8" NPT connection (1/4" NPT adapter included)
• Hardware: 1/8" nylon line, compression fittings, and mounting hardware
• Lighting: Incandescent bulb with red/green covers included
• Manufacturer Part Number: 2605

Monitor your engine's critical lubrication system with the AutoMeter Z Series mechanical oil pressure gauge (MPN: 2604). Built for both street and race applications, this 52mm (2-1/16 inch) gauge utilizes a precision Bourdon tube meter movement to deliver highly accurate readings without the need for an electrical system. The mechanical design ensures reliable performance even in the harshest vibration and heat environments.

• Advanced Bourdon tube movement for maximum durability and precision
• 0-100 PSI measurement range provides clear insight into engine health
• Mechanical operation makes it compatible with all vehicles regardless of electrical system
• Standard 1/8 inch NPT connection for straightforward installation
• Z Series aesthetics with a classic black face and white numbering

Kit Includes: 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed installation instructions.

The AutoMeter Z Series 2601 is a precision-engineered mechanical boost/vacuum gauge, designed to provide accurate real-time monitoring for forced induction engines. Utilizing a patented, high-precision Bourdon tube meter movement, this gauge delivers professional-grade durability and response even in high-vibration or harsh racing environments.

• Part Number: 2601
• Series: Z Series
• Size: 52mm (2-1/16in)
• Range: 30 In. Hg. / 20 PSI
• Type: Mechanical Bourdon Tube
• Installation: 1/8in NPT pressure connection (no electrical hookup required for needle operation)
• Hardware: Includes 1/8in NPT fittings and nylon line kit

Built for reliability, the mechanical movement ensures consistent readings without the need for complex wiring or sensors. The package comes complete with the necessary nylon tubing and fittings for a straightforward installation into your intake manifold or vacuum source.

The AutoMeter Traditional Chrome 2430 Mechanical Air Locker Gauge provides precise, real-time monitoring of your vehicle's onboard air system. Engineered for off-road applications using pneumatic locking differentials, this 2-1/16in (52.4mm) gauge allows you to verify system pressure directly from the cabin, ensuring reliable driveline engagement.

By tracking supply settings up to 150 PSI, drivers can troubleshoot regulator settings and detect system pressure loss before it leads to incomplete locker engagement or drivetrain damage. The Traditional Chrome series features a classic white dial, black increments, and a polished chrome bezel to suit both vintage and modern dash layouts.

• Gauge Type: Mechanical Air Locker
• Range: 0-150 PSI
• Size: 2-1/16in (52.4mm)
• Movement: Precision Bourdon Tube
• Series: Traditional Chrome
• Manufacturer Part Number: 2430

The AutoMeter AutoGage 2397 3-Gauge Console provides critical engine vitals in a single, compact under-dash mount. Designed and engineered in Sycamore, IL, the AutoGage line delivers professional-grade accuracy for street performance and weekend racing applications. This three-gauge set allows you to monitor oil pressure, electrical system health, and coolant temperature simultaneously from a high-visibility mounting point.

• Part Number: 2397
• Gauge Diameter: 52.4mm (2-1/16 in.)
• Oil Pressure Gauge: Mechanical, 0-100 PSI
• Voltmeter: 10-16 Volts
• Water Temperature Gauge: 130-280° F
• Console Style: 3-Gauge panel for under-dash or surface mounting
• Proven durability and accuracy tested in magazine comparison trials

Monitor your engine's most critical vitals with the AutoMeter AutoGage 2-Gauge Console (MPN 2392). This mechanical gauge set is engineered in Sycamore, IL, to provide accurate, high-performance data for street enthusiasts and weekend racers. By using mechanical movements, these gauges offer direct sensing of oil pressure and coolant temperature, ensuring precise readings regardless of your vehicle's electrical system stability.

This pre-assembled kit includes a 0-100 PSI oil pressure gauge and a 130-280°F water temperature gauge mounted in a rugged black console housing. The 52.4mm (2-1/16 inch) gauges feature high-contrast dials for easy readability at a glance. Designed for durability and precision, the AutoGage line delivers professional-grade monitoring in a compact, easy-to-install package.

• Gauge Diameter: 52.4mm (2-1/16")
• Oil Pressure Range: 0-100 PSI
• Water Temperature Range: 130-280°F
• Operation: Mechanical
• Console Finish: Black
• Manufacturer Part Number: 2392

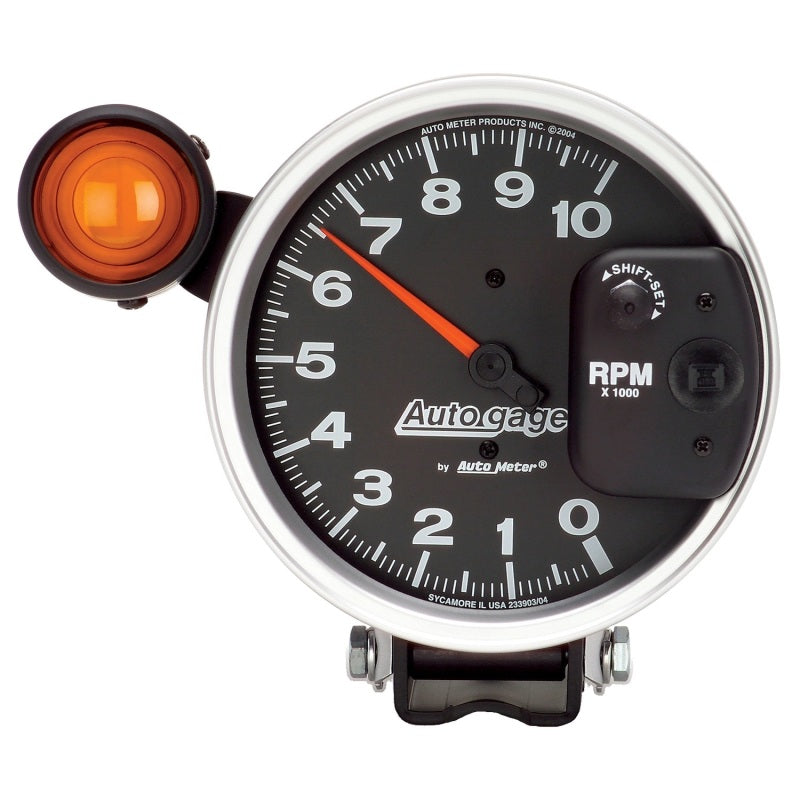

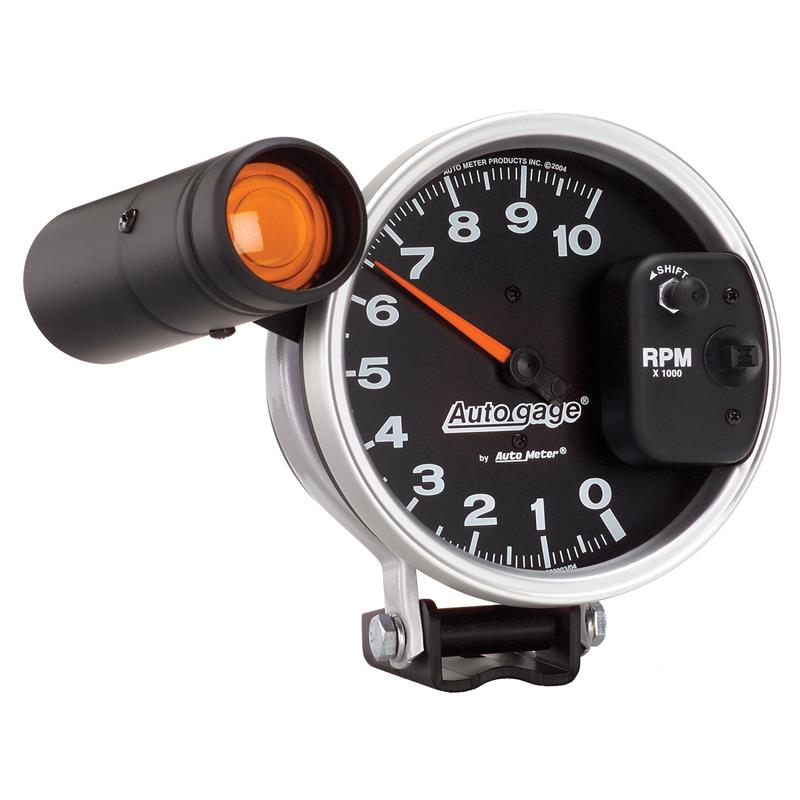

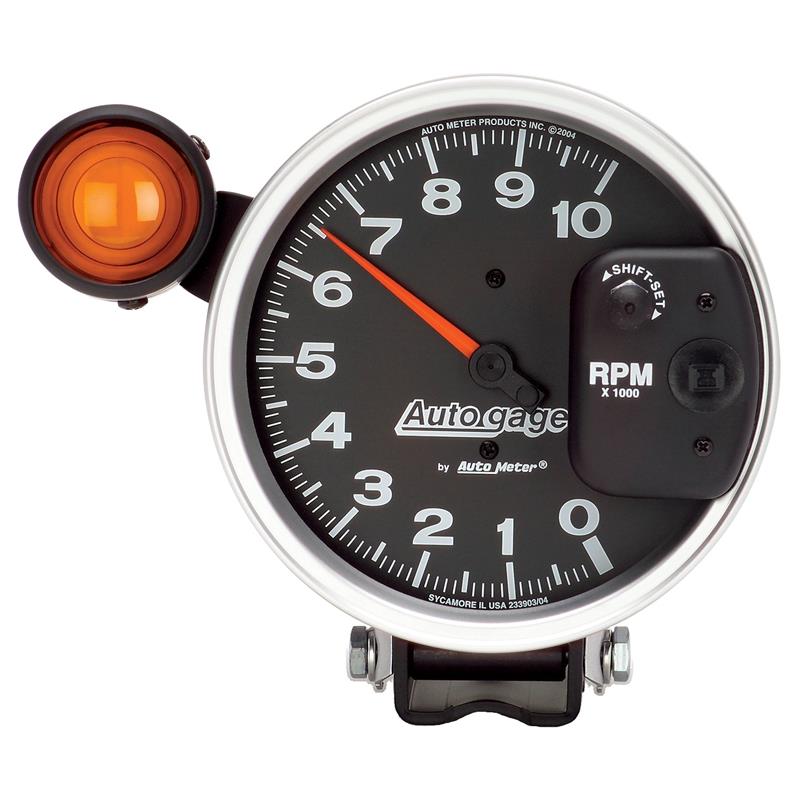

The AutoMeter Auto Gage Monster Shift-Lite Tachometer (MPN 233904) is engineered to provide high-accuracy RPM monitoring for street cars and weekend racers. Designed in Sycamore, IL, this 5-inch pedestal-mount gauge features a high-visibility, user-programmable shift light to help you hit every gear change at the optimal point in your engine's power band.

This instrument utilizes a race-proven air-core electric movement, delivering a needle response so rapid it can travel from zero to full scale in just 333 milliseconds. It is compatible with a wide range of ignition systems, including standard points, electronic, and most 12V high-performance racing ignitions. The rugged construction ensures durability across both 12-volt and 16-volt electrical systems.

• Manufacturer Part Number: 233904
• Diameter: 5 inches (127mm)
• RPM Range: 0-10,000 RPM
• Movement: Quick-response Air-Core Electric (333ms full-scale)
• Compatibility: 4, 6, and 8 cylinder engines (2 to 4 pulse per revolution signals)
• System Voltage: 12V and 16V compatible
• Mounting: Pedestal base for versatile dashboard or steering column installation
• Included: Integrated programmable external shift light

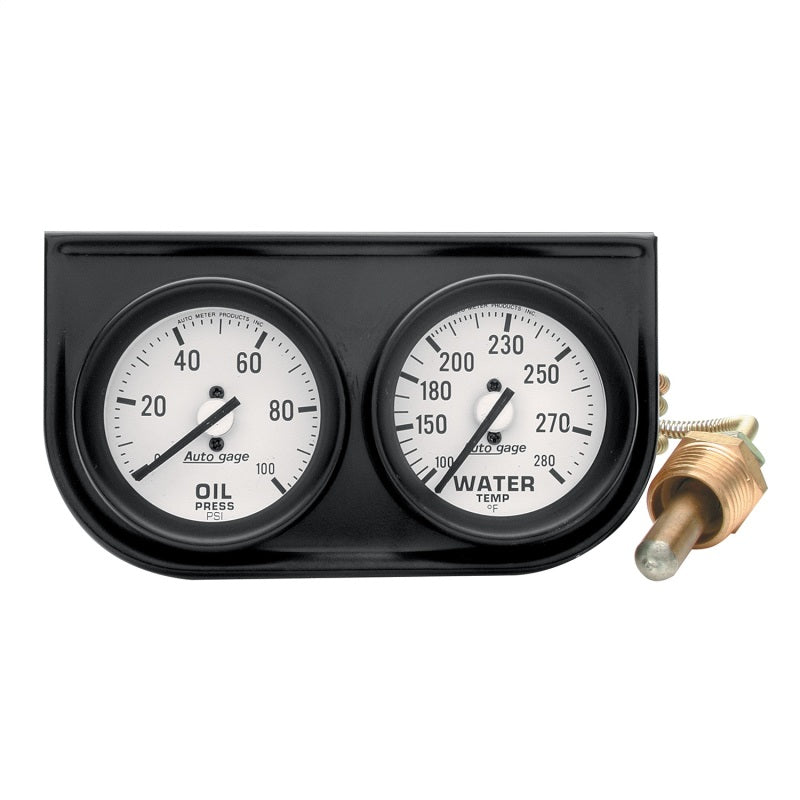

Monitor your engine’s vital signs with the AutoMeter AutoGage 2-Gauge Console. This pre-assembled kit features two high-accuracy 2-1/16-inch mechanical gauges mounted in a sleek black console, providing critical data for street performance and weekend racing. Engineered in Sycamore, Illinois, the AutoGage series delivers professional-grade monitoring and durability in a cost-effective package.

• Oil Pressure Gauge: 0-100 PSI mechanical movement for real-time engine lubrication tracking.
• Water Temperature Gauge: 100-280°F mechanical movement to monitor cooling system efficiency.
• Mechanical Accuracy: High-precision movements provide consistent readings without the need for complex electrical sensors.
• Pre-Mounted Console: Includes a durable black under-dash console for a clean, organized installation.
• Gauge Size: Standard 2-1/16-inch (52.4mm) diameter instruments.
• Manufacturer Part Number: 2326

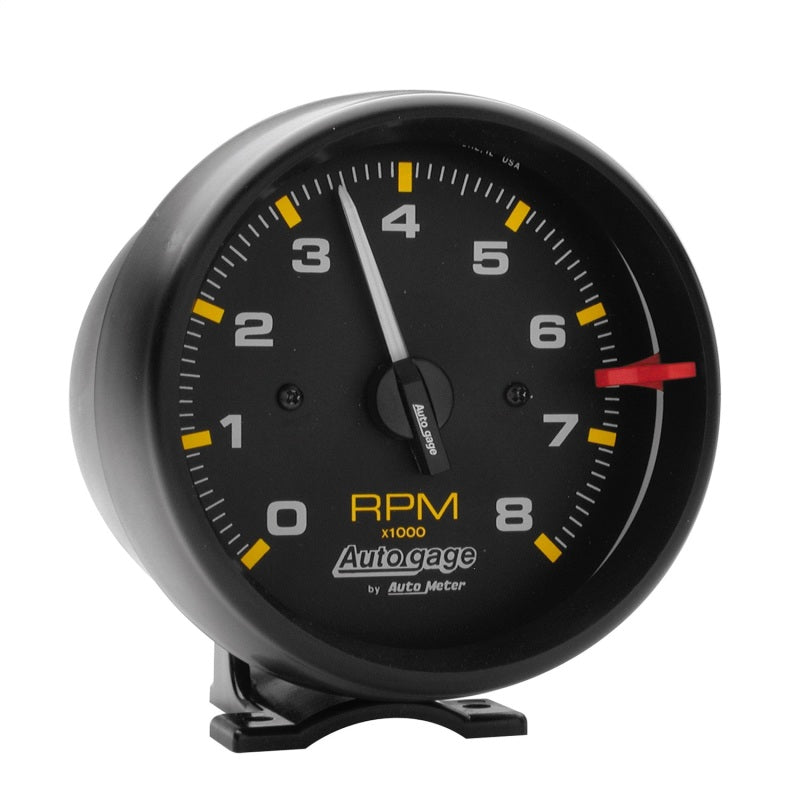

The AutoMeter Auto Gage 2300 provides precision RPM monitoring for street performance and weekend racing applications. Engineered in Sycamore, Illinois, this 8,000 RPM tachometer delivers the accuracy and durability expected from AutoMeter in a value-oriented package. The pedestal mount design allows for versatile installation on the dashboard or steering column, ensuring clear visibility of your engine's vitals.

• 8,000 RPM range with a high-contrast black face and white needle
• Compatible with 4, 6, and 8-cylinder engines (2-4 pulse per revolution signals)
• Works with points, electronic, and most 12V high-performance racing ignitions
• 12V and 16V electrical system compatibility for street or race use
• Pedestal mount allows for flexible interior placement
• Engineered by AutoMeter for proven reliability
• Manufacturer Part Number: 2300

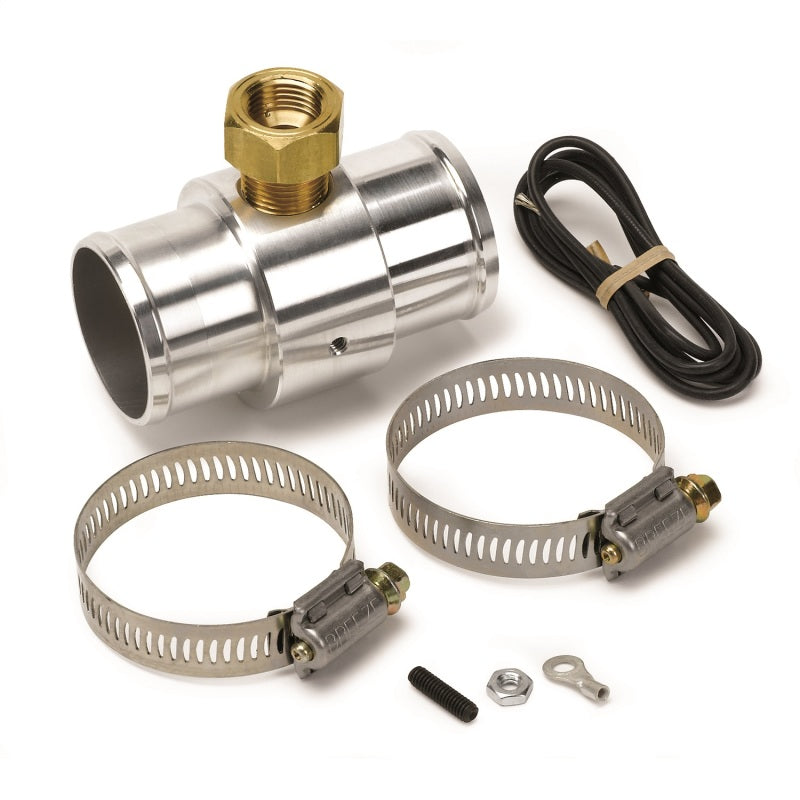

The AutoMeter 2283 Radiator Hose Adapter provides a reliable solution for mounting water temperature gauge senders or probes when engine coolant passage ports are limited or inaccessible. This adapter installs directly inline with a 1.5-inch radiator hose, providing a stable mounting point for precise temperature monitoring.

Constructed from lightweight aluminum, this adapter is engineered to withstand the rigors of the cooling system environment. It is fully compatible with AutoMeter mechanical gauges, as well as Full Sweep and Short Sweep electric gauges, ensuring versatility across different instrumentation setups.

• Fits 1.5" (38.1mm) I.D. radiator hoses
• Pre-threaded for 3/8" NPT (0.375in NPTF) temperature ports
• Includes 3/8" NPT adapter specifically for AutoMeter mechanical temperature gauges
• CNC-machined aluminum construction for durability and corrosion resistance
• Solves port access issues on modern or cramped engine bays
• Manufacturer Part Number: 2283

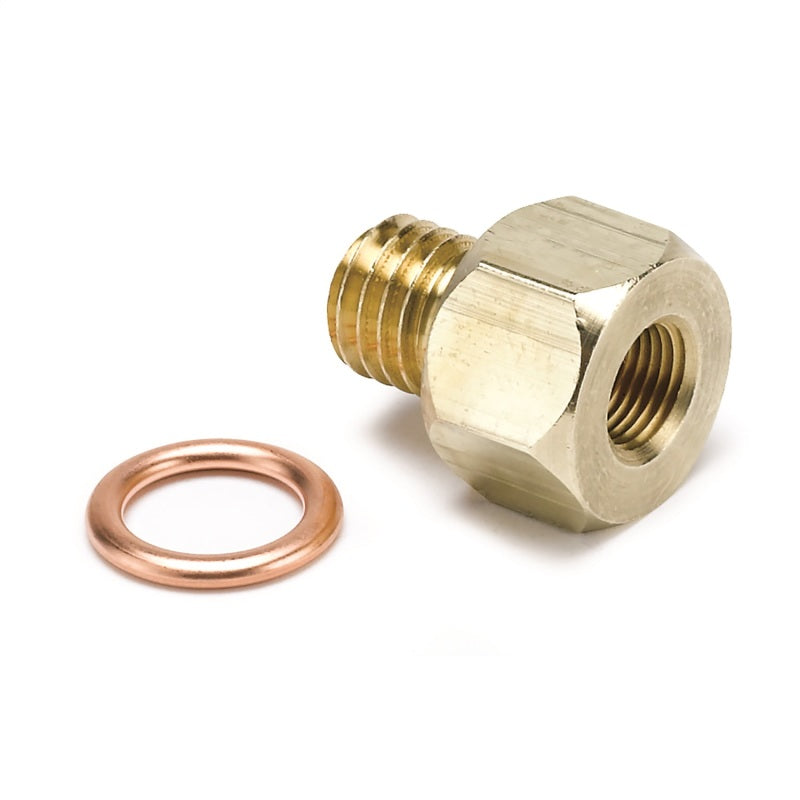

The AutoMeter 2278 adapter allows for the seamless integration of standard 1/8" NPT electric temperature or pressure senders into engines featuring M12 x 1.75 metric ports. This precision-engineered fitting ensures a leak-free transition, making it an essential component for installing aftermarket gauges into various late-model domestic and import applications.

• Replaces or adapts factory ports to accept 1/8" NPT sensors
• Thread Size: 1/8" NPT Female to M12 x 1.75 Male
• Compatible with electric temperature or pressure gauge senders
• Required Note: Use with AutoMeter Short Sweep Electric Temperature gauges requires sender #2259 (sold separately)
• Manufacturer Part Number: 2278

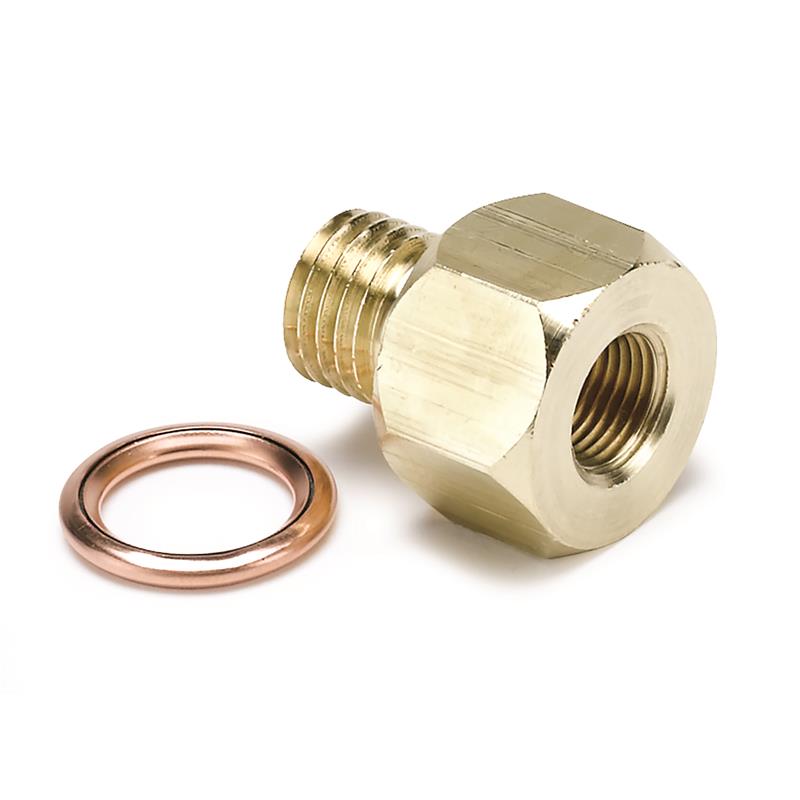

The AutoMeter 2277 metric adapter provides a precise solution for installing 1/8" NPT electric temperature or pressure sending units into M12x1.5 ports. This brass adapter is most commonly used for electric temperature gauge installation in GM LS-series engine cylinder heads, ensuring a secure and leak-free fit for aftermarket monitoring systems.

• Manufacturer Part Number: 2277
• Female Internal Thread: 1/8" NPT
• Male External Thread: M12 x 1.5
• Material: Corrosion-resistant brass
• Application: Compatible with electric temperature or pressure sensors
• Requirement Note: If using with a Short Sweep Electric Temperature gauge, sender #2259 is also required for proper operation.

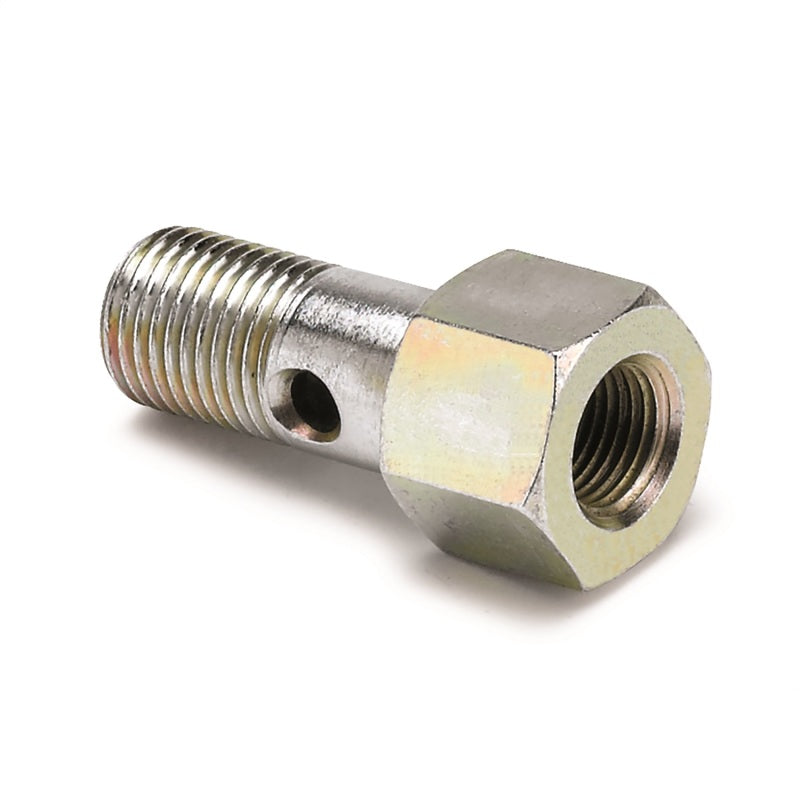

The AutoMeter 2276 fuel pressure adapter is a specialized fitting designed to facilitate the installation of a fuel pressure gauge or sender. This adapter replaces a factory M12 x 1.25 banjo bolt, commonly found on fuel filters or fuel rails, providing a clean and secure 1/8" NPTF female port without the need for custom fabrication or tapping.

• Thread Specification: M12 x 1.25
• Port Size: 1/8" NPTF Female
• Application: Fuel pressure gauge sender installation
• Manufacturer Part Number: 2276
• Replaces factory banjo bolts on select fuel systems

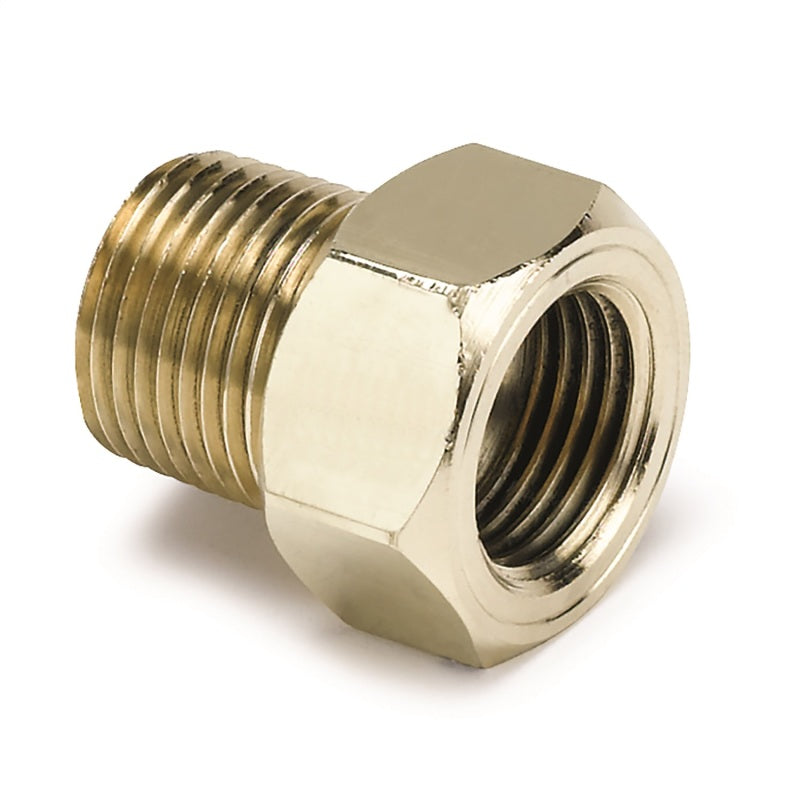

The AutoMeter 2269 metric adapter allows for the seamless integration of aftermarket oil pressure or temperature gauges into engines using metric ports. This precision-engineered fitting is designed to adapt a standard 1/8 in. NPTF sensor or line to a 1/8 in. BSPT engine port, a common requirement for many Japanese and European vehicle applications.

• Replaces or adapts factory ports to accommodate 1/8 in. NPT sensors
• Constructed from high-quality brass for durability and corrosion resistance
• Precision-cut threads ensure a leak-free seal when properly installed
• Manufacturer Part Number: 2269
• Thread Specification A: 1/8 in. BSPT Male
• Thread Specification B: 1/8 in. NPTF Female
