The AutoMeter 2263 adapter is a precision-machined brass fitting designed to facilitate the installation of AutoMeter mechanical temperature gauges into 3/8" NPT ports. This adapter bridges the connection between the gauge’s integrated 5/8"-18 UNF female sealing nut and the NPT ports typically found on engine intake manifolds, cylinder heads, or thermostat housings.

• Material: High-quality brass for corrosion resistance and a reliable seal
• Fitting A: 5/8"-18 UNF Female (accepts standard AutoMeter mechanical temperature gauge sealing nuts)
• Fitting B: 3/8" NPT Male
• Manufacturer Part Number: 2263
• Application: Mechanical temperature gauge installation

Ensure accurate thermal data with the AutoMeter 2259 replacement temperature sender, engineered specifically for short sweep electric air core gauges manufactured from 1995 to present. This precision sensor serves as a compact alternative to the AutoMeter #2258 sender, making it the ideal solution for cylinder head monitoring or other applications where installation depth and tight clearance prevent a standard sensor from fitting.

• Precision Fitment: Designed exclusively for AutoMeter short sweep electric gauges (1995+ models).
• Compact Profile: Solves clearance and depth issues where a standard #2258 sender cannot be installed.
• Technical Threading: Features a 1/8" NPTF thread for a secure, leak-free connection.
• Versatile Monitoring: Suitable for cylinder head or coolant temperature tracking.
• MPN: 2259

Ensure accurate readings for your AutoMeter short sweep electric air core gauges with this genuine replacement temperature sender (MPN 2258). Specifically calibrated for temperature gauges with 250°F, 300°F, or 340°F scales, this sensor provides the precise resistance signal required for proper needle sweep and gauge accuracy.

The sender features a standard 1/8" NPTF thread and includes two brass adapter bushings to facilitate installation into common 3/8" or 1/2" NPT manifold or thermostat housing ports.

• Direct replacement for AutoMeter short sweep electric temperature gauges
• Compatible with 250°F, 300°F, and 340°F gauge scales
• Standard 1/8" NPTF base thread
• Includes 3/8" NPT and 1/2" NPT adapter bushings
• Engineered for high-heat automotive environments
• Manufacturer Part Number: 2258

The AutoMeter 2246 is a professional-grade replacement pressure transducer designed for use with 100 PSI full sweep electric oil and fuel pressure gauges. This solid-state sender measures fluid pressure in relation to ambient pressure, providing the precise data necessary for monitoring critical engine systems.

Constructed with a stainless steel body, this sensor is engineered to withstand high-vibration environments and thermal cycling common in performance automotive applications. Its versatile design is compatible with a wide variety of fluids, making it suitable for nearly any pressurized system on the vehicle.

• Manufacturer Part Number: 2246
• Pressure Range: 0-100 PSI
• Signal Type: Full Sweep Electric
• Construction: Solid-state internals with a stainless steel housing for vibration resistance
• Fluid Compatibility: Gasoline, ethanol (E85), methanol, diesel, oil, water/coolant, brake fluid, air, and nitrous oxide

Ensure your engine monitoring remains precise with the AutoMeter 2242 replacement 100 PSI oil pressure sender. Specifically engineered for use with AutoMeter short sweep electric air core gauges, this sender provides the accurate resistance signal required for consistent needle movement and reliable data tracking.

Built with a standard 1/8" NPTF thread, this sensor includes a 1/4" NPT adapter bushing to accommodate various engine block or oil gallery mounting points. The robust construction is designed to withstand high-vibration automotive environments, ensuring a long service life for your instrumentation setup. Please note that this component is designed exclusively for oil or air pressure and is not compatible with fuel systems.

• Manufacturer Part Number: 2242
• Pressure Range: 0-100 PSI
• Gauge Compatibility: AutoMeter short sweep electric air core gauges
• Thread Size: 1/8" NPTF
• Included Hardware: 1/4" NPT adapter bushing
• Dimensions: 3.25" total length (threads to tip) x 2.0" diameter
• Application: Oil or Air pressure only (not fuel compatible)

The AutoMeter AutoGage 2176 is a compact, 1.5-inch mechanical pressure gauge designed to provide reliable readings in high-vibration environments. This liquid-filled gauge features a dampened movement that eliminates needle bounce, ensuring a steady pointer for accurate monitoring of fuel, oil, or air pressure. Engineered for durability, the liquid-filled design protects internal components from shock and extreme conditions common in street and performance applications.

• Liquid-filled movement for superior resistance to shock, vibration, and temperature fluctuations
• Compact 1.5-inch white face with clear 0-60 PSI scale for quick readability
• Mechanical operation requires no electrical power for pressure sensing
• Compatible with fuel, oil, and air pressure monitoring systems

• Brand: AutoMeter
• Series: AutoGage
• Part Number: 2176
• Gauge Size: 1.5 inches (38.1mm)
• Pressure Range: 0-60 PSI
• Fitting: 1/8-inch NPT male (center rear mount)
• Movement: Mechanical, liquid-dampened

The AutoMeter AutoGage 2174 provides precise mechanical pressure monitoring in a compact 1.5-inch form factor. Designed for high-performance street and racing applications, this gauge features a liquid-filled housing that dampens the internal movement, protecting the mechanism from the heavy vibration and shock common in harsh engine bay environments. This liquid-filled design ensures a smooth, steady pointer for accurate readings under load.

• Pressure Range: 0-100 PSI
• Gauge Diameter: 1.5 inches (38.1mm)
• Operation: Liquid-filled mechanical movement for superior vibration resistance
• Inlet Size: 1/8-inch NPT male thread
• Mounting Location: Center rear
• Application: Suitable for monitoring air, fuel, or oil pressure
• Manufacturer Part Number: 2174

Monitor fuel, oil, or air pressure with the precision of the AutoMeter AutoGage series mechanical gauge. This 1.5-inch gauge (MPN 2173) features a liquid-filled design specifically engineered to dampen needle movement and provide stable, accurate readings in high-performance or high-vibration environments. The internal liquid lubrication protects the movement from harsh pulses and shocks, significantly extending the service life of the instrument compared to dry mechanical gauges.

• Pressure Range: 0-60 PSI
• Gauge Diameter: 1.5 in (38.1 mm)
• Connection: 1/8" NPT male center rear mount
• Filling: Liquid-filled for superior vibration and shock resistance
• Compatibility: Suitable for air, fuel, and oil pressure monitoring
• Movement: Liquid-dampened for smooth pointer operation
• Manufacturer Part Number: 2173

Maintain precise tire pressure control with the AutoMeter 2165 Professional Analog Tire Pressure Gauge. Designed for the high-stakes environment of the track, this gauge provides the accuracy required to optimize traction and ensure consistent performance. The 150 PSI range makes it a versatile tool for a wide variety of racing and performance applications where exact inflation is the difference between winning and losing.

Constructed for heavy-duty use, the gauge features a shock-dampening, easy-grip housing to withstand the rigors of life in the pits. The 13.75-inch stainless steel braided line offers flexibility and heat resistance, while the large 2.25-inch dial face ensures clear readability. This professional-grade instrument is a critical addition to any racing tool kit.

• Manufacturer Part Number: 2165
• Pressure Range: 0-150 PSI
• Dial Size: 2.25-inch face for easy viewing
• Accuracy: 2.5% FS (+/- 3.75 PSI)
• Hose: 13.75-inch stainless steel braided line
• Housing: Shock-dampening easy-grip protective cover
• Included: Protective carrying case

The AutoMeter NASCAR Performance Low-Pressure Tire Pressure Gauge (MPN 2162) provides the precision required for professional track environments where exact tire pressures are critical for traction and consistency. Built to withstand the rigors of the paddock, this gauge features a high-visibility 2.25-inch dial face protected by a shock-dampening, easy-grip housing.

Designed for durability and ease of use, it includes a 13.75-inch stainless steel braided line to access valves in tight wheel clearances. This professional-grade instrument ensures you have the accurate data needed to optimize your vehicle setup before every pass or heat.

• Pressure Range: 0-40 PSI
• Accuracy: 2.5% Full Scale (+/- 1 PSI)
• Dial Diameter: 2.25 inches
• Hose Length: 13.75-inch stainless steel braided line
• Housing: Shock-dampening easy-grip material
• Includes protective storage case
• Manufacturer Part Number: 2162

Maintaining precise tire pressure is critical for maximizing traction and preventing premature tire wear on the track. The AutoMeter NASCAR Performance Low-Pressure Tire Pressure Gauge (MPN 2160) provides professional-grade accuracy in a rugged package built for the pits. Featuring a high-visibility 2.25-inch dial face and a flexible 13.75-inch stainless steel braided line, this gauge allows for quick, reliable readings even in demanding racing environments.

• High-Visibility Dial: Large 2.25-inch face allows for easy viewing and precise adjustments at the track.
• Rugged Durability: Equipped with a shock-dampening, easy-grip housing to protect the internal movement from the rigors of toolboxes and pit lane use.
• Premium Components: Features a 13.75-inch stainless steel braided line for long-lasting service and flexibility.
• Protective Storage: Includes a dedicated carrying case to maintain tool calibration and prevent damage between sessions.

Technical Specifications:

• Manufacturer Part Number: 2160
• Pressure Range: 0-60 PSI
• Accuracy: 2.5% FS (+/- 1.5 PSI)
• Hose Length: 13.75 in.
• Dial Diameter: 2.25 in.

The Autometer Marine Carbon Fiber 3-3/8in Tachometer (MPN 200779-40) delivers professional-grade engine speed monitoring for performance marine applications. Engineered for durability in harsh environments, this 8,000 RPM gauge utilizes a patented air core meter movement. This internal design provides the precision and response speed required for high-performance builds, capable of moving the needle across the entire range with extreme accuracy.

• 3-3/8 inch (85.7mm) mounting diameter
• 0-8,000 RPM measurement range
• Patented air core meter movement for rapid, precise response
• Traditional incandescent perimeter lighting for nighttime visibility
• Marine-grade construction optimized for high-moisture environments
• Carbon fiber dial face for a performance aesthetic
• Manufacturer Part Number: 200779-40

Protect your engine from the damaging effects of overheating with the AutoMeter Marine Silver Series electric water temperature gauge. Engineered for the rigors of marine environments, this 2-1/16-inch gauge provides precise monitoring of coolant temperatures from 100°F to 200°F. Heat is the enemy of both performance and longevity; maintaining accurate visibility of your cooling system is critical for any high-performance application.

• Series: Marine Silver
• Diameter: 2-1/16 inch (52.4mm)
• Temperature Range: 100-200° Fahrenheit
• Gauge Type: Electric
• Lighting: Traditional incandescent perimeter lighting
• Installation: Uses 1/8" NPT temperature transducer (AutoMeter 990344, available separately)
• Manufacturer Part Number: 200762-33

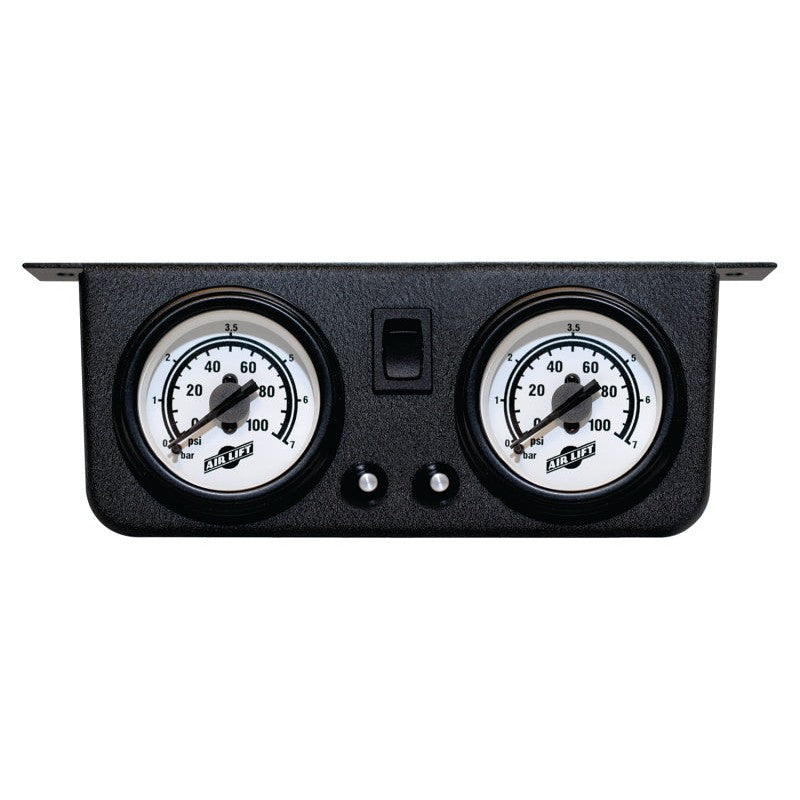

Precisely monitor your air spring pressures with the Air Lift Dual Gauge Panel Assembly. This panel is specifically designed for a clean, integrated installation in conjunction with Air Lift 25812 air management systems, allowing for dedicated display of two air gauges (not included).

Essential for proper air suspension management, this panel provides a secure and professional mounting point for your air pressure gauges, ensuring critical data is always visible. It's built for durability and engineered to seamlessly integrate into your vehicle's interior.

• Manufacturer Part Number: 26159
• Designed for use with Air Lift 25812 Air Management Systems
• Provides dedicated mounting for two air pressure gauges
• Made In USA
• Warranty: Air Lift 2-Year Limited Warranty

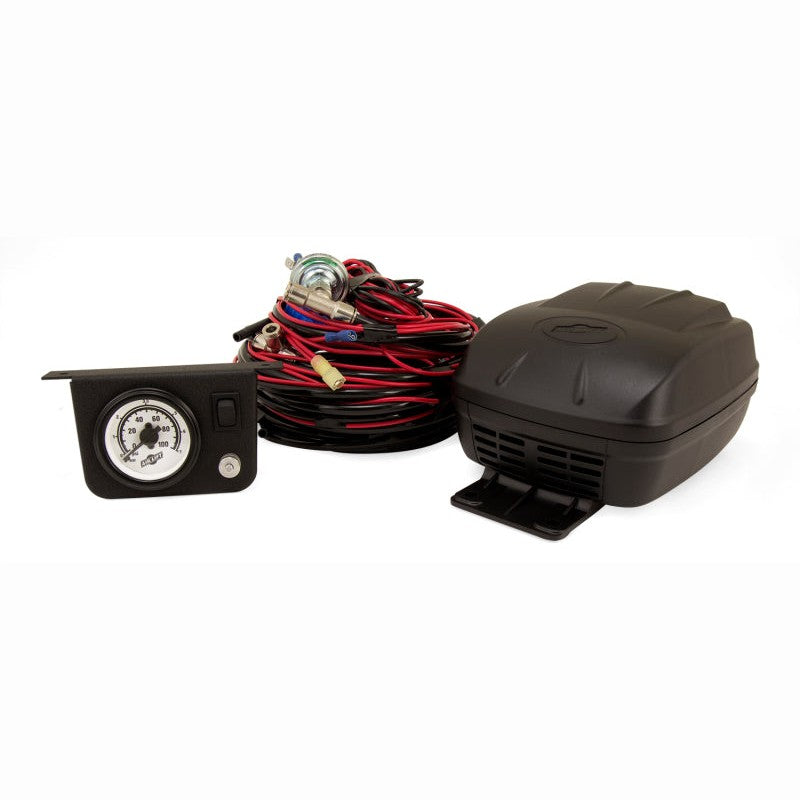

Fits select 1980-2017 Acura, Buick, Cadillac, and Chevrolet vehicles. The Air Lift 25592 LoadController II is an on-board air compressor system designed to provide convenient, in-cab control of your vehicle's air spring pressures. This standard-duty system features a single-path design, allowing you to inflate or deflate both air springs simultaneously to the same pressure with the touch of a button. It is ideal for light- to medium-duty vehicles that frequently haul varying loads.

Equipped with an exclusive low-pressure sensor (LPS), the system automatically monitors your air springs and activates the compressor if the pressure drops below the minimum 5 PSI threshold. This prevents air spring damage caused by running at unsafe levels. The included dash-mounted gauge panel provides a clear readout of current pressures, while the pre-assembled wiring harness and fully illustrated manual simplify the installation process.

• Single-path system for simultaneous air spring adjustment
• Exclusive low-pressure sensor automatically maintains minimum 5 PSI
• Standard-duty air compressor and in-cab gauge panel included
• Pre-assembled wiring harness for streamlined installation
• Monitors and adjusts air pressure on-the-go for varying road conditions
• Manufacturer Part Number: 25592

Monitor your fuel system with precision using the Aeromotive 15633 fuel pressure gauge. This 1.5-inch diameter gauge is designed to survive the harsh vibration and heat of high-performance engine bays while providing accurate, real-time data. Featuring a 0-100 PSI range and a 1/8-inch NPT male connection, it is a direct fit for most aftermarket fuel rails and pressure regulators.

While standard liquid-filled gauges often suffer from pressure drift as under-hood temperatures rise, Aeromotive solves this with an integral equalizer valve. This custom valve allows the gauge case to be equalized to atmospheric pressure, instantly correcting the needle position and ensuring reliable readings regardless of thermal expansion inside the case.

• Pressure Range: 0-100 PSI
• Face Diameter: 1.5 inches
• Connection: 1/8" NPT Male
• Liquid filled for superior dampening and component longevity
• Integral equalizer valve eliminates temperature-related accuracy drift
• Manufacturer Part Number: 15633

The Aeromotive 15632 is a precision 1.5-inch fuel pressure gauge engineered for stable, accurate monitoring in high-vibration environments. Built to handle the harsh conditions found under the hood of a high-performance vehicle, this liquid-filled gauge provides a steady needle for easy reading even on high-output engines.

Standard liquid-filled gauges can be susceptible to temperature sensitivity, where heat-soaked gauge oil causes internal pressure shifts that result in inaccurate fuel pressure readings. To combat this, Aeromotive integrates a custom equalizer valve. This allows the user to quickly equalize the gauge case to the atmosphere, instantly correcting the reading and ensuring consistent accuracy regardless of the engine bay temperature.

• Pressure Range: 0-15 PSI
• Gauge Diameter: 1.5 inches
• Fitting: 1/8-inch NPT male connection
• Liquid-filled design for superior vibration dampening and long-term durability
• Integral equalizer valve for temperature compensation and accuracy
• Manufacturer Part Number: 15632

The AEM CD-7LG Carbon Logging Digital Dash is a professional-grade 7-inch display engineered for the rigors of racing and high-performance applications. Housed in a slim, flow-molded carbon fiber composite enclosure, this flush-mount unit provides a lightweight yet incredibly durable interface for monitoring critical vehicle data. The display features an 800x480 resolution screen with 1000cd/m2 brightness and an anti-glare filter, ensuring complete readability even in direct sunlight.

This "LG" version includes 200MB of internal logging capacity (at up to 1,000Hz/channel) and an integrated 20Hz GPS receiver with an external antenna. This setup allows for precise lap timing, track mapping, and high-frequency data collection without the need for additional modules. The dash is IP66 water-resistant, making it safe for use in open-cockpit vehicles. It integrates seamlessly with AEMnet CAN-enabled devices and is compatible with various aftermarket ECUs including Holley, Link, and MSD via plug-and-play adapters.

• Part Number: 30-5703F
• 7-inch full-color display with 800x480 resolution
• 200MB internal logging at up to 1,000Hz/channel
• Integrated 20Hz GPS receiver and antenna for lap timing and track mapping
• Ultra-bright 1000cd/m2 sunlight-readable screen with anti-glare filter
• IP66 water-resistant rated flow-molded carbon fiber composite housing
• 7 programmable RPM/shift LEDs and 2 additional status LEDs
• Accepts data from AEMnet and non-AEM CAN bus devices
• Convert CAN values to user-defined text on 7 programmable pages

The AEM CD-7 Carbon (MPN 30-5703) is a professional-grade logging digital dash designed for high-visibility in open-cockpit race cars, marine applications, and motorcycles. Encased in a lightweight, flow-molded carbon fiber composite housing, this 7-inch display features a 1000cd/m2 sunlight-readable screen with an anti-glare filter for maximum clarity in any lighting condition. This version is GPS-enabled and features internal logging, utilizing dual CAN bus inputs to receive data from ECUs and sensor modules.

• Construction: Lightweight flow-molded carbon fiber composite enclosure (Total weight: 20.9 oz / 595g).
• Display: 7-inch full-color screen with 800x480 resolution and IP65 water resistance.
• Visual Indicators: Seven programmable, dimmable LED shift lights and two additional programmable LEDs for warnings or events.
• Connectivity: Dual user-programmable CAN bus connections; compatible with AEMnet, OBDII CAN (with adapter), and various aftermarket ECUs (Holley, Link, MSD, Vi-Pec).
• Functionality: Seven programmable pages (including Alarm and On-Change pages), odometer function, and dedicated headlight-in dimming connection.
• Customization: Fully programmable using free DashDesign Graphics Editor software with over 200 supplied SAE and custom icons.
• Expandability: Compatible with AEM Vehicle Dynamics Module (30-2206), CAN Sensor Module (30-2212), and OBDII CAN Adapter (30-2217).

The AEM CD-7 Carbon Digital Dash Display features a high-resolution, 7-inch full-color screen housed in a lightweight, flow-molded carbon fiber composite enclosure. Designed for high-performance environments, the display is sunlight-readable with 1000cd/m2 brightness and an anti-glare filter, making it ideal for open-cockpit racing, marine, and motorcycle applications where visibility is critical. This non-logging version includes an integrated 20Hz GPS receiver for accurate positioning and timing data.

• Visibility & Customization: Features seven ultra-bright, programmable RPM/shift LEDs and two additional warning LEDs. The DashDesign Graphics Editor software allows for fully custom page layouts or the use of over 200 supplied SAE and custom icons.
• Connectivity: Accepts data from two separate CAN bus connections, allowing AEMnet and third-party devices to operate side-by-side. It is compatible with 2008-up factory ECUs via an OBDII CAN adapter (sold separately) or carbureted engines using a CAN sensor module.
• Durability: Rated IP65 for water resistance and weighs only 20.9 ounces (595 grams), providing a rugged yet lightweight alternative to traditional analog gauges.

• Manufacturer Part Number: 30-5702
• Display: 7-inch full color, 800x480 resolution, 1000cd/m2 brightness
• Enclosure: Flow-molded carbon fiber composite
• Water Resistance: IP65 rated
• GPS: Integrated 20Hz receiver and antenna
• Inputs: Two programmable CAN bus connections, 2 switch inputs, headlight-in dimmer connection
• Weight: 20.9 oz / 595 g

The AEM CD-7 Carbon is a professional-grade digital dash display designed for competition use where weight and visibility are paramount. Featuring a 7-inch full-color screen with 800x480 resolution, the display is housed in a lightweight, flow-molded carbon fiber composite enclosure that weighs just 20.9 ounces. This non-logging unit (PN 30-5700) focuses on real-time data monitoring via dual user-programmable CAN bus inputs, making it compatible with AEMnet-equipped devices and various third-party systems.

Designed for the harsh environments of open-cockpit racing, the CD-7 Carbon is IP65 water-resistant and features a ultra-bright 1000cd/m2 screen with an anti-glare filter for complete readability in direct sunlight. Seven programmable LEDs span the top of the housing for RPM and shift point indication, while two additional LEDs provide status alerts. The interface is highly customizable using AEM's DashDesign software, allowing users to create tailored layouts or use the included pre-configured screens.

• Display: 7-inch full-color screen, 800x480 resolution, 1000cd/m2 brightness.
• Housing: Flow-molded carbon fiber composite; IP65 water-resistant.
• Connectivity: Dual CAN bus inputs (AEMnet and 3rd party); OBDII compatible with adapter (sold separately).
• Indicators: 7 programmable shift LEDs and 2 status LEDs; dimmable for night operation.
• Inputs: Two dedicated buttons for page navigation; two extra switch inputs for blinkers or high beams.
• Weight: 20.9 oz (595 grams).
• Part Number: 30-5700.

The AEM CD-5LG Carbon Digital Dash Display (PN 30-5603) combines a high-speed data logger with a sunlight-readable, full-color 5-inch display. Encased in a lightweight, flow-molded carbon fiber composite housing, this unit weighs only 11.7 ounces. It features an integrated 10Hz GPS receiver and antenna for accurate lap timing and track mapping without the need for external modules.

Built for the rigors of racing, the CD-5LG is IP66 water-resistant, making it suitable for open-cockpit vehicles, motorcycles, and marine applications. The 800x480 resolution screen provides 1000cd/m2 brightness and an anti-glare filter for visibility in direct sunlight. Two CAN bus connections allow for simultaneous data acquisition from AEMnet-enabled devices and third-party systems. With 200MB of internal logging capacity at up to 1,000Hz per channel, you can capture detailed telemetry for post-race analysis using the free DashDesign Graphics Editor software.

• Internal Components: Integrated 10Hz GPS receiver, antenna, and 200MB internal logging.
• Display: 5-inch full-color 800x480 resolution with 1000cd/m2 brightness.
• Visual Alerts: Seven programmable, dimmable LED RPM/shift indicators and two additional programmable LEDs.
• Construction: Flow-molded carbon fiber composite enclosure; IP66 water-resistance rating.
• Interface: Two programmable CAN bus connections, two switch inputs for user-triggered events (blinkers, high beams), and a headlight-in connection for auto-dimming.
• Compatibility: Works with AEMnet, Holley, Link, MSD Atomic, and Vi-Pec ECUs via available adapter cables; OBDII compatible for 2008-up vehicles (adapter sold separately).
• Dimensions/Weight: 11.7 oz. (331 grams); layout and wiring identical to CD-7 series.

The AEM CD-5G Carbon Digital Dash Display (MPN 30-5602) provides professional-grade data visualization in a lightweight, ultra-tough flow-molded carbon fiber composite housing. Designed for high visibility in any environment, the 5-inch full-color screen features 800x480 resolution and a 1000cd/m2 brightness rating with an anti-glare filter for direct-sunlight readability. This model includes an integrated 10Hz GPS receiver and antenna for precise lap timing and track mapping without requiring external modules.

• High-Contrast Display: Daylight-readable 5-inch screen with user-programmable pages, including dedicated Alarm, On-Change, and Start-up layouts.
• Integrated GPS: Internal 10Hz GPS receiver and antenna for high-speed location tracking and performance metrics.
• Rugged Construction: IP66 water-resistant enclosure allows for use in open-cockpit race cars, motorcycles, and marine applications.
• Connectivity: Dual user-programmable CAN bus connections for AEMnet and 3rd party devices; compatible with 2008-up factory ECUs via OBDII CAN (requires adapter 30-2217).
• Shift Lights: Seven ultra-bright, programmable, and dimmable LEDs for RPM and shift points, plus two additional programmable LEDs.
• Specifications: Weighs just 11.7 oz (331g); 800x480 resolution; Includes DashDesign Graphics Editor software.

The unit features two large face buttons for easy page navigation even while wearing driving gloves, plus a rear connector for mounting remote buttons. Whether you are running a late-model OBDII-equipped vehicle or a carbureted setup using a 22-channel CAN sensor module, the CD-5G delivers comprehensive engine monitoring in a compact, durable package.

The AEM CD-5 Carbon Flat Panel Digital Dash Display (PN 30-5600F) is engineered for flush-mount installations and in-dash enclosures where space is at a premium. By removing the integrated buttons and shade hood found on the standard CD-5, AEM has created a slim, lightweight display that fits into tight tolerances while maintaining the same robust monitoring and data processing capabilities.

Housed in a flow-molded carbon fiber composite shell, the CD-5 Carbon features a 5-inch, full-color screen with 800x480 resolution. With 1000 cd/m2 brightness and an anti-glare filter, the display remains perfectly legible in direct sunlight. The unit is IP66 water-resistant, making it suitable for open-cockpit race cars, motorcycles, or marine applications. It accepts data from two independent CAN bus channels, allowing it to work with AEMnet-enabled devices, 2008-up factory ECUs via OBDII (with adapter 30-2217), or third-party ECUs like Holley, Link, and MSD.

• High-Visibility Display: 5-inch 800x480 color screen with 1000 cd/m2 brightness and anti-glare filter.
• Carbon Fiber Construction: Lightweight, flow-molded carbon fiber composite flat-panel enclosure.
• Visual Indicators: 7 programmable RPM/shift light LEDs and 2 additional status LEDs.
• Custom Layouts: Includes seven programmable pages (Main, Alarm, On-Change, Start-up) customizable via DashDesign Graphics Editor software.
• Environmental Protection: IP66 rated for resistance to water and dust.
• Expandable: Compatible with Vehicle Dynamics Modules (30-2206) for GPS/G-load and CAN Sensor Modules for carbureted engines.
• Required Accessories: Requires Remote Button Kit (PN 30-3610) for page navigation and memory clearing.
• Manufacturer Part Number: 30-5600F

The AEM CD-5 Carbon Digital Dash Display (30-5600) provides a professional-grade monitoring solution housed in a lightweight, flow-molded carbon fiber composite enclosure. Weighing only 11.7 oz (331g), this 5-inch full-color display is engineered for high-performance applications where weight and visibility are critical. The screen features a 800x480 resolution and 1000cd/m2 brightness with an anti-glare filter, ensuring it remains perfectly readable even in direct sunlight.

• Advanced Connectivity: Dual independent CAN bus inputs allow the unit to receive data from over 250 non-AEM devices and 2008-up stock ECUs via OBDII (requires adapter PN 30-2217).
• Precision Indicators: Seven ultra-bright, user-programmable LEDs for RPM and shift points, plus two additional programmable status LEDs.
• Durability: IP66 water-resistant rating makes this unit suitable for open-cockpit racers, motorcycles, and marine applications.
• Customizable Interface: Includes free DashDesign Graphics Editor software to create custom layouts or use the seven pre-loaded pages including Alarm and On-Change screens.
• Construction: Flow-molded carbon fiber composite housing with integrated buttons for easy navigation with racing gloves.

Technical Specifications:
- Resolution: 800x480
- Brightness: 1000cd/m2
- Weight: 11.7 oz. / 331 grams
- Weather Rating: IP66
- Manufacturer Part Number: 30-5600

Monitor your forced induction system with precision using the AEM 30-4408 Digital Boost Display Gauge. This 52mm (2-1/16") gauge provides accurate real-time data for both vacuum and boost pressure, allowing you to track engine performance and identify potential boost leaks or wastegate issues. The digital LED readout offers high visibility in all lighting conditions, eliminating the needle flutter often found in traditional mechanical gauges.

Designed for versatility and ease of installation, this kit includes interchangeable silver and black bezels, along with white and black faceplates to match your vehicle's interior aesthetic. The included remote sensor and brass adapters allow for a clean install without routing high-pressure lines into the cabin.

• Measurement Range: -30inHg to 50psi
• Fits standard 52mm (2-1/16") gauge pods
• Interchangeable white/black faceplates and silver/black bezels included
• Digital LED display for instant, precise readings
• Includes brass sensor adapters, vacuum hose, and T-fittings for installation
• Manufacturer Part Number: 30-4408

Monitor critical engine health with the AEM 30-4407 Digital Oil Pressure Gauge. Designed for both carbureted and EFI applications, this 52mm (2-1/16") gauge provides precise readings in 1 PSI increments from 0 to 150 PSI. The high-speed digital interface features a bright three-digit center readout and a sweeping 24-segment green LED "needle" for immediate visual reference, even at high RPM.

This gauge includes a 0-5v analog output, making it fully compatible with data loggers and engine management systems like the AEM Infinity ECU, Series 2 EMS, or AQ-1 Data Logger. An integrated ambient light sensor automatically adjusts display brightness for optimal visibility in any lighting condition. The kit comes complete with a brass pressure sensor, a plug-and-play wiring harness, and interchangeable bezels and faceplates to customize the look of your cockpit.

• Measurement Range: 0-150 PSI in 1 PSI increments
• Standard 52mm (2-1/16") gauge housing for universal mounting
• 0-5v analog output for use with data loggers and EMS
• Auto-dimming gauge face and readout via built-in photocell
• 24 green LED display lights for rapid visual reference
• Includes brass pressure sensor and plug-and-play wiring harness
• Includes interchangeable black and silver bezels
• Includes interchangeable black and white faceplates
• Manufacturer Part Number: 30-4407

The AEM 30-4406 Digital Boost Display Gauge provides precise boost monitoring for both carbureted and EFI forced induction engines. This high-speed digital gauge displays pressure in 1 PSI increments from -30 to 35 PSI, using a center three-digit LED readout paired with a 24-segment green LED "needle" that sweeps the perimeter for immediate visual reference. A built-in ambient light sensing photocell automatically adjusts display intensity to ensure visibility in bright daylight and comfort during night driving.

Designed for advanced tuning and integration, this gauge includes a 0-5V analog output, allowing for seamless data logging with engine management systems like the AEM Infinity, Series 2 EMS, or AQ-1 Data Logger. The standard 52mm (2-1/16") housing ensures compatibility with most universal pods and vehicle-specific pillars. Every kit includes a plug-and-play wiring harness, a durable brass pressure sensor, and interchangeable faceplates and bezels to match your interior aesthetic.

• Measurement Range: -30 inHg to 35 PSI
• Display Type: 3-digit center readout with 24 green LED sweeping perimeter
• Housing Diameter: 52mm (2-1/16")
• Output: 0-5V analog signal for data logging and EMS input
• Customization: Includes black and silver bezels; black and white faceplates
• Installation: Plug-and-play harness and brass sensor included
• Manufacturer Part Number: 30-4406

The AEM 30-4402 Digital Temperature Gauge provides precise monitoring for oil, transmission, or water temperatures in a standard 52mm (2-1/16") housing. This gauge features a high-speed digital LED interface that displays readings in 1-degree increments, paired with a 24-light green LED "needle" for immediate visual reference. An integrated ambient light sensor automatically adjusts display brightness for optimal visibility in any lighting condition.

Designed for both carbureted and EFI vehicles, the 30-4402 includes a 0-5V analog output, allowing for seamless integration with data loggers and engine management systems like the AEM Infinity, Series 2 EMS, or AQ-1 Data Logger. The kit is fully customizable with interchangeable black and silver bezels and black and white faceplates to match any interior.

• Standard 52mm (2-1/16") gauge housing fits most universal pods
• 0-5V analog output for use with data loggers and EMS
• 24 green LED outer display lights
• Three-digit digital center readout
• Auto-dimming gauge face and readout lighting via built-in photocell
• Includes brass temperature sensor and plug-and-play harness
• Manufacturer Part Number: 30-4402

The AEM 30-4401 Digital Pressure Gauge provides precise monitoring for oil or fuel pressure systems in both carbureted and EFI vehicles. Designed for high-performance applications, this 52mm (2-1/16") gauge features a bright three-digit center readout surrounded by 24 green LEDs for immediate reference of engine vitals at high RPM. The integrated 0-5V analog output allows for seamless integration with data loggers and engine management systems, including the AEM Infinity ECU, Series 2 EMS, or AQ-1 Data Logger.

• Standard 52mm (2-1/16") gauge housing for universal mounting
• 0-5V analog output for data logging and EMS feedback
• 24 green LED display lights provide immediate reference to monitored functions
• Auto-dimming gauge face and readout for optimized visibility in all lighting
• Interchangeable black and silver bezels with black and white faceplates included
• Includes brass pressure sensor and plug-and-play wiring harness
• Ideal for monitoring oil or fuel pressure on tuned engines
• Manufacturer Part Number: 30-4401
