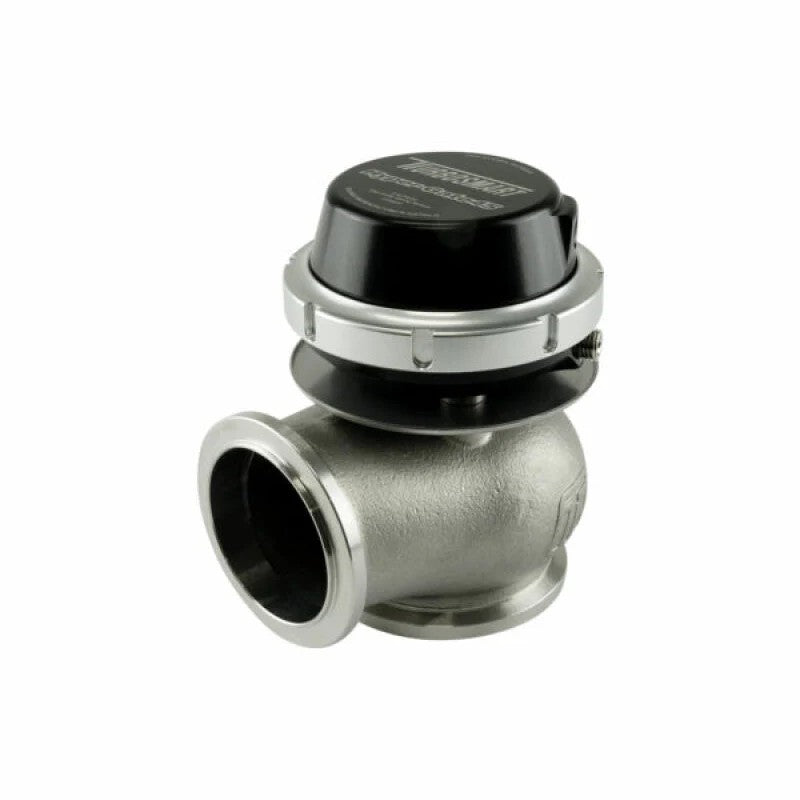

The Turbosmart Gen4 Hyper-Gate 45 (WG45) is a high-performance 45mm external wastegate designed for precise boost control in tight engine bays. Built with a focus on heat management and flow, this wastegate features a unique locking collar design for easy spring changes and a compact footprint that doesn't sacrifice performance.

• High-grade cast stainless steel body with a CNC-machined aluminum actuator housing
• V-Band inlet and outlet connections designed to suit 44mm and 46mm peer fitment
• Pre-installed 7psi base spring; adjustable with optional springs from 3 to 26psi
• Proprietary high-temperature silicon Nomex diaphragm for extreme reliability
• One-piece stainless steel valve for superior flow and durability
• Twin 1/16" NPT reference ports for versatile plumbing and vacuum routing
• Finished in black anodizing for a professional under-hood appearance
• Manufacturer Part Number: TS-0506-1002

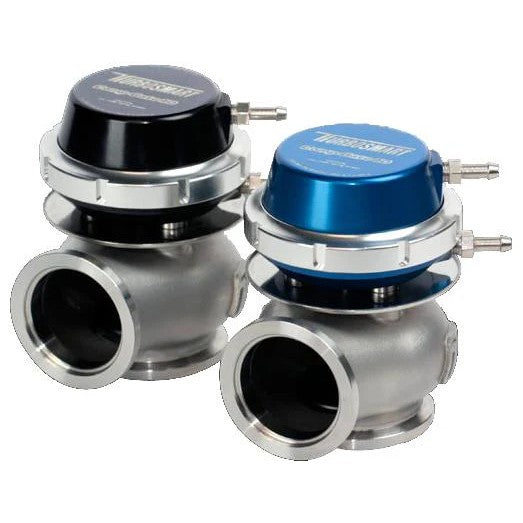

The Turbosmart Gen4 Comp-Gate40 is a high-performance 40mm external wastegate engineered for tight engine bays where space is at a premium. Despite its compact footprint, it provides superior exhaust flow and heat handling for precise boost control. This wastegate features a investment-cast stainless steel body and a CNC-machined aluminum actuator housing for maximum durability.

Internally, the Comp-Gate40 utilizes a proprietary high-temperature silicone Nomex diaphragm and a solid one-piece stainless steel valve to maintain consistent performance under extreme thermal loads. The unique locking collar design facilitates easier service and spring changes, while the twin 1/16" NPT ports offer flexible reference line routing.

• 40mm V-Band inlet and outlet for secure, leak-free fitment
• Stainless steel cast body with aluminum actuator housing
• Pre-installed with a 14psi spring (compatible with 3psi to 26psi springs)
• Proprietary high-temp silicone Nomex diaphragm
• Solid one-piece stainless steel valve
• Twin 1/16" NPT reference ports
• Unique locking collar for simplified maintenance
• Manufacturer Part Number: TS-0505-1010

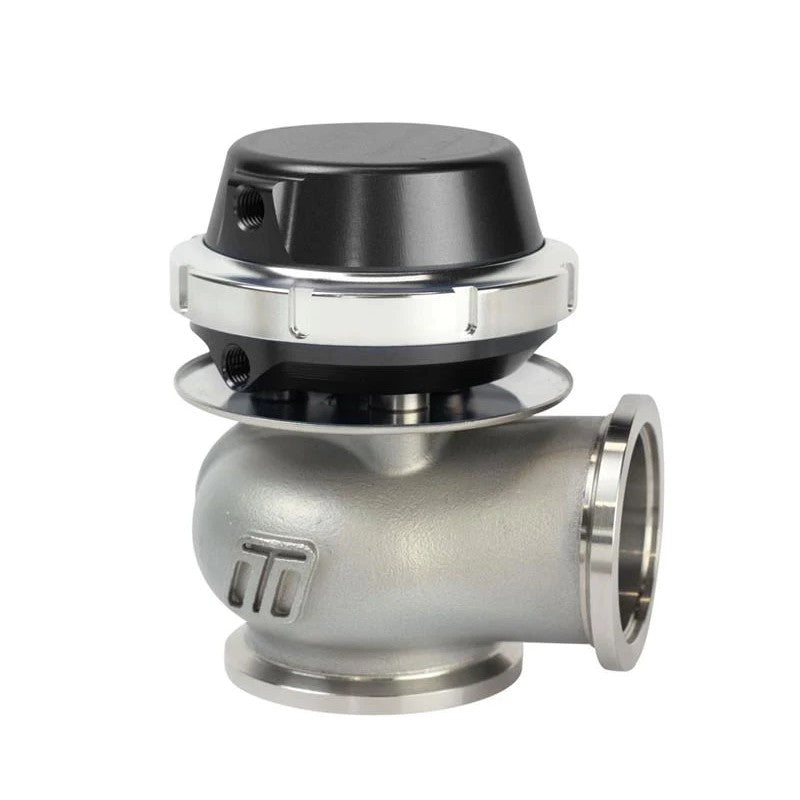

The Turbosmart WG40 Comp-Gate40 is a high-performance 40mm external wastegate engineered to provide superior flow and heat management within the tight constraints of modern engine bays. This compact wastegate is a reliable solution for managing boost pressure in turbocharged applications where space is at a premium.

• Construction: Features a cast stainless steel body and a CNC-machined aluminum actuator housing for maximum durability.
• Thermal Performance: Equipped with a proprietary high-temperature silicon Nomex diaphragm and a solid one-piece stainless steel valve to withstand extreme exhaust temperatures.
• Mounting: Utilizes a V-band inlet and outlet system to suit 40mm peer fitment, ensuring a secure and leak-free seal.
• Adjustability: Secured by a unique locking collar design for easy service; while this model includes a 7 PSI spring, it can be configured with springs ranging from 3 to 26 PSI.
• Reference Ports: Twin 1/16" NPT reference ports allow for versatile vacuum and boost controller plumbing.
• Manufacturer Part Number: TS-0505-1006

Ensure a consistent, gas-tight seal in your forced induction system with the Turbosmart Ultra-Gate38 Valve Seat. This precision-engineered replacement component is designed specifically for the 2011-design 38mm Ultra-Gate38 (WG38) external wastegate, providing the critical mating surface required for accurate boost control.

Over time, extreme exhaust temperatures and carbon bypass can wear the original valve seat, leading to boost leaks or inconsistent manifold pressure. This genuine Turbosmart replacement part restores your wastegate's sealing efficiency to factory standards, preventing exhaust gas from bypassing the valve when closed. It is a vital service item for maintaining optimal spool-up times and preventing boost creep.

• Fits 2011-model Turbosmart Ultra-Gate38 (38mm) external wastegates
• Precision-machined for a perfect fit within the wastegate housing
• High-temperature resistant material for extreme exhaust environments
• Ensures proper valve-to-seat contact to maintain targeted boost levels
• Manufacturer Part Number: TS-0501-3103

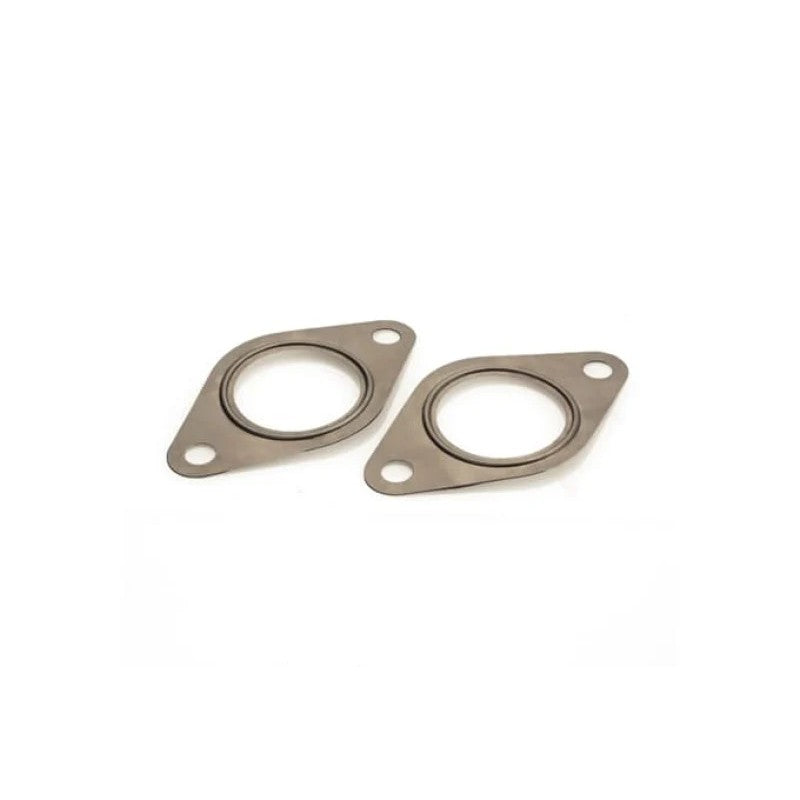

Maintain a leak-free seal on your external wastegate setup with this 2-pack of Turbosmart WG38 manifold gaskets. Specifically engineered for the Ultra-Gate38 series, these gaskets ensure a precise interface between the wastegate flange and the manifold or dump pipe, preventing exhaust leaks that can lead to inconsistent boost control and lost performance.

Constructed from high-grade stainless steel, these gaskets are designed to withstand the extreme thermal cycling and high pressures common in turbocharged applications. The 71mm bolt-to-bolt spacing provides a direct fit for Turbosmart 38mm external wastegates and matching flanges.

• Direct replacement for Turbosmart Ultra-Gate38 (WG38) external wastegates
• Precise 71mm bolt-center-to-bolt-center spacing
• Durable stainless steel construction for maximum heat resistance
• Ensures airtight sealing at the wastegate inlet and outlet flanges
• Quantity: Two (2) gaskets included
• Manufacturer Part Number: TS-0501-3002

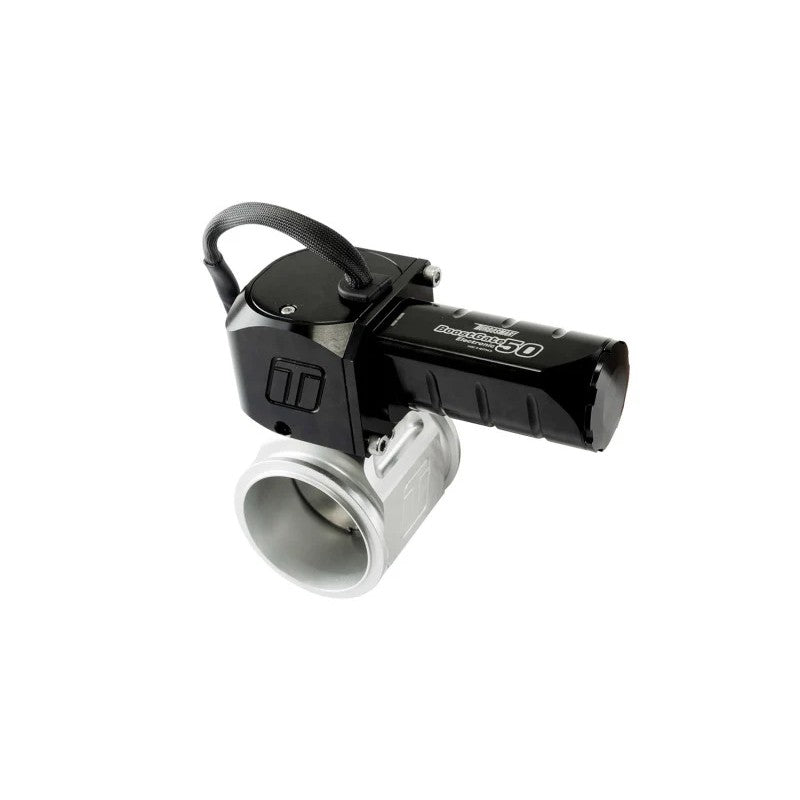

The Turbosmart eBG50 Electronic BoostGate is a 50mm external wastegate that introduces "gate-by-wire" technology to high-performance turbo systems. By replacing traditional pneumatic actuators with a high-torque internal electric motor, the eBG50 provides precise, repeatable boost control regardless of exhaust manifold backpressure or spring ratings.

This electronic wastegate eliminates the need for vacuum lines, boost control solenoids, or pressure reference signals from the intake manifold, significantly simplifying engine bay plumbing. It is designed for integration with advanced aftermarket ECUs capable of driving high-current H-bridge motors, allowing for infinite boost mapping and superior response.

• 50mm valve diameter for high-flow turbocharger applications
• Gate-by-wire electronic actuation for precise, software-driven boost control
• High-torque internal motor ensures valve stability under extreme backpressure
• Integrated position sensor for closed-loop control and feedback
• Eliminates pneumatic hoses and boost solenoids for cleaner installation
• Hard-anodized black finish for durability and heat resistance
• Manufacturer Part Number: TS-0265-1042

The TiAL Sport MVS external wastegate provides reliable boost control in a compact, 38mm V-band configuration. Engineered for high-performance turbocharged systems, the MVS is specifically designed to fit into tight engine bays while maintaining the flow characteristics required for stable manifold pressure.

This complete kit comes with all available springs, providing a wide range of boost configurations to suit your specific tuning requirements. The wastegate also features integrated water cooling ports to help maintain stable operating temperatures during high-load conditions. Every unit is finished in a durable red anodizing for corrosion resistance and engine bay aesthetics.

• Includes all boost springs for precise pressure tuning
• Compact actuator height for clearance in narrow spaces
• V-band inlet and outlet for secure, leak-free installation
• Integrated water cooling ports for thermal management
• Includes stainless steel V-band clamps and weld flanges
• Manufacturer Part Number: 002955

The TiAL Sport MVS (MV-S) 38mm external wastegate is engineered for high-performance turbocharged applications where engine bay space is limited. Standing just 3.7 inches tall, this compact wastegate offers superior boost control without the bulk of traditional units. It features integrated -4 AN water cooling ports to maintain stable temperatures during extreme track conditions, though water cooling is optional for standard use.

• High-temperature NiCrFe based alloy valve and 347 stainless steel valve housing for maximum heat resistance
• 6061-T6 aluminum actuator chassis with a durable purple anodized finish
• Includes a complete set of 17-7 PH stainless steel springs for customizable boost pressure settings
• V-band inlet and outlet connections provide a secure, leak-free seal and simplified installation
• Features two 1/8 inch NPT top air ports and two 1/8 inch NPT side air ports
• Manufacturer Part Number: 002954

Each MVS wastegate kit includes the valve assembly, two TiAL V-band clamps, two stainless steel V-band flanges, all available springs, and removable water fittings.

The TiAL Sport MVS (MV-S) 38mm external wastegate is engineered for high-performance turbocharged applications where engine bay space is limited. At only 3.7 inches in height, this compact wastegate provides superior boost control without the bulk of traditional units. The MVS features integrated water-cooling ports that allow for temperature management in extreme environments, though they can be left plugged if not required.

• High-Temp Construction: Features a high-temperature NiCrFe-based alloy valve and 347 stainless steel valve housing for maximum durability under high exhaust gas temperatures.
• Precise Boost Control: Comes with a complete set of 17-7 PH stainless steel actuator springs, allowing you to fine-tune your boost pressure exactly to your requirements.
• Secure Sealing: Utilizes Nitronic 60 stainless steel for the valve guide and valve seat to ensure long-term reliability and resistance to galling.
• Complete Kit: Includes the MVS assembly, all tuning springs, two TiAL V-band clamps, two TiAL V-band flanges, and all necessary air and water fittings.
• Manufacturer Part Number: 002953

The TiAL Sport MVS external wastegate is designed for high-performance turbocharged applications where space is at a premium. This compact 38mm V-band unit provides precise boost control and superior heat management. Constructed with a high-temperature NiCrFe based alloy for the valve housing and 347SS for the valve guide and seat, the MVS is built to withstand the rigors of extreme exhaust gas temperatures.

This kit is supplied with a complete set of springs, allowing you to configure your boost pressure to your exact requirements without the need for additional purchases. The MVS also features integrated water-cooling ports (removable if not required) to maintain actuator temperature stability in demanding racing environments.

• High-temperature NiCrFe based alloy valve housing for maximum durability
• 347SS valve guide and seat
• Includes all boost springs for versatile pressure settings
• Includes inlet and outlet V-band clamps and flanges
• Blue anodized 6061-T6 aluminum actuator housing
• Equipped with two -4AN water ports and two 1/8" NPT air ports
• Manufacturer Part Number: 002952

The TiAL Sport MVR 44mm external wastegate is a compact, high-performance solution for precise turbocharger boost control. Designed as a direct upgrade for the original V44, the MVR features a shorter overall height to fit into tight engine bays without sacrificing flow or reliability. This complete kit includes every available spring, allowing you to tune your boost pressure across a wide range of settings to match your specific build requirements.

Built to handle extreme exhaust temperatures, the MVR utilizes a high-temperature NiCrFe-based alloy for the valve and a 347 stainless steel valve housing. The actuator top is CNC-machined from 6061-T6 aluminum and finished in a durable purple anodizing. For high-heat applications, integrated water cooling ports are included to maintain stable diaphragm temperatures and consistent performance.

• Manufacturer Part Number: 002950
• Valve Material: High-temperature NiCrFe based alloy
• Housing Material: 347 Stainless Steel
• Diaphragm: High-temperature Nomex-reinforced silicone
• Springs: 17-7 PH Stainless Steel for consistent pressure at high temps
• Ports: Two -4 AN water cooling ports and three M10x1.0 air ports
• Flange: V-Band inlet and outlet for a leak-free, secure seal

Included in the box: MVR 44mm wastegate unit, all available springs, two TiAL -4 AN water fittings, M10x1.0 plugs, inlet/outlet V-band clamps, and matching stainless steel weld flanges.

The TiAL Sport MVR (MV-R) 44mm external wastegate delivers precise boost control in a compact, high-performance package. Engineered for extreme thermal loads, the MV-R features a 347 stainless steel valve housing and a high-temperature NiCrFe alloy valve, ensuring reliability under the most demanding racing conditions. This unit is equipped with integrated water-cooling ports to stabilize actuator temperatures without affecting performance, though use of these ports is optional.

• Includes full spring set for adjustable boost pressures from 0.3 to 1.7 bar
• High-temperature 17-7 PH stainless steel actuator spring resists functional fatigue up to 900°F (485°C)
• Three lower and two upper air ports simplify vacuum line routing and clocking
• Blue anodized 6061-T6 aluminum actuator top
• V-band inlet and outlet for secure, leak-free installation and easy removal
• Includes TiAL part number 002948, V-band flanges, and sealing clamps

The TiAL Sport F38 is a high-performance 38mm external wastegate engineered for precise boost management in turbocharged applications. This unit features a 1.0 Bar (14.50 PSI) spring and is finished in silver, making it a reliable choice for both street and race builds requiring a 2-bolt flange configuration.

Constructed to withstand extreme exhaust temperatures, the F38 utilizes a high-temperature NiCrFe based alloy for the valve and 347 stainless steel for the housing. The actuator diaphragm is reinforced with high-temperature Nomex, ensuring consistent valve response and long-term durability under high-stress conditions.

• Valve Diameter: 38mm
• Spring Rating: 1.0 Bar (14.50 PSI)
• Housing Material: 347 Stainless Steel
• Valve Material: High-temperature NiCrFe based alloy
• Inlet/Outlet: 2-bolt flange style
• Finish: Silver anodized actuator top
• Manufacturer Part Number: 002913

The TiAL Sport F38 is a precision-engineered external wastegate designed for reliable boost control in turbocharged systems. This 38mm unit is a staple for performance builds, offering a compact 2-bolt flange design that provides excellent flow and durability under high exhaust temperatures.

• Model: F38 External Wastegate
• Valve Diameter: 38mm
• Spring Rating: 0.5 Bar (7.25 PSI)
• Color/Finish: Black
• Flange Configuration: 2-Bolt
• MPN: 002890

Built to handle the rigors of forced induction, the F38 provides consistent actuation and precise pressure management. The pre-installed 0.5 Bar spring serves as a reliable baseline for low-to-mid boost applications or as a foundation for external boost controllers. This wastegate is ideal for replacing a worn unit or completing a custom turbo manifold setup where a 2-bolt 38mm interface is required.

The TiAL Sport F38 is a performance-proven 38mm external wastegate engineered for precise boost control in turbocharged applications. Designed to fit standard 2-bolt manifold flanges, this F38 model comes equipped with a 0.5 Bar (7.25 PSI) spring, making it an ideal solution for low-to-mid boost configurations where reliability and thermal stability are critical.

Constructed with a high-temperature NiCrFe-based alloy valve and a 347 stainless steel valve housing, the F38 is built to withstand extreme exhaust temperatures without fatigue. The actuator features a high-temperature Nomex-reinforced silicone diaphragm, ensuring consistent cycling and longevity under track and street conditions.

• Valve Diameter: 38mm
• Spring Rating: 0.5 Bar (7.25 PSI)
• Housing Material: 347 Stainless Steel
• Valve Material: High-Temp NiCrFe Based Alloy
• Diaphragm: Nomex-reinforced Silicone
• Finish: Silver Anodized
• Mounting Style: 2-Bolt Flange
• Manufacturer Part Number: 002888

The TiAL Sport V60 is a high-capacity 60mm external wastegate engineered for high-horsepower turbocharged applications that require maximum flow and precise boost control. As the largest wastegate in the TiAL lineup, the V60 is designed to handle extreme exhaust volumes and heat. This unit features a 1.048 Bar (15.21 PSI) spring and a black anodized actuator top for a clean, durable finish.

Built with a high-temperature NiCrFe based alloy valve and a 347 stainless steel valve housing, this wastegate provides exceptional longevity under racing conditions. The actuator utilizes a high-temperature Nomex-reinforced silicone diaphragm for reliable performance. The included V-band inlet and outlet flanges make installation and service straightforward while ensuring a leak-free seal.

• 60mm valve diameter for superior exhaust flow
• 1.048 Bar (15.21 PSI) spring rate
• High-temperature stainless steel and alloy construction
• Anodized black 6061-T6 aluminum actuator housing
• Includes stainless steel V-band inlet and outlet clamps
• Manufacturer Part Number: 002676

The TiAL Sport MVS Wastegate is the industry standard for compact, reliable boost control in high-performance turbocharged applications. Engineered to fit into tight engine bays where space is at a premium, the MVS (38mm) design features integrated water-cooling ports to maintain stable diaphragm temperatures in extreme racing conditions. This kit (MPN: 001931) comes finished in silver and includes a full set of springs, allowing you to calibrate your boost level precisely for your specific setup.

• High-temperature NiCrFe based alloy used for the valve and 347SS housing for maximum lifespan under high EGTs.
• Compact design with a total height of only 3.7 inches.
• Integrated -4AN water cooling ports (optional use) to protect the actuator from heat soak.
• V-band inlet and outlet flanges for easy installation and a leak-free seal.
• Includes all available springs for versatile boost pressure configurations.
• Genuine TiAL Sport V-band clamps and air fittings included.

Fits 2002-2007 Subaru Impreza WRX models equipped with Mitsubishi TD04 turbochargers.

The GFB Internal Wastegate Actuator (WGA) is engineered to provide precise boost control with a focus on authority and adjustability. Utilizing an industry-first Silicone/Nomex diaphragm with a specialized bead retention design, this actuator achieves the largest possible effective surface area within a compact outside diameter. This design allows for superior control over the wastegate flap, effectively eliminating boost fluctuations and improving turbo response.

Unlike standard actuators, the GFB 7304 features a unique pivoting rod guide machined from PEEK, a high-performance engineering polymer. This encapsulated spherical guide reduces friction and wear while maintaining a low-profile actuator body. For tuning, the integrated turnbuckle adjustment allows for fast spring pre-load changes without the need to remove the actuator or swap springs manually, saving significant time on the dyno or in the garage.

• MPN: 7304
• Rod Travel: 18mm stroke for maximum internal wastegate control
• Spring Range: Includes 3 stainless steel springs for combinations from 5psi to 22psi
• Diaphragm: High-temperature Silicone/Nomex construction
• Adjustment: Turnbuckle rod for fine-tuning base boost pressure
• Build: Compact, low-profile design for tight engine bay fitment

The Garrett GVW-50 is a high-performance 50mm external wastegate engineered to provide precise boost control for high-horsepower turbocharged applications. Designed using Computational Fluid Dynamics (CFD), the valve shape and housing geometry maximize flow capacity and minimize boost creep, ensuring stable manifold pressure even under extreme exhaust temperatures.

Constructed with a high-temperature stainless steel valve housing and a Nomex-reinforced silicone diaphragm, this wastegate (MPN 908829-0003) is built for exceptional thermal resistance and durability. The kit includes a black anodized actuator cap and a complete set of V-band hardware for a secure, leak-free installation on custom manifolds.

• 50mm valve diameter for superior flow and bypass capacity
• CFD-optimized design to reduce turbulence and improve response
• High-temperature stainless steel housing and internal components
• Sleek black anodized finish for corrosion resistance
• Includes inlet and outlet V-band flanges and clamps
• Equipped with multiple spring options for versatile boost setting
• Manufacturer Part Number: 908829-0003

The Garrett GVW-45 External Wastegate (MPN 908828-0003) is a high-performance 45mm bypass valve engineered for precise boost regulation in turbocharged systems. This CFD-optimized design provides maximum flow capacity and superior temperature resistance, finished with a durable black anodized actuator cover.

• 45mm valve diameter optimized for high-flow exhaust bypass.
• Integrated water-cooling ports for enhanced thermal management under extreme racing conditions.
• High-temperature Nomex-reinforced diaphragm for consistent performance and long-term reliability.
• Standard V-band inlet and outlet connections for simplified installation and 360-degree actuator clocking.
• Includes a comprehensive set of springs to adjust base boost pressure between 0.2 bar (3 psi) and 1.7 bar (25 psi).

Each kit comes complete with the GVW-45 unit, stainless steel V-band flanges, clamps, water fittings, and manifold pressure ports. Designed for professional motorsport and high-output street builds where consistent boost control is critical to engine safety and performance.

The Garrett GVW-45 45mm External Wastegate provides precise boost management for high-performance turbocharged systems. Engineered to handle extreme exhaust temperatures, this wastegate features a high-temp stainless steel valve housing and a CNC-machined red anodized actuator cover. The 45mm valve diameter offers high-flow capacity to prevent boost creep on mid-to-large frame turbochargers.

Designed for versatile installation, the GVW-45 utilizes V-band inlet and outlet connections for easy clocking and a secure, leak-free seal. The assembly includes integrated water cooling ports to protect the diaphragm in high-heat environments, ensuring consistent performance and longevity. This kit comes complete with interchangeable springs, allowing tuners to customize base boost pressure levels.

• 45mm valve diameter for superior exhaust flow control
• High-temperature stainless steel housing with red anodized 6061 aluminum cap
• V-band mounting for simplified installation and 360-degree orientation
• Integrated water cooling ports for thermal management
• Includes complete spring kit, V-band clamps, flanges, and fittings
• Manufacturer Part Number: 908828-0001

The Garrett GVW-40 40mm external wastegate provides precise boost management for high-performance turbocharged systems. Engineered to withstand extreme thermal environments, this wastegate features a high-temperature Mar-M 247 alloy valve and a 347 stainless steel housing. The black anodized actuator cap includes integrated water-cooling ports to maintain diaphragm integrity in demanding racing applications.

• Part Number: 908827-0003
• Valve Diameter: 40mm
• Material: Mar-M 247 valve (rated to 1050°C) and 347 stainless steel housing (rated to 950°C)
• Mounting: V-band inlet and outlet for secure, leak-free installation
• Cooling: Liquid-cooled actuator ports for superior heat management
• Springs included: Comprehensive spring kit for base boost settings from 0.2 bar (3 psi) to 1.7 bar (25 psi)
• Includes: V-band clamps, flanges, manifold bolts, and air fittings

The Garrett GVW-40 (MPN: 908827-0001) is a high-performance 40mm external wastegate engineered for precise boost control and superior thermal management. Built with a CFD-optimized design, this wastegate provides maximum flow capacity and stability to protect your turbocharger and engine from overboost conditions.

• Precision Engineering: 40mm valve diameter optimized for high-flow efficiency and consistent manifold pressure.
• Durable Construction: Features high-temperature resistant materials designed to withstand extreme exhaust gas temperatures (EGTs) without fatigue.
• Complete Kit: Includes the GVW-40 wastegate, inlet and outlet V-band flanges, clamps, and necessary fittings for a secure, leak-free installation.
• Aesthetic Finish: Anodized red actuator cap offers a premium, high-performance look for custom engine bays.

This kit is designed for fabricators and tuners requiring a reliable, compact wastegate solution that integrates seamlessly into custom manifold setups using industry-standard V-band connections.

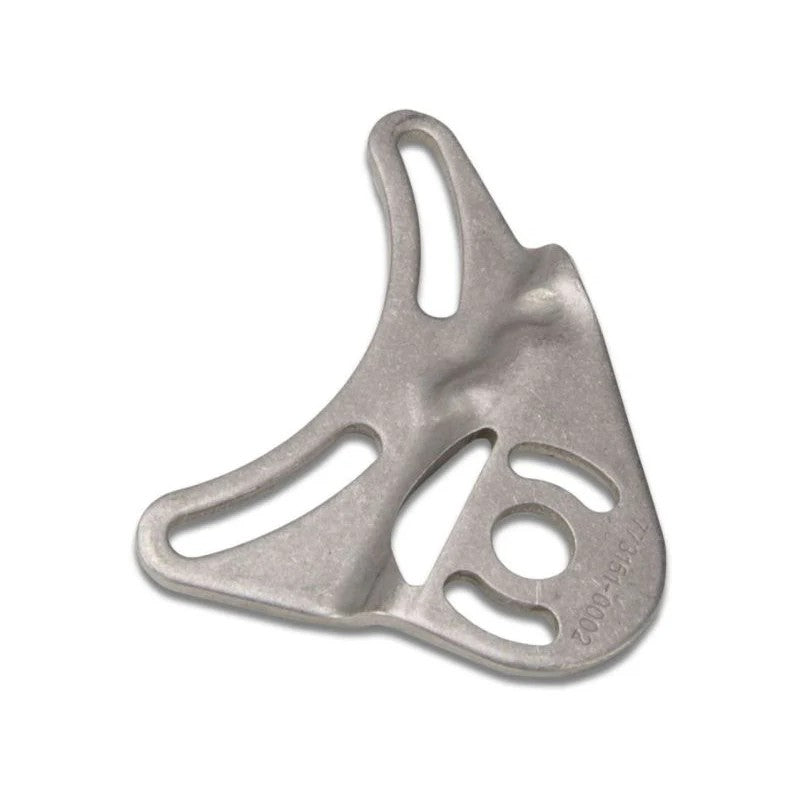

This Garrett GT28 adjustable wastegate bracket (MPN: 773151-0002) provides a precision-engineered solution for mounting and securing your wastegate actuator. Designed specifically for the GT28 series turbochargers, this bracket is an essential component when clocking the turbocharger housing to accommodate custom intake, intercooler, or oil line routing.

Constructed to withstand the high-vibration and extreme-heat environment of the engine bay, this bracket ensures the actuator remains stable for consistent boost pressure control. The slotted adjustable design allows for fine-tuning the actuator position to ensure a straight pull on the wastegate flapper arm, preventing binding and premature wear on the actuator diaphragm.

• Compatible with Garrett GT28 series turbochargers
• Slotted design for adjustable actuator positioning and clocking
• Durable metallic finish for corrosion resistance
• High-strength construction to maintain alignment under thermal stress
• Manufacturer Part Number: 773151-0002

Fits select 2004-2007 Dodge Ram 2500 and 3500 models (5.9L Cummins).

The BD Diesel Wastegate Control Valve is a precision-engineered OEM replacement part designed to restore accurate turbocharger boost regulation. This solenoid replaces a failed or sticking factory unit, ensuring the ECM can properly command wastegate operation to maintain optimal manifold pressure and engine safety. Built to meet or exceed original equipment standards, this direct-fit component eliminates boost fluctuations and related fault codes caused by a malfunctioning control valve.

• Direct-fit OEM replacement part
• Restores factory turbocharger boost control and performance
• Designed specifically for the 5.9L Cummins turbocharger system
• Manufacturer Part Number: 1045921
• Electrical components carry a 30-day manufacturer warranty
