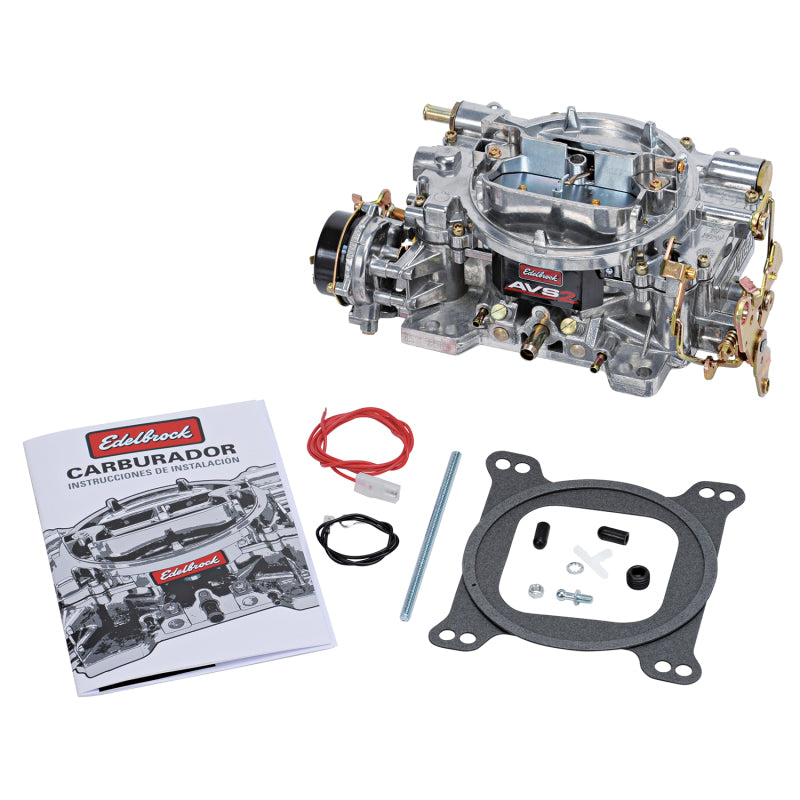

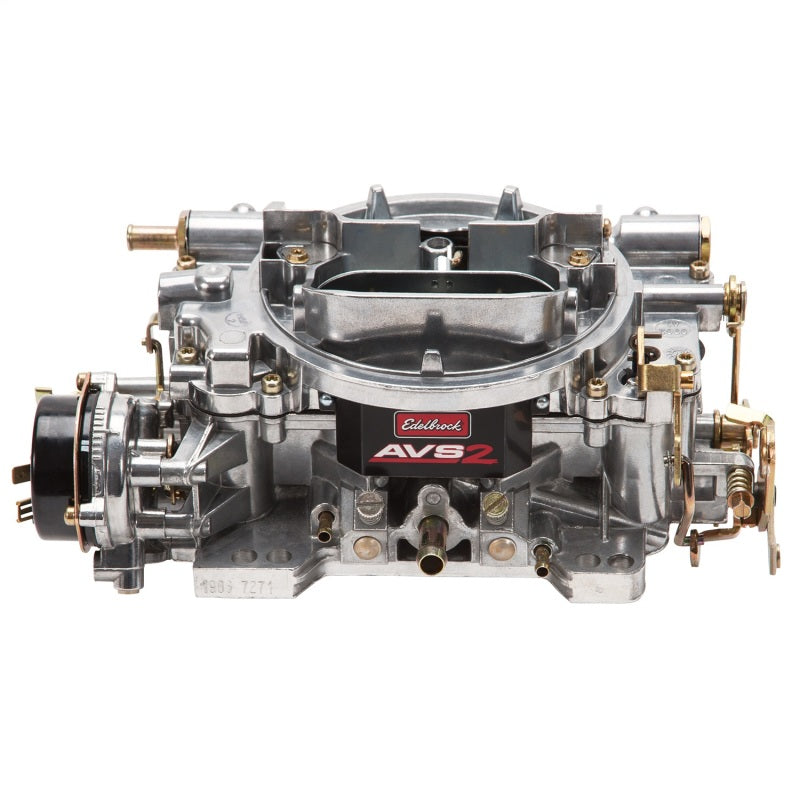

The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets, .070 x .037 metering rods, orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.

• Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.
• The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM.
• Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance.
• It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed.
• The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle.
• The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds.
• The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance.
• For Single Or Dual Plane Intake Manifolds

This Part Fits:

The Edelbrock #2021 Single-Quad Manifold and carb kit is designed for 1957-86 Small-Block Chevy applications. With a Manifold and Carb Kit, it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. These kits include: an Edelbrock manifold, Performer or Thunder Series AVS carb, chrome fuel inlet, intake gasket set, intake bolt set and carb stud kit. The manifold and carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks.

• Resists Discoloration From Heat

This Part Fits:

The Edelbrock part #8804 Long Water Pump designed for Ford 4.6L V8 Mustangs is ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock has designed these "Super Cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance water pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.

• Only Flows In One Direction For Optimum Efficiency

This Part Fits:

The Edelbrock part #8803 Short Water Pump designed for Ford 4.6L V8 Mustangs is ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock has designed these "Super Cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance water pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.

• Only Flows In One Direction For Optimum Efficiency

This Part Fits:

Edelbrock part #8041 Throttle and Trans Kickdown bracket is designed for 4150 Style Pro-Flo 3 & Pro-Flo 4 throttle bodies.

• Includes Bracket And Hardware

Edelbrock part #7814 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

• Stock Replacement Part

This Part Fits:

Edelbrock part #7501 RPM Air-Gap #7501 intake manifold is designed for 1955-86 262-400 c.i.d. Chevrolet V8 applications. The award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.

• For Square Bore Carburetors Only

This Part Fits:

Edelbrock part #7201 Intake Gaskets for 1958-1986 Small-Block Chevy allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better.

• Matched To Manifolds And Cylinder Heads

This Part Fits:

Edelbrock part #4764 Victor X intake manifold is designed for B16A & Type R B18C5 engines. This intake manifold is optimized for maximum power from 7,000 to 10,000 RPM, the Victor X manifold is designed for turbo and all-motor applications. Engineered for high performance, this manifold has four additional bosses for nitrous or added fuel injectors.

• Ideal For Normally Aspirated/Turbocharged Engine

This Part Fits:

The Edelbrock #4449 Signature Series Valve Covers are designed for Chevrolet 262-400 '59-86 applications. Engineered for function and styled for great looks, Signature Series valve covers have stock-style breather baffles that prevent oil passage to the PCV valve. These quality valve covers accept all emissions equipment, including PCV valve holes. Rubber grommets for the breather and PCV valve holes are included. Matching breathers sold separately.

• Rubber Grommets For Breather

This Part Fits:

The Edelbrock Elite II round air cleaner #4266. This new line of accessories features a design that is influenced by the original Elite Series originally released in 1985, but with a new modern take on this classic look. They're made from heavy-gauge, die-cast aluminum and are finished off with a show quality high luster polished finish. The raised fins are accented by a contrast gloss black finish between the fins for the definitive Elite Series look. Our Elite II round air cleaners fit all popular 5-1/8" diameter carburetors and include a black anodized knurled nut. They come with a high-quality 3" pre-oiled, washable and reusable Pro-Flo Universal filter with the exclusive Pro-Charge clean strip for easy maintenance and excellent filtration. Our oval air cleaners are designed to fit Edelbrock single- and dual-quad applications and should clear HEI distributors and stock parts. They come with high-quality 2-1/2" washable, pre-oiled reusable filter for excellent filtration. Overall oval air cleaner dimensions are 13-5/8" x 7-3/16".

• For Use With 5.125 in. Carbs

The Edelbrock #4264 Elite II Valve Covers are designed for Ford 289/302/351W (except Boss) applications. This new line of Elite II valve covers feature a design that is influenced by the original Elite Series originally released in 1985, but with a new modern take on this classic look. They're made from heavy-gauge, die-cast aluminum and are finished off with a show quality high luster polished finish. The raised fins are accented by a contrast gloss black finish between the fins for the definitive Elite Series look. Our tall profile valve covers are 2" taller than stock, and clear most roller rockers and valvetrain components. Our low profile valve covers clear all air-conditioning, alternator brackets and aluminum rockers. Overall height is measured from gasket flange to top at the highest point.

• Heavy Gauge

This Part Fits:
