Fits 2024-2025 Toyota Land Cruiser 250 Series (1958, Base, and First Edition).

The ICON Vehicle Dynamics Stage 1 suspension system is engineered to increase wheel travel and damping ability for the 2024-2025 Toyota Land Cruiser. This system replaces the factory components with vehicle-specific tuned 2.5 Series front coilover shocks and 2.0 Aluminum Series rear shocks, providing superior vehicle control and ride quality across diverse terrain. The adjustable front coilovers deliver 1.25-3 inches of lift, allowing for larger wheel and tire fitments, while the dual-rate rear coil springs provide a 2-inch lift for a level, aggressive stance.

To maintain drivetrain reliability, this kit includes front differential drop brackets that optimize CV axle angles and prevent binding at maximum travel. Polyurethane differential mounting bushings are also included to limit movement under high torque loads compared to the soft OE rubber units. The system utilizes 6061 CNC-machined aluminum components and FK Rod End bearings for maximum durability and minimal deflection.

• Adjustable 2.5 Series front coilovers provide 1.25-3" of lift height
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion-resistant CAD plated coilover bodies with 7/8" shafts
• Dual-rate rear coil springs for 2" of rear lift and bottoming resistance
• Includes front differential drop for improved CV operating angles
• 6061 aircraft-grade aluminum CNC-machined components
• FK Rod End bearings for extended longevity
• Manufacturer Part Number: K53361

Fits 2024-2025 Lexus GX550 Luxury, Premium, and Premium+ models.

The ICON Vehicle Dynamics Stage 3 suspension system (K53353) provides a comprehensive performance upgrade for the Lexus GX550, delivering improved ride quality and increased wheel travel. This system features adjustable 2.5 Series coilovers capable of 1.25-3" of front lift, paired with billet aluminum upper control arms (UCAs) to correct front-end geometry and provide on-vehicle camber and caster adjustment. The UCAs utilize the patented Delta Joint PRO, offering 90 degrees of articulation to eliminate binding through the full suspension cycle.

In the rear, dual-rate coil springs provide 2" of lift, balancing a soft initial rate for on-road comfort with a firmer overload rate for bottoming resistance. The rear suspension is supported by 2.0 Aluminum Series internal reservoir shocks and a billet adjustable track bar to re-center the axle. A front differential drop is also included to maintain optimal CV joint angles at increased heights.

• Adjustable front coilovers: 1.25-3" lift height
• Dual-rate rear coil springs: 2" lift height
• Billet 6061 aluminum UCAs with Delta Joint PRO (U.S. Pat. 10,731,700)
• Billet adjustable rear track bar for precise axle centering
• CAD plated 2.5 Series coilover bodies with 7/8" induction-hardened shafts
• 2.0 Aluminum Series rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Includes front differential drop kit for CV joint protection
• Manufacturer Part Number: K53353

Fits 2024-2025 Lexus GX550 Luxury, Luxury+, Premium, and Premium+ models.

The ICON Vehicle Dynamics Stage 2 suspension system is engineered to enhance the off-road capability and on-road handling of the 2024-2025 Lexus GX550. This comprehensive kit features adjustable front coilovers providing 1.25–3" of lift, paired with tubular upper control arms (UCAs) to correct front-end geometry and increase caster. The UCAs utilize the patented Delta Joint PRO, offering 90 degrees of total articulation to eliminate binding during extreme suspension cycling. To maintain drivetrain longevity, a front differential drop is included to optimize CV joint angles at increased ride heights.

In the rear, dual-rate coil springs provide 2" of lift while balancing small-bump comfort with firm bottoming resistance for heavy loads. Damping is handled by ICON 2.0 Aluminum Series internal reservoir rear shocks, featuring vehicle-specific valving to ensure a controlled, predictable ride across any terrain.

• Adjustable front coilovers provide 1.25-3" lift height over stock
• Tubular UCAs with Delta Joint PRO (U.S. Pat. 10,731,700) for 90-degree articulation
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion-resistant CAD plated coilover bodies with 7/8" induction-hardened shafts
• Dual-rate rear coil springs for 2" lift and superior bottoming resistance
• Includes front differential drop kit to maintain proper CV axle angles
• 6061 aircraft-grade aluminum CNC machined components
• FK Rod End bearings for maximum durability and minimal deflection
• Manufacturer Part Number: K53352T

Fits 2024-2025 Lexus GX550 Luxury, Luxury+, Premium, and Premium+ models.

The ICON Vehicle Dynamics Stage 2 suspension system (MPN: K53352) is engineered to enhance the drivability and off-road capability of the Lexus GX550. This system features adjustable 2.5 Series front coilovers providing 1.25-3" of lift, paired with billet aluminum upper control arms (UCAs) to correct front-end geometry. These UCAs include the patented Delta Joint Pro, offering 90 degrees of total articulation to eliminate binding during full suspension travel. For the rear, dual-rate coil springs provide 2" of lift, delivering a supple ride over small bumps while maintaining bottoming resistance under heavy loads.

• Billet 6061 aircraft-grade aluminum UCAs with on-vehicle caster/camber adjustment
• 2.5 Series front coilovers with corrosion-resistant CAD-plated bodies and 7/8" shafts
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts and vehicle-specific valving
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) for maximum articulation and durability
• Front differential drop kit maintains optimal CV joint angles and maximizes wheel travel
• FK Rod End bearings for reduced deflection and extended component life
• Complete bolt-on installation with all necessary hardware included

Fits 2024-2025 Lexus GX550 Luxury, Luxury+, Premium, and Premium+ models.

The ICON Vehicle Dynamics Stage 1 suspension system for the 2024-2025 Lexus GX550 is engineered to increase wheel travel and damping ability for improved vehicle control and ride quality both on- and off-road. This system features vehicle-specific tuned 2.5 Series front coilover shocks with internal reservoirs and ICON-engineered coil springs, providing 1.25-3" of front lift height to accommodate larger wheel and tire combinations.

To ensure drivetrain longevity, the kit includes front differential drop brackets that maintain proper CV angles and prevent bind during maximum suspension travel. Polyurethane differential mounting bushings replace the softer factory components to limit movement under load. In the rear, dual-rate coil springs provide a 2" lift, offering a compliant initial rate for on-road comfort with a firmer secondary rate for bottoming resistance. The rear is rounded out by ICON 2.0 Aluminum Series internal reservoir shocks, valved specifically to balance the GX550 platform.

• Adjustable coilovers provide 1.25-3" front lift height over stock
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts
• 6061 aircraft grade aluminum CNC machined components
• FK Rod End bearings for extended longevity and minimal deflection
• Dual-rate rear coil springs for improved ride quality and 2" rear lift
• Front differential drop maximizes wheel travel and improves CV operating angles
• Manufacturer Part Number: K53351

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport models. This ICON Vehicle Dynamics Stage 8 suspension system is engineered to maximize the performance and drivability of the new Tacoma platform, providing a front lift height of 1.25 to 3 inches and a 0.5-inch rear lift.

This comprehensive kit features 2.5 Aluminum Series remote reservoir front coilovers and rear shocks, both equipped with ICON’s Compression Damping Control Valve (CDCV). This external dial offers 10 distinct settings of compression damping adjustment to fine-tune your ride for varying loads or terrain. The front suspension is bolstered by CNC-machined 6061 billet aluminum upper control arms (UCAs), which correct geometry for proper alignment and use the patented Delta Joint PRO to provide 90 degrees of total articulation without binding. The rear setup includes billet aluminum lower links with double adjusters for on-vehicle pinion angle tuning and triple-rate coil springs that balance plush on-road comfort with firm bottoming resistance.

• ICON 2.5 Series front coilovers and rear shocks with CDC Valves and remote reservoirs
• Billet aluminum UCAs with Delta Joint PRO for increased wheel travel and durability
• Adjustable 1.25-3" front lift and 0.5" rear lift height
• Billet rear lower links with double adjusters and dual-durometer greaseless bushings
• Triple-rate rear coil springs for superior load handling and ride quality
• Front differential drop kit included to maintain optimal CV joint angles
• Corrosion-resistant CAD-plated shock bodies with heavy-duty 7/8" shafts
• FK Rod End bearings for minimal deflection and extended service life
• Manufacturer Part Number: K53298S

Fits 2024-2025 Toyota Tacoma SR5, TRD Off-Road, TRD Sport, and 2024 Limited models.

The ICON Vehicle Dynamics Stage 8 Suspension System provides a comprehensive performance upgrade for the 2024-2025 Toyota Tacoma, engineered to increase wheel travel and damping control. This system features vehicle-specific tuned 2.5 Series front coilovers and rear shocks equipped with remote reservoirs and ICON’s Compression Damping Control Valve (CDCV) technology. The CDCV system offers 10 levels of externally adjustable compression damping, allowing drivers to calibrate the ride for varying terrain and vehicle loads. The adjustable front coilovers provide 1.25" to 3" of lift height to accommodate larger wheel and tire combinations.

To ensure proper suspension geometry, this kit includes CNC-machined 6061 billet aluminum Upper Control Arms (UCAs) featuring the patented Delta Joint Pro, which allows for 90 degrees of total articulation. The rear suspension is enhanced with billet lower links that permit on-vehicle pinion angle adjustment. A front differential drop bracket and polyurethane mounting bushings are included to maintain optimal CV angles and limit differential movement under load.

• Manufacturer Part Number: K53298
• Front Lift Height: 1.25" to 3" (adjustable)
• Shock Technology: 2.5 Series with remote reservoirs and 10-position CDC Valves
• UCAs: Billet 6061 aluminum with Delta Joint Pro (U.S. Pat. 10,731,700)
• Rear Links: Billet aluminum lower links for pinion adjustment
• Components: CAD plated shock bodies with 7/8" hardened chrome shafts
• Hardware: FK Rod End bearings and polyurethane differential mounting bushings
• Fitment: Corrects CV angles on 4WD models via included diff drop

Fits 2024-2025 Toyota Tacoma models, including SR5, TRD Off-Road, TRD Sport, and 2024 Limited. This comprehensive Stage 7 suspension system is engineered for the serious driver demanding maximum wheel travel and superior damping performance for both technical off-road terrain and high-speed transit.

The system features ICON 2.5 Series front coilovers and 2.5 Aluminum Series rear shocks, both equipped with remote reservoirs for increased oil volume and heat dissipation. This design effectively resists cavitation and shock fade during hard use. The front coilovers provide 1.25" to 3" of lift, allowing for larger wheel and tire packages. To maintain drivetrain integrity, a front differential drop kit is included to correct CV angles and maximize travel while preventing bind.

For superior geometry and strength, this kit includes CNC-machined 6061 billet aluminum upper control arms (UCAs) featuring the patented Delta Joint PRO. These UCAs allow for 90 degrees of articulation and provide on-vehicle adjustment for caster and camber. The rear is upgraded with billet aluminum lower links, improving articulation and allowing for precise pinion angle adjustment.

• Manufacturer Part Number: K53297
• 2.5 Series front coilovers with remote reservoirs (1.25-3" adjustable lift)
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
• Billet aluminum UCAs with Delta Joint PRO (U.S. Pat. 10,731,700)
• Billet aluminum rear lower links for improved articulation
• Front differential drop brackets with polyurethane bushings
• Corrosion-resistant CAD-plated shock bodies with FK Rod End bearings
• CNC-machined 6061 aircraft-grade aluminum components
• ICON-engineered coil springs

Fits 2024-2025 Toyota Tacoma SR5, TRD Off-Road, TRD Sport, and Limited models.

The ICON Vehicle Dynamics Stage 5 Suspension System is engineered for the 2024-2025 Toyota Tacoma owner seeking maximum off-road performance and precise damping control. This system provides a 1.25-3" front lift height to accommodate larger wheel and tire combinations while significantly increasing wheel travel. At the core are vehicle-specific tuned 2.5 Series front coilovers and rear shocks equipped with remote reservoirs and ICON’s Compression Damping Control (CDC) Valves, offering 10 levels of external adjustment to fine-tune your ride for any terrain or load.

To maintain proper suspension geometry, this kit includes tubular upper control arms featuring the patented Delta Joint Pro, which allows for up to 90 degrees of articulation. The included front differential drop kit utilizes polyurethane bushings to correct CV angles and limit differential movement, while the triple-rate rear coil springs provide a .5" lift and improved ride quality through the entire range of travel.

• Front lift height adjustable from 1.25" to 3"
• 2.5 Series front and rear remote reservoir shocks with 10-setting CDC Valves
• Tubular UCAs with patented Delta Joint Pro for 90 degrees of articulation
• Triple-rate rear coil springs for .5" rear lift and optimized performance
• Front differential drop kit with polyurethane bushings to prevent CV bind
• Corrosion-resistant CAD plated shock bodies with 7/8" shafts and FK Rod End bearings
• 6061 aircraft-grade aluminum CNC machined components
• Manufacturer Part Number: K53295TS

Fits 2024-2025 Toyota Tacoma (SR5, TRD Off-Road, TRD Sport, and Limited).

The ICON Vehicle Dynamics Stage 5 suspension system is engineered for the serious driver demanding maximum damping performance and wheel travel from their 2024-2025 Toyota Tacoma. This comprehensive system (MPN K53295S) centers around 2.5 Series front coilovers and 2.5 Aluminum Series rear shocks, both featuring remote reservoirs and ICON’s CDC (Compression Damping Control) Valves. These externally adjustable valves provide 10 levels of compression damping force, allowing you to fine-tune the suspension for everything from high-speed desert runs to heavy towing.

Front-end geometry is enhanced with billet 6061 aircraft-grade aluminum Upper Control Arms (UCAs). These arms feature the patented Delta Joint Pro, providing 90 degrees of total articulation and on-vehicle caster/camber adjustment for precise alignment. To accommodate the 1.25-3" lift height without compromising drivetrain longevity, the kit includes a front differential drop to maintain optimal CV joint angles, supported by durable polyurethane mounting bushings.

• Adjustable Lift: Front coilovers provide 1.25-3" of lift over stock for larger wheel and tire clearance.
• Remote Reservoirs: Increased oil volume and heat dissipation area to resist shock fade and cavitation.
• CDC Valves: 10-position compression adjustment from soft to hard via external dial.
• Billet UCAs: CNC-machined aluminum arms with Delta Joint Pro (U.S. Pat. 10,731,700).
• Triple Rate Springs: Rear coil springs provide 0.5" of lift and improved ride quality across all terrain.
• Premium Components: Corrosion-resistant CAD-plated shock bodies, 7/8" shafts, and FK Rod End bearings.
• Differential Drop: Includes drop brackets to maximize wheel travel and prevent CV bind on 4WD models.

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport.

The ICON Stage 5 Suspension System is a comprehensive performance upgrade for the 2024-2025 Toyota Tacoma, providing 1.25 to 3 inches of adjustable front lift height. This system is designed to increase wheel travel and damping performance for high-speed off-road use while maintaining refined street manners. The kit features 2.5 Series remote reservoir coilovers and rear shocks, significantly increasing oil volume and heat dissipation to prevent shock fade during aggressive driving.

Equipped with ICON’s CDC (Compression Damping Control) Valves, this system allows for 10 levels of external adjustment to fine-tune the ride for various terrains and cargo loads. The included 6061 billet aluminum Upper Control Arms (UCAs) feature the patented Delta Joint Pro, providing 90 degrees of articulation and allowing for on-vehicle caster and camber adjustment. To ensure drivetrain longevity at increased lift heights, the system includes a front differential drop bracket and polyurethane bushings to optimize CV angles and reduce differential movement.

• 2.5 Series front and rear remote reservoir shocks with 7/8-inch shafts
• ICON CDC Valves for 10-position external compression damping adjustment
• Billet aluminum UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• Adjustable front lift height of 1.25-3 inches over stock
• CAD-plated shock bodies for superior corrosion resistance
• Front differential drop kit to prevent CV bind and maximize travel
• FK Rod End bearings for reduced deflection and increased longevity
• CNC-machined 6061 aircraft-grade aluminum components
• Manufacturer Part Number: K53295

Fits 2024-2025 Toyota Tacoma (SR5, TRD Off-Road, TRD Sport, and Limited models).

The ICON Vehicle Dynamics Stage 4 Suspension System is engineered for the 2024-2025 Toyota Tacoma owner seeking significant improvements in wheel travel and damping performance. This comprehensive kit centers on vehicle-specific tuned 2.5 Series front coilovers and rear shocks, both featuring remote reservoirs. These reservoirs provide increased oil volume and heat dissipation to prevent shock fade during aggressive off-road use. The front coilovers are height-adjustable from 1.25” to 3” of lift over stock, facilitating the clearance of larger wheel and tire packages.

To maintain proper suspension geometry and durability at increased lift heights, this system includes ICON tubular upper control arms (UCAs). These UCAs feature the patented Delta Joint Pro, capable of 90 degrees of total articulation, and provide necessary alignment correction. For the drivetrain, a front differential drop bracket kit is included to optimize CV joint angles and prevent bind, utilizing high-durometer polyurethane bushings to limit movement under load. The rear is supported by triple-rate coil springs that provide a 0.5” lift while maintaining exceptional ride quality across varied terrain.

• ICON K53294TS Stage 4 Suspension System
• 2.5 Series front coilovers with remote reservoirs and 7/8" shafts
• 2.5 Aluminum Series remote reservoir rear shocks
• Adjustable 1.25-3" front lift height
• Tubular Upper Control Arms with Delta Joint Pro (90-degree articulation)
• Triple-rate rear coil springs for 0.5" rear lift
• Front differential drop kit with polyurethane bushings
• Corrosion-resistant CAD plated shock bodies
• 6061 aircraft-grade aluminum CNC machined components
• FK Rod End bearings for maximum longevity and minimal deflection

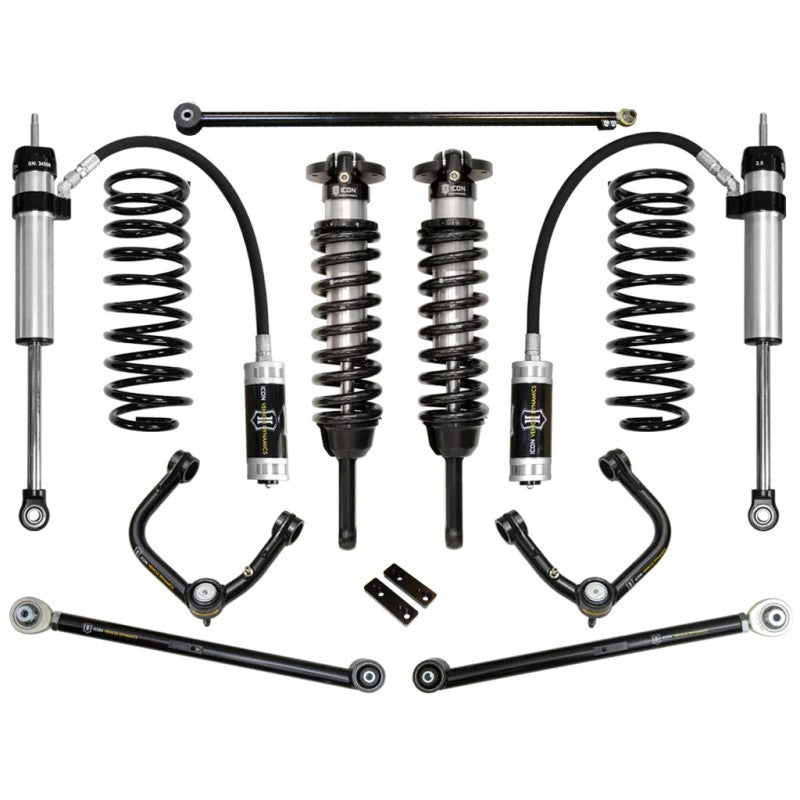

Fits select 2024-2025 Toyota Tacoma models (SR5, TRD Off-Road, TRD Sport, and Limited).

The ICON Vehicle Dynamics Stage 4 Suspension System is engineered to improve the off-road performance and ride quality of the 2024-2025 Toyota Tacoma. This system features vehicle-specific tuned 2.5 Series front coilovers and rear shocks, both equipped with remote reservoirs. These reservoirs significantly increase oil volume and surface area for heat dissipation, preventing shock fade and cavitation during aggressive use. The front coilovers are height-adjustable from 1.25 to 3 inches of lift, allowing for larger, more aggressive tire fitments.

To maximize suspension travel and durability, this Stage 4 kit includes ICON billet aluminum upper control arms (UCAs) featuring the patented Delta Joint Pro. These UCAs provide up to 90 degrees of total articulation and allow for on-vehicle caster and camber adjustment. The included front differential drop brackets, paired with polyurethane mounting bushings, correct CV axle angles and limit differential movement under load to prevent binding.

• 2.5 Series front coilovers and rear shocks with remote reservoirs and 7/8" shafts
• 6061 aircraft-grade CNC-machined billet aluminum upper control arms
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) for maximum articulation
• Corrosion-resistant CAD-plated coilover bodies and FK Rod End bearings
• Front differential drop kit to maintain optimal CV joint angles on 4WD models
• ICON-engineered coil springs for superior feel through the full range of travel
• Adjustable lift height from 1.25" to 3" over factory stock
• Manufacturer Part Number: K53294

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport models.

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to enhance the drivability and off-road capability of the 2024-2025 Toyota Tacoma. This system features adjustable front coilovers providing 1.25" to 3" of lift, allowing for larger tire fitment and increased ground clearance. The included tubular upper control arms (UCAs) are essential for maintaining proper front-end geometry and alignment when lifting the vehicle, featuring the patented Delta Joint PRO for 90 degrees of total articulation without binding.

The rear suspension is upgraded with ICON triple-rate coil springs that provide a .5" lift while balancing on-road comfort with firm bottoming resistance during off-road use. Damping is handled by 2.0 Aluminum Series remote reservoir rear shocks, specifically valved for the Tacoma chassis to ensure superior cooling and consistent performance in demanding terrain. The system also includes a front differential drop to maintain optimal CV joint angles and maximize wheel travel on 4WD models.

• Adjustable coilovers provide 1.25-3" front lift height
• Tubular UCAs with Delta Joint PRO (U.S. Pat. 10,731,700) for 90-degree articulation
• Triple-rate rear coil springs provide .5" lift and improved ride quality
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Corrosion-resistant CAD plated coilover bodies with 7/8" shafts
• 6061 aircraft-grade aluminum CNC machined components
• FK Rod End bearings for maximum longevity and minimal deflection
• Front differential drop kit included for corrected CV angles
• Manufacturer Part Number: K53293TS

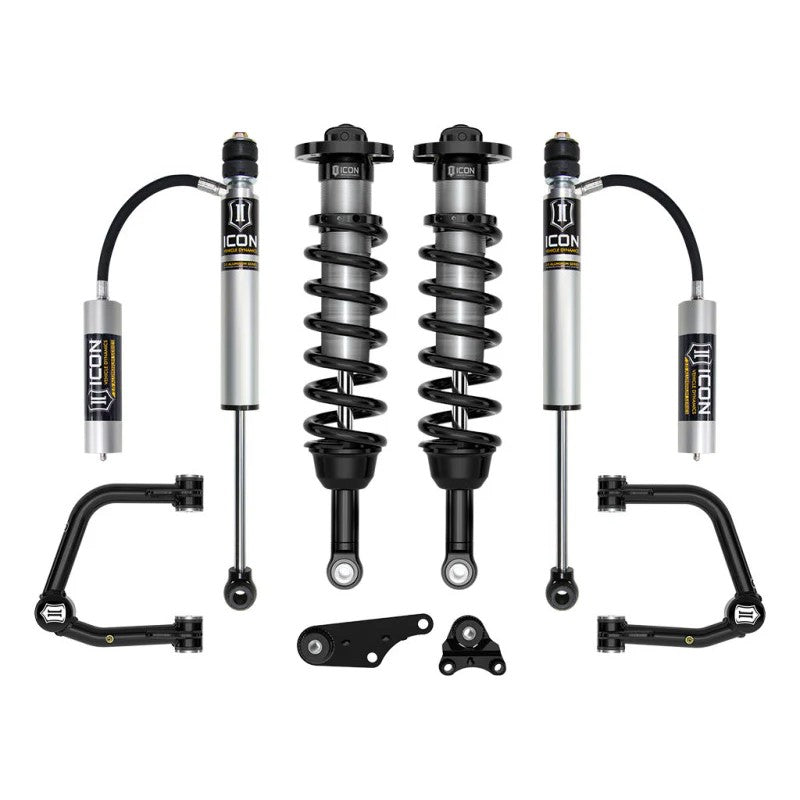

Fits 2024-2025 Toyota Tacoma (Limited, SR5, TRD Off-Road, TRD Sport).

The ICON Vehicle Dynamics Stage 3 suspension system is engineered for the 2024-2025 Toyota Tacoma, prioritizing increased wheel travel and superior damping for high-speed off-road performance and refined street handling. This system features vehicle-specific tuned 2.5 Series front coilover shocks with internal reservoirs for high heat dissipation and ICON-engineered coil springs. These coilovers provide 1.25–3 inches of front lift height, allowing clearance for larger wheel and tire packages.

To maintain drivetrain reliability, this kit includes front differential drop brackets and polyurethane mounting bushings to optimize CV angles and minimize movement under load. The included tubular upper control arms (UCAs) feature the patented Delta Joint PRO, providing 90 degrees of articulation to eliminate binding during full suspension cycle. Rear damping is handled by ICON 2.0 Aluminum Series remote reservoir shocks, valved specifically for the Tacoma's chassis to ensure a balanced, controlled ride.

• Adjustable 2.5 Series front coilovers provide 1.25-3" of lift
• Corrosion-resistant CAD plated shock bodies with 7/8" hardened shafts
• Tubular UCAs with Delta Joint PRO (U.S. Pat. 10,731,700) for 90-degree articulation
• Front differential drop kit improves CV angles and maximizes travel
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for durability and reduced deflection
• 6061 aircraft-grade CNC machined aluminum components
• Manufacturer Part Number: K53293T

Fits 2024-2025 Toyota Tacoma (SR5, TRD Off-Road, TRD Sport, and Limited).

The ICON Vehicle Dynamics Stage 3 suspension system provides a comprehensive performance upgrade for the 2024-2025 Tacoma, delivering 1.25-3 inches of adjustable front lift and 0.5 inches of rear lift. This system centers on CNC-machined 6061 billet aluminum upper control arms (UCAs) designed to correct front-end geometry and allow for on-vehicle caster and camber adjustments. These UCAs feature the patented Delta Joint Pro, providing 90 degrees of total articulation to ensure full bump and droop travel without binding.

Damping is handled by vehicle-specific tuned coilovers and ICON 2.0 Aluminum Series remote reservoir rear shocks, which offer improved cooling for consistent performance. The included triple-rate rear coil springs deliver a plush initial ride while providing a firm overload rate for bottoming resistance. This kit also includes a front differential drop to maintain optimal CV joint angles on 4WD models while maximizing available wheel travel.

• Front Lift Height: 1.25-3.0 inches (adjustable)
• Rear Lift Height: 0.5 inches
• UCA Material: 6061 aircraft grade billet aluminum
• Joint Type: Patented Delta Joint Pro with 90-degree articulation
• Coilover Construction: CAD plated bodies with 7/8-inch shafts
• Rear Shocks: 2.0 Aluminum Series remote reservoir with 5/8-inch shafts
• Bearings: FK Rod End bearings for minimal deflection
• Spring Design: ICON engineered front and triple-rate rear coils
• Hardware: Includes front differential drop for CV angle correction
• Part Number: K53293S

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport.

The ICON Vehicle Dynamics Stage 2 suspension system for the 2024-2025 Toyota Tacoma is engineered to increase wheel travel and damping ability for serious off-road performance without sacrificing on-road ride quality. This system centers around vehicle-specific tuned 2.5 Series front coilovers, which are height-adjustable from 1.25 to 3 inches of lift. These coilovers utilize internal reservoirs for improved cooling and 7/8-inch shafts for maximum durability.

To ensure proper front-end geometry at increased ride heights, this kit includes ICON tubular upper control arms featuring the patented Delta Joint PRO. This rebuildable joint provides up to 90 degrees of articulation, eliminating the binding common with OE ball joints. For 4WD models, a front differential drop kit is included, utilizing 6061 CNC-machined aluminum spacers and polyurethane bushings to maintain safe CV axle angles and maximize available travel.

In the rear, ICON 2.0 Aluminum Series internal reservoir shocks provide balanced damping to match the front. Every component, from the FK Rod End bearings to the ICON-engineered coil springs, is chosen to provide a precise, controlled feel across the entire range of travel.

• Fits 2024-2025 Toyota Tacoma
• Adjustable front lift height from 1.25-3" over stock
• 2.5 Series front coilovers with CAD-plated bodies and 7/8" shafts
• Tubular UCAs with Delta Joint PRO for 90-degree articulation
• 2.0 Aluminum Series rear shocks with 5/8" shafts
• Front differential drop kit maintains proper CV angles
• 6061 aircraft-grade aluminum CNC-machined components
• FK Rod End bearings for long-term durability
• MPN: K53292T

Fits 2024-2025 Toyota Tacoma SR5, TRD Off-Road, TRD Sport, and 2024 Limited models. The ICON Vehicle Dynamics Stage 2 suspension system is engineered to increase wheel travel and damping performance for improved vehicle control during off-road use and on-road driving.

This system features 2.5 Series front coilovers with internal reservoirs for enhanced cooling and ICON-engineered coil springs. These coilovers provide 1.25 to 3 inches of front lift height, accommodating larger tire packages while correcting front-end geometry. To maintain drivetrain longevity, the included front differential drop brackets and polyurethane mounting bushings minimize CV binding and limit differential movement under load. The billet 6061 aluminum upper control arms (UCAs) feature the patented Delta Joint PRO, providing 90 degrees of articulation to eliminate suspension bind during full travel.

The rear is supported by vehicle-specific tuned 2.0 Aluminum Series internal reservoir shocks, balancing the truck's damping profile. All components utilize high-quality hardware, including FK Rod End bearings and CAD-plated shock bodies for maximum durability.

• Adjustable coilovers provide 1.25-3" front lift height
• Billet aluminum UCAs with Delta Joint PRO for 90-degree articulation
• 2.5 Series front coilovers with 7/8" shafts and internal reservoirs
• 2.0 Aluminum Series rear shocks with 5/8" shafts
• 6061 aircraft grade aluminum CNC machined components
• FK Rod End bearings for minimal deflection and longevity
• Front differential drop kit improves CV angles on 4WD models
• Corrosion-resistant CAD plated coilover bodies
• Manufacturer Part Number: K53292

Fits 2023-2025 Toyota Sequoia (SR5, Limited, Platinum, 1794 Edition, Capstone, and TRD Pro).

The ICON Stage 10 Suspension System is the ultimate performance upgrade for the 2023-2025 Toyota Sequoia, engineered to provide maximum suspension travel and superior ride quality. This system centers around VS 2.5 Series remote reservoir front coilovers and rear shocks, both equipped with ICON’s Compression Damping Control (CDC) Valves. These valves offer 10 externally adjustable settings, allowing you to fine-tune your ride for anything from soft street driving to firm off-road damping. The front coilovers are height-adjustable from 3 to 4.5 inches of lift over stock, enabling the fitment of larger wheel and tire combinations.

This comprehensive kit includes ICON tubular front upper control arms (UCAs) featuring the patented Delta Joint Pro, which provides up to 90 degrees of total articulation without the bind associated with factory joints. To further refine the rear geometry, the Stage 10 system adds tubular rear upper and lower links for pinion angle adjustment and an adjustable rear track bar to properly center the axle. The dual-rate rear coil springs provide 0 or 2 inches of lift depending on the factory trim, ensuring a balanced stance and improved load handling.

• Fits 2023-2025 Toyota Sequoia models (MPN: K53240T)
• Adjustable front lift height from 3-4.5" over stock
• VS 2.5 Series shocks with remote reservoirs for increased oil volume and cooling
• CDC Valves provide 10 levels of compression damping adjustment
• Tubular front UCAs with Delta Joint Pro for 90-degree articulation
• Tubular rear links and adjustable track bar for precise axle alignment
• Dual-rate rear coil springs for optimized ride quality
• Includes sway bar drop brackets to maintain proper OE link geometry
• Fully rebuildable and re-tunable shock absorbers

Fits 2023-2025 Toyota Sequoia (SR5, Limited, Platinum, 1794 Edition, Capstone, and TRD Pro).

The ICON Vehicle Dynamics Stage 4 complete suspension system provides a significant performance upgrade for the 2023-2025 Toyota Sequoia, offering 3-4.5 inches of adjustable front lift height to accommodate up to 35-inch tires. This system features ICON V.S. 2.5 Series threaded-body front coilovers and tubular upper control arms (UCAs) equipped with the patented Delta Joint Pro. These UCAs provide 90 degrees of total articulation and correct front-end alignment geometry for improved drivability and strength over factory components.

The rear suspension is enhanced with ICON 2.0 Aluminum Series nitrogen-charged monotube shocks and dual-rate coil springs, which provide 0 or 2 inches of lift depending on the factory suspension package. A front sway bar drop kit is included to reduce binding in the OE links, ensuring full wheel travel and superior damping across both on-road and off-road terrain.

• Adjustable front lift height: 3-4.5 inches over stock
• Patented Delta Joint Pro UCAs (U.S. Pat. 10,731,700) with 90-degree articulation
• V.S. 2.5 Series front coilovers with internal reservoirs for superior damping
• 2.0 Aluminum Series nitrogen-charged monotube rear shocks
• Dual-rate rear coil springs for improved ride quality and performance
• Front sway bar drop brackets included to minimize link binding
• All ICON shock absorbers are fully rebuildable and re-tunable
• Direct bolt-on design for 2023-2025 Toyota Sequoia models
• Manufacturer Part Number: K53234T

Fits select 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models, including TRD Pro, 1794 Edition, and Capstone trims.

The ICON Vehicle Dynamics Stage 7 suspension system provides a comprehensive handling upgrade for the modern Tundra and Sequoia platforms. This system centers on V.S. 2.5 Series front coilovers and 2.5 Aluminum Series rear remote reservoir shocks, offering superior damping, improved cooling, and a balanced ride on both technical trails and the highway. The remote reservoirs increase fluid capacity to maintain consistent damping during heavy use, while the unique internal Bump Zone provides an additional 20% of damping force to control hard bottom-out events.

For improved geometry and durability, this kit includes ICON tubular upper control arms (UCAs) featuring the patented Delta Joint Pro. These UCAs provide up to 90 degrees of articulation and allow for a 40% increase in wheel travel over the factory setup. Included sway bar drop brackets reduce binding, ensuring the OE components operate within their intended range even at increased ride heights.

• Adjustable front ride height: 2-3.5 inches of lift
• ICON V.S. 2.5 Series front remote reservoir coilovers
• 2.5 Aluminum Series rear remote reservoir shocks with internal Bump Zone
• Tubular UCAs with Delta Joint Pro (90 degrees of articulation)
• Up to 40% increase in front wheel travel
• Sway bar drop brackets included for bind-free operation
• Fully rebuildable and re-tunable shock absorbers
• Manufacturer Part Number: K53197T

Fits select 2022-2025 Toyota Tundra and Sequoia models. This ICON Stage 6 suspension system (MPN: K53196T) is engineered to provide a 40% increase in front wheel travel while offering adjustable lift heights from 1.25" to 3.5" over stock. At the core of this system are the VS 2.5 Series front coilovers and 2.0 Aluminum Series rear shocks, both featuring remote reservoirs for increased oil volume and superior heat dissipation during heavy off-road use.

To support the increased travel and ride height, this kit includes ICON tubular front upper control arms equipped with the patented Delta Joint Pro (U.S. Pat. 10,731,700), providing 90 degrees of total articulation and corrected alignment geometry. The 100% bolt-on design ensures a straightforward installation without the need for cutting or welding.

• VS 2.5 Series front coilovers with remote reservoirs for optimized damping and cooling
• 2.0 Aluminum Series rear remote reservoir shocks for balanced performance
• Adjustable front lift height of 1.25-3.5" for larger wheel and tire clearance
• Tubular UCAs with Delta Joint Pro for high-angle articulation and durability
• Sway bar drop brackets included to reduce bind in factory links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Direct bolt-on fitment for 2022-2025 Tundra and Sequoia
• Manufacturer Part Number: K53196T

Fits 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. The ICON Vehicle Dynamics Stage 5 3.0 Suspension System (K53195T) is a complete performance solution designed to increase front wheel travel by up to 40% while providing adjustable lift heights from 2-3.5 inches over stock.

This system features ICON 3.0 Series front coilovers paired with V.S. 2.0 Aluminum Series rear remote reservoir shocks. The remote reservoirs increase oil capacity to ensure consistent damping and cooler operating temperatures during heavy off-road use. To correct suspension geometry and improve durability, this kit includes ICON tubular upper control arms (UCAs) equipped with the patented Delta Joint Pro, offering 90 degrees of total articulation without the binding found in standard joints.

• Adjustable 2-3.5" front lift height for improved ground clearance
• ICON 3.0 Series front coilovers with internal reservoirs for superior damping
• V.S. 2.0 Aluminum Series rear remote reservoir shocks for balanced control
• Tubular UCAs with Delta Joint Pro (U.S. Pat. 10,731,700) for 90-degree articulation
• Up to 40% increase in front wheel travel over factory specifications
• 100% bolt-on installation; no drilling, cutting, or welding required
• Included sway bar drop brackets to reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Manufacturer Part Number: K53195T

Fits 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models.

The ICON Stage 5 Suspension System (K53195) is a high-performance handling solution designed for 2022-2025 Tundra and Sequoia owners who require superior damping and articulation. This system is engineered to provide up to a 40% increase in front wheel travel over stock while maintaining factory-correct geometry. By pairing ICON V.S. 2.5 Series front coilovers with V.S. 2.0 Aluminum Series rear remote reservoir shocks, the Stage 5 kit delivers a balanced, vehicle-specific tune that remains consistent during heavy use and high-speed off-road driving.

The included billet aluminum Upper Control Arms (UCAs) are a critical upgrade for lifted applications, featuring the patented Delta Joint Pro which allows for 90 degrees of total articulation. These UCAs provide on-vehicle caster and camber adjustment, ensuring optimum drivability and tire wear. The rear remote reservoir shocks increase oil volume, keeping operating temperatures lower to prevent damping fade during sustained use.

• Adjustable front ride height from 1.25" to 3.5" of lift over stock.
• ICON V.S. 2.5 Series front coilovers with internal reservoirs for superior vehicle control.
• V.S. 2.0 Aluminum Series rear shocks with remote reservoirs for increased oil capacity and cooling.
• Billet aluminum UCAs with Delta Joint Pro (U.S. Pat. 10,731,700) for 90-degree articulation.
• Up to 40% increase in front wheel travel without overstressing OE components.
• Included sway bar drop brackets to reduce bind in factory sway bar links.
• 100% bolt-on installation; no drilling, cutting, or welding required.
• Fully rebuildable and re-tunable shock absorbers.
• Manufacturer Part Number: K53195

Fits select 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models.

The ICON Vehicle Dynamics Stage 4 complete suspension system provides a high-performance handling solution for the 2022-2025 Toyota Tundra and Sequoia. This system centers on ICON V.S. 2.5 Series threaded-body front coilovers and adds tubular front upper control arms (UCAs) to allow for increased front-end lift heights and improved alignment geometry. By correcting the suspension geometry, this kit enables up to a 40% increase in front wheel travel over stock without overstressing OE components, allowing for the fitment of up to 35-inch tires.

The included tubular UCAs feature the patented Delta Joint Pro, providing 90 degrees of total articulation to handle the most demanding off-road conditions. For the rear, the Stage 4 system utilizes 2.0 Aluminum Series nitrogen-charged monotube shocks with internal reservoirs, valved specifically to balance the damping of the 2.5 Series front coilovers. This 100% bolt-on system requires no drilling, cutting, or welding for installation.

• Adjustable Lift: Front ride heights from 2-3.5 inches over stock
• Front Coilovers: V.S. 2.5 Series with internal reservoirs for superior damping
• Rear Shocks: 2.0 Aluminum Series nitrogen-charged monotubes
• Upper Control Arms: Tubular steel with patented Delta Joint Pro (90-degree articulation)
• Wheel Travel: Up to 40% increase over factory specs
• Installation: 100% bolt-on design; includes sway bar drop brackets
• Serviceability: All ICON shock absorbers are fully rebuildable and re-tunable
• Manufacturer Part Number: K53194T

Fits select 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models.

The ICON Vehicle Dynamics Stage 3 Suspension System (K53193) provides a performance-oriented upgrade for the 2022-2025 Toyota Tundra and Sequoia. This system centers on the VS 2.5 Series internal reservoir front coilovers, which offer adjustable ride heights from 1.25 to 2.25 inches of lift when used with factory upper control arms. These 2.5-inch shock bodies provide a substantial increase in piston area compared to stock components, delivering up to a 40% increase in front wheel travel and superior damping across both on-road and off-road terrain.

To complement the front coilovers, this kit includes ICON 2.0 Aluminum Series rear shocks, specifically valved to provide a balanced ride. The 100% bolt-on design ensures a straightforward installation without the need for drilling, cutting, or welding. The package also includes sway bar drop brackets to maintain proper alignment and reduce binding in the OE links.

• Front Lift Height: 1.25-2.25" (Adjustable)
• Front Shocks: 2.5 Series Internal Reservoir Coilovers
• Rear Shocks: 2.0 Aluminum Series Monotube Shocks
• Up to 40% increase in front wheel travel over stock
• Complete bolt-on installation; no cutting or welding required
• Fully rebuildable and re-tunable shock absorbers
• Includes sway bar drop brackets to reduce link bind
• Manufacturer Part Number: K53193

Fits select 2010-2024 Lexus GX460, Toyota 4Runner, and FJ Cruiser models. This ICON Stage 7 suspension system (K53187T) provides an adjustable 0-3.5" lift height, enabling the use of larger wheel and tire packages while significantly enhancing handling and travel.

At the front, vehicle-specific tuned 2.5" remote reservoir coilovers feature CAD-plated bodies and 7/8" shafts for maximum durability. The included tubular steel Upper Control Arms (UCAs) feature the patented Delta Joint, which combines the weather resistance of a ball joint with the high-misalignment performance of a uniball. The rear is supported by 2" lift coil springs and 2.5 Aluminum Series remote reservoir shocks. This kit includes CDC (Compression Damping Control) valves on all four corners, allowing for 10 distinct damping settings to suit varying cargo loads and terrain without the need for tools.

The Stage 7 system also upgrades the rear geometry with tubular upper and lower links and an adjustable track bar. These components offer increased strength over OE units and allow for precise pinion angle and rear-end alignment, while maintaining full KDSS compatibility.

• Adjustable Lift Height: 0-3.5" (Front)
• Compression Damping Control: CDC Valves for easy tool-free adjustment
• Delta Joint UCAs: High-strength tubular steel with improved suspension geometry
• Rear Links & Track Bar: Tubular steel construction with multi-durometer bushings
• Premium Materials: 6061 aircraft-grade CNC machined aluminum components and FK Rod End bearings
• Direct Bolt-On: No cutting or welding required for installation
• MPN: K53187T

Fits select 2010-2024 Toyota 4Runner, FJ Cruiser, and Lexus GX460 models.

The ICON Vehicle Dynamics Stage 6 Suspension System is engineered for drivers seeking maximum off-road capability and superior on-road handling. This comprehensive kit features vehicle-specific tuned 2.5-inch coilover shocks with remote reservoirs to provide significantly improved heat dissipation and damping control during sustained off-road use. These front coilovers are height-adjustable from 0-3.5 inches, providing clearance for larger wheel and tire packages.

This system includes ICON tubular steel upper control arms equipped with the patented Delta Joint, which combines the durability of a sealed ball joint with the performance of a traditional uniball. To stabilize the rear, ICON includes 2-inch lift coil springs paired with 2.5 Aluminum Series remote reservoir shocks. The addition of tubular steel rear upper and lower links improves strength over OE components and allows for precise pinion angle adjustment, while the included adjustable rear track bar ensures proper axle alignment and full KDSS compatibility.

• Adjustable 2.5" front coilovers with remote reservoirs (0-3.5" lift height)
• Tubular steel UCAs with Patented Delta Joint for improved geometry and travel
• 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
• Tubular rear upper and lower links with multi-durometer bushings
• Adjustable rear track bar for KDSS compatibility and axle alignment
• Corrosion-resistant CAD plated coilover bodies and 6061 CNC machined aluminum components
• FK Rod End bearings for reduced deflection and extended service life
• Complete bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K53186T

Fits select 2010-2024 Toyota 4Runner, FJ Cruiser, and Lexus GX460.

The ICON Stage 5 Suspension System (K53185T) is a comprehensive, bolt-on performance upgrade providing 0-3.5 inches of lift for increased wheel travel and clearance for aggressive tire combinations. The front utilizes vehicle-specific tuned 2.5-inch extended travel remote reservoir coilovers for maximum heat dissipation and damping control. These are paired with tubular steel upper control arms featuring the patented Delta Joint, which provides the durability of a ball joint with the articulation of a uniball.

The rear is balanced with ICON 2-inch lift coil springs and 2.5 Aluminum Series remote reservoir shocks. This stage includes adjustable tubular steel rear lower links to optimize pinion angle and an adjustable rear track bar for KDSS compatibility and axle centering. All components use 6061 CNC-machined aluminum and FK Rod End bearings to ensure minimal deflection and long-term durability.

• 0-3.5" adjustable front lift height
• 2.5" remote reservoir front and rear shocks with 7/8" shafts
• Tubular steel UCAs with patented Delta Joints (U.S. Pat. 10,731,700)
• Adjustable tubular steel rear lower links with multi-durometer bushings
• KDSS-compatible adjustable rear track bar
• Corrosion-resistant CAD plated coilover bodies
• 6061 aircraft-grade aluminum CNC machined components
• FK Rod End bearings for extended longevity
• Direct bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K53185T

Fits select 2010-2024 Toyota 4Runner and FJ Cruiser, and 2010-2023 Lexus GX460. The ICON Vehicle Dynamics Stage 4 suspension system is engineered for drivers who demand superior handling and increased wheel travel both on-road and in technical off-road terrain.

This comprehensive kit features vehicle-specific tuned 2.5 Series front coilovers with internal reservoirs, providing 0-3.5" of lift height to accommodate larger tire and wheel combinations. These are paired with ICON’s tubular steel upper control arms featuring the patented Delta Joint, which provides the performance of a uniball with the durability and weather resistance of a sealed ball joint. The rear is supported by 2" lift coil springs and 2.5 Aluminum Series remote reservoir shocks, offering significantly improved damping over standard 2.0 series units.

For drivetrain and geometry correction, the Stage 4 system includes heavy-duty tubular rear lower links with low-maintenance multi-durometer bushings to optimize pinion angle and roll steer. An adjustable rear track bar is included to ensure proper axle alignment and full KDSS compatibility where applicable.

• Adjustable coilovers provide 0-3.5" of lift height
• 2.5 Series front and rear shocks with 7/8" shafts for maximum damping control
• Patented Delta Joint (U.S. Pat. 10,731,700) for increased travel and durability
• Tubular rear lower links for improved strength and pinion angle adjustment
• Adjustable rear track bar for alignment correction and KDSS compatibility
• Corrosion-resistant CAD plated shock bodies with 6061 CNC machined components
• FK Rod End bearings for minimal deflection and extended service life
• Bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K53184T
