The 2016 Nissan Titan XD is an all new truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none. The ICON Vehicle Dynamics 2016-UP Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased ride quality over stock with no change in towing capacity
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Approximately 32% increased front wheel travel over stock
• 6061 aircraft grade aluminum CNC machined components
• Adjustable coilovers provide 2.5-3" of lift height
• Fits 2WD / 4WD applications
• 100% bolt-on system

This Part Fits:

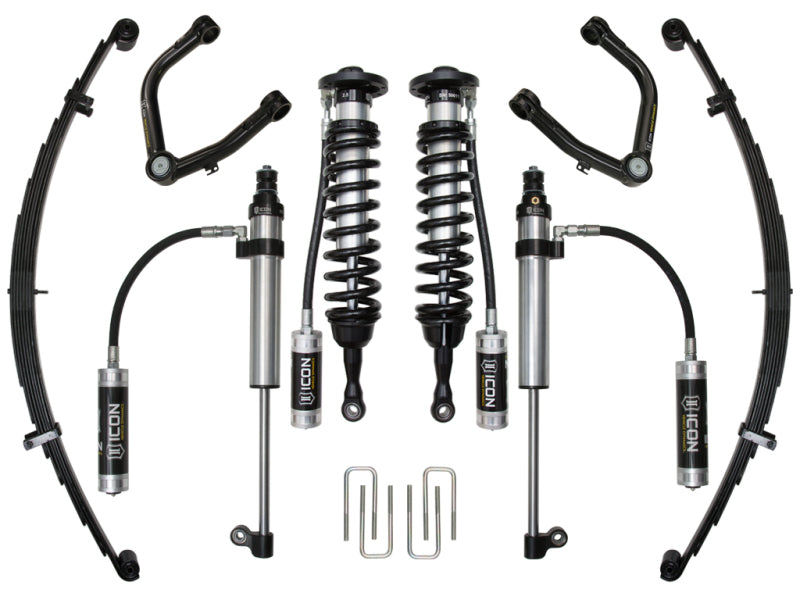

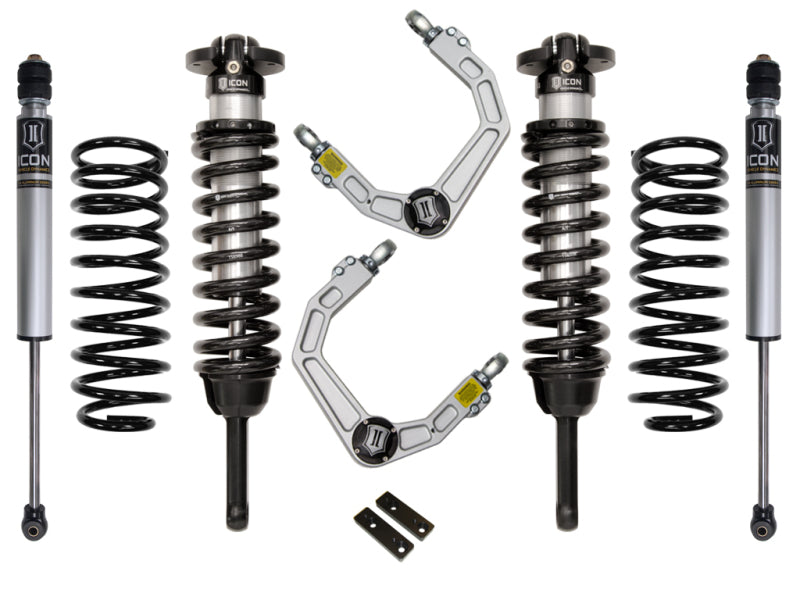

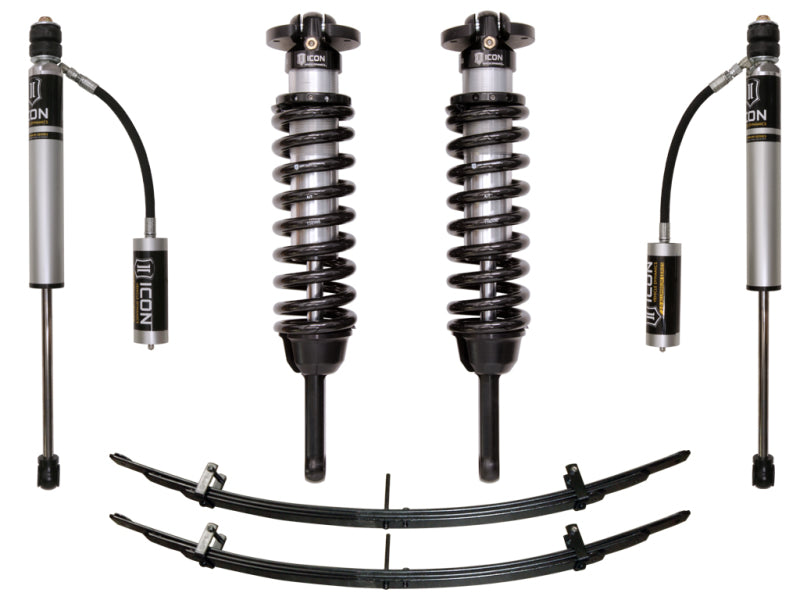

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

This Part Fits:

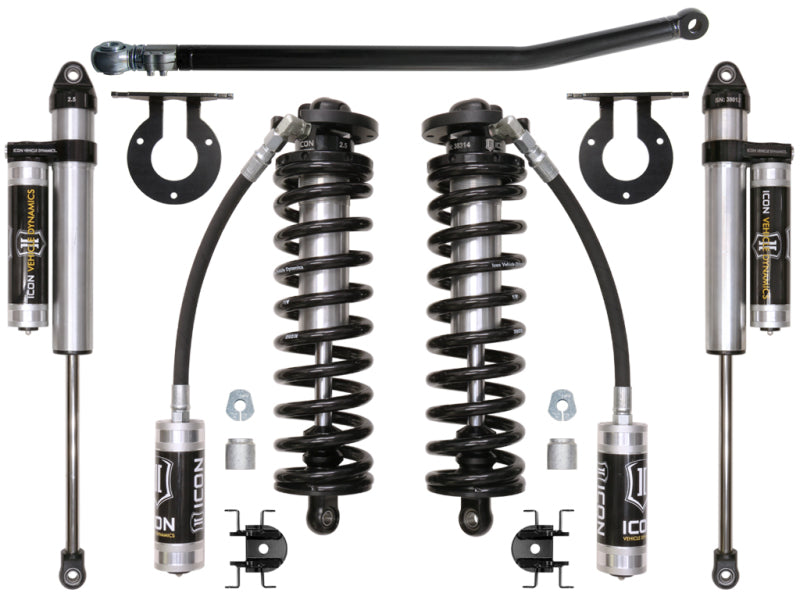

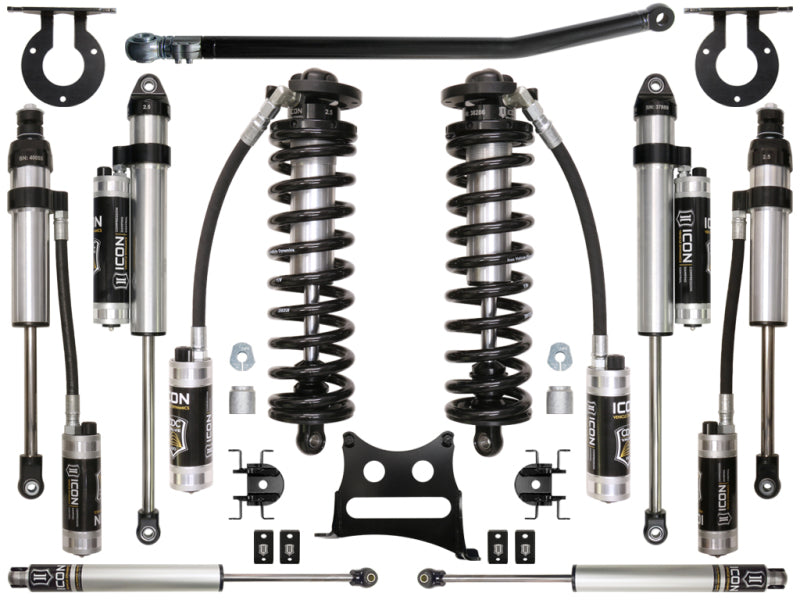

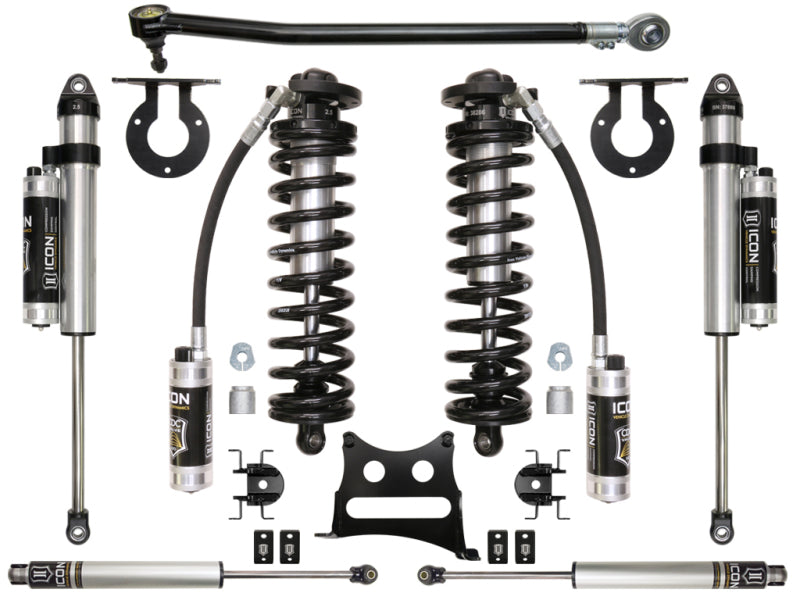

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Eibach coil springs guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Coilover conversion allows for addition of secondary shock
• Bolt-in system fits in OE coil bucket location
• Shocks are fully rebuildable and revalveable

This Part Fits:

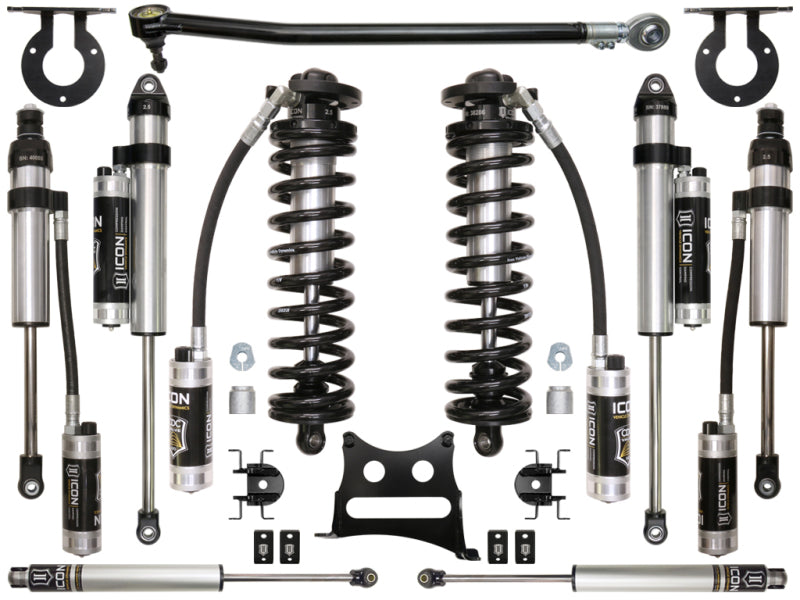

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Corrosion resistant anodized aluminum rear shock bodies with 7/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Eibach springs guaranteed for life against sagging or breakage
• Coilover conversion allows for addition of secondary shock
• Bolt-in system fits in OE coil bucket location
• Shocks are fully rebuildable and revalveable

This Part Fits:

The ICON coilover conversion suspension system is a great way to lift your 4WD 2017-2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 3 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), adjustable front track bar with massive FK rod end, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, nd ICON 2.5 Aluminum Series piggyback reservoir rear shocks. ICON 2.5 Series remote and piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" or 3.25-3.75" of front lift over stock
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Improved ride quality and performance compared to stock with no change in towing capacity
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series rear shocks
• Application specific alignment Cams ensure proper caster alignment
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Less body-roll than stock

This Part Fits:

ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

• Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Eibach coil springs guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Coilover conversion allows for addition of secondary shock
• Bolt-in system fits in OE coil bucket location
• Shocks are fully rebuildable and revalveable
• Ride height adjustable coilovers (2.5-3")

This Part Fits:

ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

• Vehicle-specific shock valving provides unparalleled ride quality and control
• Corrosion resistant anodized aluminum rear shock bodies with 7/8" shafts
• Eibach coil springs guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Coilover conversion allows for addition of secondary shock
• Bolt-in system fits in OE coil bucket location
• Shocks are fully rebuildable and revalveable
• Ride height adjustable coilovers (2.5-3")

This Part Fits:

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

• Vehicle-specific shock valving provides unparalleled ride quality and control
• Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies
• Eibach coil springs guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Coilover conversion allows for addition of secondary shock
• Bolt-in system fits in OE coil bucket location
• Shocks are fully rebuildable and revalveable
• Ride height adjustable coilovers (2.5-3")

This Part Fits:

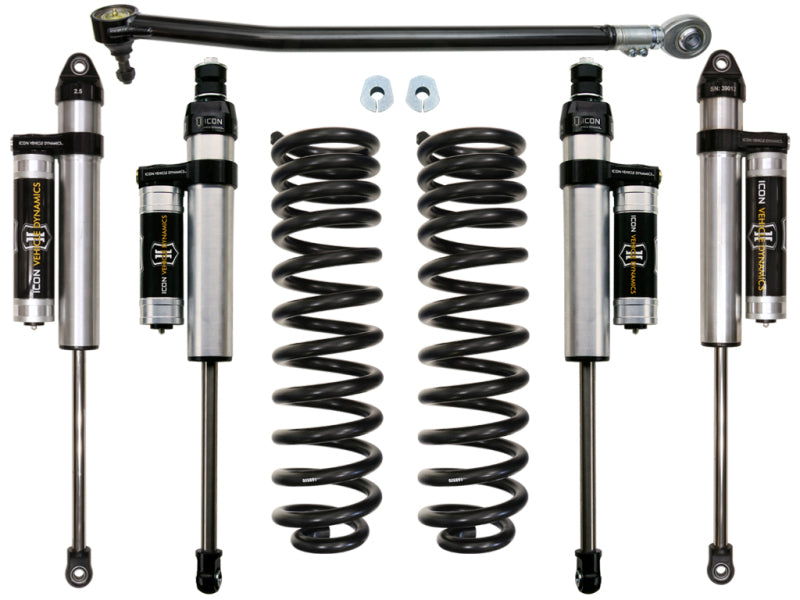

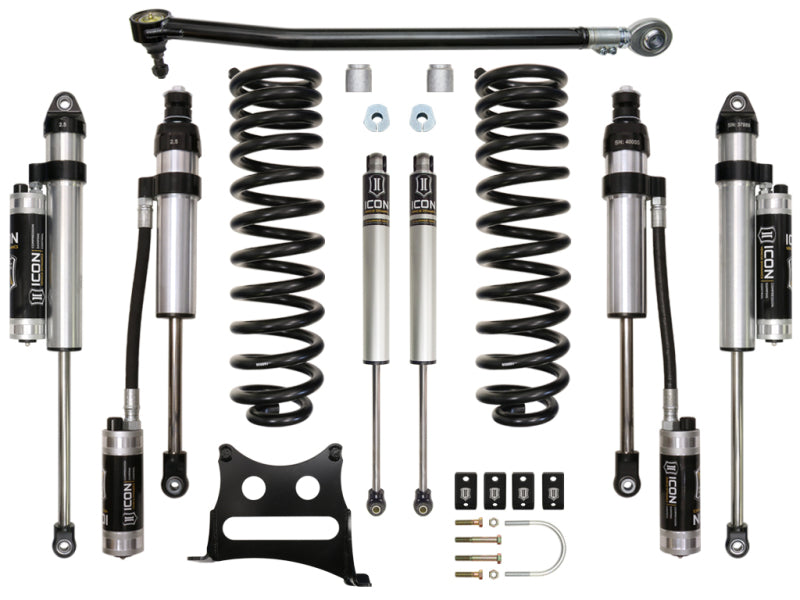

This ICON Vehicle Dynamics 2.5” suspension system is the best way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. This Stage 5 System combines dual rate coil springs, alignment cams, CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, an adjustable track bar designed specifically for the 2017-UP Super Duty, ICON's dual opposing 2.0 Aluminum Series steering stabilizer kit, and fabriacted Radius Arm System for the ultimate in on-road comfort and off-road performance. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON CDC Valve allows quick and easy end user compression adjustability
• FK Rod End bearings provide extended longevity and minimal deflection
• Approximately 25% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Fits 2017-2019 F250 / F350 4WD applications
• Shocks are fully rebuildable and revalvable

This Part Fits:

This ICON Vehicle Dynamics 2.5” suspension system is the best way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. This Stage 5 System combines dual rate coil springs, alignment cams, CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, an all-new adjustable track bar designed specifically for the 2017-UP Super Duty, and ICON's dual opposing 2.0 Aluminum Series steering stabilizer kit for the ultimate in on-road comfort and off-road performance. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON CDC Valve allows quick and easy end user compression adjustability
• FK Rod End bearings provide extended longevity and minimal deflection
• Approximately 25% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Shocks are fully rebuildable and revalvable
• Fits 2017-2019 F250 / F350 4WD applications

This Part Fits:

The ICON 2.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 4 System is comprised of dual rate coil springs, 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5" remote reservoir and piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Application specific alignment Cams ensure proper caster alignment
• Lifetime guarantee that springs won’t sag or break
• Shocks are fully rebuildable and re-tunable
• No drive shaft modifications required
• Less body-roll than stock

This Part Fits:

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and spirited off-road adventure. ICON's Stage 3 System is comprised of dual rate coil springs, alignment cams, ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks, and an adjustable track bar designed specifically for the 2017-UP Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• FK Rod End bearings provide extended longevity and minimal deflection
• Approximately 25% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Fits 2017-2019 F250 / F350 4WD applications
• Shocks are fully rebuildable and revalvable

This Part Fits:

The ICON 2.5” suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front to back for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. ICON's Stage 5 System is comprised of dual rate coil springs, alignment cams for adding caster, adjustable track bar w/ bearing, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and ICON 2.5 Aluminum Series remote reservoir shocks front and rear w/ CDCV. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable trackbar for optimum front axle centering and minimizing deflection
• ICON engineered dual rate coil springs with match tuned performance shocks
• Dual steering stabilizer kit for smooth wheel control while driving
• Application Specific Alignment Cams ensure proper Caster alignment
• 100% Bolt-on system -no cutting or welding necessary for install
• Remote reservoir with easy to adjust compression tune-ability
• Lifetime guarantee that coil springs won’t sag
• No drive shaft modifications required
• Less body-roll than stock

This Part Fits:

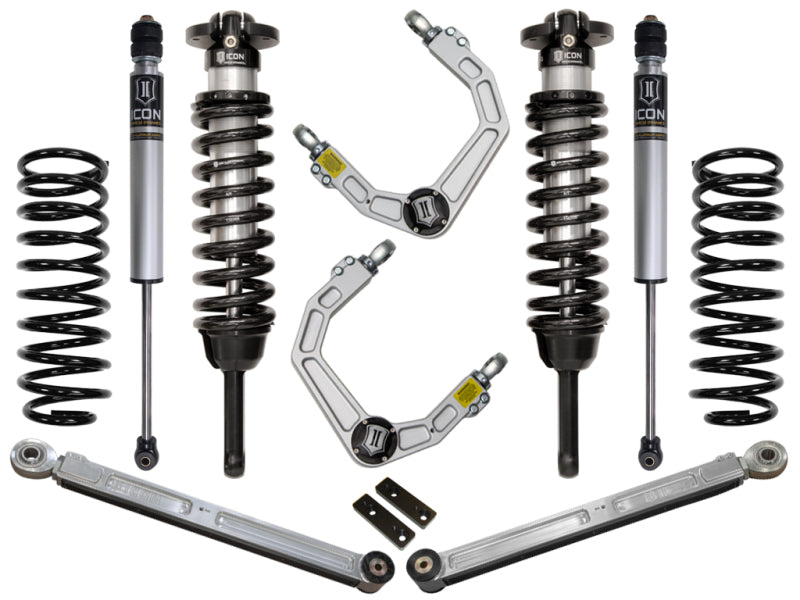

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear upper and lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 11 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

This Part Fits:

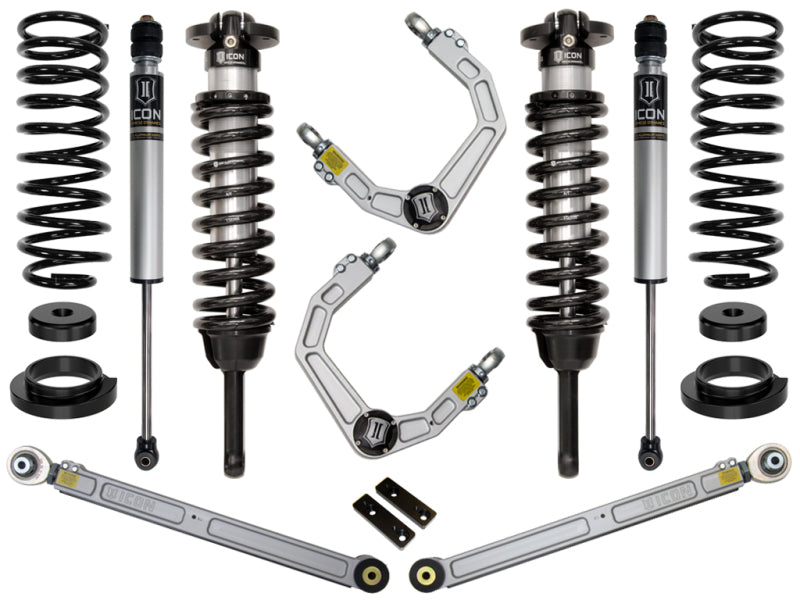

The Stage 3 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with internal reservoirs paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.0 Aluminum Series internal reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags. The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Included rear coil conversion kit eliminates factory air system
• 2.0 Aluminum Series rear IFP shocks with 5/8" shafts
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Adjustable coilovers provide 0-3.5" of lift height

This Part Fits:

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

• ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
• Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
• 100% bolt-on design means no drilling, cutting or welding necessary for install
• Approximately 40% increased front wheel travel over stock
• Approximately 35% increased rear wheel travel over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant anodized aluminum shock body
• 2.0 aluminum body IFP shocks with 5/8" shaft
• 3” lift height

This Part Fits:

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

This Part Fits:

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

This Part Fits:

The Stage 8 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these coilovers increase droop travel to the front suspension. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 8 system includes a unique 2.5 Series RXT remote reservoir shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.

• 2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Military wrap front leaf spring eyelets for increased durability
• Leaf spring tip inserts reduce noise and increase ride comfort
• Adjustable coilovers provide 1-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable

This Part Fits:

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Bolt-on system means no cutting or welding necessary for install
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Simple, bolt-on installation
• ICON engineered coil springs

This Part Fits:

The ICON Vehicle Dynamics Stage 3 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 3 system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, adjustable front upper links, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 3 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.

• Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
• 2.0 Aluminum Series shocks with vehicle specific valving
• Improves on and off-road ride quality over stock
• 100% bolt-on system makes for an easy install
• 3" front, 2" rear increase in wheel travel
• 2.5" lift height

This Part Fits:

ICON Alloys’ 2.25” Lift Front Coilover Spacer Kit is an easy and inexpensive way to lift the front-end of 2024-2025 Ford Ranger Raptor pickup trucks while keeping the OE coilover shock assemblies. Specifically designed to maintain full functionality of the stock electronic shock system, these billet aluminum coilover spacers provide 2.25” of front lift over stock for a more aggressive, level stance and easier fitment of larger, more aggressive wheel and tire combinations without overextending the stock front upper control arm ball joints. This spacer kit also prevents over cycling of the CV joints on as the suspension approaches full extension. CNC machined from 6061 billet aluminum with a black anodized finish for corrosion resistance and covered by ICON’s Limited Lifetime Warranty, the ICON Alloys 2.25” Lift Front Coilover Spacer Kit is an excellent upgrade for your Ford Ranger Raptor.

• Vehicle specific design for Ford Ranger Raptor equipped with OE front coilovers
• No ball joint over extension or bind with full factory wheel travel
• Increases front ground clearance and provides more level stance
• Maintains functionality of factory electronic shock system
• Keeps oversized tires from interfering with front fenders
• Black anodized finish for excellent corrosion resistance
• Raises front ride height 2.25" over stock
• CNC machined 6061 aluminum components

This Part Fits:

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Ford Raptor with corrected front end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the available ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2010-2020 Ford Raptor. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Camber and caster adjustability allows for precise wheel alignment
• ICON double adjuster sleeves allow for on-vehicle adjustment
• Vehicle specific taper pin provides OE-like fitment
• PTFE Lined 7/8” FK Rod Ends for improved response
• Built in o-ring sealed dust cover cap
• Features ICON's Delta Joint

This Part Fits:

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

• Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
• Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated shock body with 7/8" shaft
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• High strength alloy CNC machined lower bar pin
• ICON engineered coil Springs

This Part Fits:

These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires. These extended versions give you addtional 1" of down travel and are to be used with an aftermarket uniball upper control arm.

• Cad-plated threaded body / Optional Extreme Weather Plating
• Race shock piston with flutter stack compression valving
• Completely re-buildable and re-valvable shock
• 250 PSI nitrogen-charged internal reservoir
• 2.5" shock diameter to prevent overheating
• Adjustable ride height from 0" - 3"
• 5/8" PTFE-lined spherical bearing
• Billet aluminum upper mount
• Chrome-silicon spring

This Part Fits:

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 GMC Canyon and 2023-2024 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.

• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Adjustable for 1.75-2.5" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8" diameter hardened chrome plated shafts
• Fully rebuildable and re-tunable
• ICON engineered coil springs

This Part Fits:

The ICON On-Vehicle Uniball Replacement Tool Kit comes complete with everything necessary to service uniballs in ICON upper control arms, as well as other control arms that utilize a 1" uniball. The design of this kit allows for the job to be performed with the control arm still on the vehicle, minimizing the work and time involved with this task. Because a hydraulic press is not required when using this kit, safety is improved while the chance of permanent damage to the control arm is reduced.

• Makes on-vehicle uniball service practical, easy, and safe
• Reduces chance of damage to control arm
• Compatible with 1" uniballs

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• Nitrogen charged monotube design with remote reservoir
• Nitrile rubber top out bumper for noise free operation
• Application-specific reservoir mounting hardware
• 100% revalveable
• 100% rebuildable

This Part Fits:
