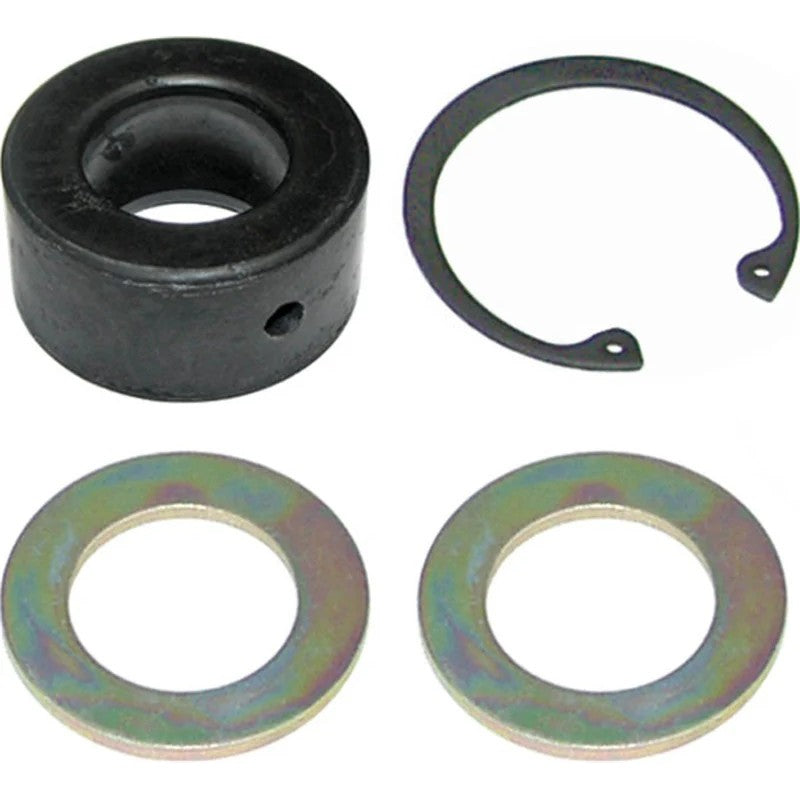

Restore the performance and articulation of your suspension with the RockJock Johnny Joint Rebuild Kit. This specialized kit is designed specifically for 2-inch narrow-style Johnny Joint rod ends, providing the high-quality components necessary to refresh a worn joint and eliminate unwanted play.

Instead of replacing the entire rod end housing, this kit allows you to service the internal components that endure the most stress during off-road use. For the most efficient installation, use this kit in conjunction with the RockJock CE-9112T assembly tool.

• Fits 2-inch narrow-style Johnny Joint rod ends
• High-density urethane bushing for superior durability and vibration damping
• Precision-stamped heat-treated side washers
• Heavy-duty snap ring for secure assembly
• Manufacturer Part Number: CE-9112NRK

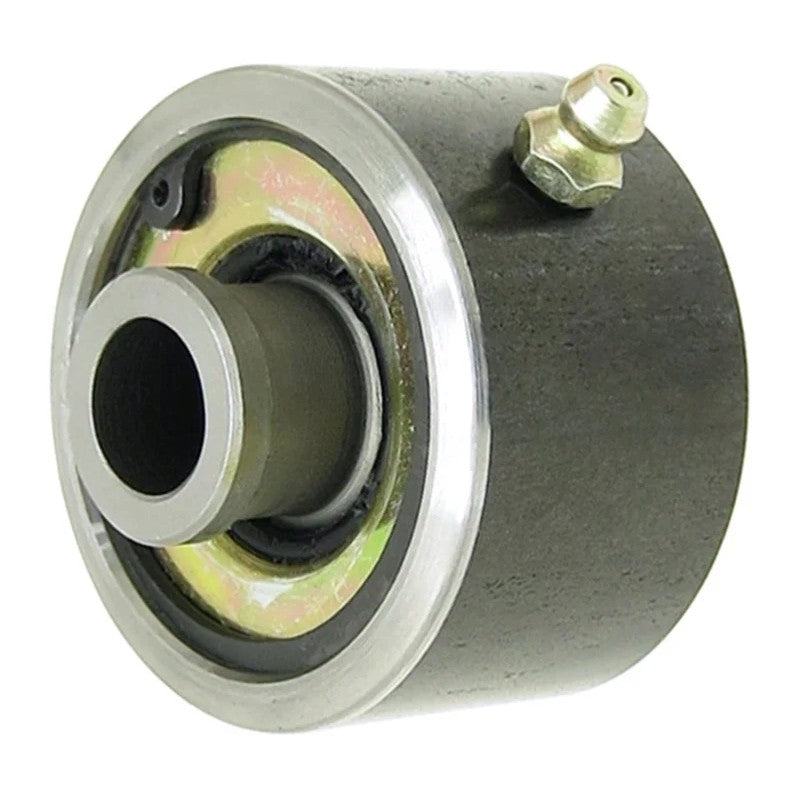

The RockJock Johnny Joint 2-inch narrow weld-on rod end is engineered for fabricators and suspension builders who require high articulation and durability. Designed to outperform standard heim joints, the Johnny Joint provides 40 degrees of unrestricted movement, compared to the 22-degree limit of most common alternatives. The internal high-density urethane bushing encases a heat-treated center ball, providing the vibration dampening and cushioning that metal-on-metal heim joints lack.

Built to withstand the rigors of off-road use, the outer shell is machined from .180-inch wall DOM tubing and is fully weldable. The internals are secured by two heat-treated side washers and a heavy-duty snap ring. For long-term serviceability, the center ball is cross-drilled for through-bolt lubrication and the shell is equipped with an integrated zerk fitting.

• Outer Diameter: 2.000 in.
• Mounting Width: 1.600 in.
• Thru-Bolt Hole: .480 in.
• Housing Material: .180 in. wall machined DOM tubing
• Movement: 40 degrees of total articulation
• Lubrication: Greasable via integrated zerk fitting
• Manufacturer Part Number: CE-9112NP

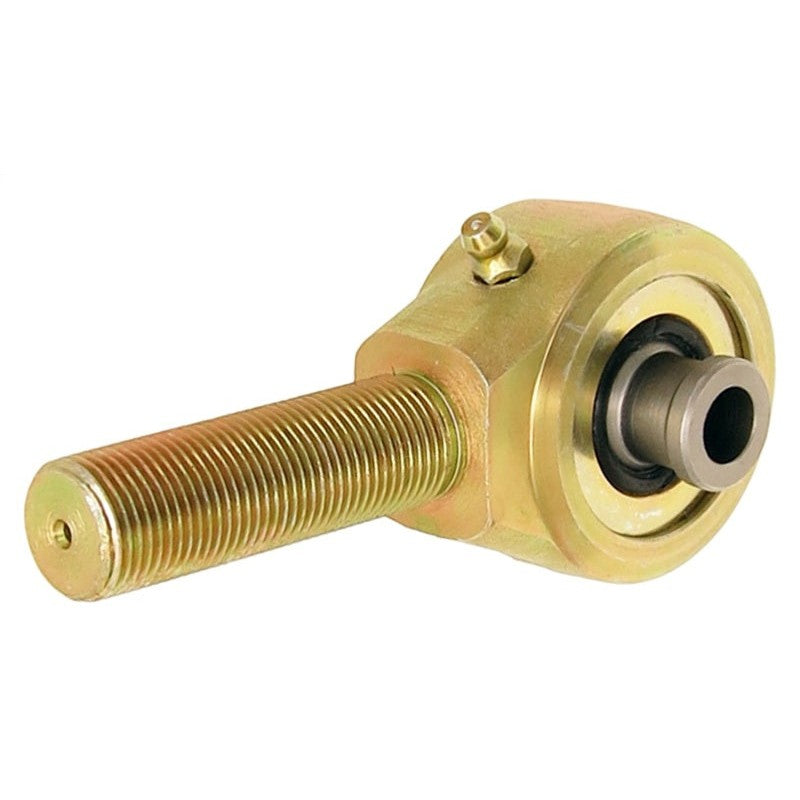

RockJock Johnny Joint narrow forged rod ends are engineered for custom suspension fabricators and builders requiring superior articulation without the harshness of a standard heim joint. While typical heim joints are limited to 22 degrees of movement, the Johnny Joint provides up to 40 degrees of unrestricted travel. This design utilizes a high-density urethane bushing to encase the inner ball, providing essential vibration dampening and cushioning for off-road and street applications.

• Internal Construction: Heat-treated center ball and side washers with a heavy-duty snap ring for maximum durability under load.
• Maintenance: Cross-drilled center ball for thru-bolt lubrication and an integrated zerk fitting for easy greasing.
• Finish: Durable gold zinc plating for superior corrosion resistance.
• Part Number: CE-9112N75-16

Technical Specifications:

• Joint Diameter: 2.000 in.
• Body Type: Narrow Forged
• Shank Thread: 3/4 in.-16 RH
• Thread Length: 2.250 in.
• Mounting Width: 1.800 in.
• Thru-Bolt Hole: .625 in. (5/8 in.)

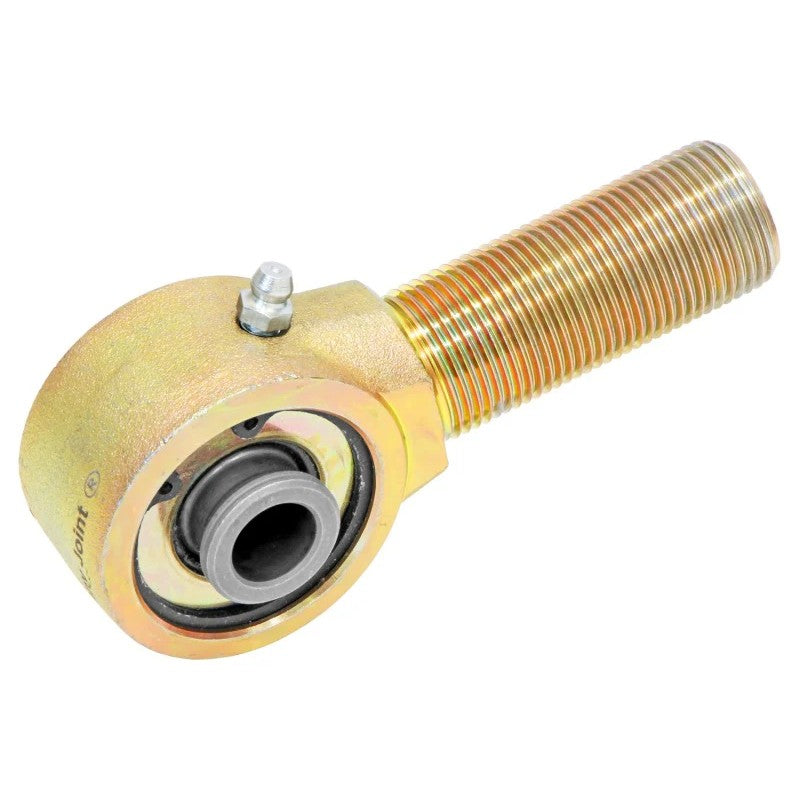

The RockJock narrow forged Johnny Joint (CE-9112N-13) is engineered for custom suspension builders and fabricators who require maximum articulation and durability. This 2-inch diameter joint provides a full 40 degrees of unrestricted movement—significantly more than the 22 degrees typical of standard heim joints—while offering the vibration-dampening benefits of a high-density urethane bushing.

Constructed with a forged steel body and finished in gold zinc plating for superior corrosion resistance, this joint features heat-treated internal components designed for longevity. The center ball is cross-drilled for efficient lubrication via the integrated external Zerk fitting. The internals are securely retained by two heavy-duty heat-treated side washers and a snap ring, ensuring reliability in high-stress off-road environments.

• Manufacturer Part Number: CE-9112N-13
• Joint Diameter: 2.0 in.
• Thread Specification: 1 in.-14 Right Hand (RH)
• Shank Detail: 2 1/4 in. of thread on the shank
• Mounting Width: 1.600 in.
• Thru-Bolt Hole: 0.562 in.
• Articulation: 40 degrees total movement
• Finish: Gold Zinc Plated
• Lubrication: External Zerk fitting for easy greasing

Includes one greasable Johnny Joint rod end. Mounting bolt is not included.

Designed for custom suspension fabrication and heavy-duty off-road builds, the RockJock narrow forged Johnny Joint (CE-9112N-12) offers 40 degrees of unrestricted articulation—significantly outperforming the 22-degree limit of standard heim joints. Unlike metal-on-metal rod ends, the Johnny Joint utilizes a high-density urethane bushing to encase the inner ball, providing essential cushioning and vibration dampening for improved ride quality without sacrificing durability.

This 2-inch diameter joint features a forged steel body finished in gold zinc plating for superior corrosion resistance. The heat-treated center ball is cross-drilled for efficient lubrication via the integrated zerk fitting. The internal assembly is secured by two heat-treated side washers and a heavy-duty snap ring, ensuring the joint remains reliable under extreme suspension cycling.

• Part Number: CE-9112N-12
• Joint Housing Diameter: 2 in.
• Mounting Width: 2 in.
• Thru-Bolt Hole: .500 in.
• Thread Size: 1 in.-14 RH
• Thread Shank Length: 2 1/4 in.
• Articulation: 40 Degrees of movement
• Finish: Gold Zinc Plating

Restore the precision and smooth articulation of your suspension with the RockJock Johnny Joint 2.5-inch rebuild kit. This kit is designed to overhaul a single 2.5-inch Johnny Joint rod end, replacing worn internal components to eliminate slop and maintain tight suspension geometry for both on-road stability and off-road performance.

The kit features durable urethane bushing halves that provide the characteristic vibration dampening and high-misalignment capabilities Johnny Joints are known for. By replacing these wear items, you can extend the service life of your control arms or track bars without replacing the entire joint housing. For easier assembly and disassembly, use of the CE-9110T Johnny Joint tool is highly recommended.

• Service kit for one 2.5-inch RockJock Johnny Joint
• Includes 2 high-density urethane bushing halves
• Includes 2 steel side washers
• Includes 1 heavy-duty replacement snap ring
• Manufacturer Part Number: CE-9110RK

Engineered for custom suspension fabricators and chassis builders, the RockJock Johnny Joint (CE-9110P-28) provides a superior alternative to standard heim joints. While common joints are often limited to 22 degrees of movement, this weld-on Johnny Joint offers 30 degrees of unrestricted articulation. The high-density urethane bushings encasing the inner ball provide essential vibration dampening and cushioning that steel-on-steel joints cannot replicate.

The outer shell is constructed from .180 in. wall machined DOM tubing designed for direct welding to suspension links. For maximum durability, the internals feature heat-treated side washers and a heat-treated center ball that is cross-drilled for thru-bolt lubrication. The entire assembly is secured by a heavy-duty snap ring and includes an integrated Zerk fitting for easy maintenance.

• Outer Diameter: 2-1/2 in.
• Mounting Width: 2.625 in.
• Thru-Bolt Hole: .640 in.
• Shell Material: .180 in. wall machined DOM tubing
• Articulation: 30 degrees of movement
• Lubrication: Cross-drilled center ball with Zerk fitting
• Manufacturer Part Number: CE-9110P-28

Ensure consistent lubrication and long-term durability for your suspension components with the RockJock Greaseable Bolt Kit (CE-91108). While specifically engineered to service RockJock Johnny Joint rod ends, this high-strength fastener is an ideal solution for any suspension pivot or chassis application requiring a reliable grease path.

Constructed from Grade 8 steel to withstand heavy shear loads and off-road stress, the bolt features an integrated Zerk fitting for easy maintenance. The assembly is finished with a stover nut to provide a mechanical lock that resists loosening under vibration, making it a critical upgrade for high-articulation suspension systems.

• Dimensions: 5/8 in.-18 thread pitch x 4 in. length
• Material: High-strength Grade 8 steel
• Hardware included: Two flat washers and one stover lock nut
• Function: Integrated Zerk fitting allows for direct grease delivery to internal bushings
• MPN: CE-91108

The RockJock CE-91107 greaseable bolt is a heavy-duty hardware solution designed for smooth suspension articulation and simplified maintenance. Engineered primarily for use with Johnny Joint rod ends, this high-strength Grade 8 bolt allows you to deliver grease directly to the internal pivot points through an integrated Zerk fitting, eliminating the need for component disassembly during routine servicing.

• Manufacturer Part Number: CE-91107
• Dimensions: 9/16-18 thread pitch x 4-inch length
• Material: High-tensile Grade 8 steel for maximum shear strength
• Hardware Included: Zerk-fitted bolt, two flat washers, and one stover nut
• Function: Provides a lubricated pivot point for Johnny Joints and custom link builds

Fits 1976-1986 Jeep CJ5, CJ7, and Scrambler.

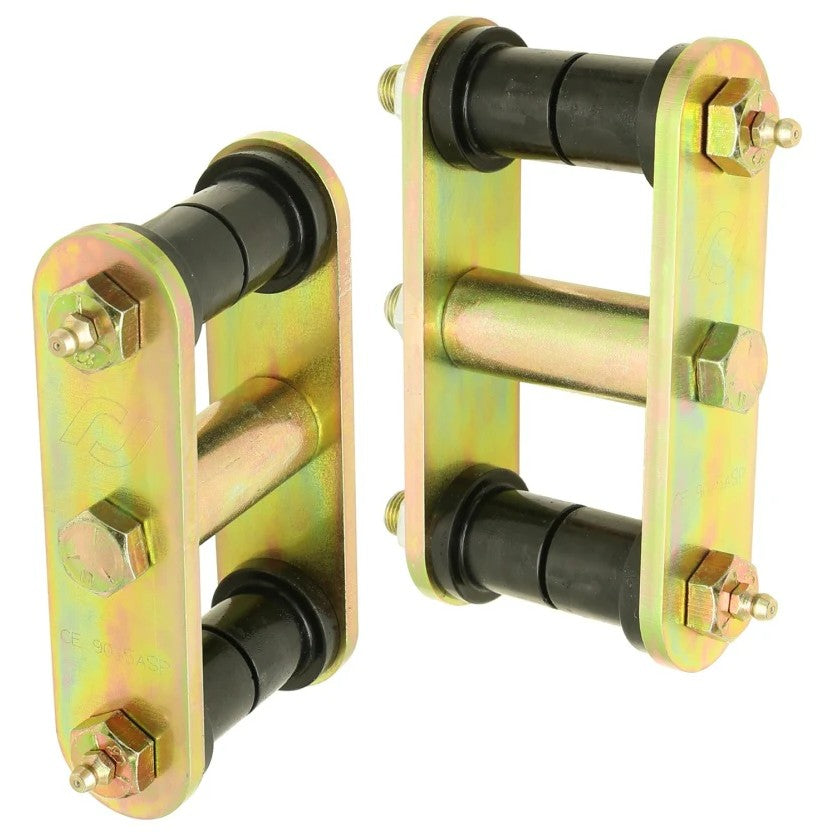

Replace your weak factory components with the RockJock Heavy Duty Front Leaf Spring Shackle kit. Designed to eliminate the flex associated with stock stamped-steel shackles, these units provide a more stable platform for your Jeep's front suspension. These shackles measure 4-1/4 inches from bolt center to bolt center, providing approximately 3/4 inches of lift over the stock height.

Each shackle is constructed from laser-cut 1/4-inch thick steel side plates for maximum rigidity. The kit includes Energy Suspension fluted urethane bushings designed to retain grease, paired with Grade 8 greasable bolts featuring integrated zerk fittings for easy maintenance. A center bolt-in sleeve is included to further prevent side-plate deflection under load. The entire assembly is finished in a corrosion-resistant gold zinc plating for long-term durability in harsh off-road environments.

• Part Number: CE-9035A
• Quantity: Pair (Front)
• Material: 1/4-inch laser-cut steel
• Finish: Gold zinc plating
• Shackle Length: 4.25 inches (bolt center to center)
• Hardware: Grade 8 greasable bolts with zerk fittings
• Bushings: Fluted Energy Suspension urethane bushings
• Includes center bolt-in sleeves for added rigidity

Fits select 1976-1986 Jeep CJ5, CJ7, and Scrambler models.

Replace weak factory components with RockJock heavy-duty rear leaf spring shackles, designed to handle the stresses of off-road articulation and increased vehicle weight. These shackles are constructed from 1/4-inch thick laser-cut steel side plates for maximum rigidity, finished in a corrosion-resistant gold zinc plating. Measuring 4 1/4 inches from bolt center to bolt center, they provide approximately 3/4-inch of lift over the stock ride height. The inclusion of center bolt-in sleeves further prevents shackle kick-over and side-to-side deflection.

This kit includes premium Energy Suspension urethane bushings that are fluted on the inside to retain grease, paired with Grade 8 greasable bolts featuring integrated Zerk fittings for easy maintenance and quiet, bind-free operation. Sold as a pair for the rear of the vehicle.

• Fits 1976-1986 Jeep CJ5, CJ7, and Scrambler models
• 1/4-inch thick laser-cut steel side plates
• Energy Suspension fluted urethane bushings for grease retention
• Grade 8 greasable bolts with Zerk fittings included
• 4 1/4-inch center-to-center length (~3/4-inch lift over stock)
• Corrosion-resistant gold zinc plating
• Includes center bolt-in sleeves for added rigidity
• Manufacturer Part Number: CE-9034
