AEM 30-2212 22-Channel CAN Sensor Expander Module for CD-5 and CD-7 Digital Dashes

The AEM 30-2212 22-Channel CAN Sensor Module provides a robust solution for integrating analog, digital, and frequency-based inputs into the AEMnet CAN bus. Engineered specifically for the CD-5 Carbon and CD-7 Digital Dashes, this module allows owners of carbureted vehicles to utilize modern digital displays and enables EFI users to expand their data logging and viewing capabilities without multiple CAN-based devices.

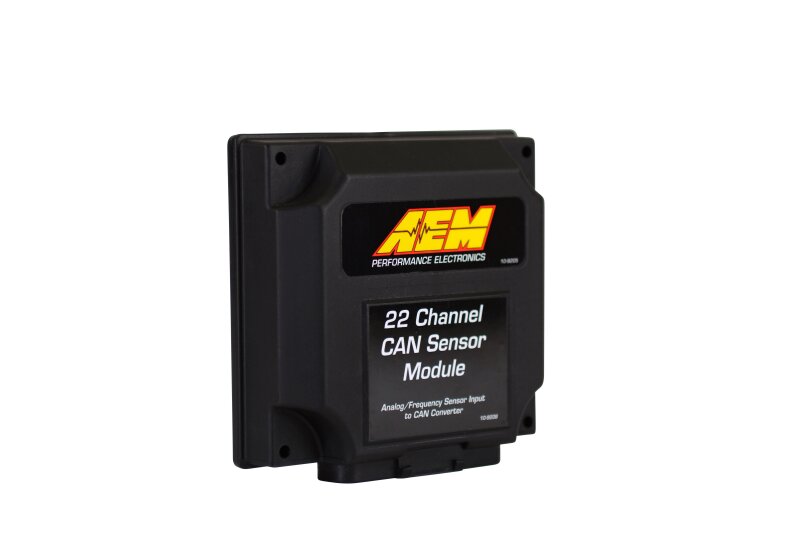

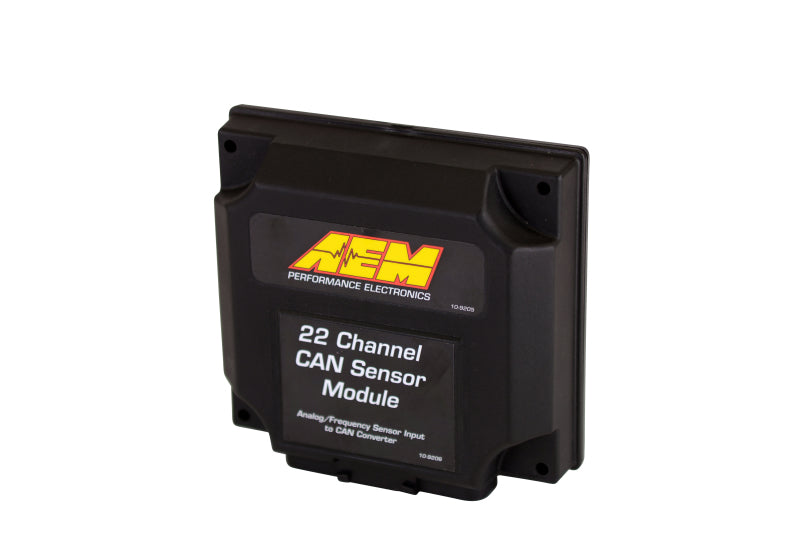

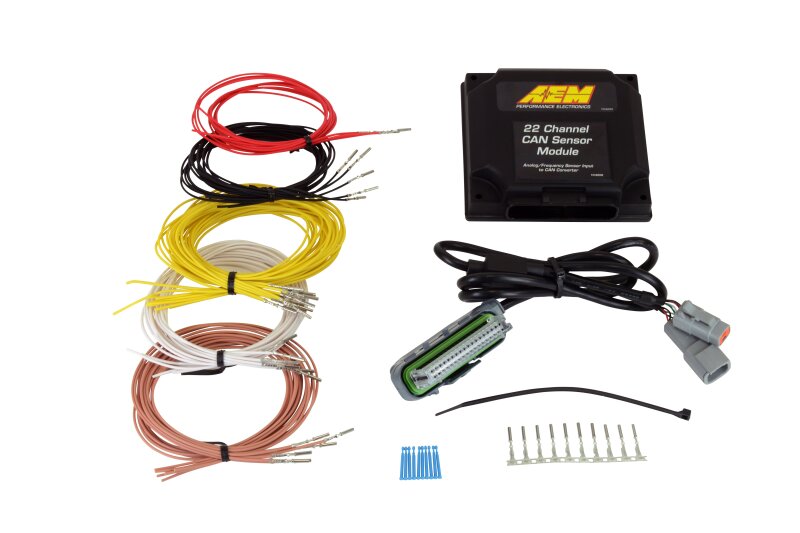

Housed in a rugged IP65-rated enclosure that is dust-tight and water-resistant, this expander is built to withstand the rigors of performance driving. It includes a 36-inch flying lead wiring harness and a pre-wired CAN cable for a clean installation. For complex builds, two modules can be daisy-chained together to double the available input channels. Note: This module is exclusively compatible with AEM CD Dashes and is not compatible with AEM AQ-1, Series 2, or Infinity ECUs.

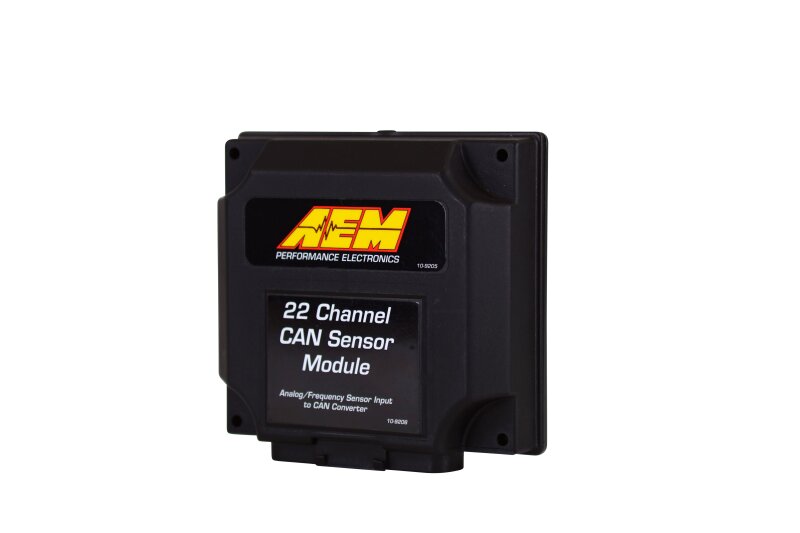

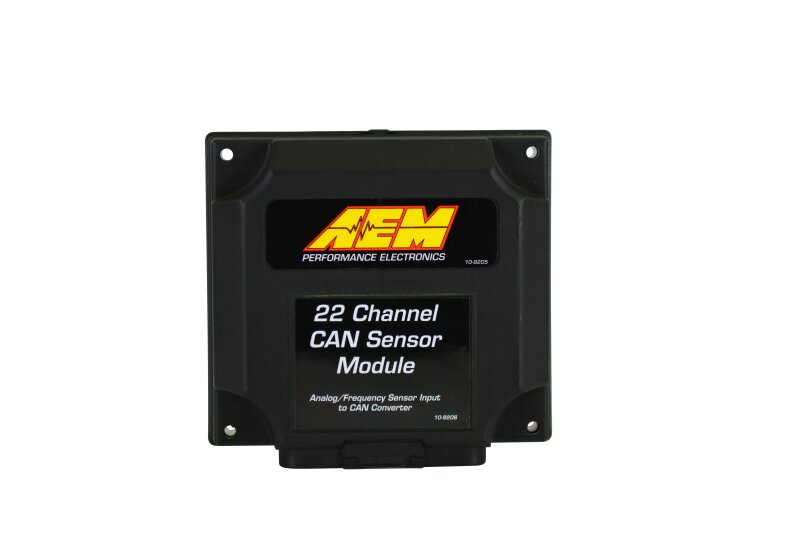

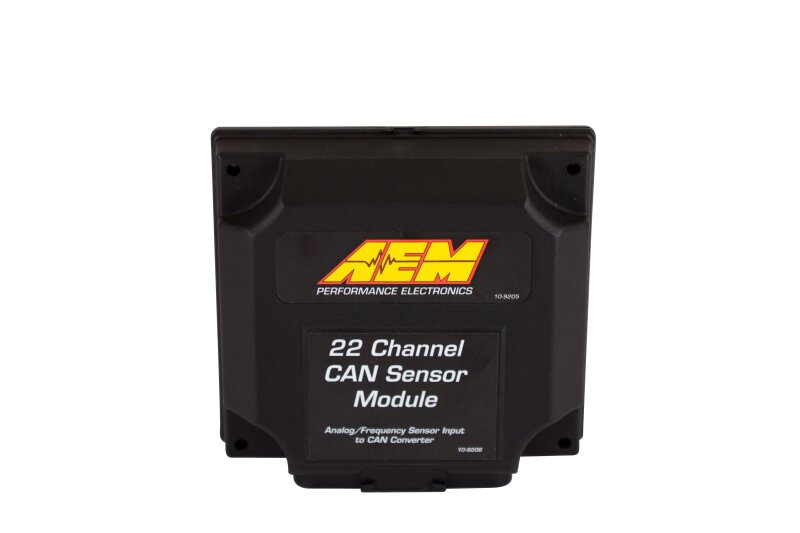

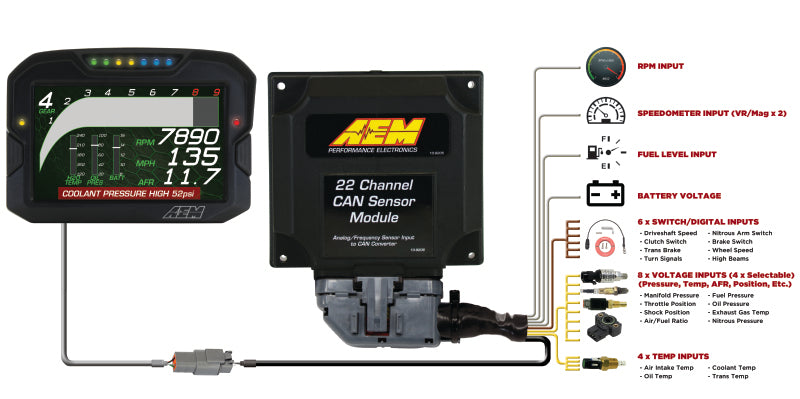

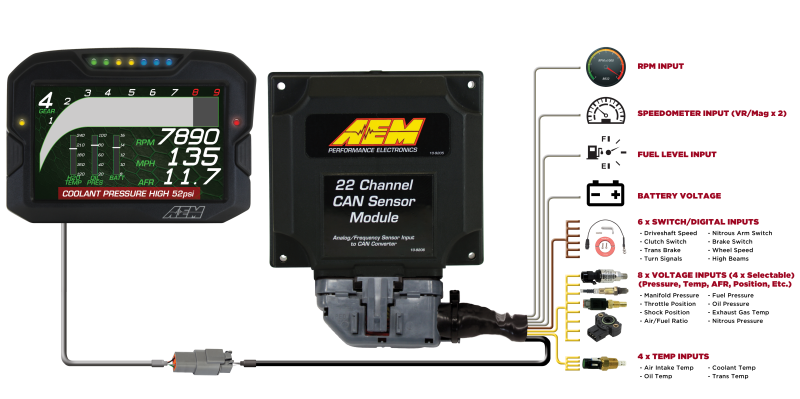

• Four dedicated 0-5V analog inputs
• Four user-configurable analog inputs (jumper selectable: 0-5V, thermistor, or RTD)
• Four temperature (thermistor) inputs
• One dedicated fuel level input (0 to 250 ohm range)
• Six digital inputs (active low, protected to ~18V; frequency, duty cycle, or switch)
• Two VR pair frequency inputs for crank, wheel, or driveshaft speed
• One tachometer input
• Jumper selectable CAN bus speeds: 250k, 500k, 1M
• Jumper selectable header length (11-bit or 29-bit) and terminating resistor
• IP65-rated enclosure and 36-inch flying lead harness included
• Manufacturer Part Number: 30-2212
