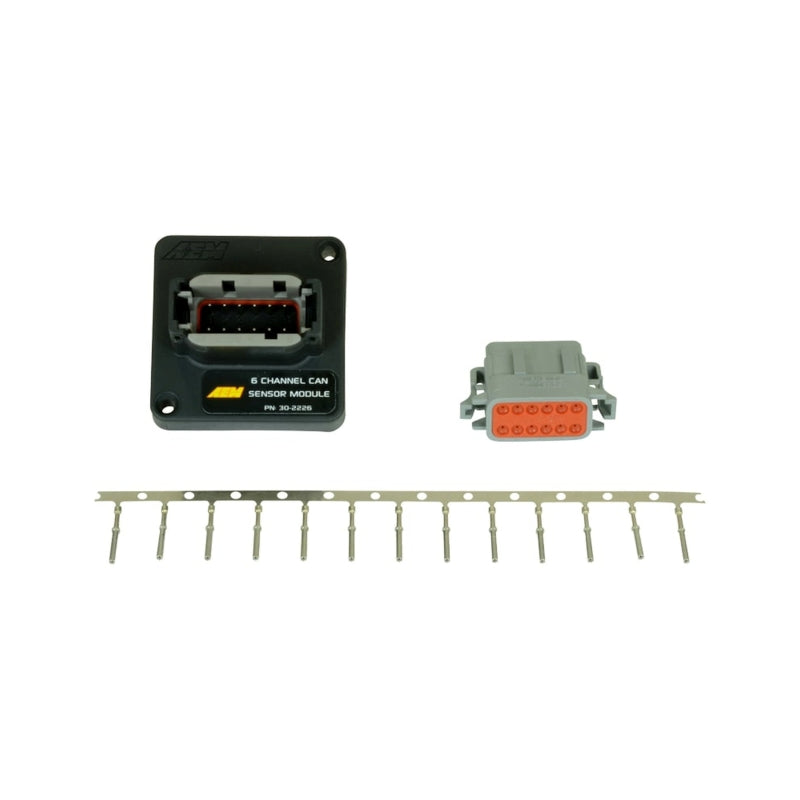

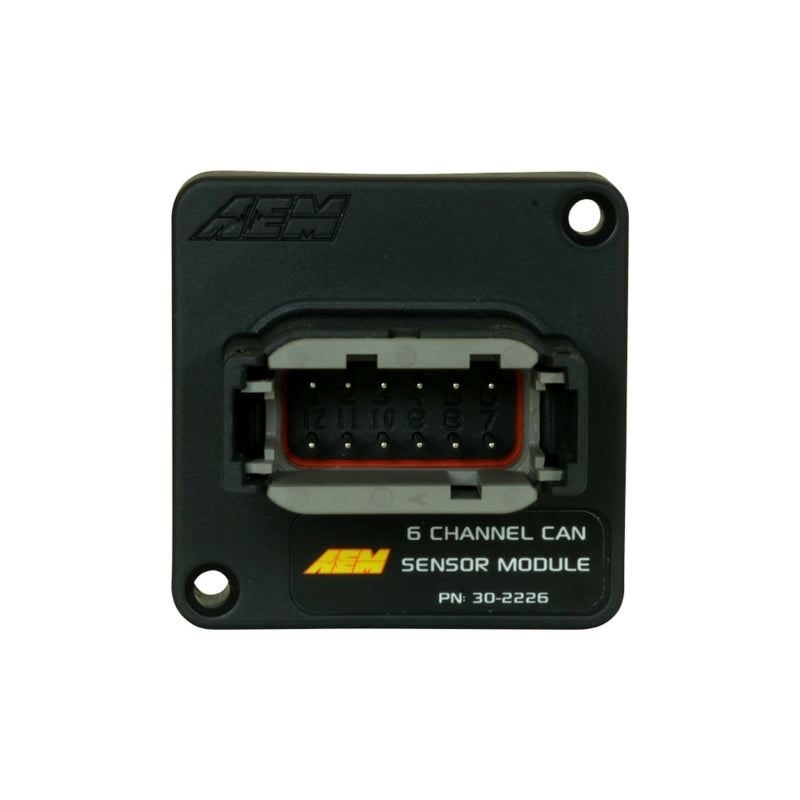

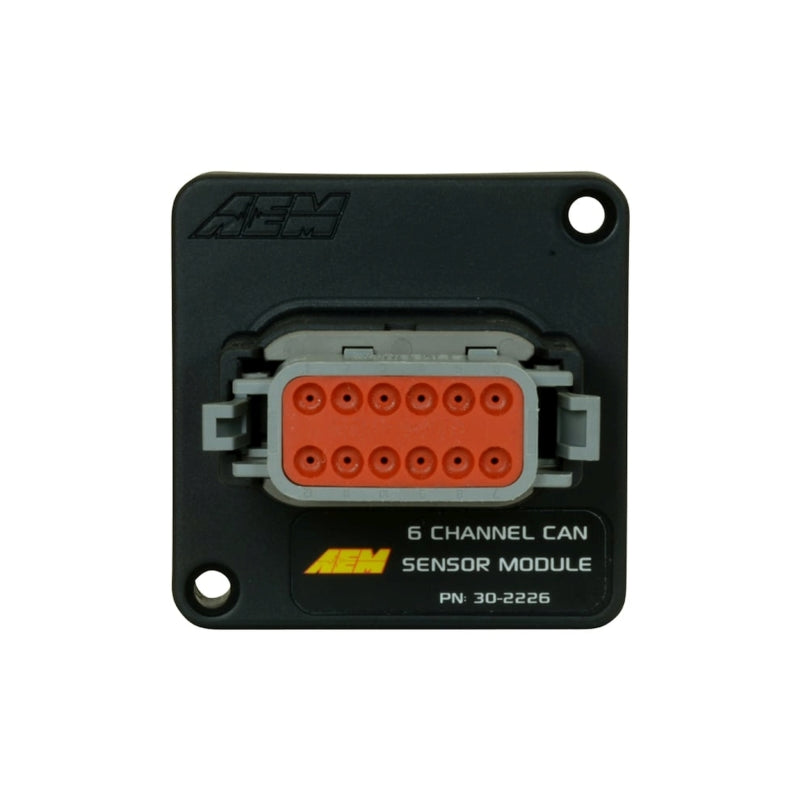

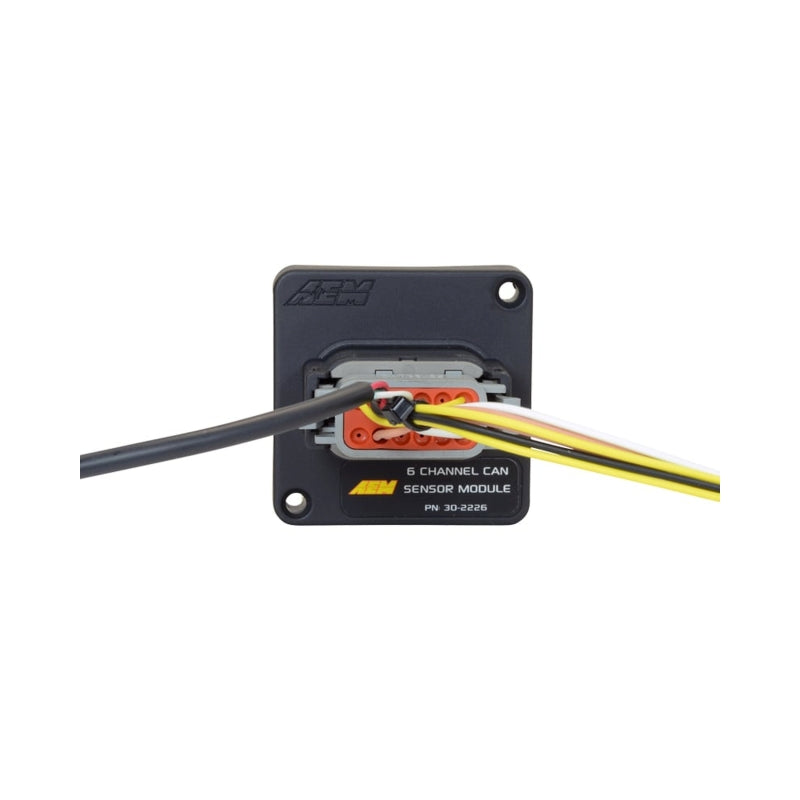

AEM 6 Channel CAN Sensor Module with AEMnet (30-2226)

The AEM 6 Channel CAN Sensor Module (PN 30-2226) is a robust solution for integrating critical analog and digital signals into a CAN bus network. Specifically designed for use with AEM CD Carbon Digital dashes and AEMnet-equipped devices, this module also supports the Bosch CAN 2.0b standard, making it compatible with various third-party loggers, ECUs, and displays that accept programmable CAN inputs.

Housed in a compact IP67-rated enclosure, this module is both dust-tight and resistant to moisture, ensuring reliable performance in harsh racing environments. It provides a streamlined way to monitor temperature, pressure, fuel level, and engine speed without requiring additional direct inputs on your primary logger or ECU.

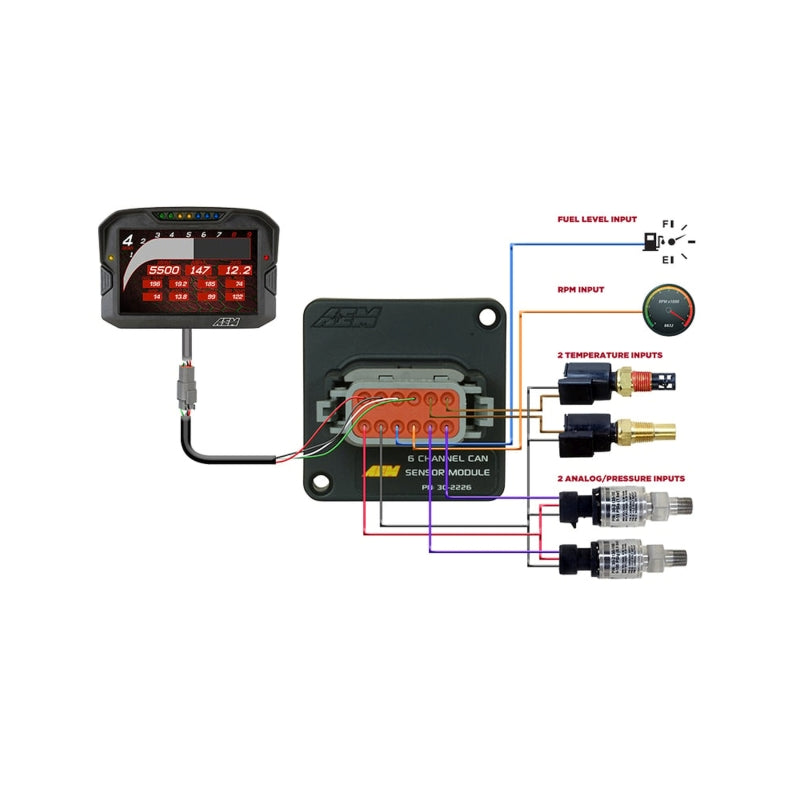

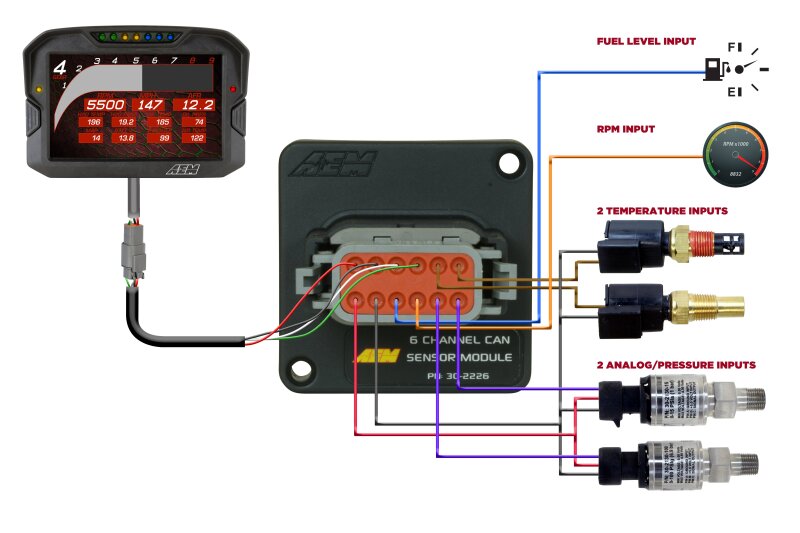

• Input Configuration: One (1) dedicated fuel level input (0-250 Ohm), two (2) 0-5V analog inputs, and one (1) dedicated tachometer/coil input.
• CAN Connectivity: Communicates via AEMnet CAN bus with support for Bosch CAN 2.0b standard.
• Durability: IP67-rated potted enclosure with a sealed connector for superior environmental protection.
• Hardware Features: Protected inputs against voltage spikes; fixed CAN bus speed, header length, and base address for simplified setup.
• Compatibility: Works with AEM CD Carbon Digital dashes and many third-party CAN-enabled devices.
