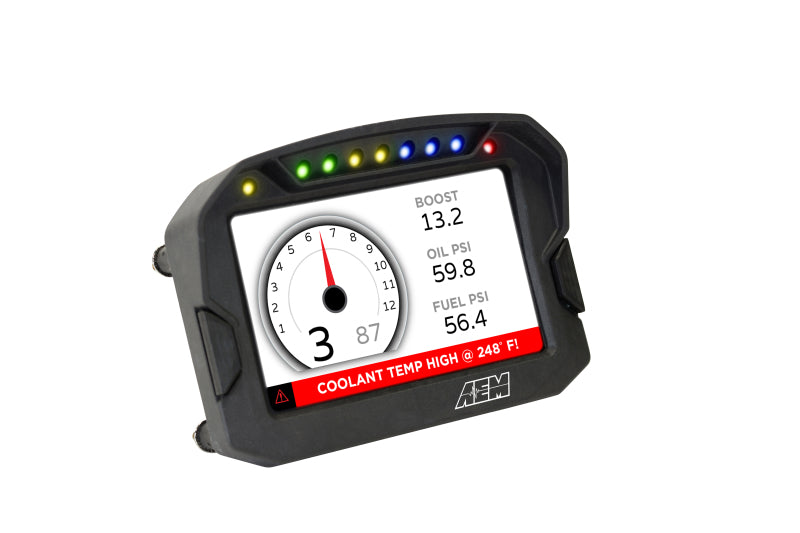

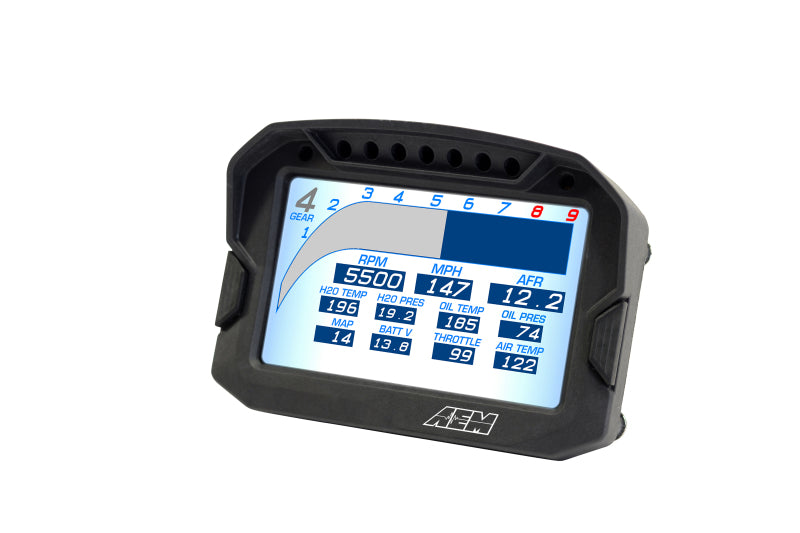

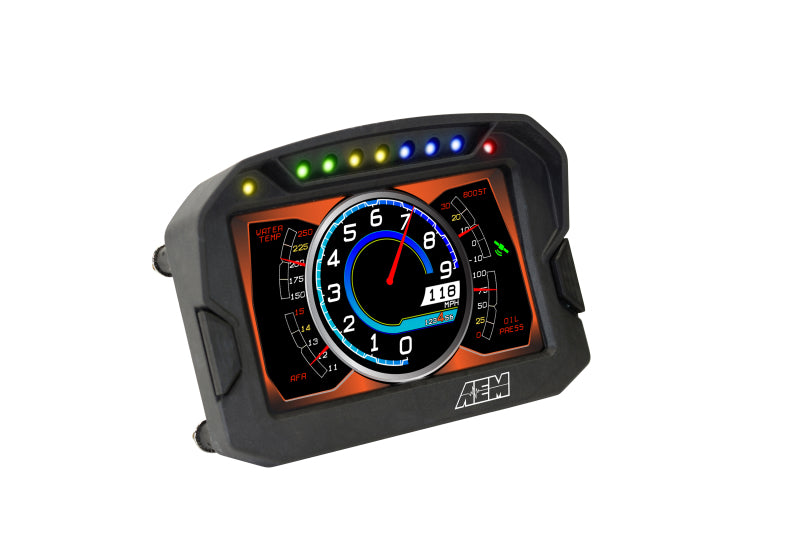

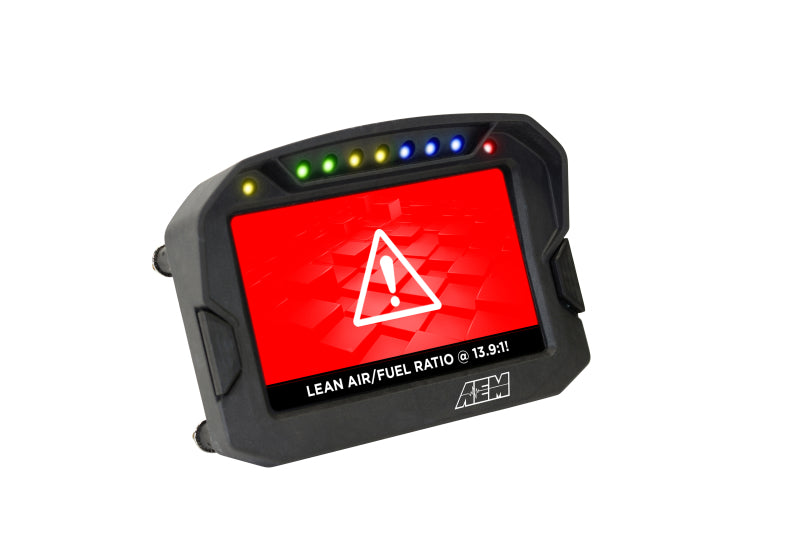

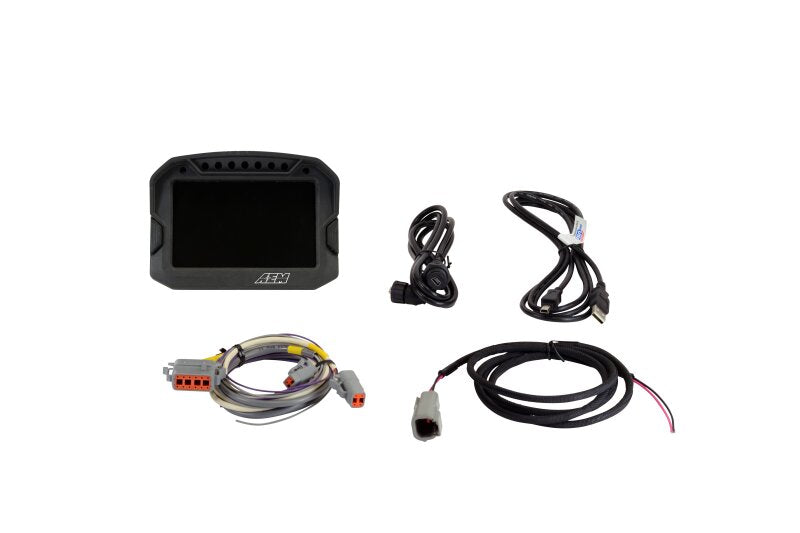

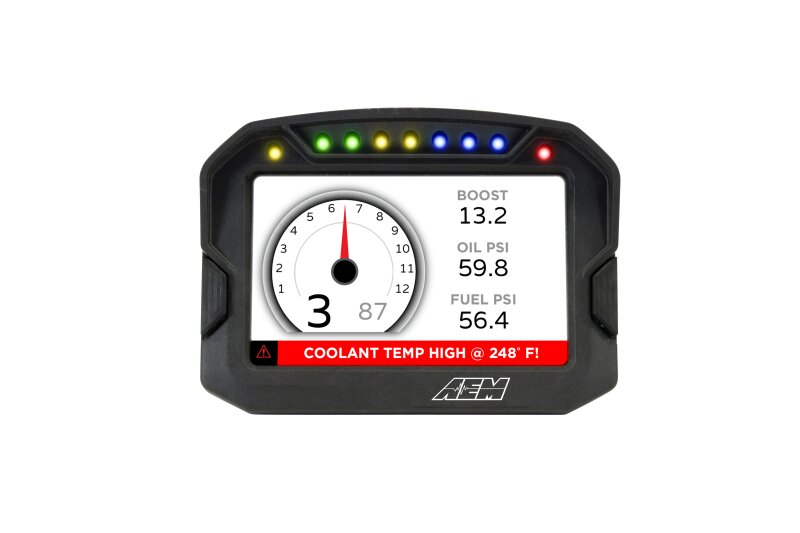

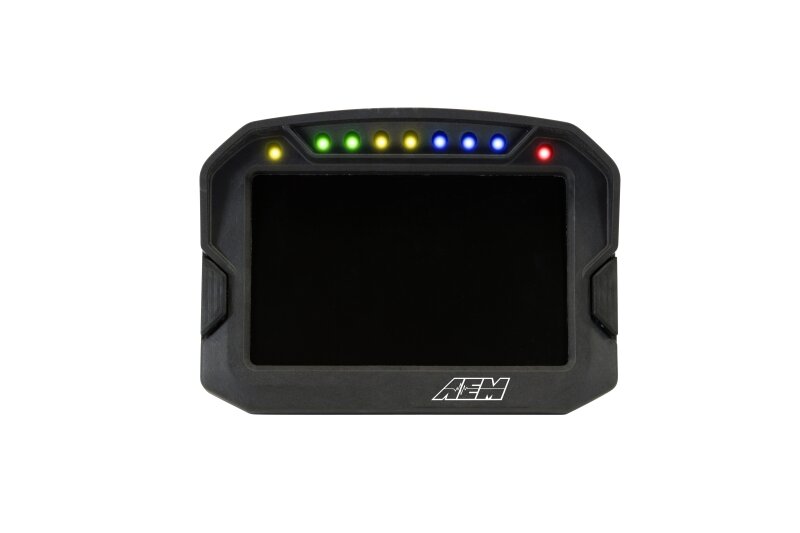

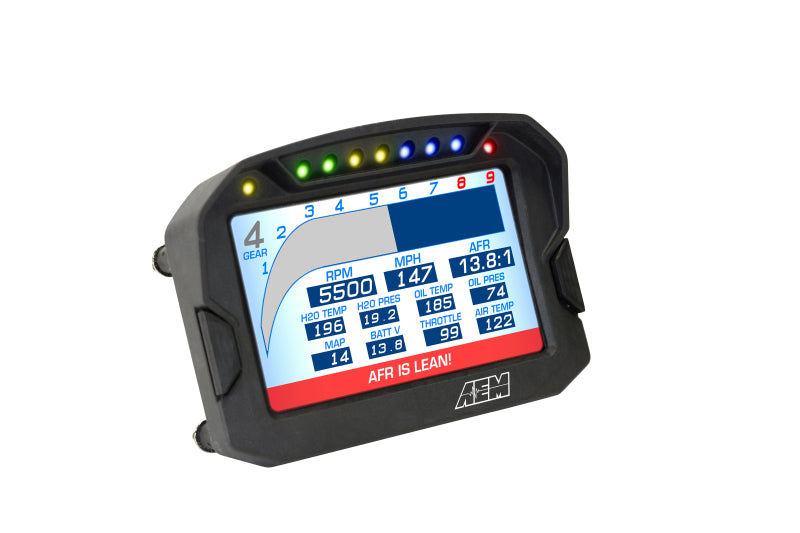

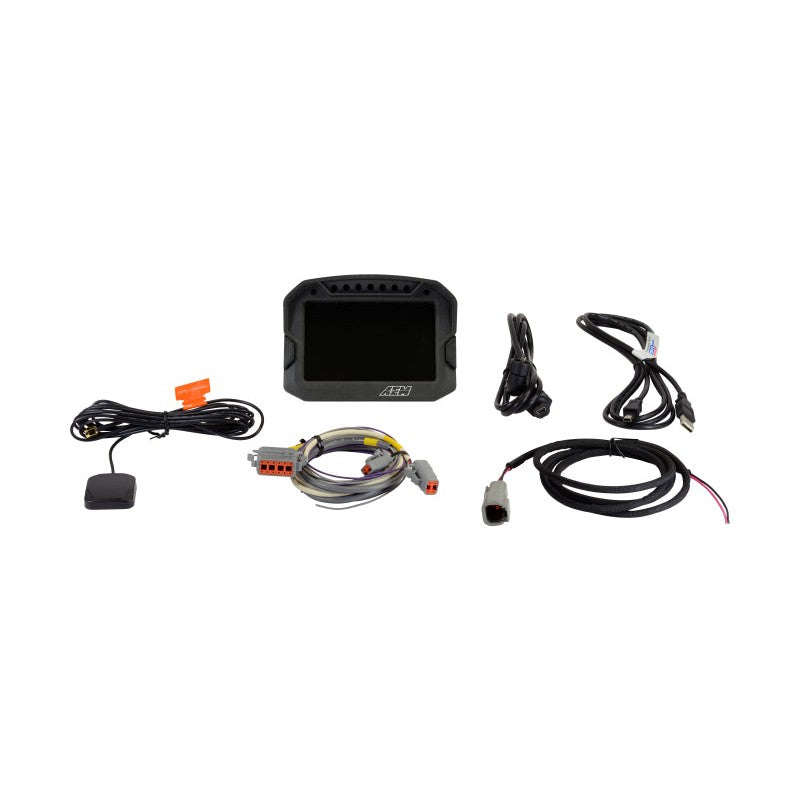

AEM CD-5LG Carbon Logging 5" Digital Dash Display w/ Internal 10Hz GPS & Antenna (30-5603)

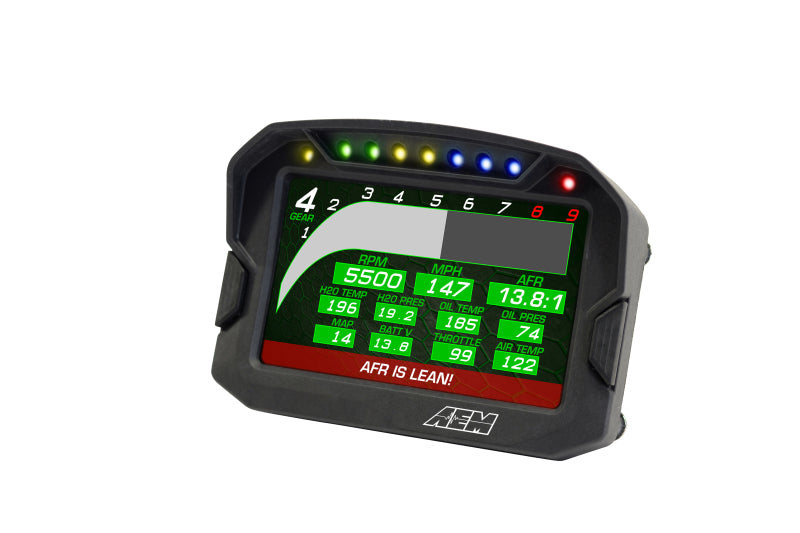

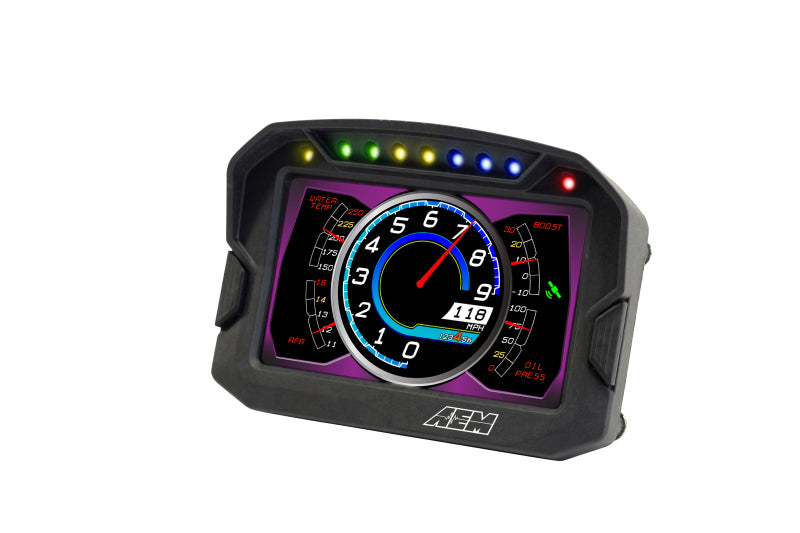

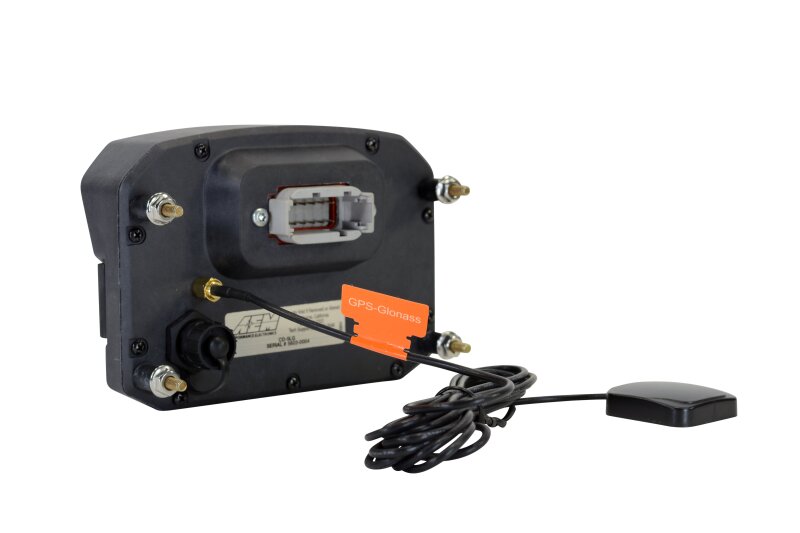

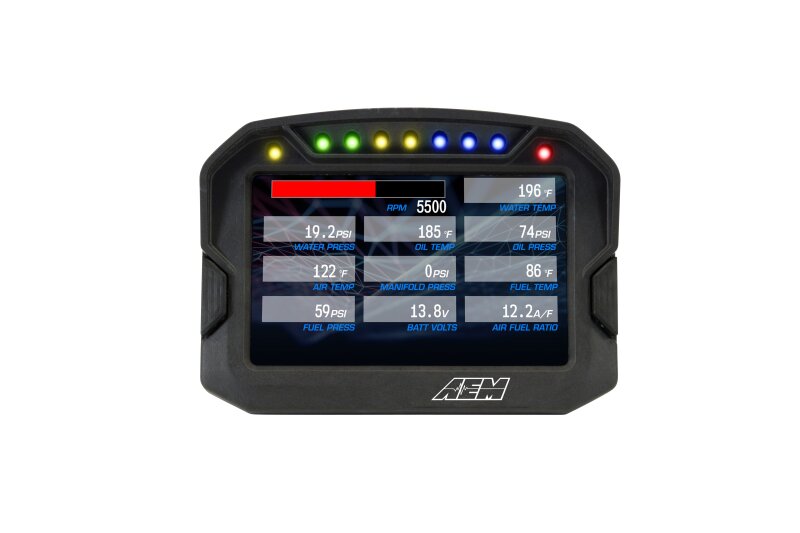

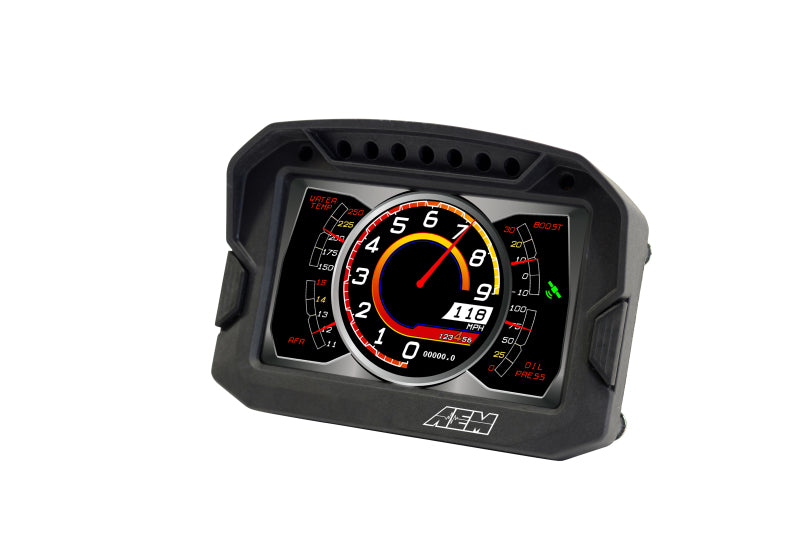

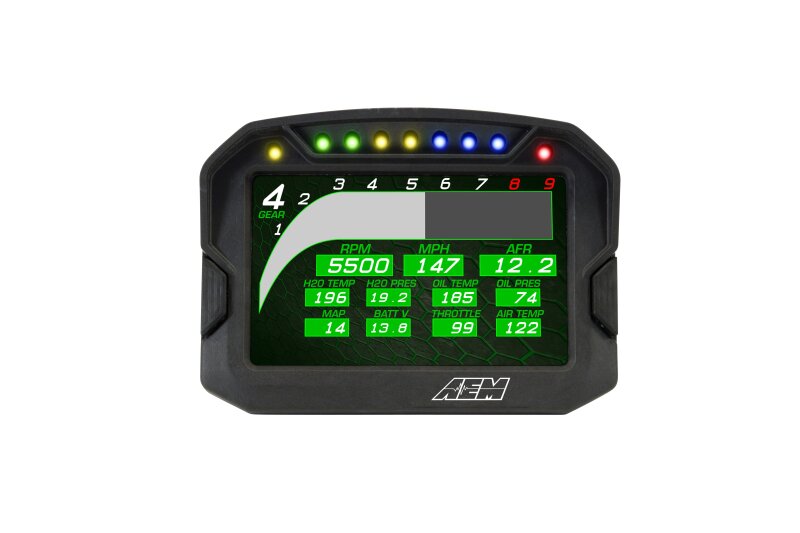

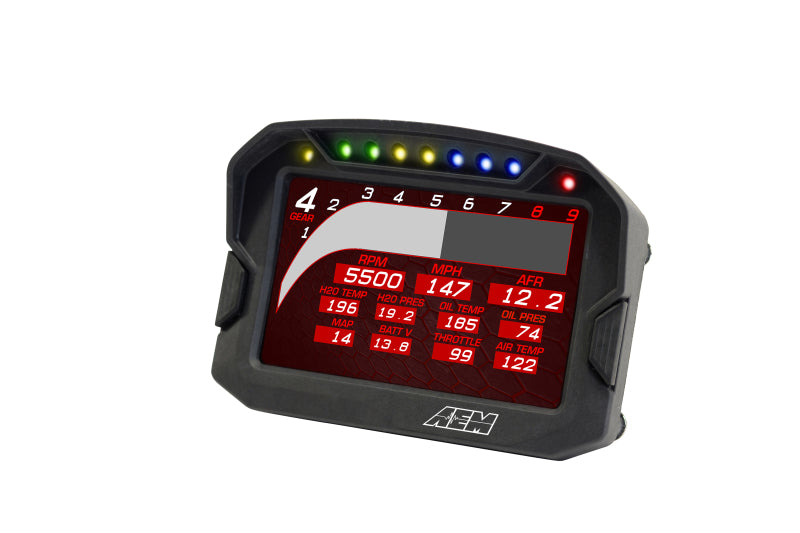

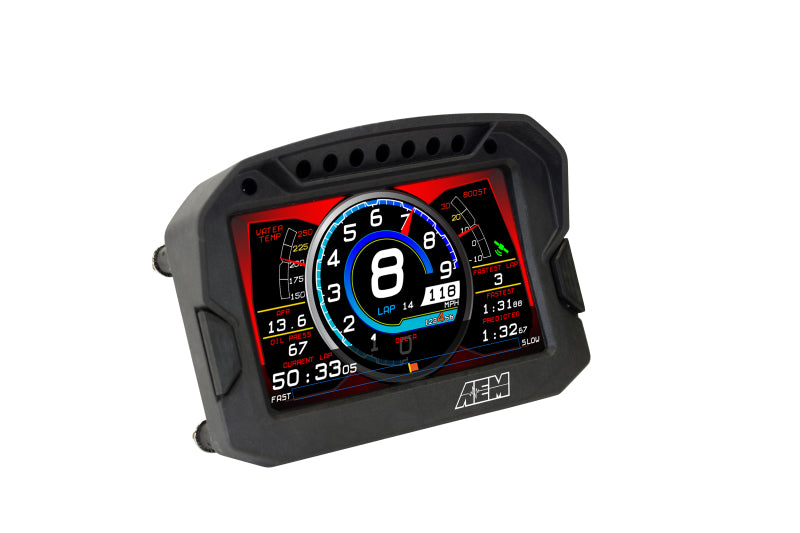

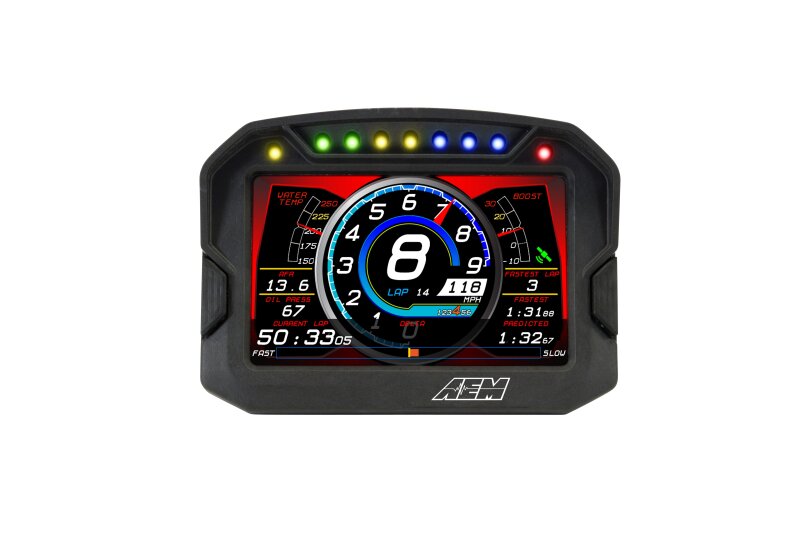

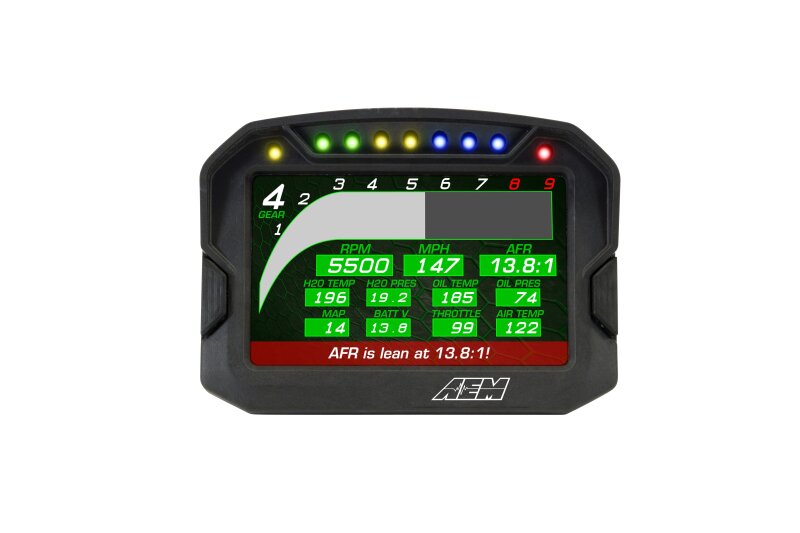

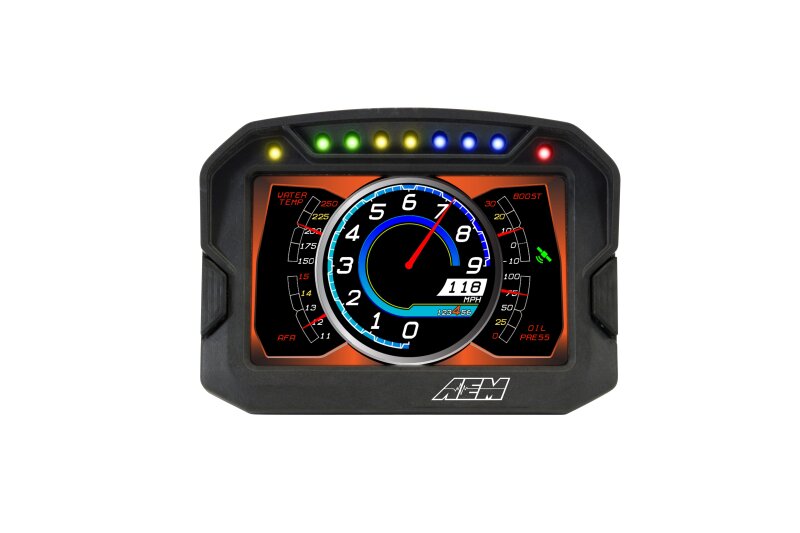

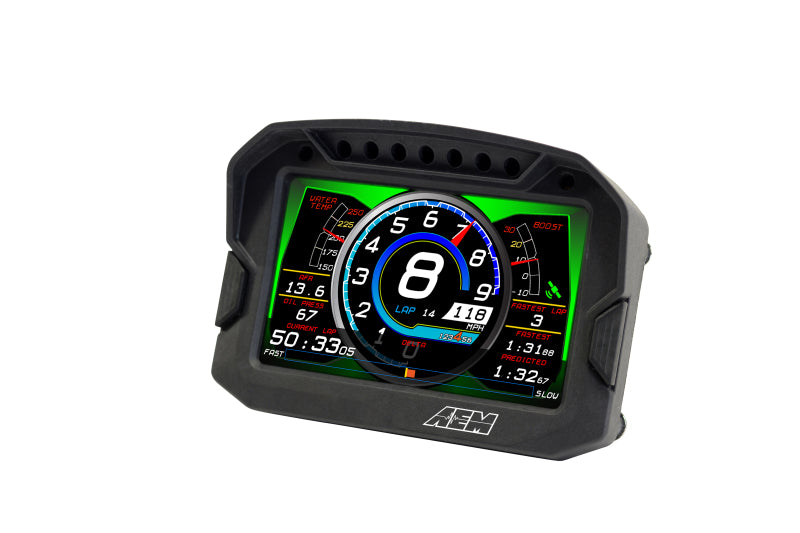

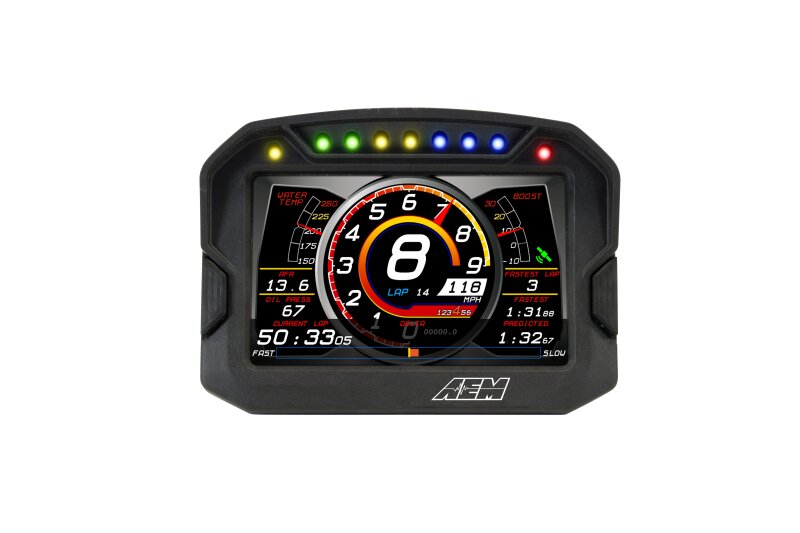

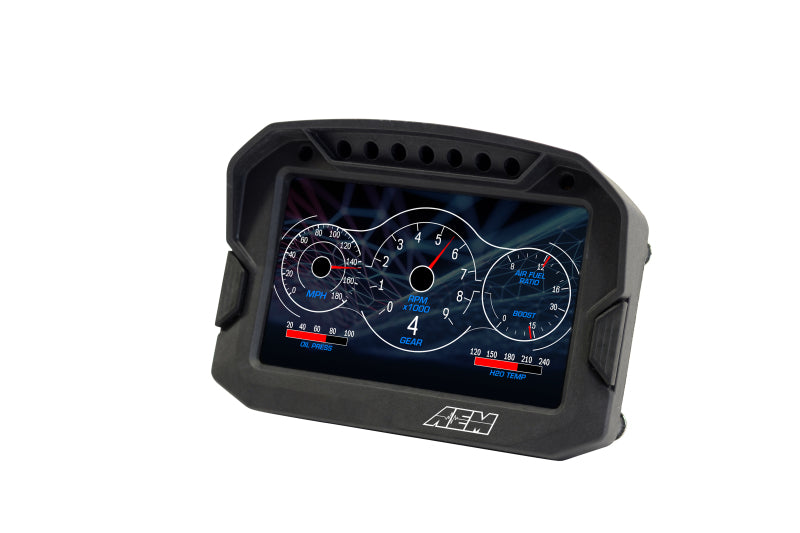

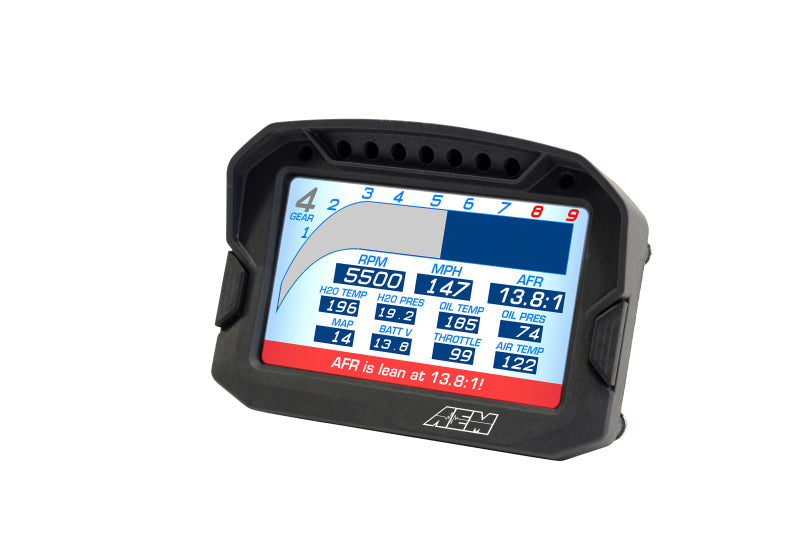

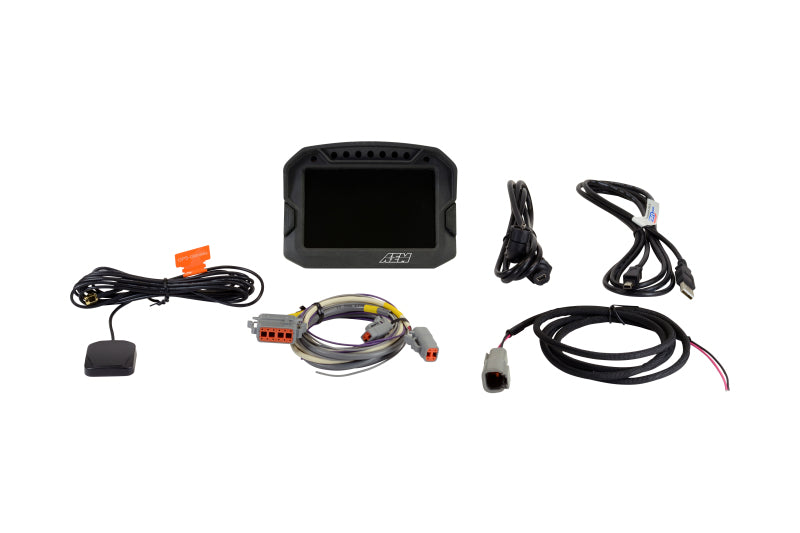

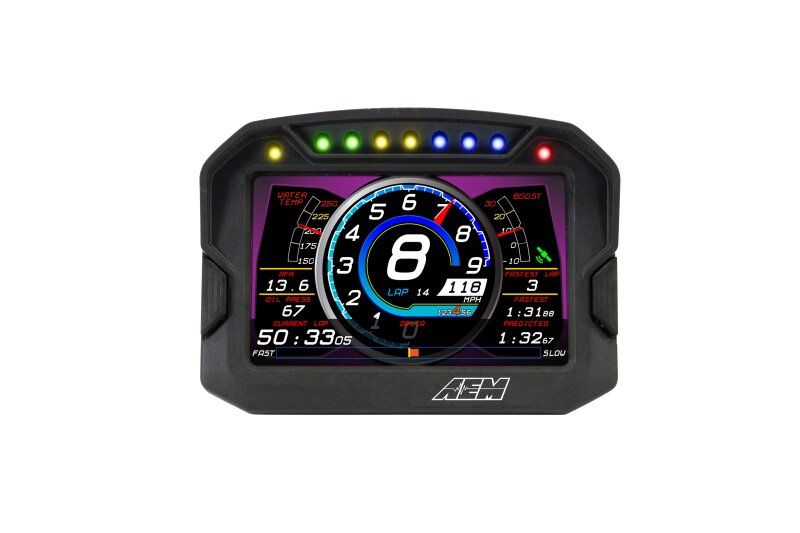

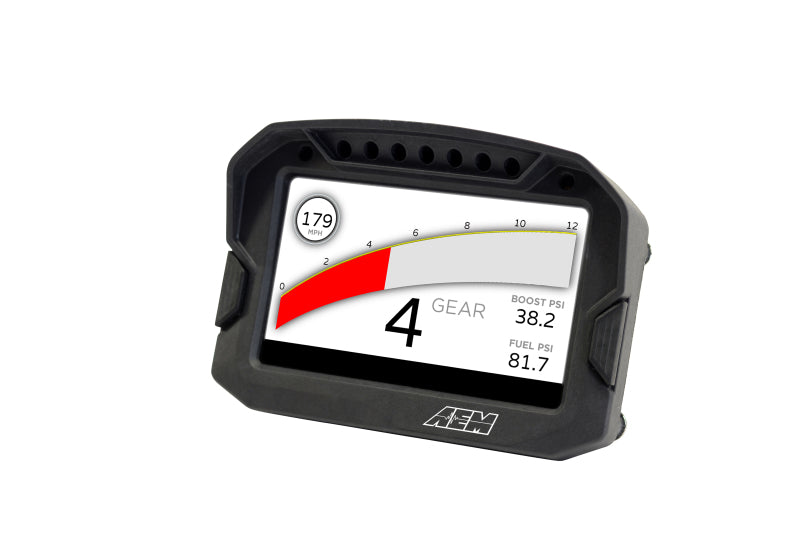

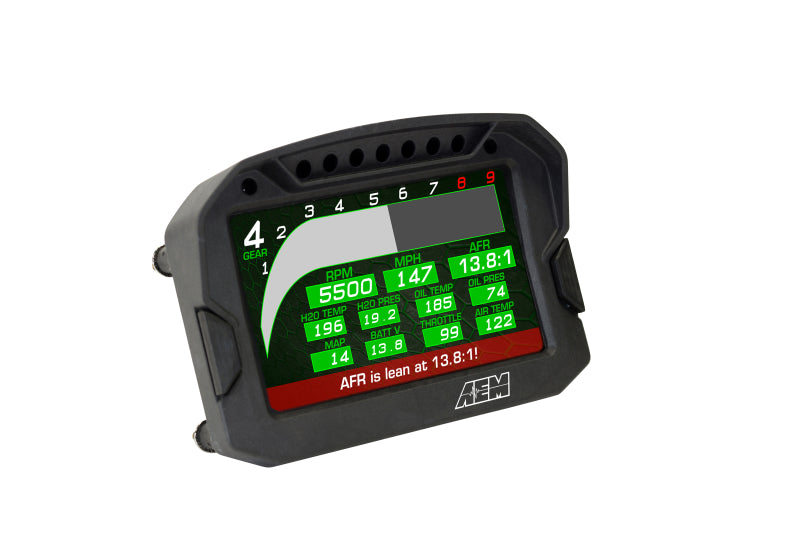

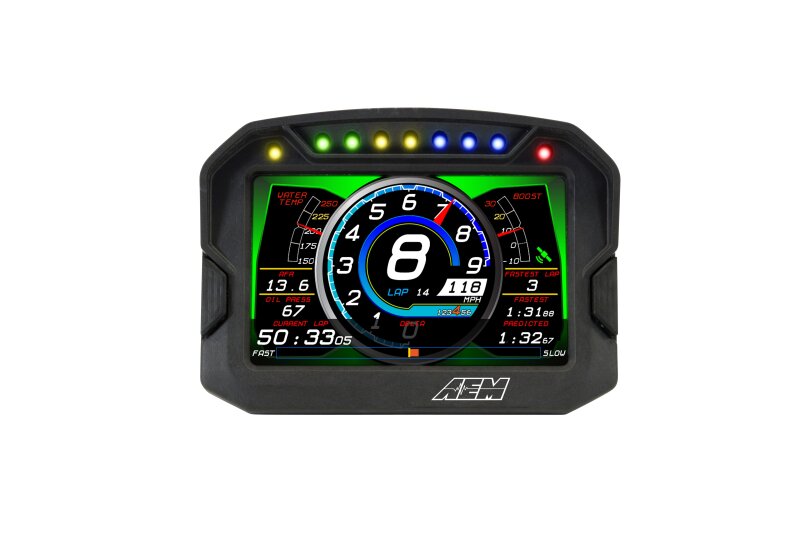

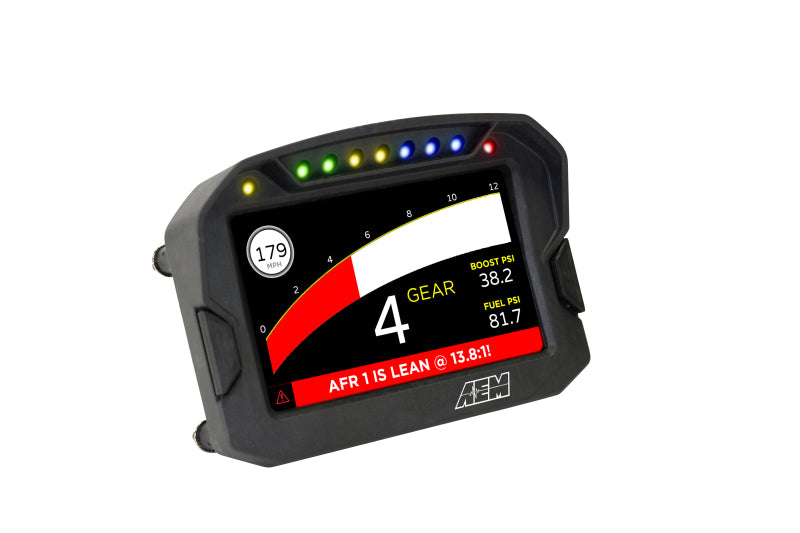

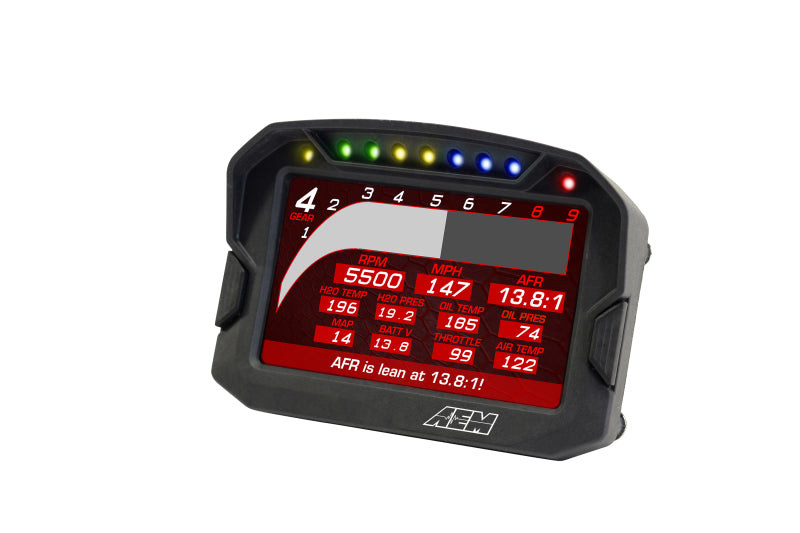

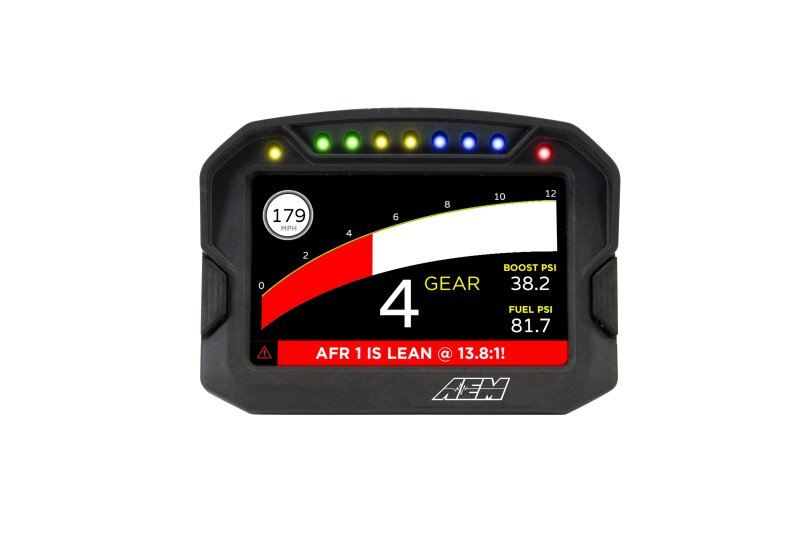

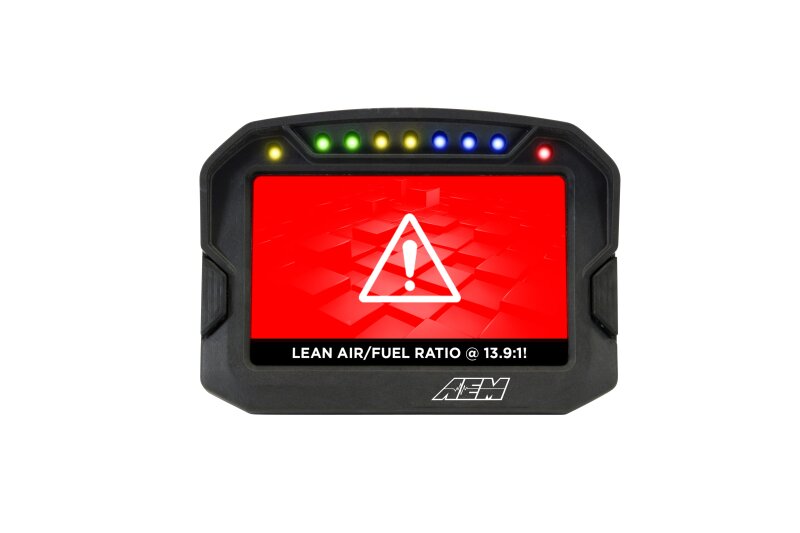

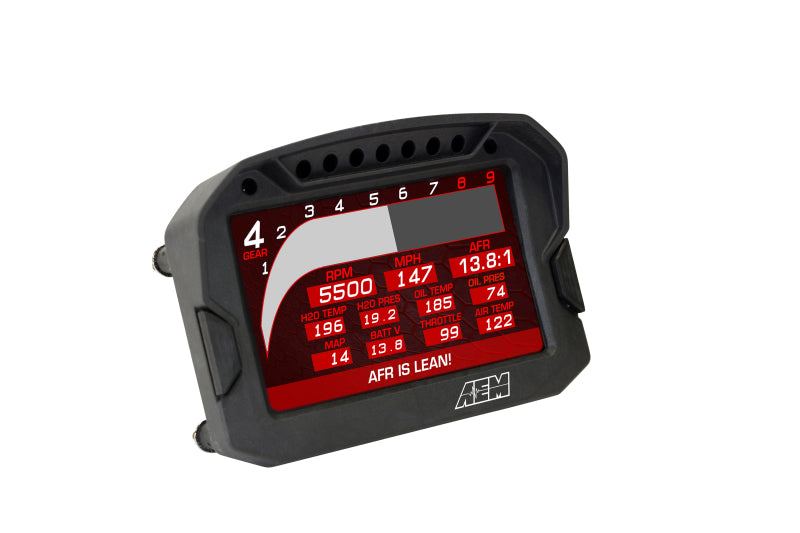

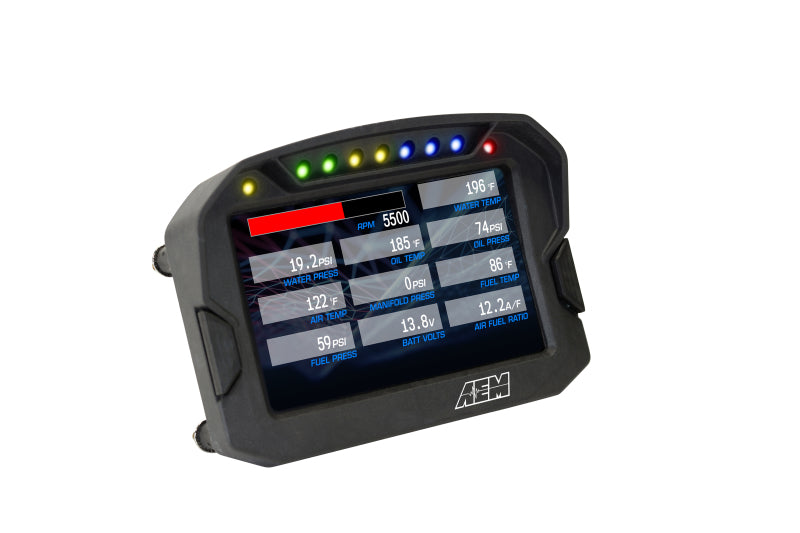

The AEM CD-5LG Carbon Digital Dash Display (PN 30-5603) combines a high-speed data logger with a sunlight-readable, full-color 5-inch display. Encased in a lightweight, flow-molded carbon fiber composite housing, this unit weighs only 11.7 ounces. It features an integrated 10Hz GPS receiver and antenna for accurate lap timing and track mapping without the need for external modules.

Built for the rigors of racing, the CD-5LG is IP66 water-resistant, making it suitable for open-cockpit vehicles, motorcycles, and marine applications. The 800x480 resolution screen provides 1000cd/m2 brightness and an anti-glare filter for visibility in direct sunlight. Two CAN bus connections allow for simultaneous data acquisition from AEMnet-enabled devices and third-party systems. With 200MB of internal logging capacity at up to 1,000Hz per channel, you can capture detailed telemetry for post-race analysis using the free DashDesign Graphics Editor software.

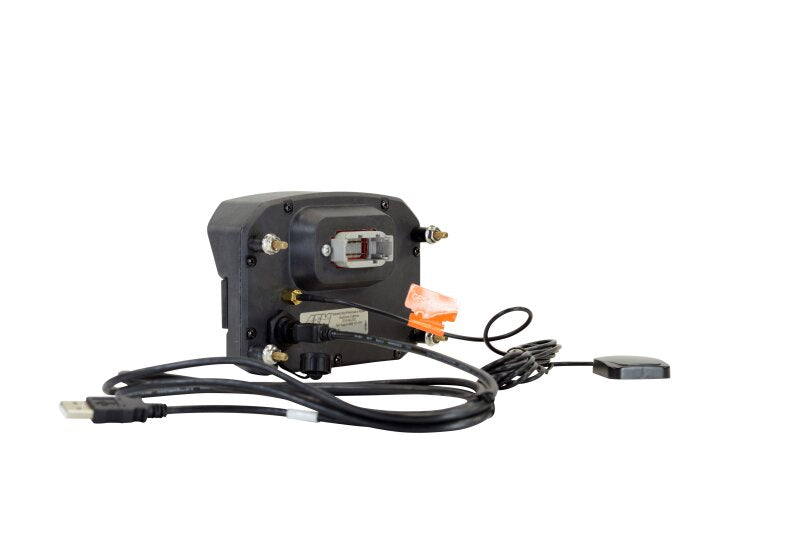

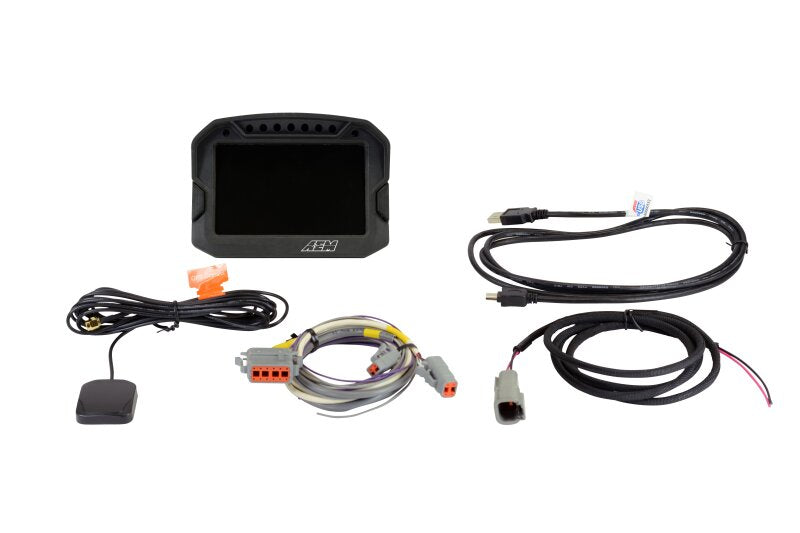

• Internal Components: Integrated 10Hz GPS receiver, antenna, and 200MB internal logging.

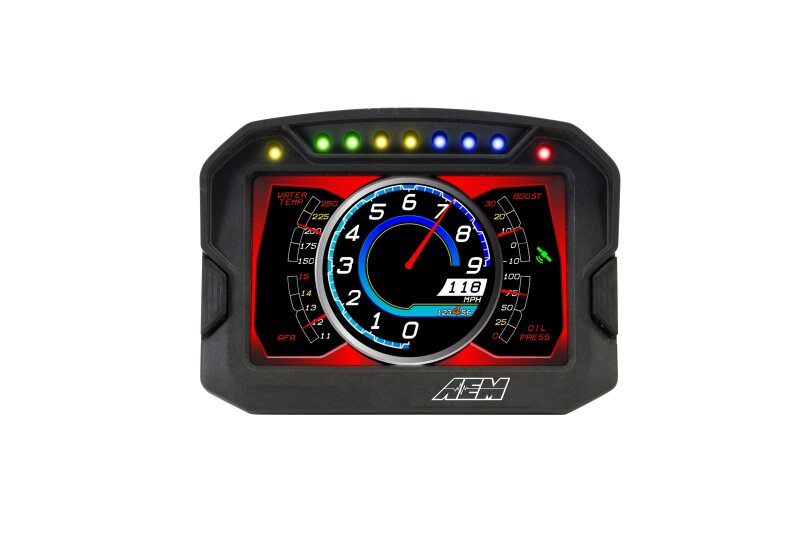

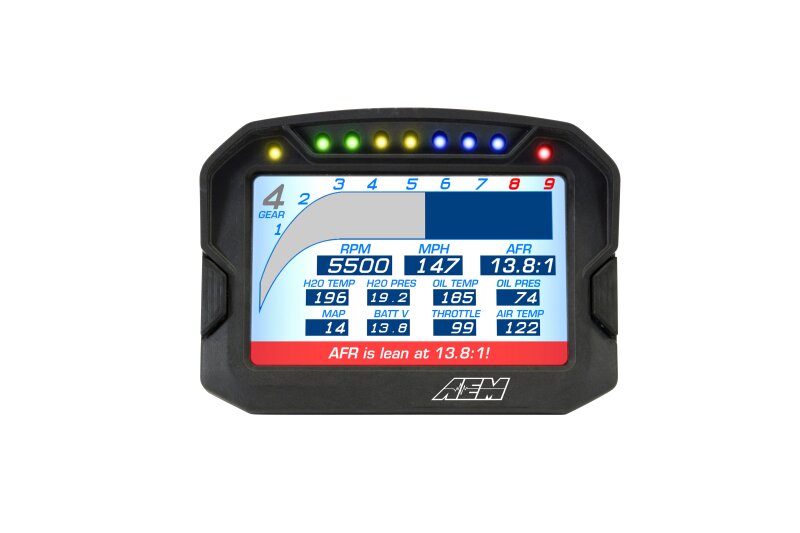

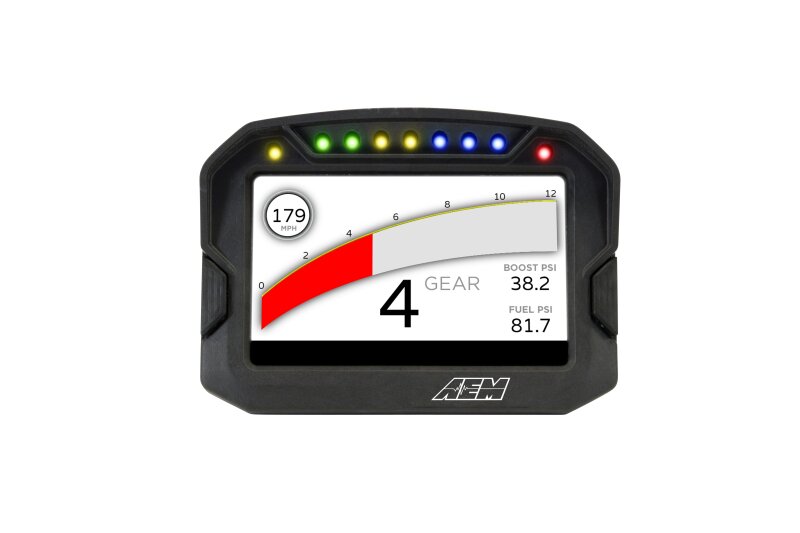

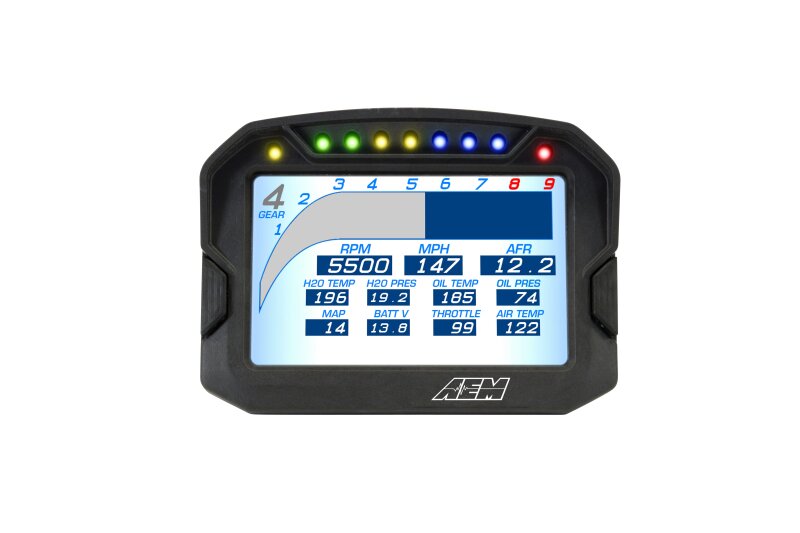

• Display: 5-inch full-color 800x480 resolution with 1000cd/m2 brightness.

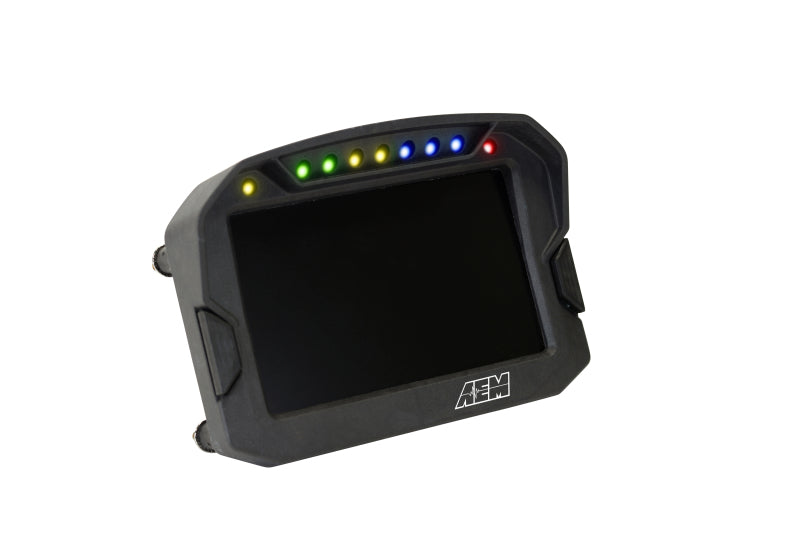

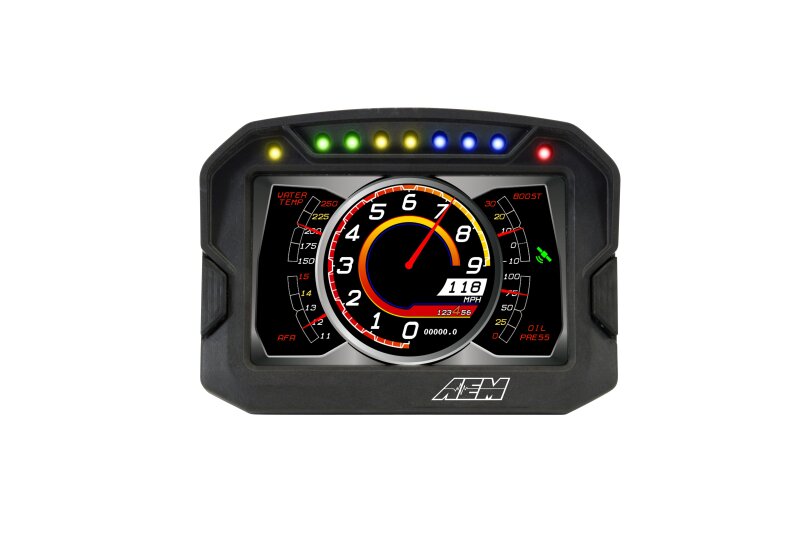

• Visual Alerts: Seven programmable, dimmable LED RPM/shift indicators and two additional programmable LEDs.

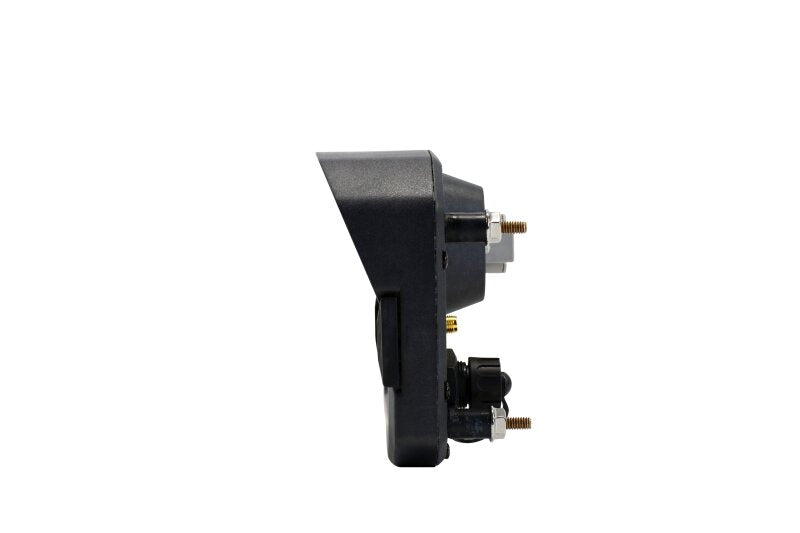

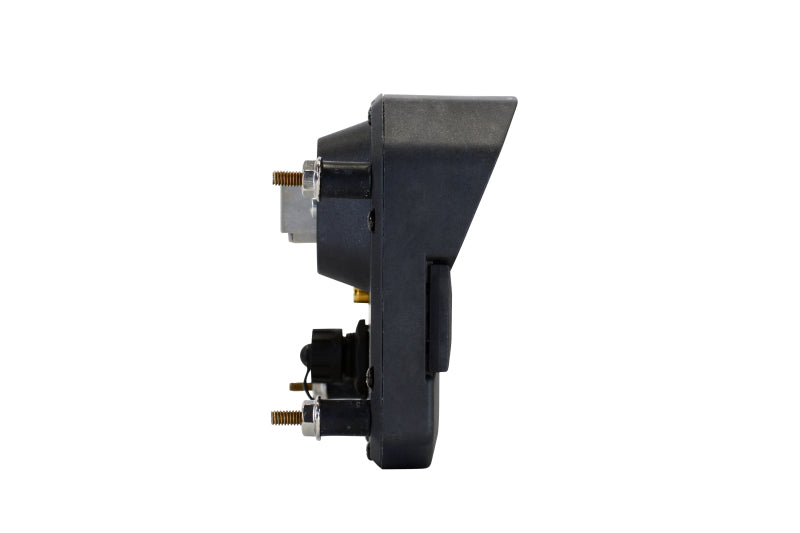

• Construction: Flow-molded carbon fiber composite enclosure; IP66 water-resistance rating.

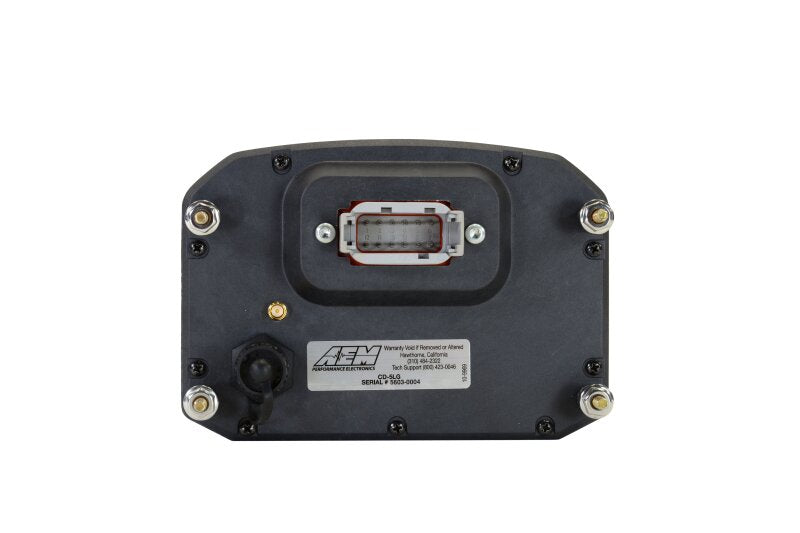

• Interface: Two programmable CAN bus connections, two switch inputs for user-triggered events (blinkers, high beams), and a headlight-in connection for auto-dimming.
• Compatibility: Works with AEMnet, Holley, Link, MSD Atomic, and Vi-Pec ECUs via available adapter cables; OBDII compatible for 2008-up vehicles (adapter sold separately).
• Dimensions/Weight: 11.7 oz. (331 grams); layout and wiring identical to CD-7 series.
