ARB 10,000lb Synthetic Rope Winch with Integrated Motor Control & 4-Stage Gearbox - ARW100SA

The ARB Winch (ARW100SA) represents the next generation of recovery technology, featuring a compact, all-in-one motor control design for clean fitment on modern bumpers. By integrating the motor control unit and a custom Albright contactor directly within the winch, this design eliminates the need for a separate control box, improving electrical efficiency and simplifying installation.

Built for the most demanding environments, this 10,000lb winch is IP68 rated for complete dust and water protection. It utilizes a 4-stage hardened steel gearbox with a 171:1 ratio for fast line speeds and superior load distribution. For maximum versatility, the 16-position clockable clutch handle allows for flexible mounting in 22.5-degree increments, while the one-piece bridging plate enhances torsional rigidity under heavy loads.

• Integrated Motor Control: Custom Albright contactor sits within the winch for a low-profile, high-efficiency connection.
• Rugged Drivetrain: 4-stage hardened steel gearbox with a 171:1 ratio and a gearbox-mounted brake for 100% load holding.

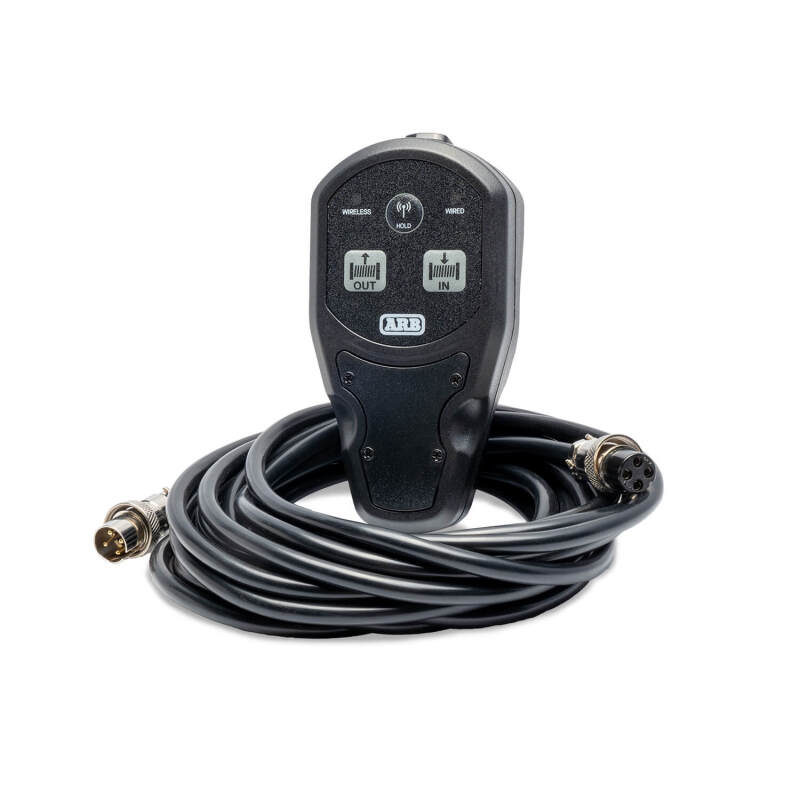

• Wireless & Wired Control: Dual-connection remote uses a 2.4GHz wireless link (up to 40m) or a 5m lead for direct connection.
• Durability: IP68 rated housing and a 12V motor tuned for responsive recovery operations.
• Safety Included: Includes a 500A power isolation switch with a stainless lanyard and protective dust cover.

• Pulling Capacity: 10,000 lbs
• Gear Ratio: 171:1
• Voltage: 12V
• Waterproofing: IP68 Rated
• Remote: 2.4GHz Wireless / 5m Wired Lead
• Clutch: 16-Position clockable (22.5 degree increments)
• MPN: ARW100SA
