AutoMeter InVision 12.3" Direct Fit Digital Dash System for Select 1973-1991 Chevrolet (7004)

Fits select 1973-1991 Chevrolet C10, C20, C30, K10, K20, K30, R10, R20, R30, V10, V20, V30, and Suburban models. This complete instrumentation upgrade is a direct-fit solution designed to modernize your interior without permanent modifications.

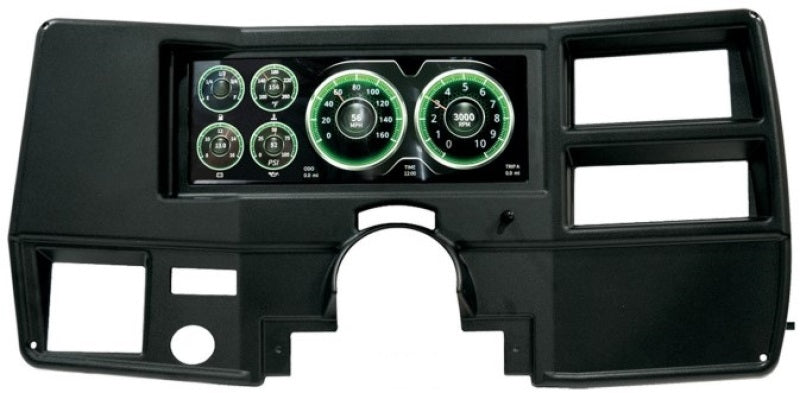

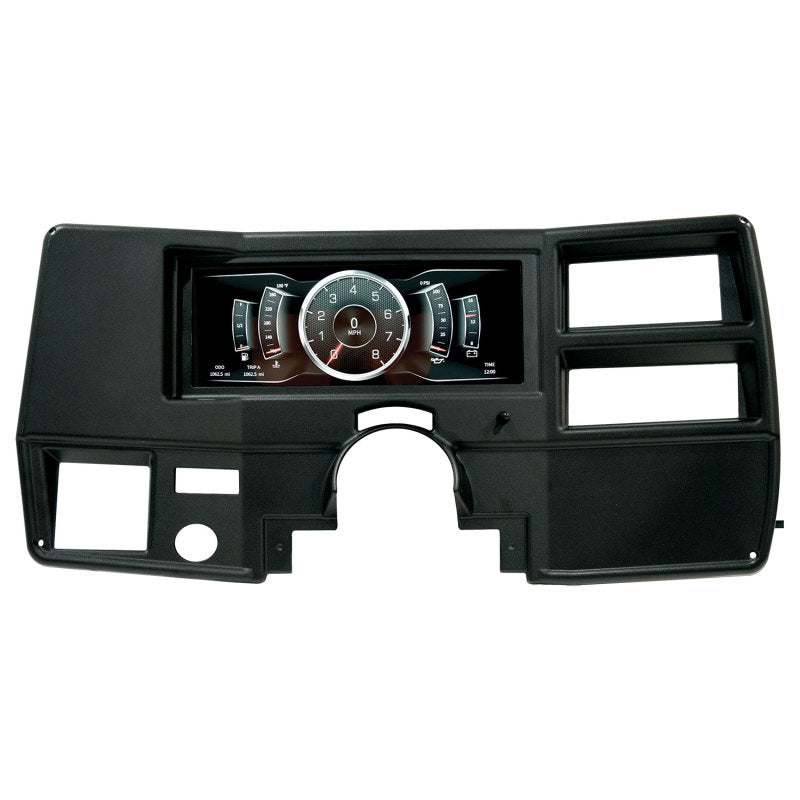

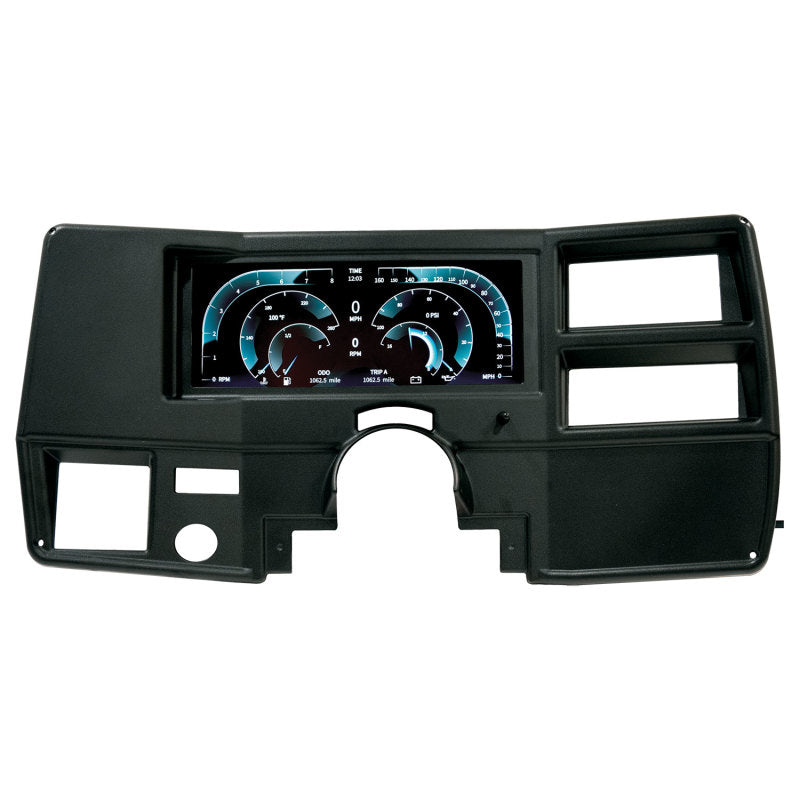

The AutoMeter InVision 7004 system replaces the factory gauges with a high-resolution 12.3-inch LCD display. It provides real-time monitoring of speedometer, tachometer, fuel level, oil pressure, water temperature, and voltage on a single integrated screen. Four user-selectable displays allow you to customize the layout to your preference, while built-in visual and audible alarms help protect your engine from low oil pressure, high water temperature, or charging system failures.

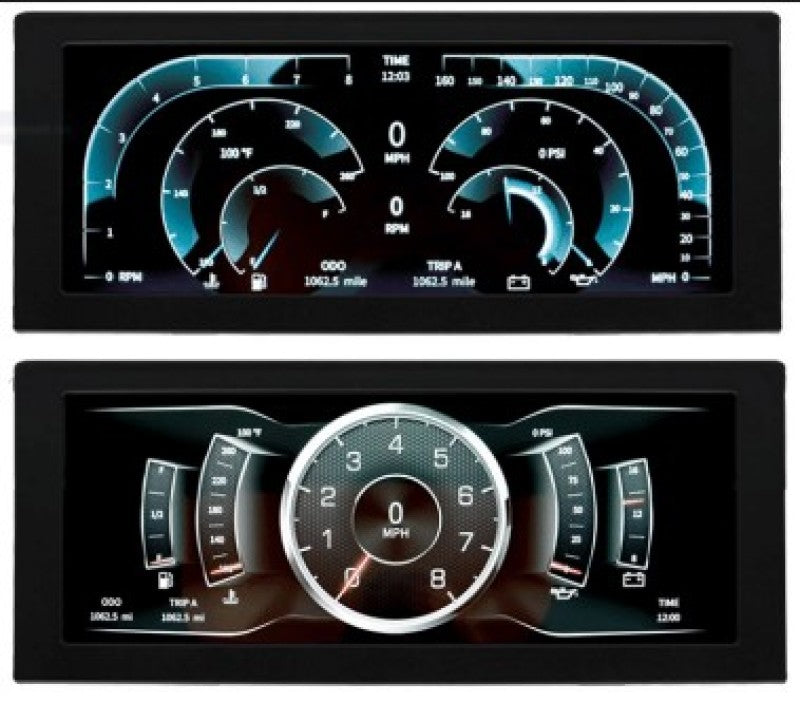

• Display Specs: 12.3" High-resolution LCD with four customizable screens.

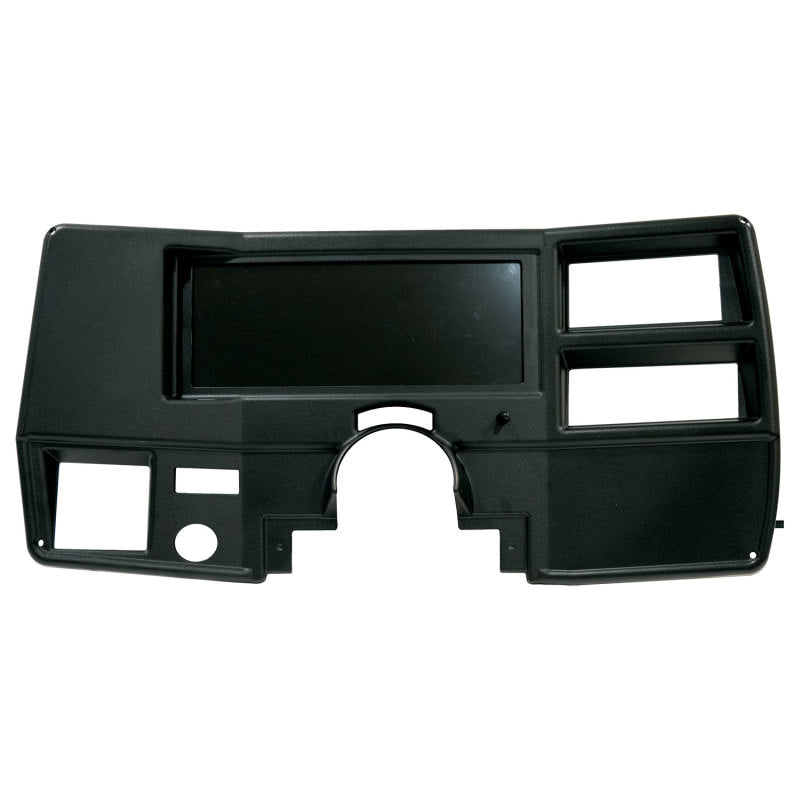

• Direct Fit: Bolts directly into the factory dash housing with no cutting or drilling required.
• Engine Compatibility: Tachometer calibrates for 1, 2, 3, 4, 5, 6, 8, 10, or 12 cylinder engines.
• Fuel Level Flexibility: 7 user-selectable resistance ranges compatible with original and aftermarket sending units.
• Calibration: Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors (VSS).
• Unit Selection: Displays in either Imperial or Metric measurements with an adjustable RPM range.
• Full Kit Includes: InVision Digital Dash, wiring harness, oil pressure sending unit, water temperature sending unit, and a remote-mount joystick for menu navigation and customization.
