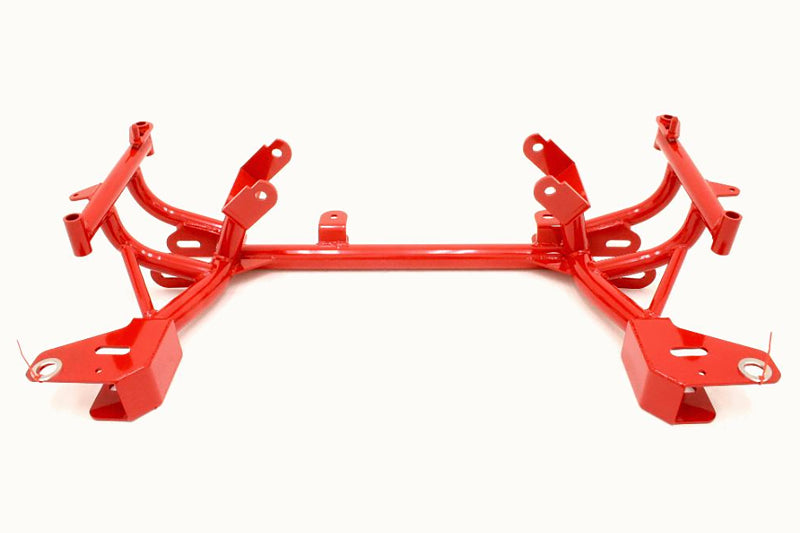

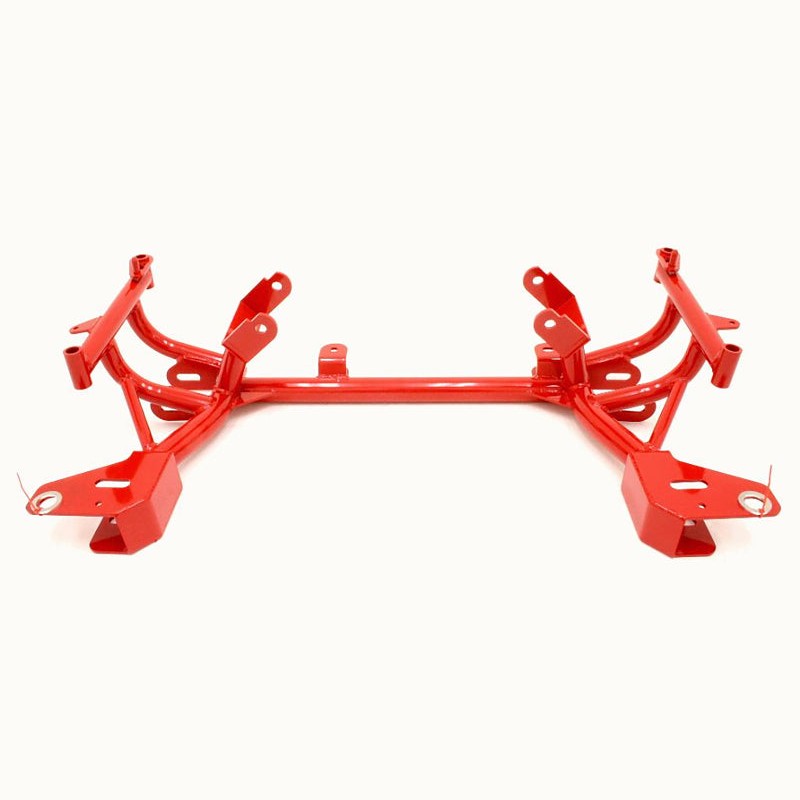

BMR Tubular K-Member with Turbo LS1 Mounts for 1998-2002 Camaro & Firebird - Red (KM013R)

Fits 1998-2002 Chevrolet Camaro (Z28, SS) and Pontiac Firebird (Formula, Trans Am) with LS1 engines.

The BMR KM013R Tubular K-Member is a high-strength, lightweight alternative to the bulky factory unit. Engineered for 4th Gen F-Body street, drag, and road race applications, this K-member significantly increases front-end rigidity while providing the essential clearance needed for large-tube headers and turbo plumbing. The unique design features integrated frame stands that replace heavy factory cast iron components, allowing for larger diameter tubing and thicker mounting plates without a weight penalty.

Constructed from a combination of 1-5/8-inch x 0.120-wall and 1-1/4-inch x 0.095-wall DOM tubing, this 100-percent bolt-in component requires no vehicle modifications. When paired with BMR upper and lower A-arms, it typically reduces front-end weight by 42 pounds or more.

• Replaces factory K-member with high-strength DOM steel tubing
• Integrated Turbo LS1 engine mounts for improved turbocharger clearance
• Provisions for standard factory or manual steering racks
• Durable red powdercoat finish for corrosion resistance
• 100% bolt-on installation; approx. 4-5 hour install time
• Manufactured from 1-5/8" and 1-1/4" DOM tubing
• Manufacturer Part Number: KM013R
• Proudly made in the USA
