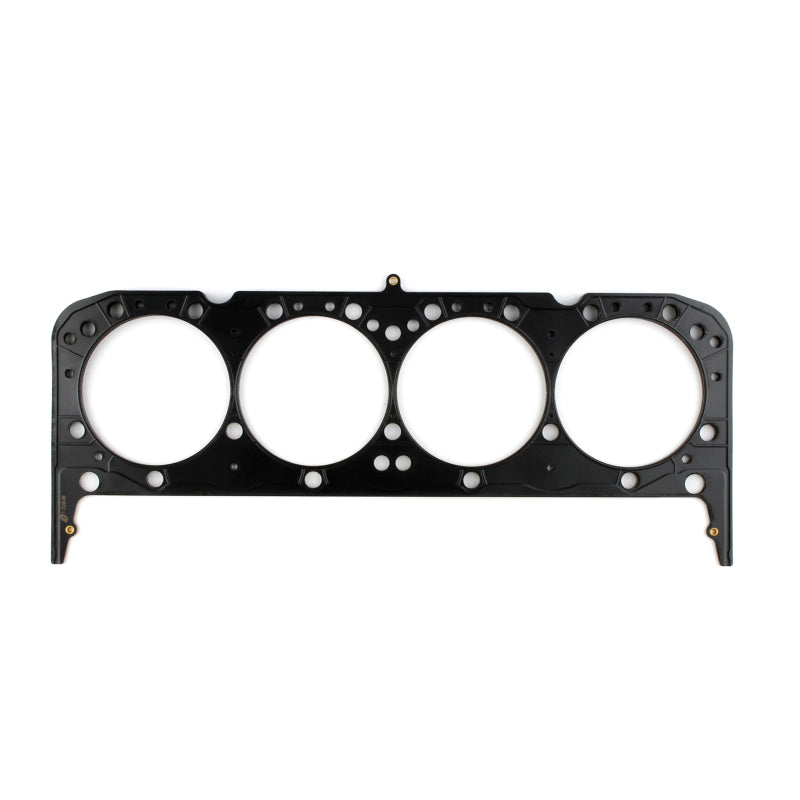

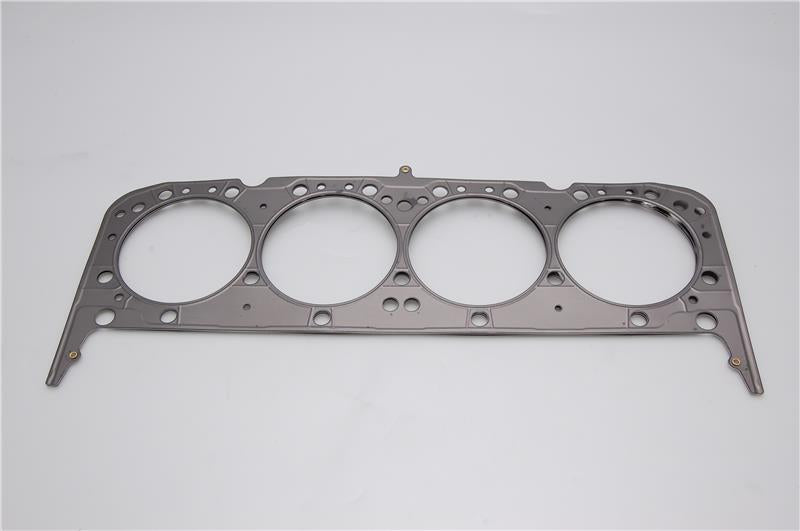

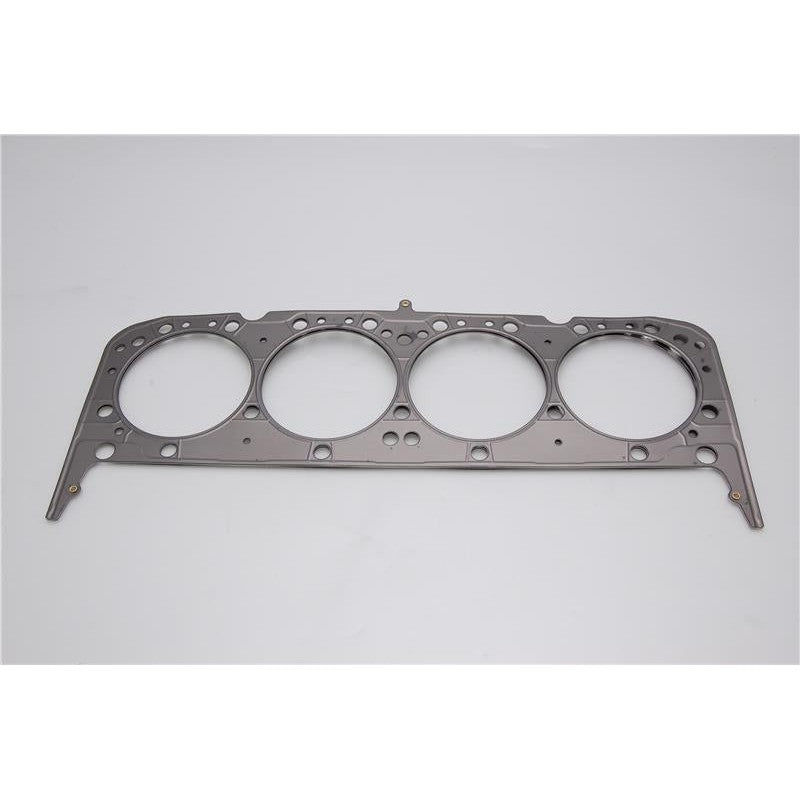

Cometic MLS Head Gasket for Chevy Small Block 1980-1986, 4.165" Bore, .040" Thick, with Steam Holes

Fits select 1980-1986 Chevrolet, GMC, Buick, Oldsmobile, Pontiac, and Avanti II vehicles equipped with Chevy Small Block engines.

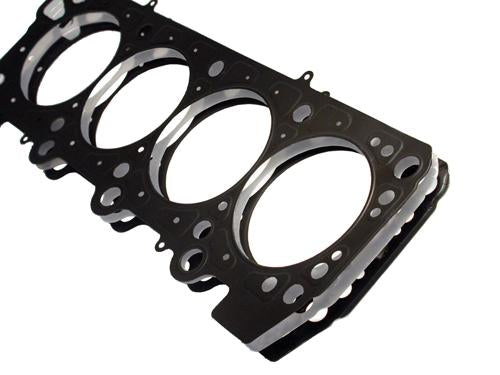

The Cometic Multi-Layer Steel (MLS) head gasket is engineered for high-output engines that demand superior sealing performance without the use of additional sealants. Constructed from multiple layers of embossed stainless steel, this gasket provides the necessary strength to resist corrosion and the rebound required to maintain a seal under the high shearing forces often found between aluminum heads and cast iron blocks.

This specific gasket features a center shim layer of uncoated stainless steel and outer layers coated in Viton, a fluoroelastomer rubber capable of withstanding temperatures up to 250°C (482°F). The design ensures even load distribution across the sealing area, reducing bore distortion and requiring less clamp load than traditional composite gaskets. This version includes all steam holes, making it compatible with 400-series blocks or other Small Block Chevy configurations requiring additional coolant passages.

• Manufacturer Part Number: C5248-040
• Bore Diameter: 4.165 inch
• Compressed Thickness: 0.040 inch
• Material: MLS (Multi-Layer Steel) with Viton outer coating
• Features: Includes all steam holes for optimized cooling
• Application: Ideal for aluminum-to-aluminum or aluminum-to-cast iron mating surfaces
