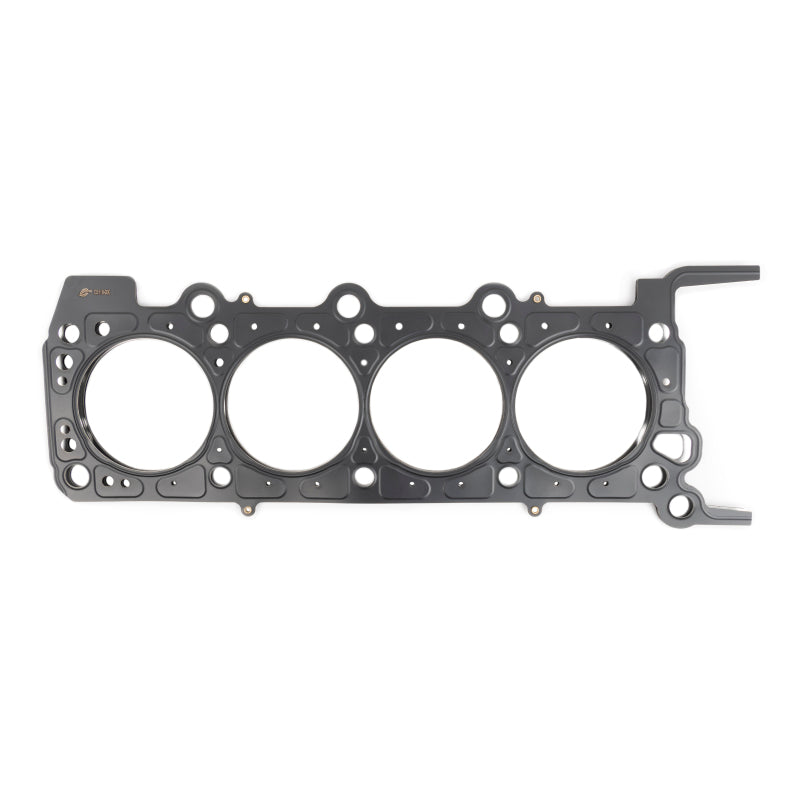

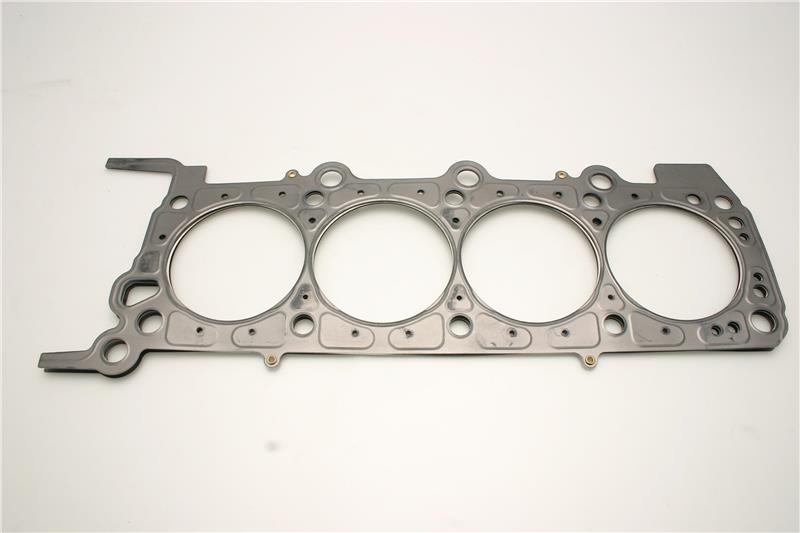

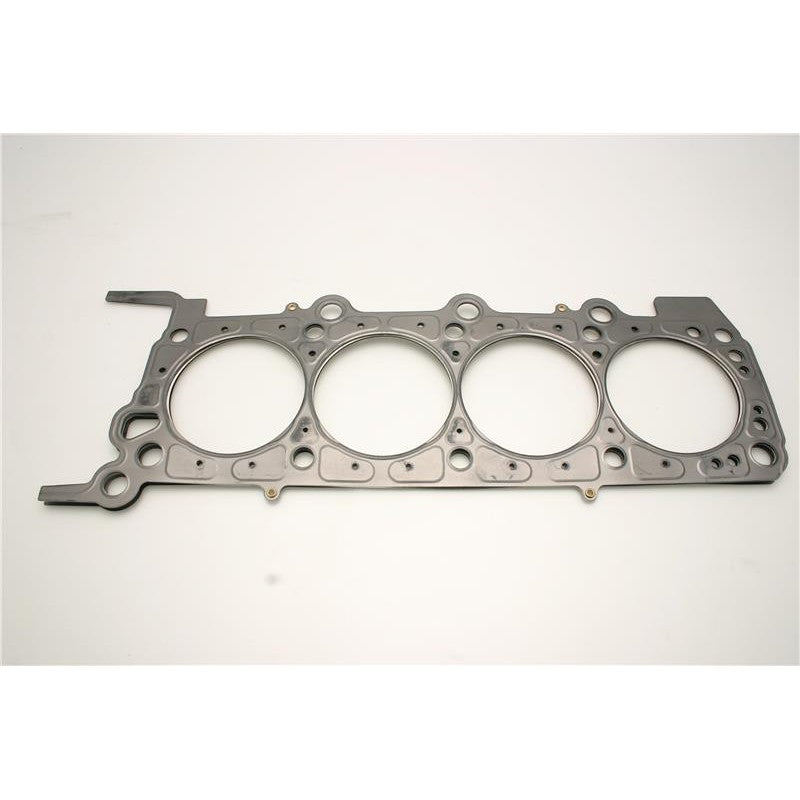

Cometic MLS Left Side Head Gasket - 92mm Bore .030" - Select Ford/Lincoln/Mercury 1991-2016 (4.6L)

Fits select 1991-2016 Ford, Lincoln, and Mercury vehicles (4.6L V8 engine).

Engineered for high-output applications, the Cometic Multi-Layer Steel (MLS) head gasket provides maximum sealing performance without the need for additional sealants. This gasket is specifically designed for the left side of the Ford 4.6L Modular engine. Its advanced construction is ideal for both aluminum-to-aluminum and aluminum-to-cast iron block and head combinations, as it effectively withstands the shearing forces created by different thermal expansion rates.

The gasket features multiple layers of embossed stainless steel, providing increased structural strength and the ability to rebound under cylinder pressure. The outer layers are coated with a 0.001" thick Viton rubber (fluoroelastomer), which is heat resistant up to 250°C (482°F) to ensure a reliable seal across various surface finishes and load conditions.

• Bore Size: 92mm
• Compressed Thickness: 0.030"
• Material: Viton-coated Multi-Layer Steel (MLS)
• Position: Left Side (Driver Side)
• Manufacturer Part Number: C5118-030
• Heat Resistance: Withstands temperatures up to 250°C / 482°F
• Bore Protection: Designed to require less clamp load, reducing bore distortion
