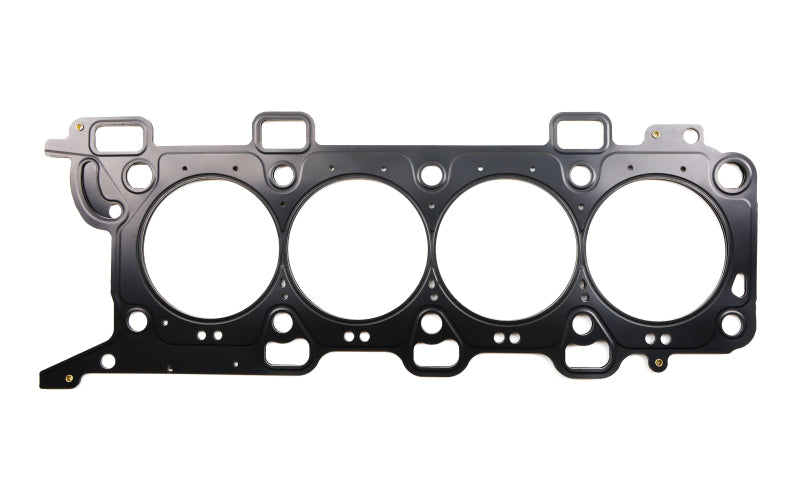

Cometic Gen-3 Coyote MLS Cylinder Head Gasket LHS 94.5mm Bore .056in for 2011-2023 Ford F-150 & Mustang (5.0L)

Fits select 2011-2023 Ford F-150 and Mustang models (5.0L).

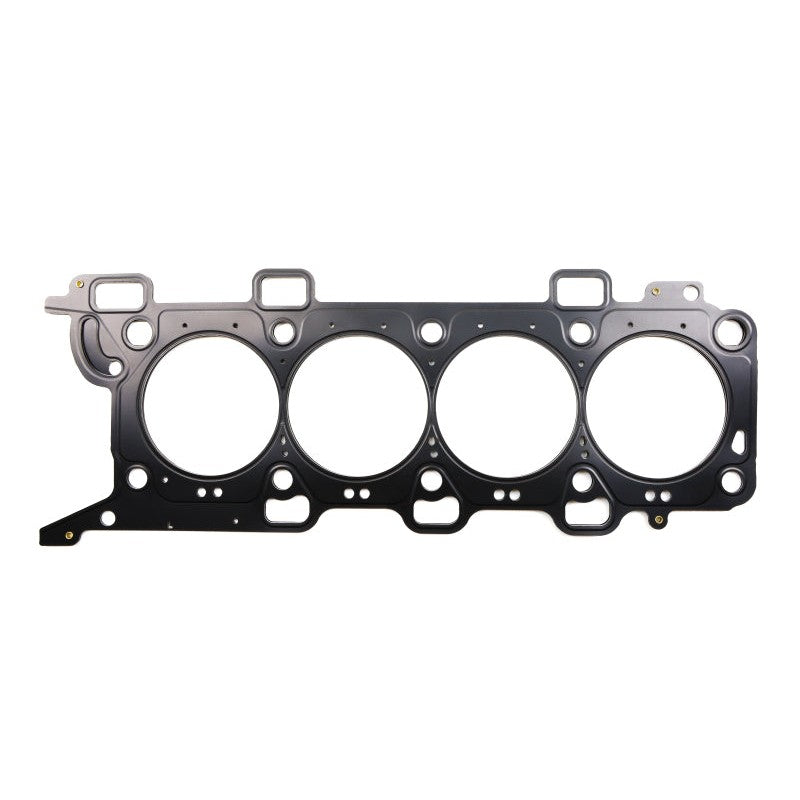

This Cometic Multi-Layer Steel (MLS) head gasket is engineered to meet the extreme sealing requirements of the Ford Gen-3 Coyote 5.0L V8. Designed specifically for the left-hand side (LHS), this gasket features Cometic's HP shim technology, which increases clamp load directly around the combustion chamber. This provides a superior seal for the open-deck block design, even under harsh load conditions and varying surface finishes.

Constructed with embossed outer layers coated in Viton for high-temperature resistance, the gasket utilizes an uncoated stainless steel center shim layer. This design allows for precise thickness management while reducing bore distortion by requiring less overall clamp load to achieve a reliable seal.

• Manufacturer Part Number: C15436-056
• Engine Compatibility: Ford 5.0L Gen-3 Coyote Modular V8
• Bore Size: 94.5mm
• Thickness: .056in
• Material: Multi-Layer Steel (MLS) with Viton-coated outer layers
• Side: Left Hand Side (LHS)
• HP shim technology for increased combustion chamber sealing
• Stainless steel center layer for uniform load distribution
