Cometic Gasket

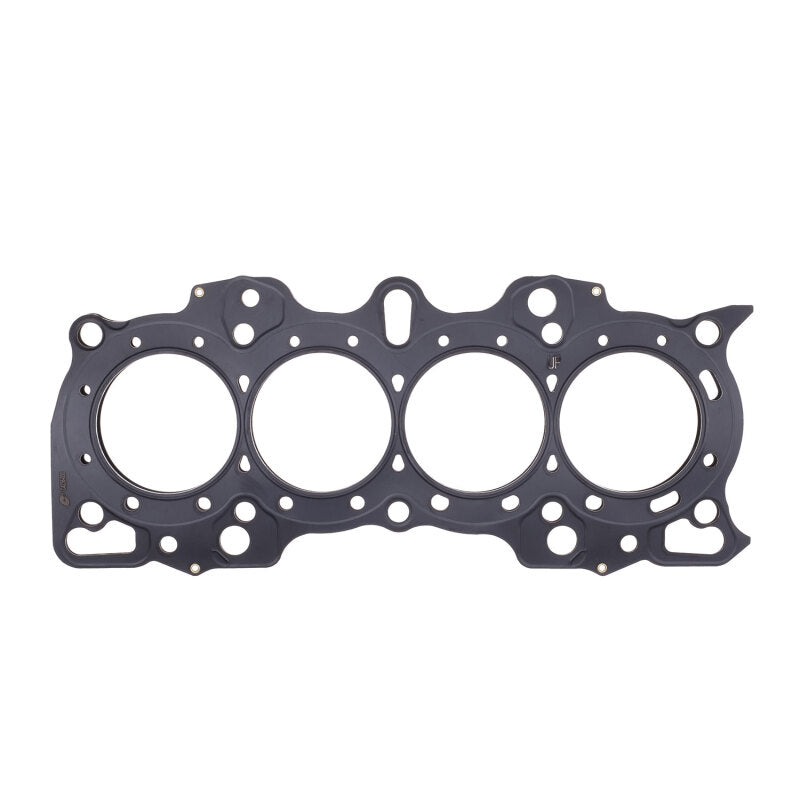

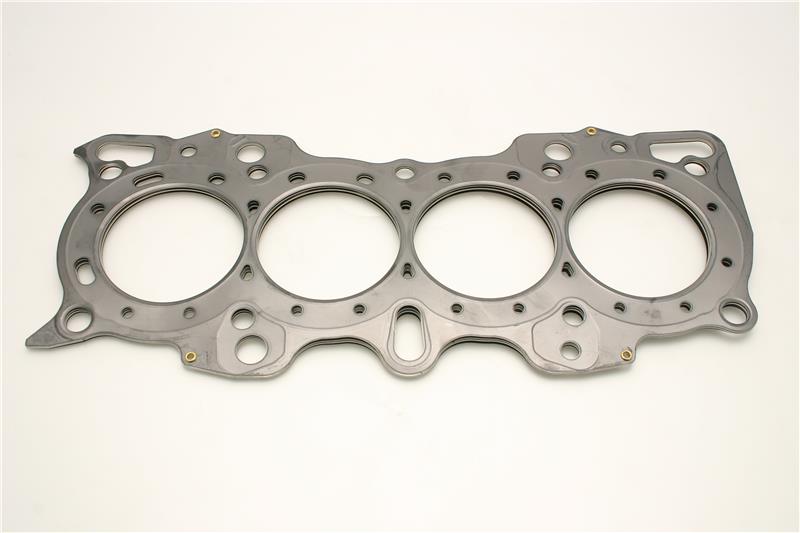

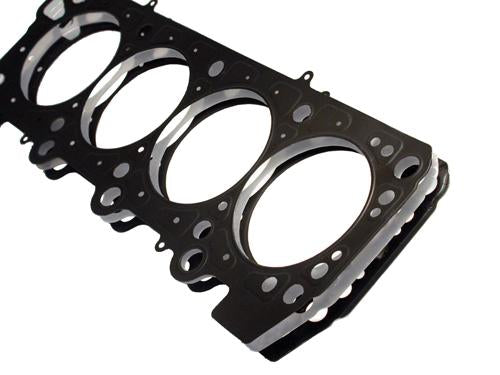

Cometic Honda Hybrid LS/VTEC 81.5mm 0.040" MLS Head Gasket (1990-2001) - C4236-040
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits select 1990-2001 Honda CR-V and Prelude models equipped with LS/VTEC hybrid engine builds (non-VTEC block with VTEC cylinder head).
Engineered for high-output "Frankenstein" builds, the Cometic Multi-Layer Steel (MLS) head gasket provides a superior seal for engines using 81.5mm bores. This gasket is specifically designed to bridge the oiling and cooling passages between a non-VTEC bottom end and a VTEC cylinder head, requiring no additional sealants. The MLS construction features multiple layers of stainless steel to manage the shearing forces created by different expansion rates in aluminum and cast iron components.
The outer layers are embossed and finished with a Viton rubber coating, a fluoroelastomer material that is heat resistant up to 250°C (482°F). This specialized coating ensures a reliable seal across various surface finishes and load conditions, while the uncoated stainless steel shim layer allows for precise thickness management to achieve your desired compression ratio.
- Manufacturer Part Number: C4236-040
- Bore Size: 81.5mm
- Compressed Thickness: 0.040"
- Material: Multi-Layer Steel (MLS) with Viton coating
- Heat Resistance: Up to 250°C / 482°F
- Construction: Embossed stainless steel outer layers with a central shim
- Installation: Requires less clamp load, reducing bore distortion and conforming to the sealing area
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2001 | Honda | CR-V | EX |
| 1997-2001 | Honda | CR-V | LX |
| 2000-2001 | Honda | CR-V | SE |
| 1990-1991 | Honda | Prelude | Si |
| 1990-1991 | Honda | Prelude | Si 4WS |
| 1990-1991 | Honda | Prelude | Si ALB |
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2001 | Honda | CR-V | EX |
| 1997-2001 | Honda | CR-V | LX |
| 2000-2001 | Honda | CR-V | SE |
| 1990-1991 | Honda | Prelude | Si |
| 1990-1991 | Honda | Prelude | Si 4WS |
| 1990-1991 | Honda | Prelude | Si ALB |
