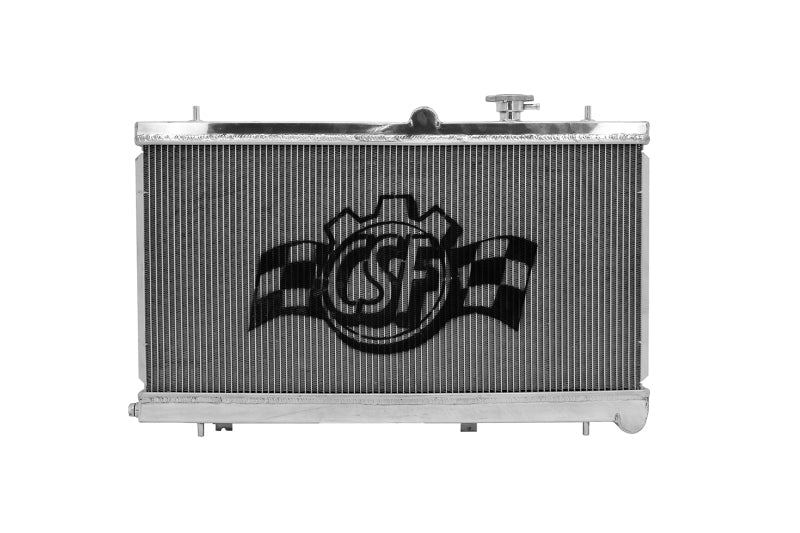

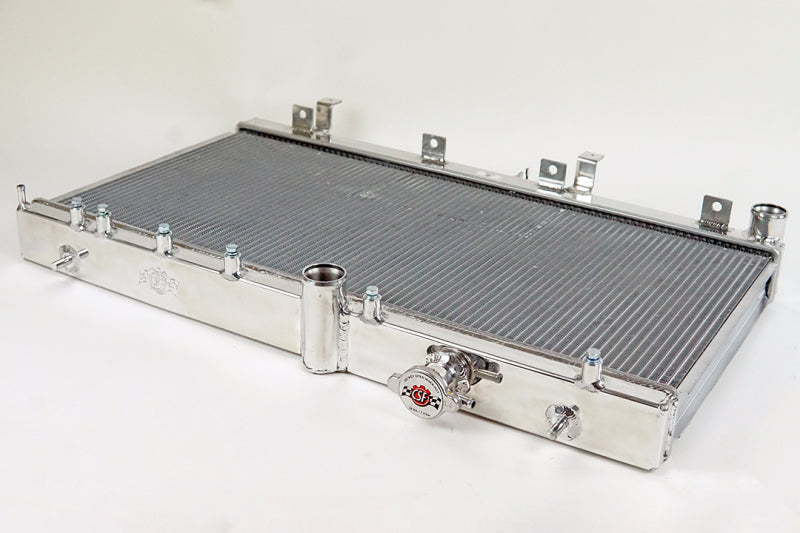

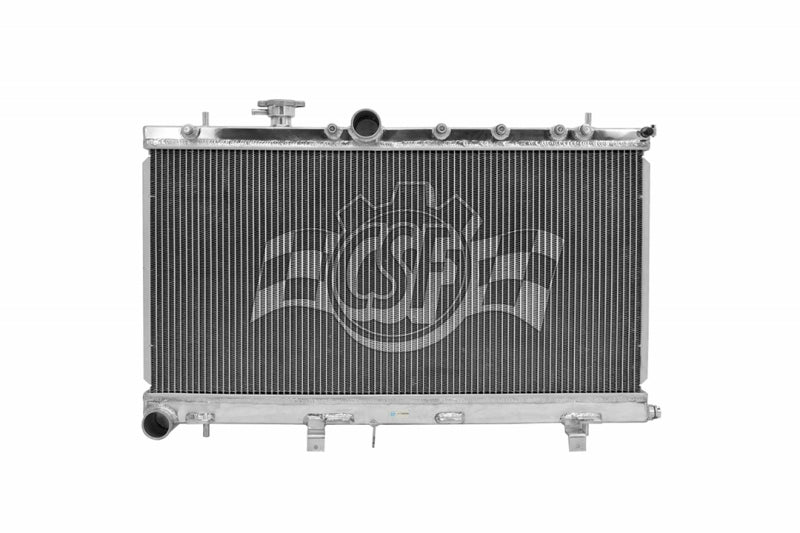

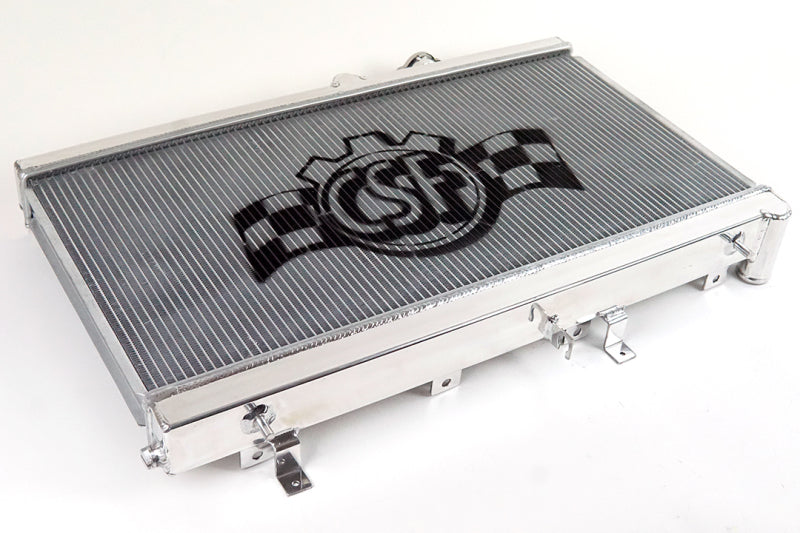

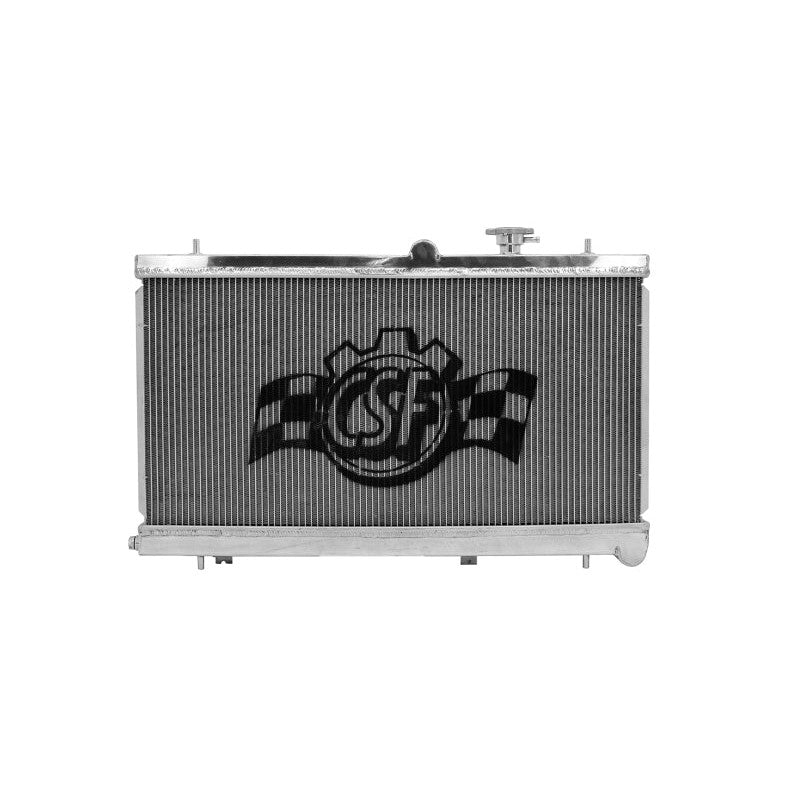

CSF 3076 High-Performance 2-Row All-Aluminum Radiator for 2002-2007 Subaru Impreza WRX/STI & Baja
$415.00
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits 2002-2007 Subaru Impreza WRX and WRX STI, and 2004-2006 Subaru Baja (H4-2.0L / 2.5L Turbo).
The CSF 3076 High-Performance All-Aluminum Radiator is engineered for high-horsepower builds and motorsport environments where factory cooling systems fail. This unit replaces the standard plastic-and-aluminum OE radiator with a robust, TIG-welded aluminum construction. At the core is CSF’s exclusive B-Tube technology; unlike standard O-shaped tubes, these B-tubes are seam-brazed to increase heat transfer surface area by 15% while allowing for thinner, lighter, and more efficient aluminum materials.
This radiator is designed for a true "drop-in fit," utilizing CNC-machined brackets and "Quick-Connect" inlet/outlet connections to ensure compatibility with factory hoses, fan shrouds, and mounting points without modification. The 2-row 42mm core features ultra-efficient 6.5mm multi-louvered fins for maximum airflow and heat rejection, finished with a 1-hour hand polish for a show-quality mirror appearance.

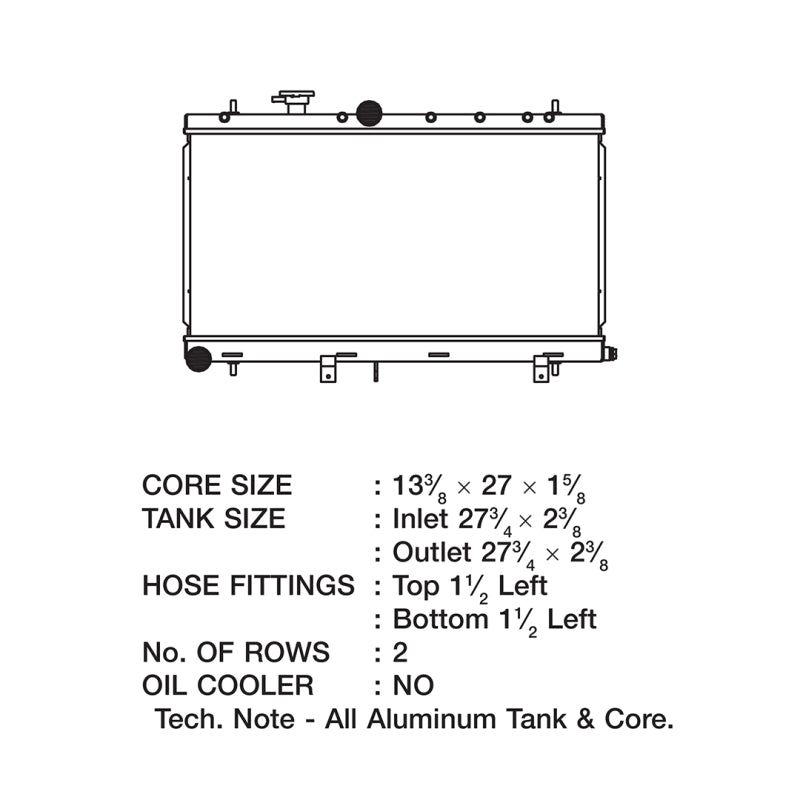

- 2-Row 42mm core featuring CSF exclusive B-Tube technology
- Ultra-efficient 6.5mm multi-louvered fins for maximum heat rejection

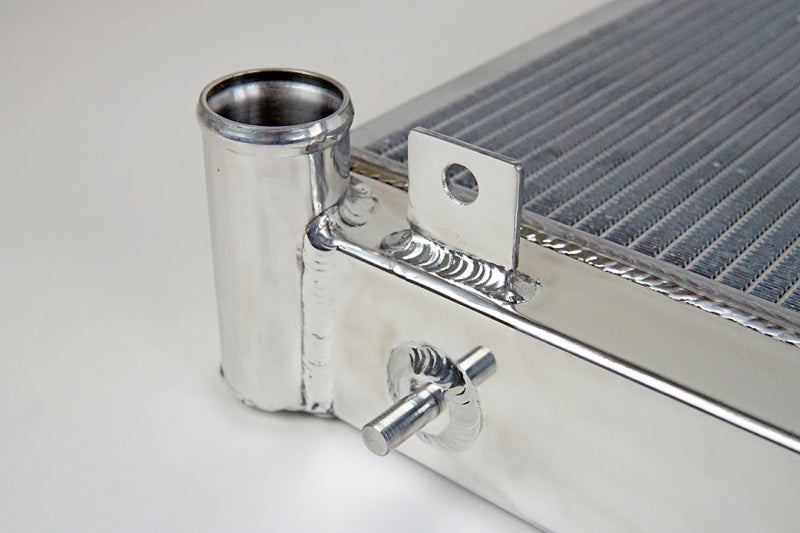

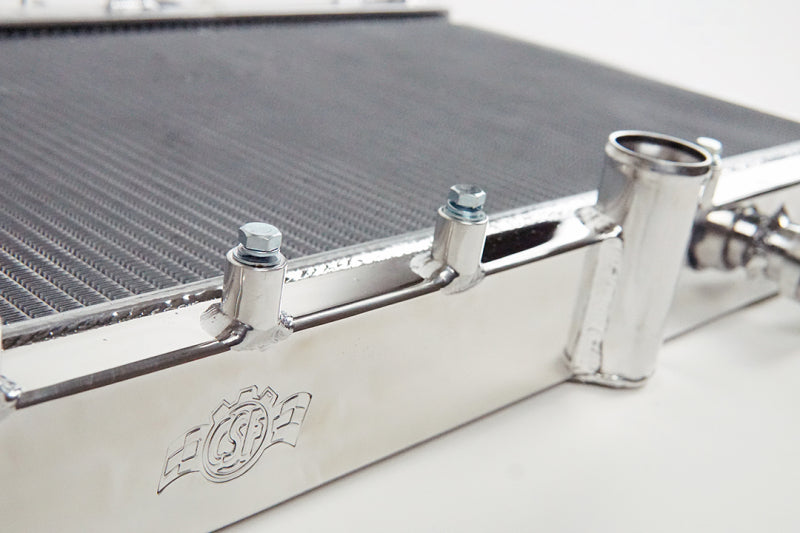

- CNC-machined brackets, fittings, and Quick-Connect connections
- High-strength, lightweight all-aluminum construction
- Includes all-aluminum race-style drain plug
- Hand-polished 1-hour mirror finish
- Manufacturer Part Number: 3076
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2006 | Subaru | Baja | Sport |
| 2004-2006 | Subaru | Baja | Turbo |
| 2002-2007 | Subaru | Impreza | WRX |
| 2004-2007 | Subaru | Impreza | WRX STI |
