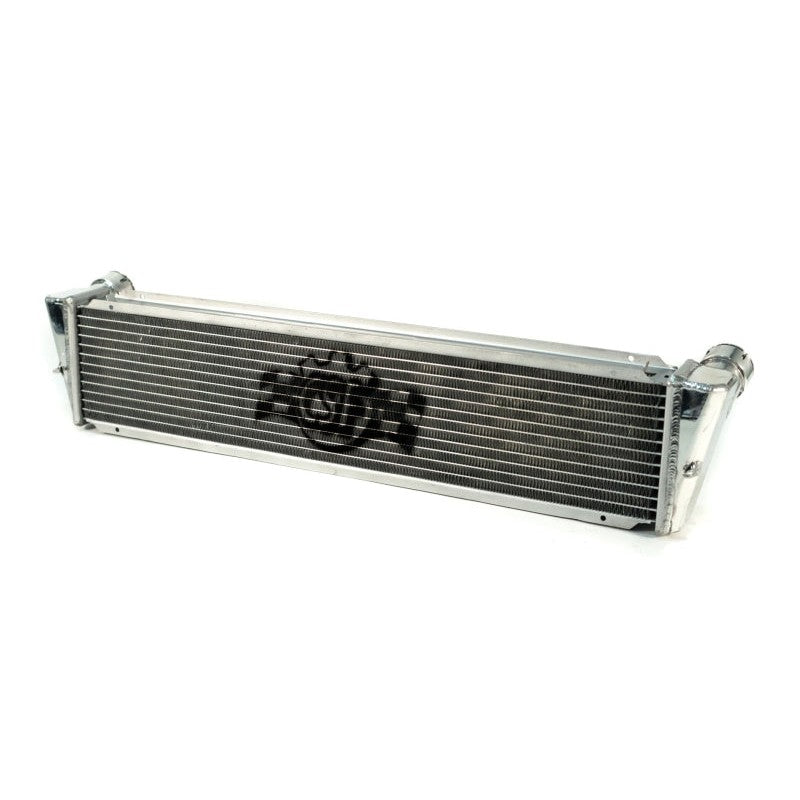

CSF 7049 High-Performance All-Aluminum Center Radiator - Select Porsche 911 / Boxster / Cayman 2005-2012

Fits select 2005-2012 Porsche 911 (Carrera, Targa 4/4S), Boxster (Base, S, Spyder), and Cayman (Base, S, R) models.

The CSF 7049 is a high-performance all-aluminum center radiator designed to replace the standard OE unit with a more efficient, track-capable cooling solution. Built to handle the demands of high-horsepower builds and motorsport environments, this radiator utilizes a 42mm 2-row core featuring CSF’s exclusive B-Tube Technology. Unlike traditional oval tubes, B-tubes are seam-brazed to increase heat transfer surface area by approximately 15%, providing the efficiency of two smaller tubes within the same footprint. This design also allows for a thinner, lighter aluminum construction that maintains superior strength over standard welded tubes.

This radiator is a true plug-and-play, "drop-in" fitment that requires no modifications and accepts the factory AC condenser and fan shroud. Every unit is individually leak and pressure tested to ensure durability under high-pressure cooling system conditions.

• CSF Part Number: 7049
• 42mm 2-Row Core featuring B-Tube Technology (+20% cooling efficiency)
• 6.5mm fin height with multi-louvered design for maximum airflow contact
• 100% TIG-welded all-aluminum construction with smooth satin finish
• CNC machined brackets, fittings, and OEM-style inlet/outlet connections
• Accepts all factory mounting hardware and shrouds
