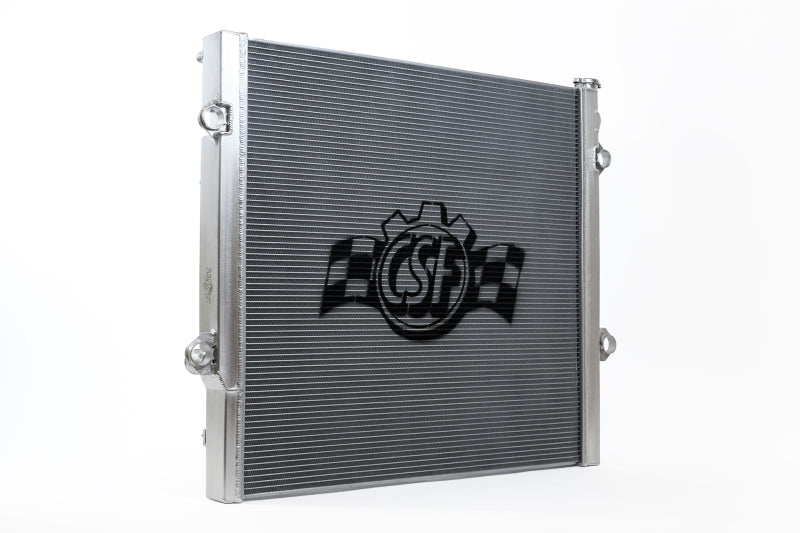

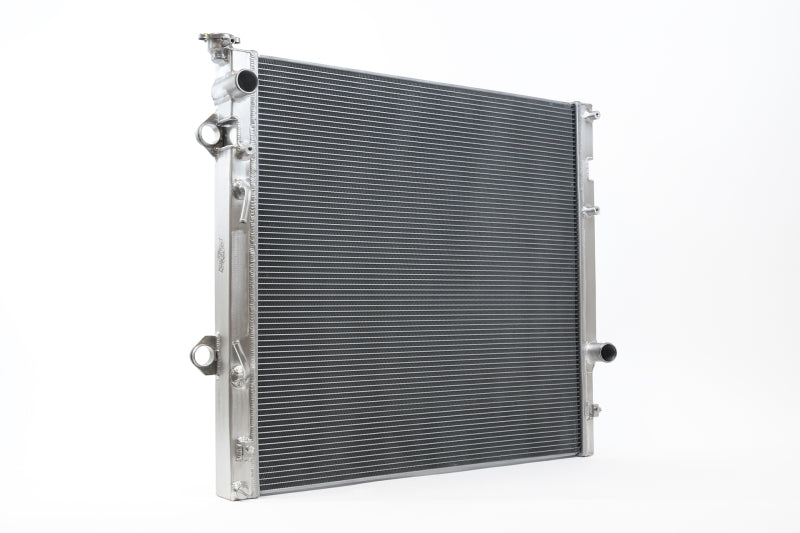

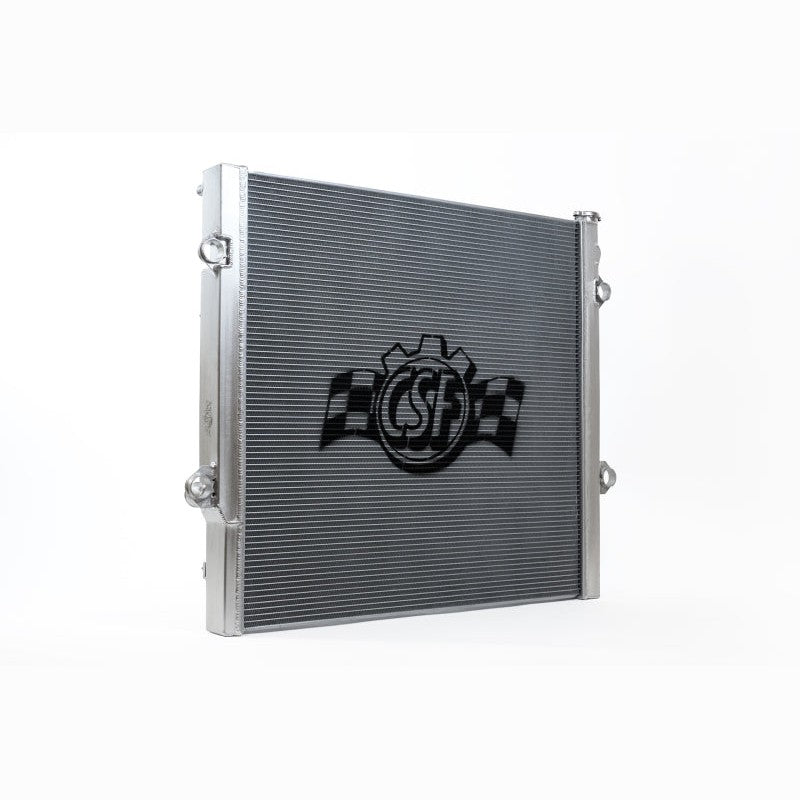

CSF 7214 Heavy Duty 2-Row All-Aluminum Radiator for 2010-2023 Lexus GX460 (42mm Core)

Fits 2010-2023 Lexus GX460 models (Base, Premium, Luxury, and Black Line Edition).

Engineered to replace the failure-prone factory radiator, the CSF 7214 Heavy Duty radiator features 100% all-aluminum TIG-welded construction. This design eliminates the common leak point found at the crimped plastic-to-aluminum joints of OE units. For GX460 owners who tow, use low-gear crawling, or run oversized tires, this radiator provides the thermal overhead required to prevent overheating under high-stress conditions.

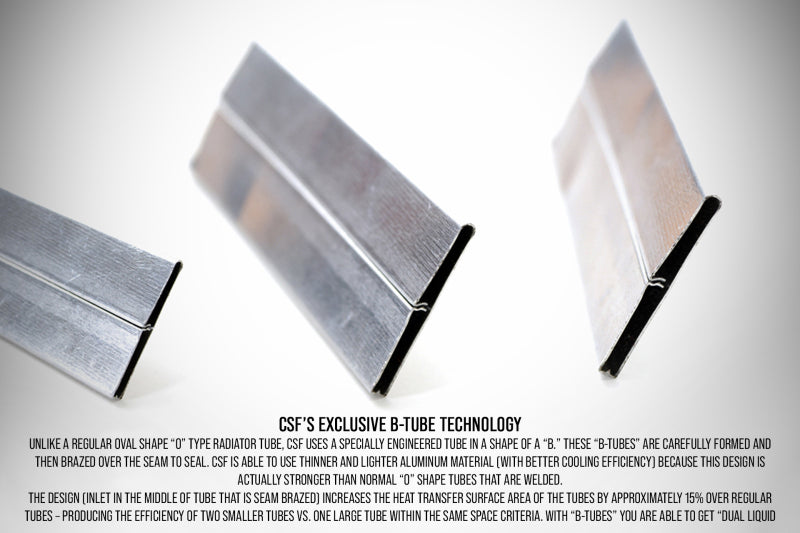

The core utilizes CSF’s exclusive B-Tube Technology, which employs a unique seam-welded tube design to increase heat dissipation surface area by approximately 15% over standard oval tubes. It also includes an integrated high-performance 5-plate transmission oil cooler in the left-side tank, connecting directly to factory hoses to keep ATF temperatures stable during heavy-duty use.

• MPN: 7214
• Core Construction: 42mm 2-Row Ultra-High-Performance Core
• Cooling Technology: CSF Exclusive B-Tube Technology

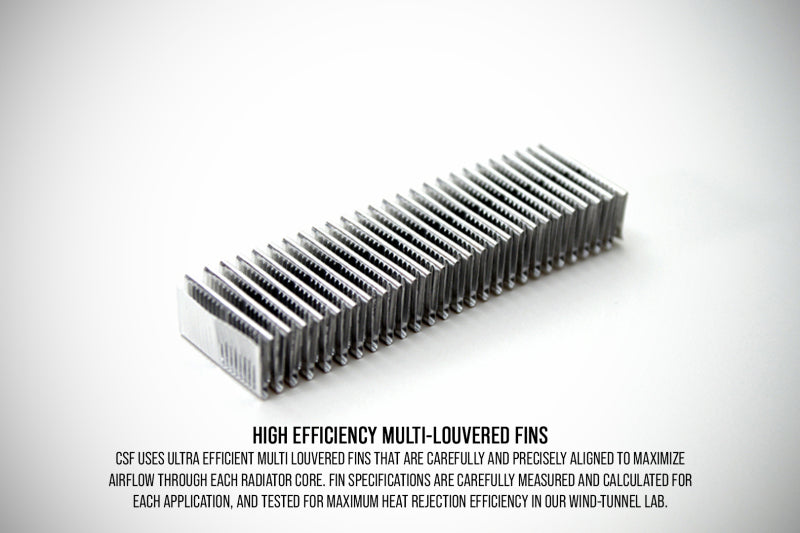

• Fin Design: 6.5mm tall ultra-efficient multi-louvered fins
• Transmission Cooler: Built-in heavy-duty 5-plate oil cooler

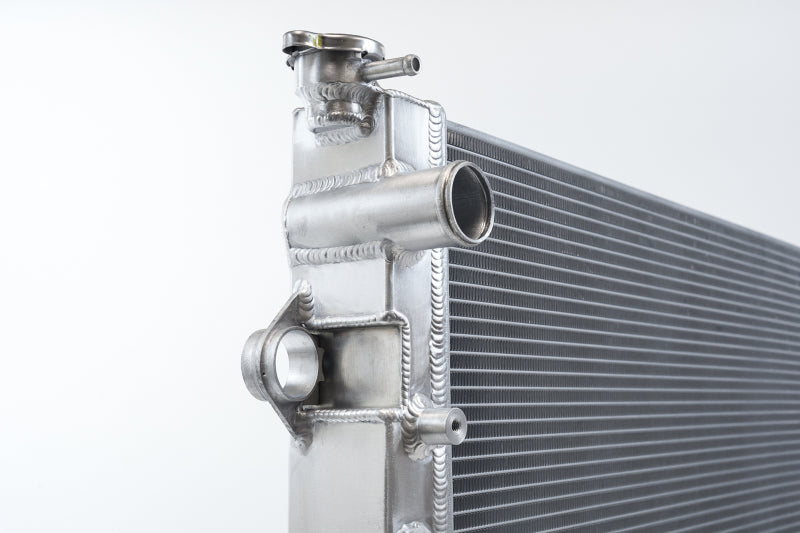

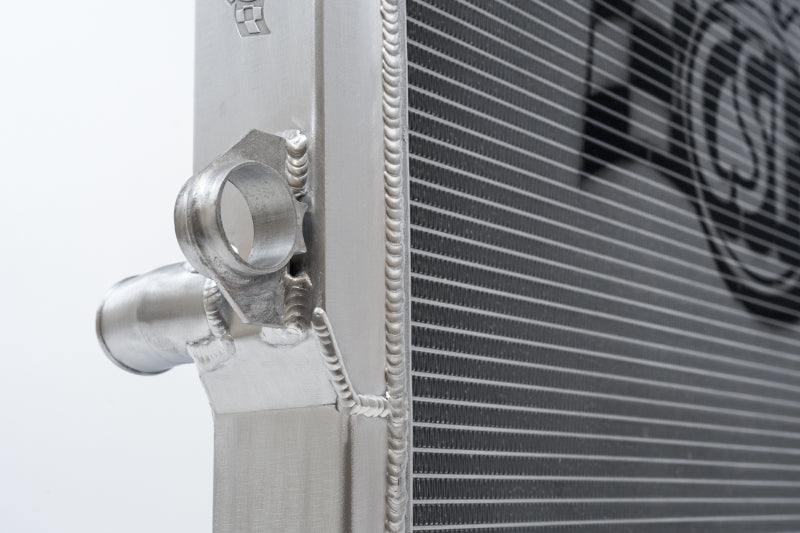

• Manufacturing: 100% TIG-welded aluminum with CNC machined brackets and fittings
• Installation: True plug-and-play "drop-in" fit with no modifications required
• Finish: Smooth satin aluminum
• Testing: Individually leak and pressure tested
• Included: Pre-cut double-sided adhesive foam strips for fan shroud sealing
