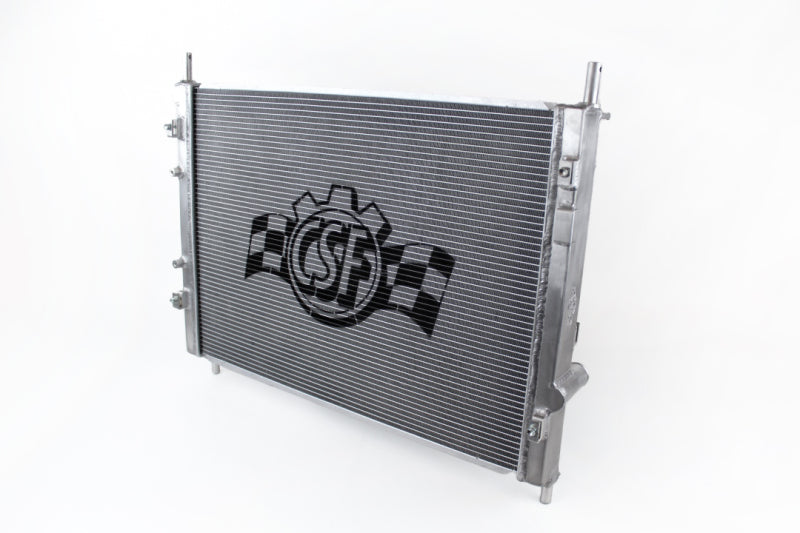

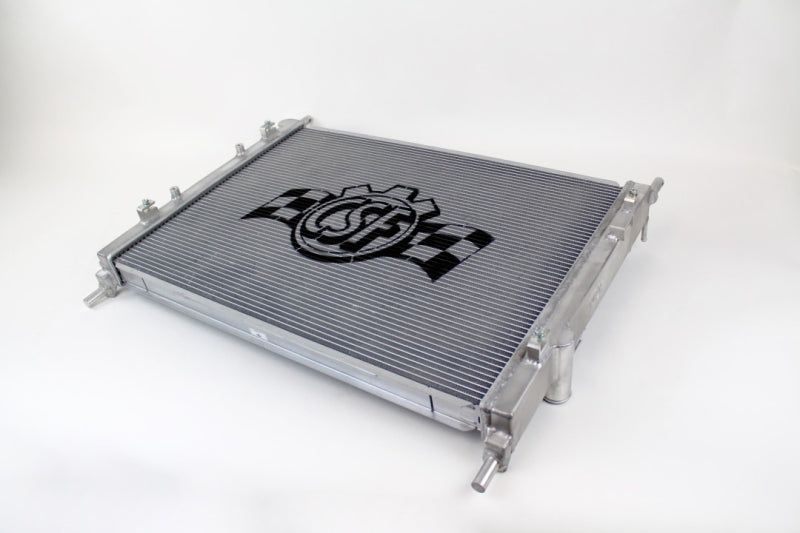

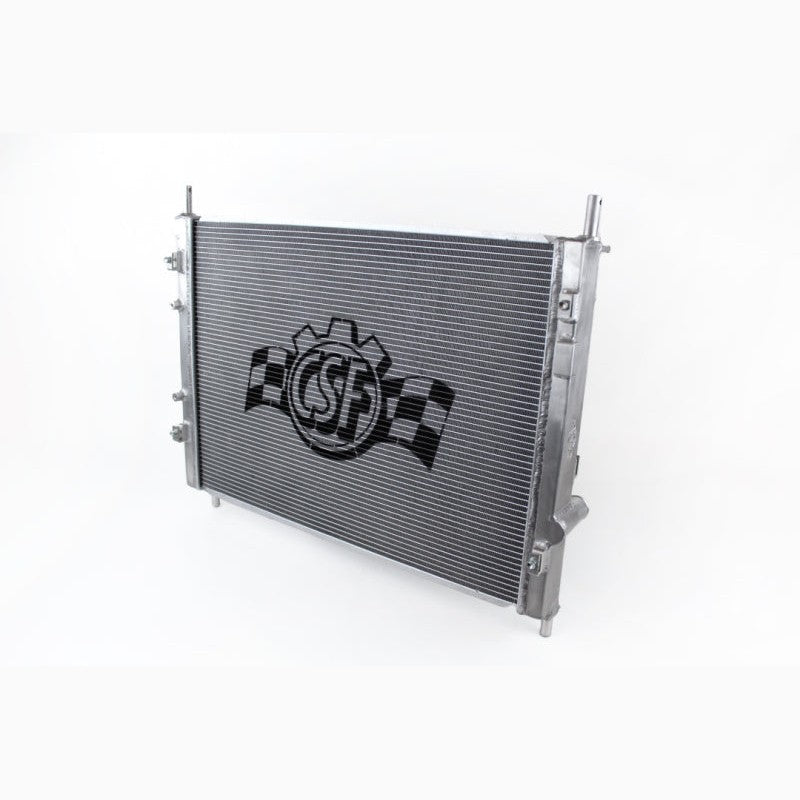

CSF 7073 High-Performance 2-Row All-Aluminum Radiator for 2015-2021 Ford Mustang (5.0L)

Fits 2015-2021 Ford Mustang GT, Bullitt, Shelby GT350, and V6.

Keep your engine operating at peak efficiency with the CSF 7073 High-Performance All-Aluminum Radiator. Engineered for both street performance and competitive motorsports, this radiator solves cooling overhead issues for high-horsepower builds and track-driven vehicles. It features a heavy-duty 42mm 2-row core that utilizes CSF's exclusive B-Tube technology.

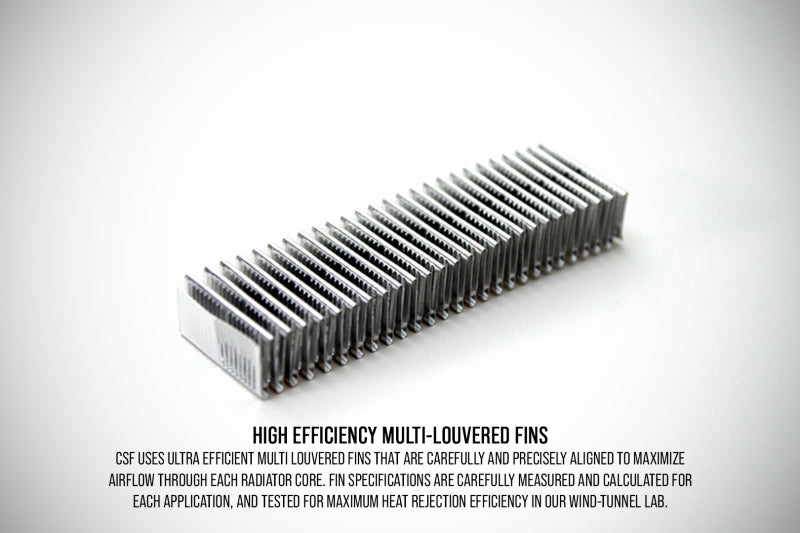

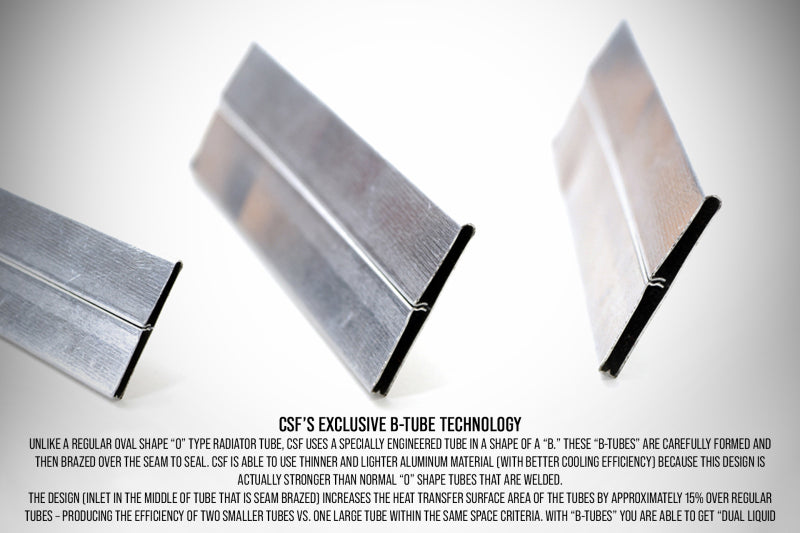

Unlike standard oval "O" type tubes, CSF B-Tubes are meticulously formed and brazed over a center seam, increasing the heat transfer surface area by approximately 15%. This design creates a "dual liquid laminar flow" effect, delivering the efficiency of two smaller tubes within the same space. Combined with ultra-efficient 6.5mm multi-louvered fins, this unit maximizes airflow and heat rejection to keep coolant temperatures stable under load.

• Direct Drop-in Fit: Requires no modifications; accepts all OEM components including quick-connect hoses, AC condenser, mounting brackets, and fan shroud.
• B-Tube Technology: Stronger and lighter than conventional welded tubes, offering superior cooling efficiency.
• Precision Engineering: Features CNC-machined brackets, fittings, and quick-connect inlet/outlet connections for a perfect factory-style seal.
• Durable Construction: Includes an all-aluminum race-style drain plug and a smooth satin finish.

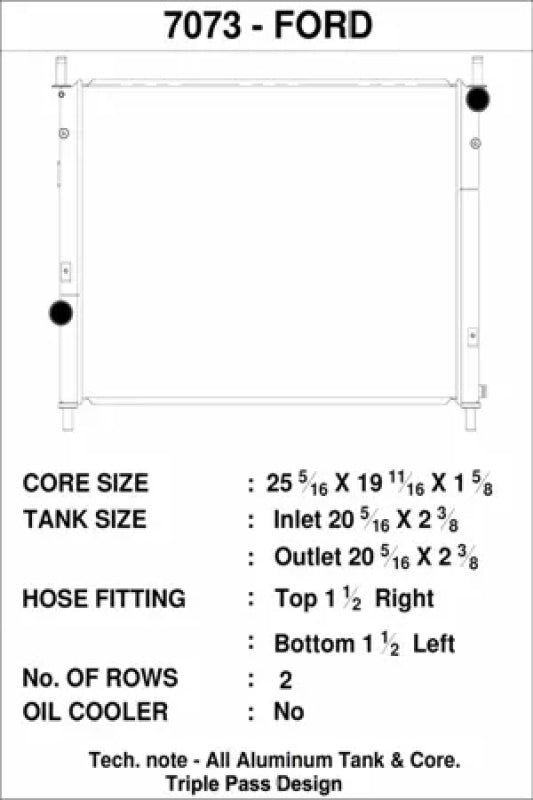

Product Specifications:

• Manufacturer Part Number: 7073
• Core Construction: 2-Row, 42mm Dual Core
• Fin Design: 6.5mm Multi-Louvered
• Material: High-Grade Aluminum
