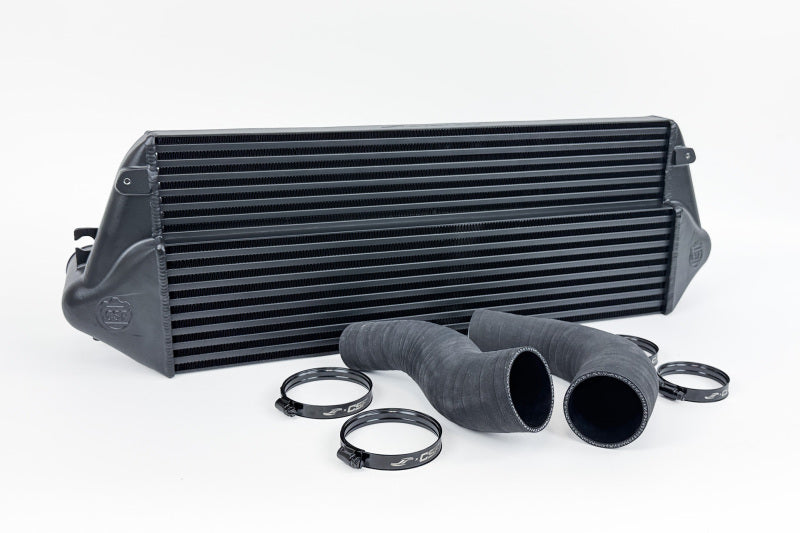

CSF High Performance Stepped Core Intercooler System for 2023-2025 Toyota GR Corolla - Black (8285B)

Fits 2023-2025 Toyota GR Corolla (Core, Circuit Edition, Morizo Edition, Premium, and Premium Plus).

The CSF High Performance Stepped Core Intercooler System (8285B) is engineered to solve the heat soak issues common in high-performance applications. During real-world testing conducted by MotoIQ, this intercooler reduced charge air temperatures by more than 240°F—a 90°F improvement over the factory system. This allows the G16E-GTS engine to maintain intake air temperatures (IATs) just a few degrees over ambient, significantly delaying the onset of heat soak compared to the OEM unit.

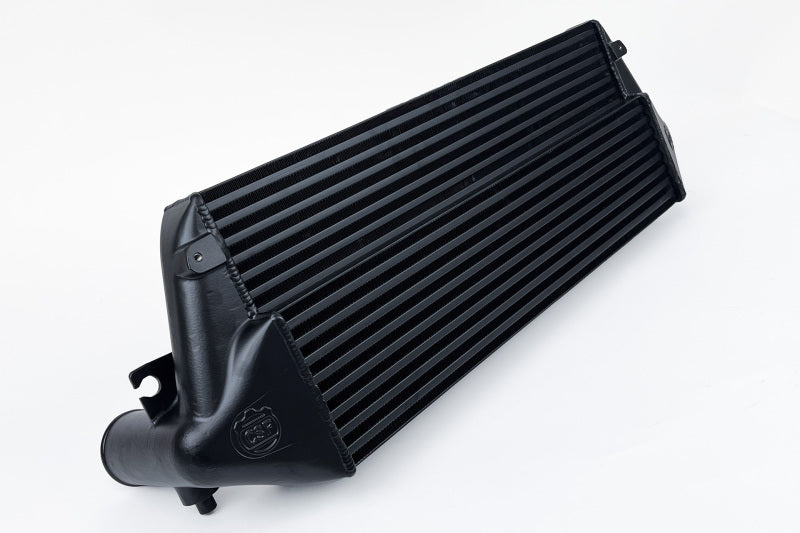

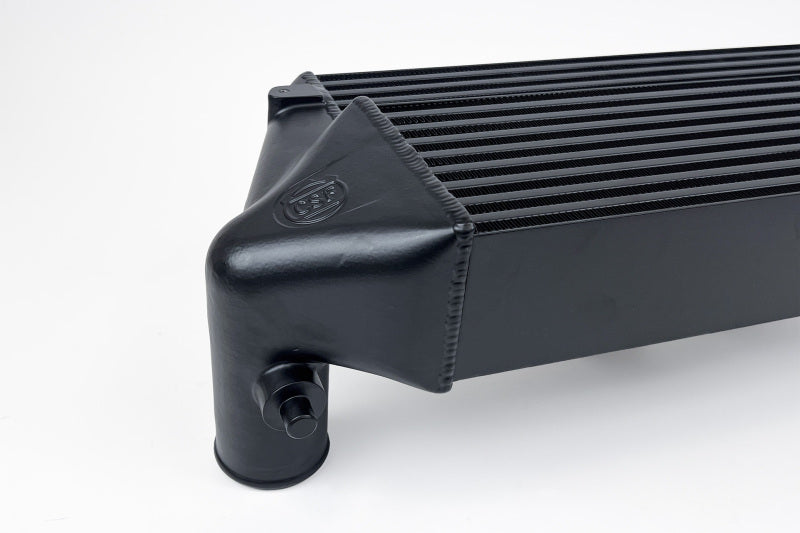

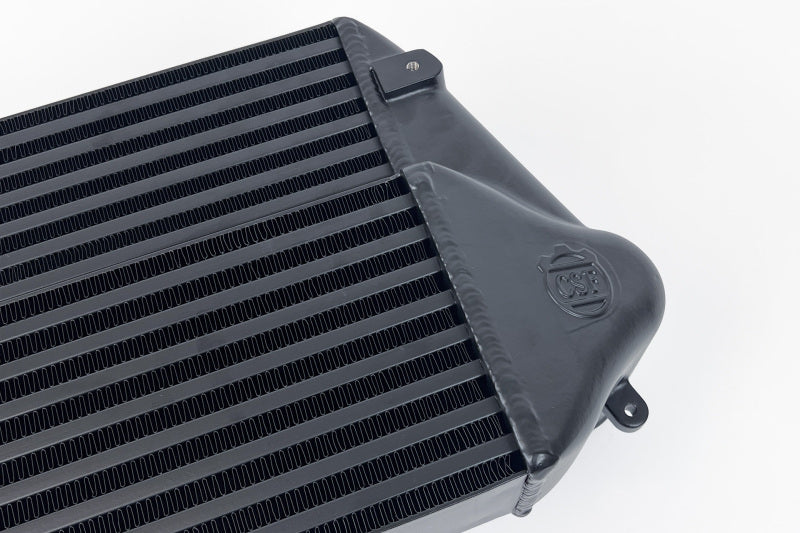

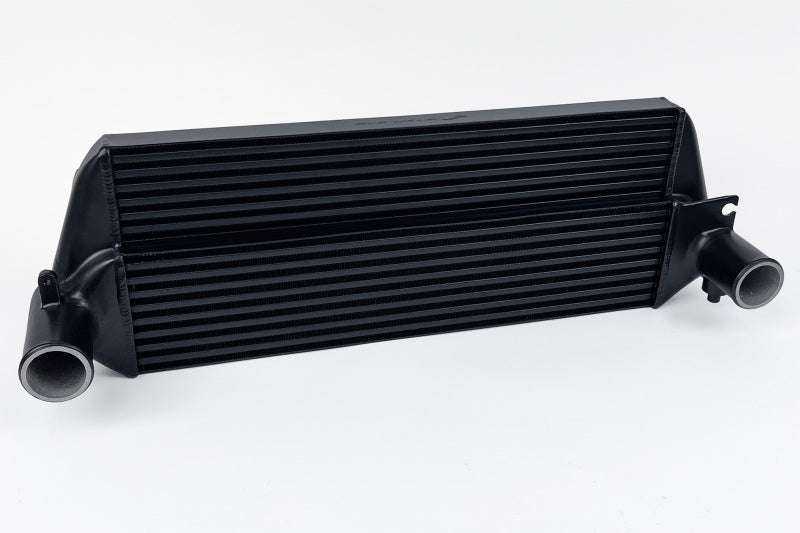

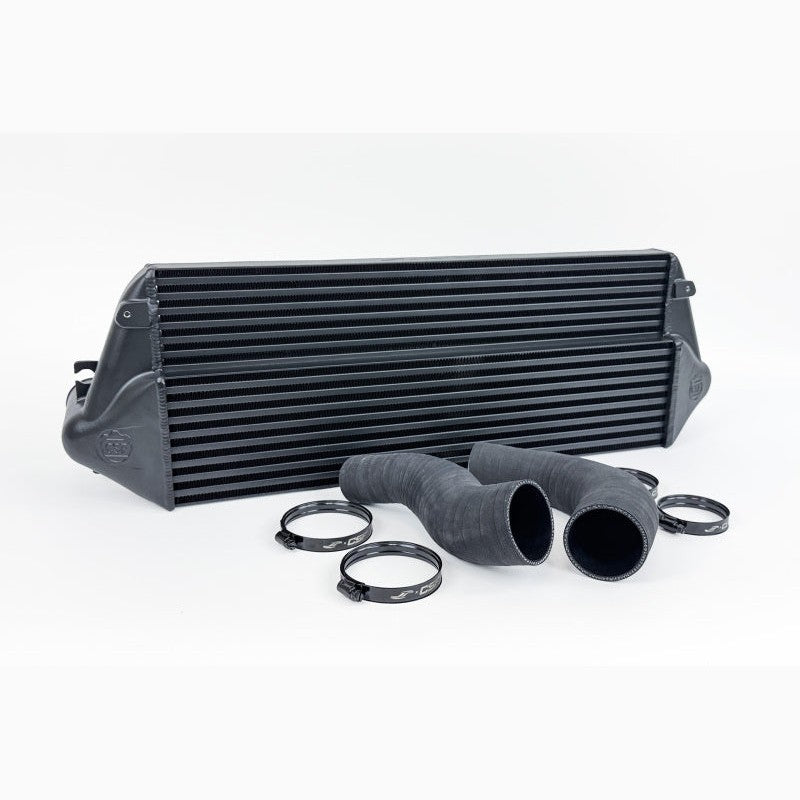

Constructed with 100% TIG-welded end tanks, this unit replaces the factory crimped plastic tanks to ensure maximum strength and durability under high boost. The high-performance tube and fin stepped core design maximizes surface area contact and internal airflow volume. This kit also upgrades the factory plumbing with larger 2.5-inch (63.5mm) inlet and outlet connections using included motorsport-grade hoses and clamps.

• High-performance tube and fin stepped core for maximum surface area and airflow
• 100% TIG-welded construction for superior durability over OEM plastic components

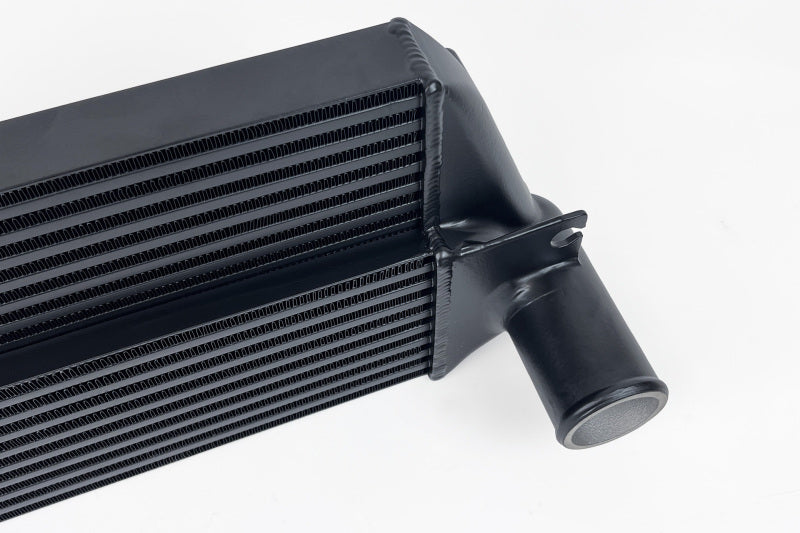

• Larger 2.5-inch (63.5mm) inlet and outlet connections for improved flow
• Drop-in fit design (requires minor trimming of OE air ducting)
• Individually leak and pressure tested

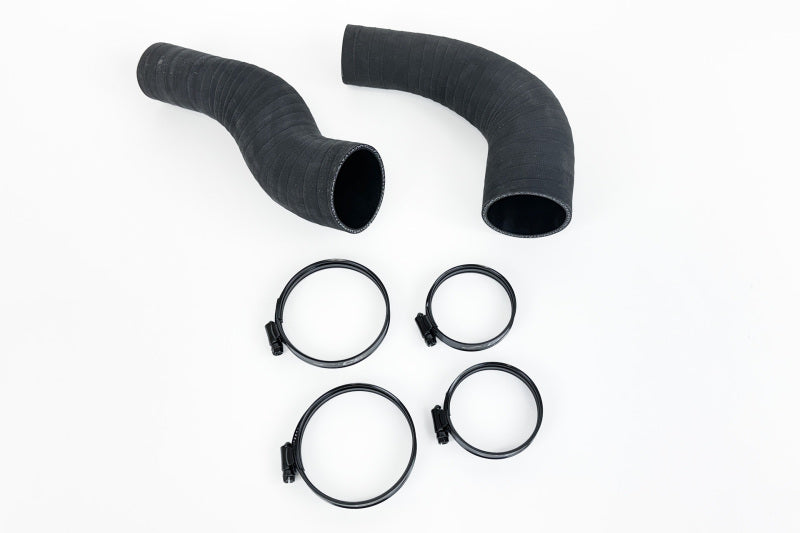

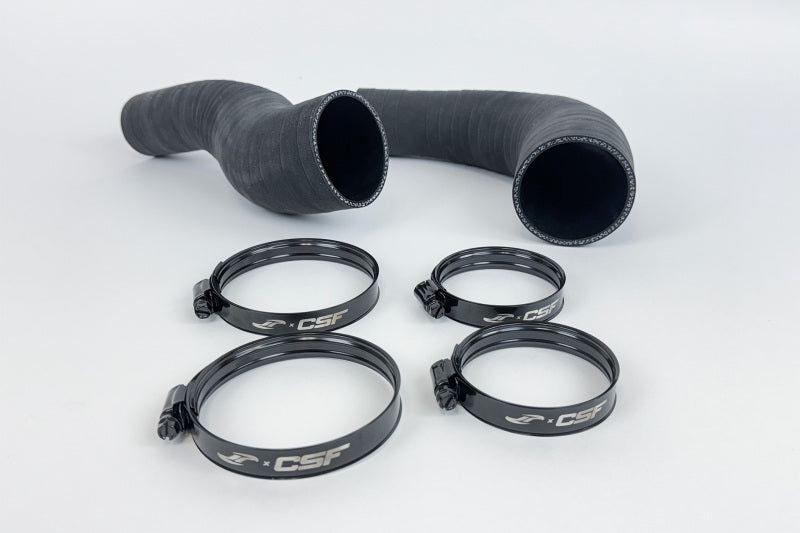

• Includes motorsport-grade silicone hoses and clamps
• Finished in a durable black coating
• Manufacturer Part Number: 8285B
• 2-Year Limited Warranty
