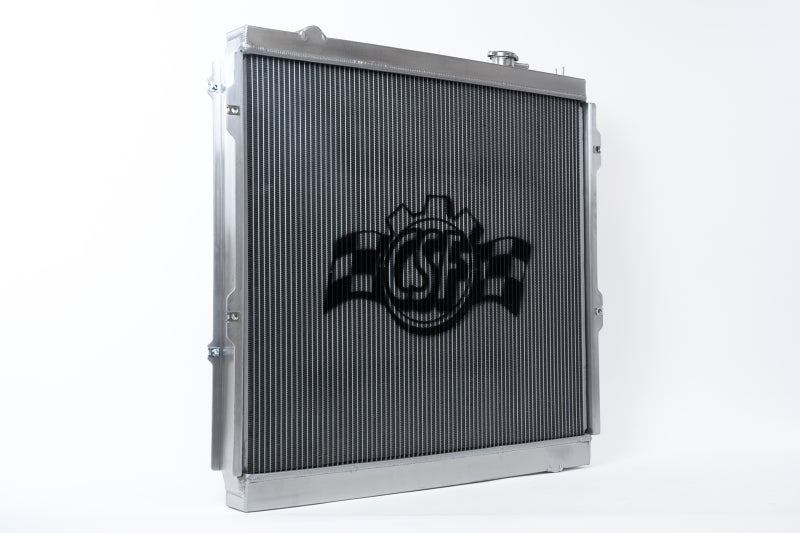

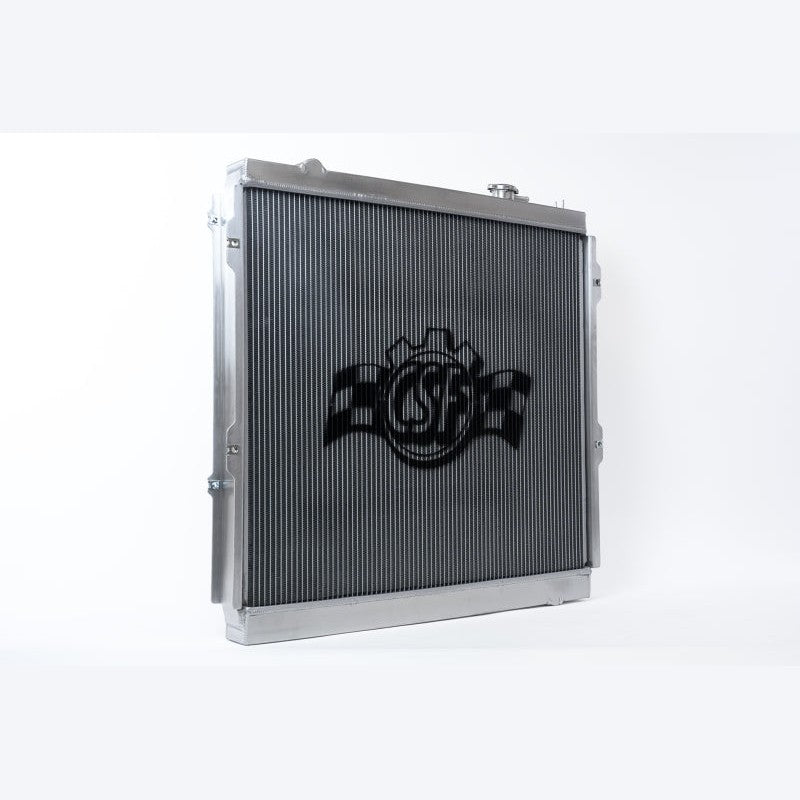

CSF 7212 Heavy Duty 2-Row 42mm All-Aluminum Radiator for 1995-2004 Toyota Tacoma (3.4L)

Fits 1995-2004 Toyota Tacoma Base, DLX, Limited, Pre Runner, and SR5 (3.4L).

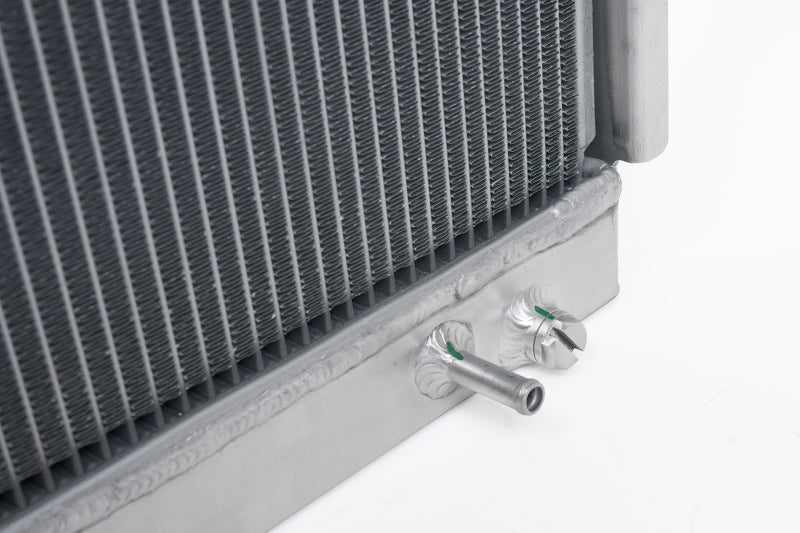

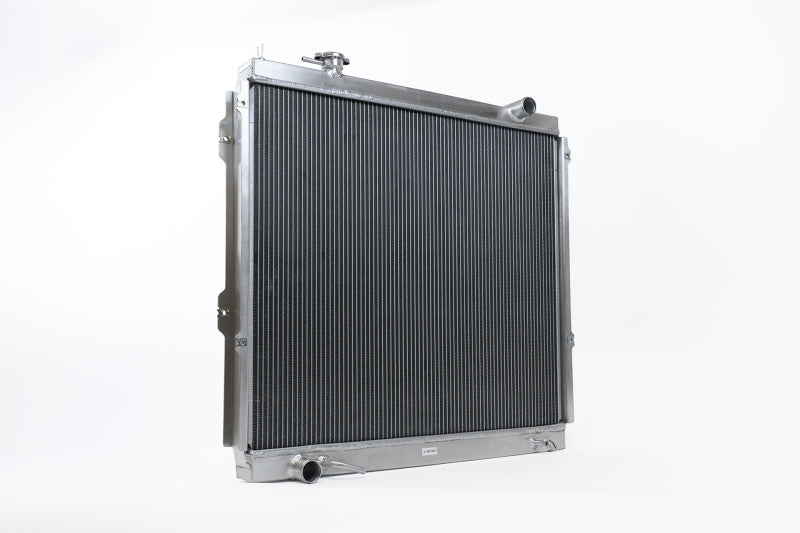

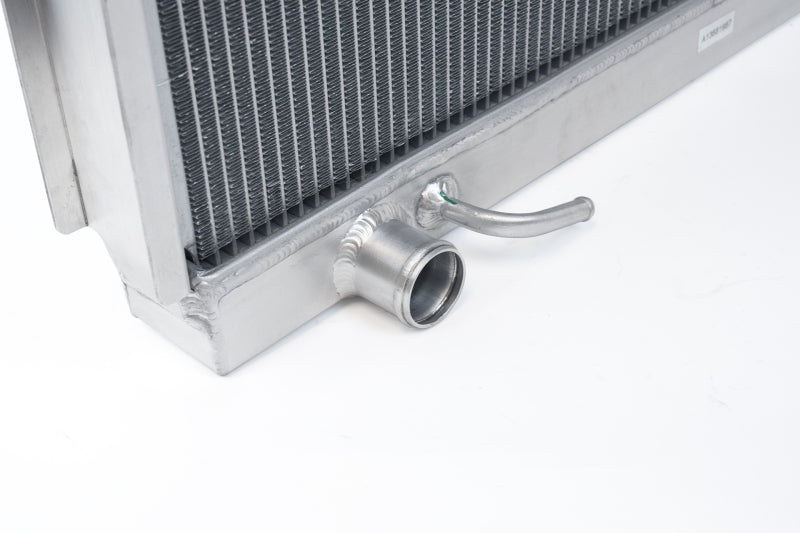

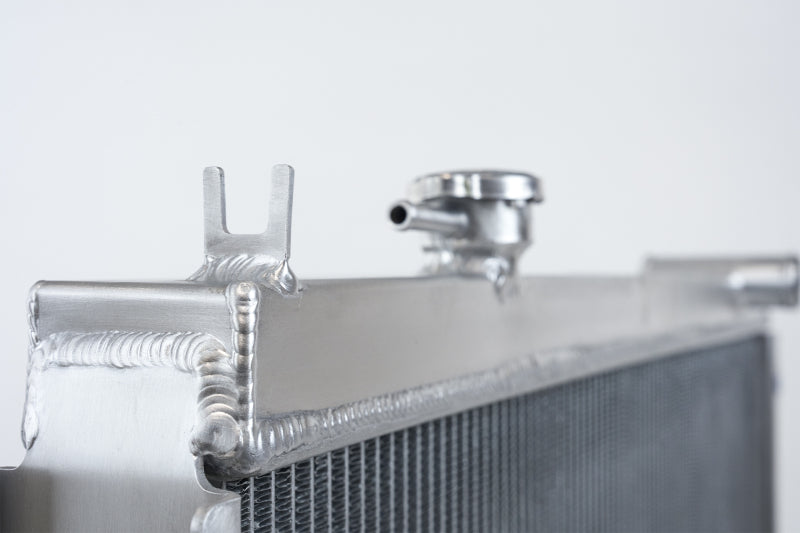

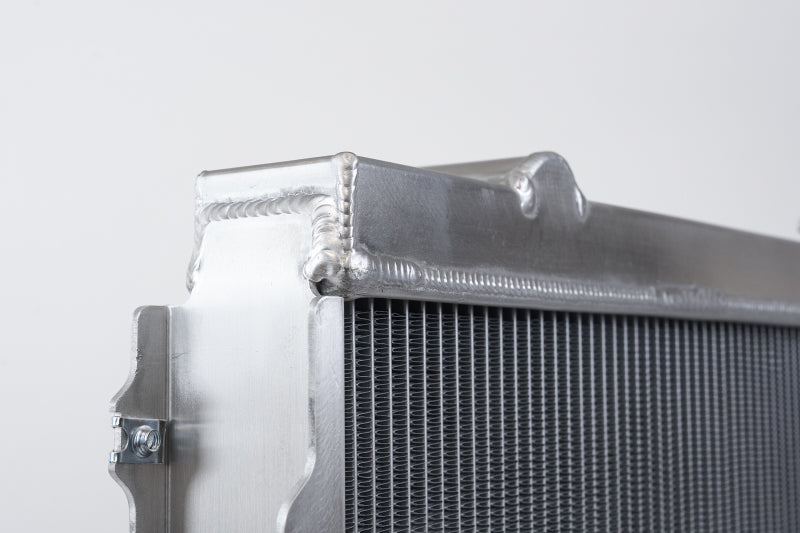

The CSF 7212 Heavy Duty All-Aluminum Radiator is a high-performance cooling solution engineered for the rigors of towing, off-roading, and oversized tires. Featuring a massive 42mm 2-row core, this radiator significantly increases fluid capacity and heat dissipation over the factory unit. Unlike OEM radiators that use plastic end tanks crimped to an aluminum core, the CSF 7212 is 100% TIG-welded aluminum, eliminating common failure points at the tank-to-core seams.

This radiator utilizes CSF’s exclusive B-Tube technology, which employs a unique tube shape that increases the surface area for heat transfer by approximately 15% compared to standard oval tubes. The core also features 6.5mm tall multi-louvered fins to maximize airflow efficiency. For models with automatic transmissions, the bottom tank houses a heavy-duty 5-plate transmission oil cooler designed to handle the extra stress of low-gear crawling and heavy loads. This is a true plug-and-play installation that requires no cutting or trimming, utilizing CNC-machined brackets for a perfect drop-in fit.

• 2-Row 42mm ultra-high-performance core
• CSF exclusive B-Tube technology for 15% improved heat dissipation
• Integrated heavy-duty 5-plate transmission oil cooler
• 100% TIG-welded all-aluminum construction
• 6.5mm tall ultra-efficient multi-louvered fins
• CNC-machined mounting brackets and OEM-style inlet/outlet
• Individually leak and pressure tested
• Satin finish with 2-year limited warranty
• Manufacturer Part Number: 7212
