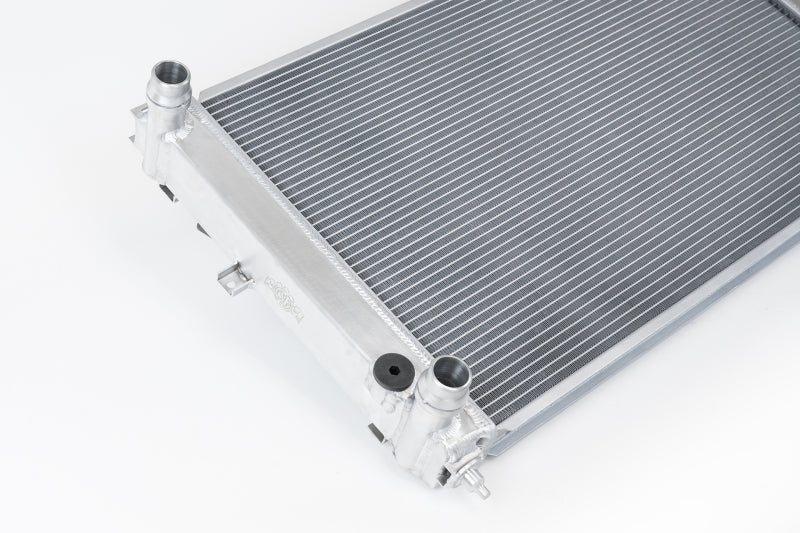

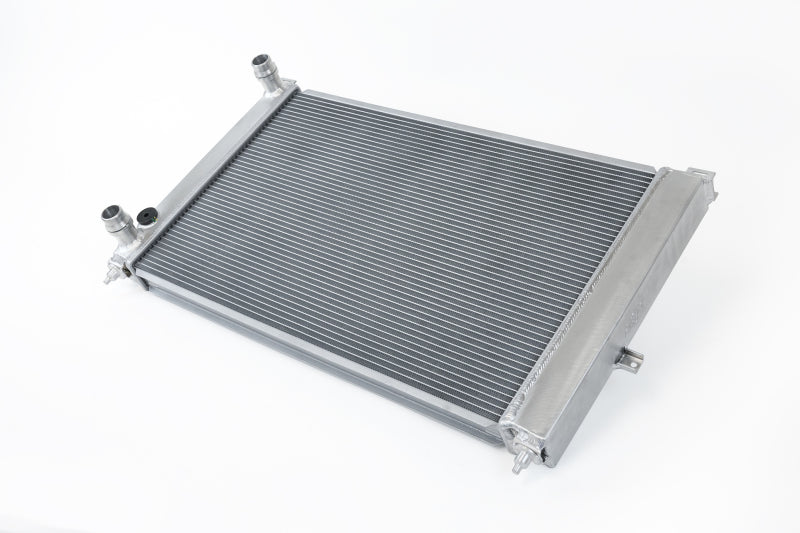

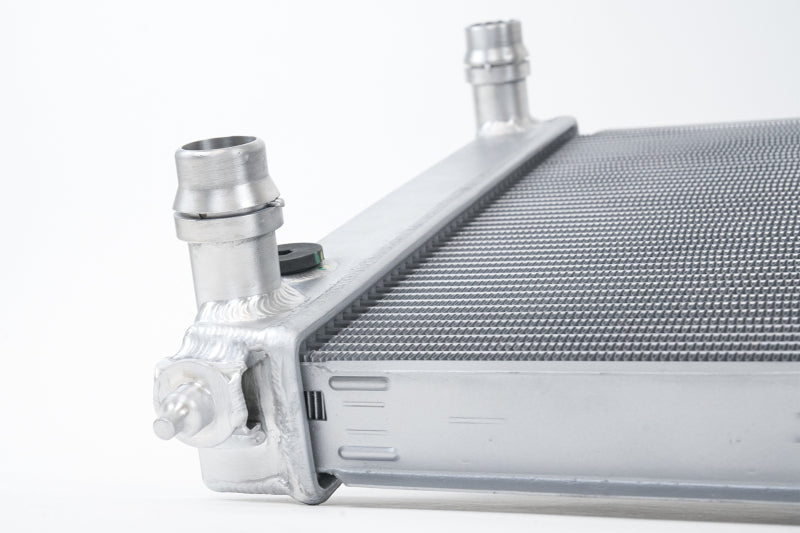

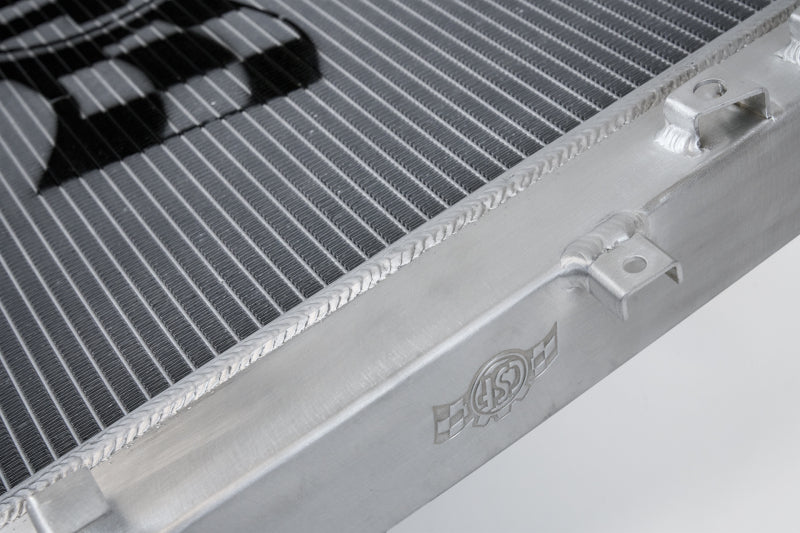

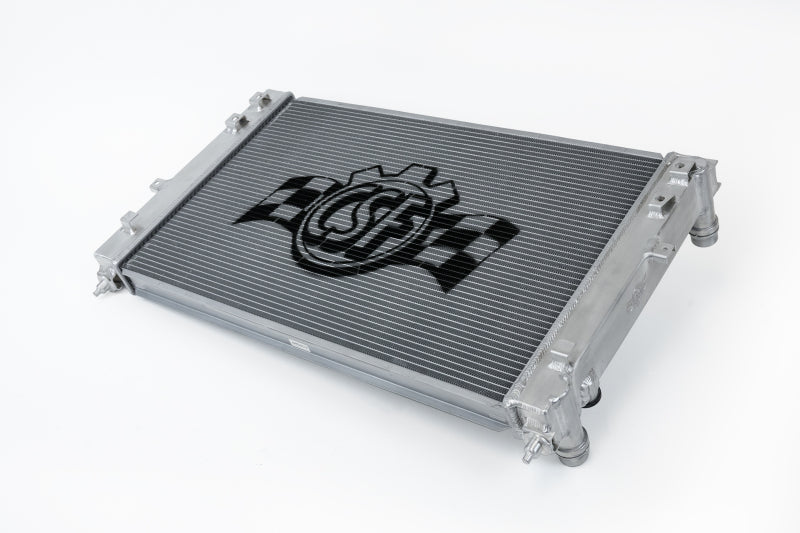

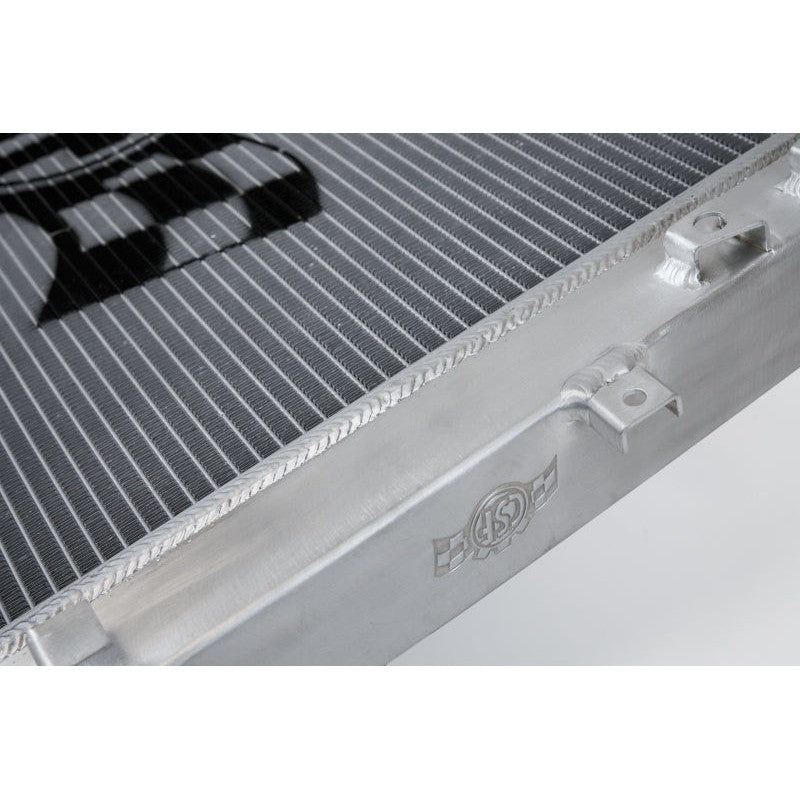

CSF 7204 High Performance 2-Row All Aluminum Radiator for 1997-2001 Audi A4 & VW Passat (1.8T)
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits select 1997-2001 Audi A4, A4 Quattro, and Volkswagen Passat GLS models equipped with the 1.8T engine and manual transmission.
The CSF 7204 High-Performance Aluminum Radiator is engineered for high-horsepower builds and motorsport applications where stock cooling systems fail. This radiator utilizes CSF's exclusive B-Tube technology, which employs a seam-brazed "B" shape rather than a standard welded "O" type tube. This design allows for thinner, lighter aluminum that offers superior strength and a 15% increase in heat transfer surface area, effectively providing the efficiency of two smaller tubes within a single 42mm dual-pass core.
To complement the high-flow tubes, CSF uses 6.5mm tall ultra-efficient multi-louvered fins, precisely aligned for maximum airflow and heat rejection. Each unit features a true drop-in fit design with CNC-machined mounting brackets and OEM-style inlets and outlets, ensuring a hassle-free installation without vehicle modifications.
- CSF Part Number: 7204
- 42mm 2-Row Dual-Pass Ultra-High-Performance Core
- 45 cooling tubes featuring exclusive B-Tube technology
- 6.5mm tall multi-louvered fins for maximum surface area
- 100% all-aluminum TIG-welded construction
- CNC-machined mounting brackets and OEM style inlet/outlet
- Smooth satin finish
- Individually leak and pressure tested
- Designed for Manual Transmission only
- Includes 2-year limited warranty
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Audi | A4 | Base |
| 1999-2001 | Audi | A4 Quattro | Avant |
| 1997-2001 | Audi | A4 Quattro | Base |
| 1998-2001 | Volkswagen | Passat | GLS |
