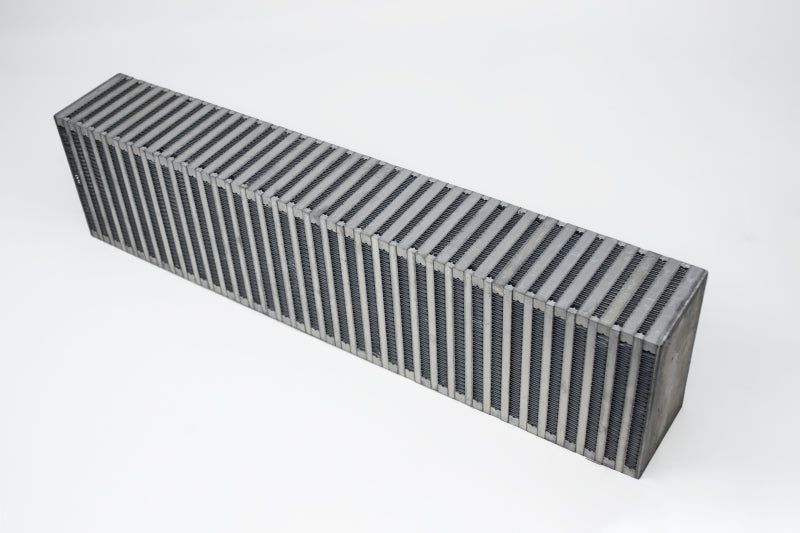

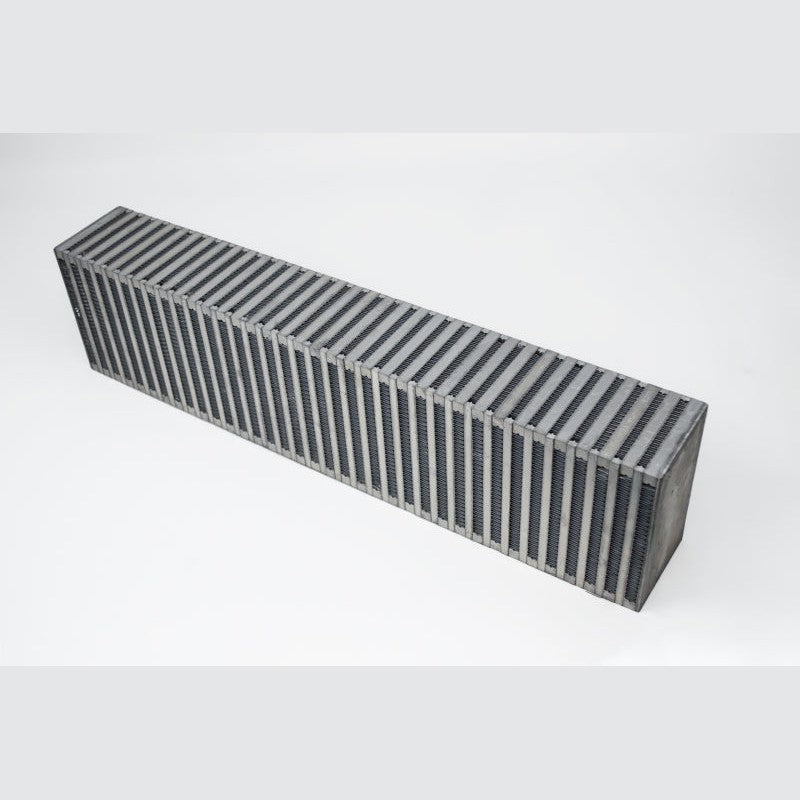

CSF 8053 High Performance Bar & Plate Intercooler Core, Vertical Flow - 24in x 6in x 3.5in (800 WHP)

Engineered for custom high-performance induction systems, the CSF 8053 High Performance Bar & Plate Intercooler Core provides the thermal efficiency and structural integrity required for high-boost applications. This vertical flow core is rated to support up to 800 WHP, making it a premier choice for professional tuners and fabricators building bespoke cooling solutions.

Each CSF core is hand-built in a clean-room environment using precise jigs and fixtures to ensure a perfectly square profile for trouble-free welding. To guarantee reliability under extreme manifold pressures, every unit is batch-brazed in state-of-the-art digital vacuum ovens and individually pressure tested at 120 psi. The internal and external surfaces utilize a multi-louvered, high-precision staggered fin design, maximizing surface area for superior heat dissipation without sacrificing airflow.

• Manufacturer Part Number: 8053
• Core Type: Heavy-Duty Bar & Plate
• Flow Direction: Vertical Flow
• Horsepower Rating: 800 WHP
• Dimensions: 24" L x 6" H x 3.5" W (610mm x 150mm x 90mm)
• Construction: Hand-built using clean-room brazing techniques
• Testing: Individual pressure testing up to 120 psi

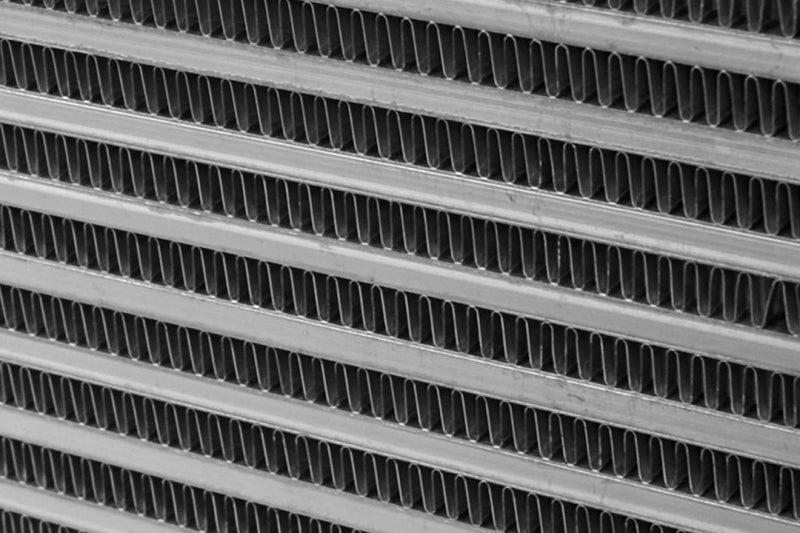

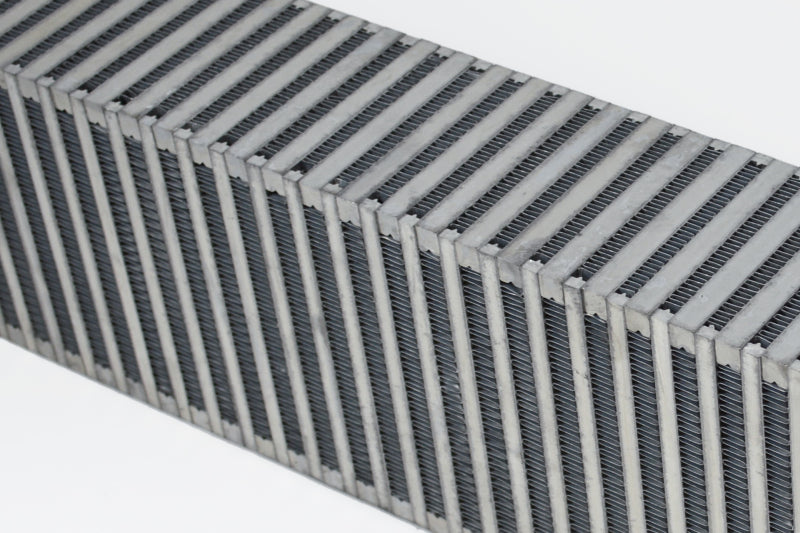

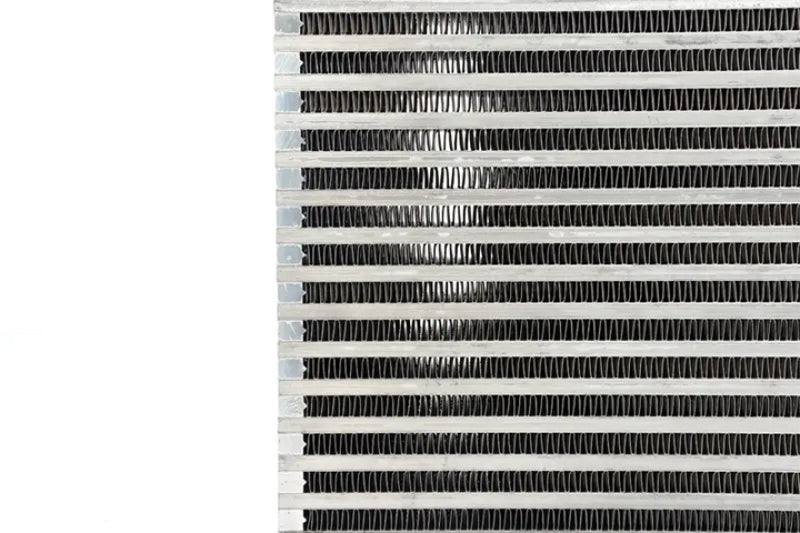

• Design: Multi-louvered high-precision staggered fins for maximum heat transfer
