Eibach PRO-TRUCK-LIFT Stage 2 Coilover System for 2025-2026 Ram 1500 (3.0L) (0-2.5in Front / 0.3-1.0in Rear)

Fits the 2025-2026 Ram 1500 4WD (3.0L) including Big Horn, Express, Laramie, Limited, Limited Longhorn, Lone Star, Special Service, Tradesman, Tradesman HFE, Tungsten, and Warlock trims.

The Eibach PRO-TRUCK-LIFT Stage 2 Coilover System is a complete suspension overhaul engineered to handle the specific weight distribution and output of the 3.0L Twin-Turbo Hurricane engine. This system replaces the factory front struts with height-adjustable 2.0-inch coilovers and upgrades the rear with nitrogen-filled monotube shocks paired with progressive-rate springs. The front coilovers come pre-assembled and are set out-of-the-box to sit level with the factory rear height, though the threaded bodies allow for precision tuning of the front stance.

Ride Height Specifications:

• REBEL Crew Cab 3.0L 4WD: 0-2.0in Front / 0.3in Rear
• Crew Cab 3.0L 4WD (Big Horn, Laramie, Limited, Tradesman, etc.): 0-2.5in Front / 1.0in Rear
• WARLOCK Crew Cab 4WD: 0-2.5in Front / 1.0in Rear

Technical Specifications:

• Manufacturer Part Number: E86-27-011-05-22
• Shock Design: 46mm high-pressure monotube dampers
• Valving: Nitrogen-filled Variable Force Valving (VFV) with a digressive stack and linear shims
• Front Springs: Cold-wound ERO (Eibach Racing Off-road) springs
• Rear Springs: PRO-LIFT-KIT progressive-rate coils
• Top Mounts: CNC-machined 6061-T6 billet aluminum (anodized finish)
• Piston Rods: 5/8-inch hardened, nitrocarburized steel
• Shock Bodies: Zinc-plated steel with a clear-coat finish for corrosion resistance
• Bushings: Heavy-duty, cycle-tested elastomer system
• Manufacturing: Engineered, tested, and manufactured in the USA
• Warranty: 2-Year Manufacturer Warranty

Installation & Recommendations:

This system is a direct bolt-on replacement. Installers must retain and reuse the original equipment (OE) lower mounting brackets for the front coilovers and the factory rear spring isolators. If your vehicle has over 50,000 miles, Eibach recommends installing new isolators. To prevent premature bushing wear, only perform the final tightening of suspension pivot bolts when the vehicle is at its final ride height on the ground. A professional four-wheel alignment is mandatory immediately after installation. For those running the maximum lift height (2.0"+), aftermarket Upper Control Arms (UCAs) are recommended to maintain optimal ball joint angles and caster alignment. This kit supports up to 35-inch tires when used with wheels featuring +12mm to +18mm offsets.

Installation Tools Required: 10mm, 12mm, 17mm, 19mm, 22mm, and 24mm sockets/wrenches; 21mm socket; torque wrench; pry bar; pull strap; and two hammers to release ball joint tapers.

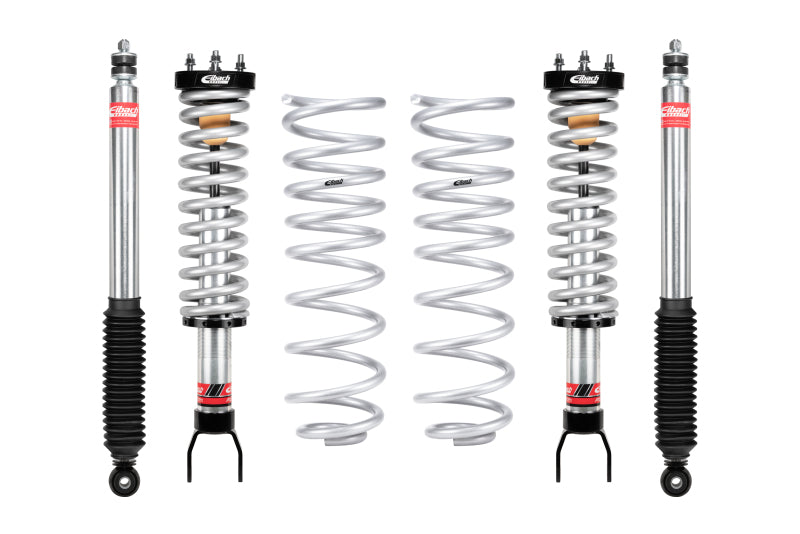

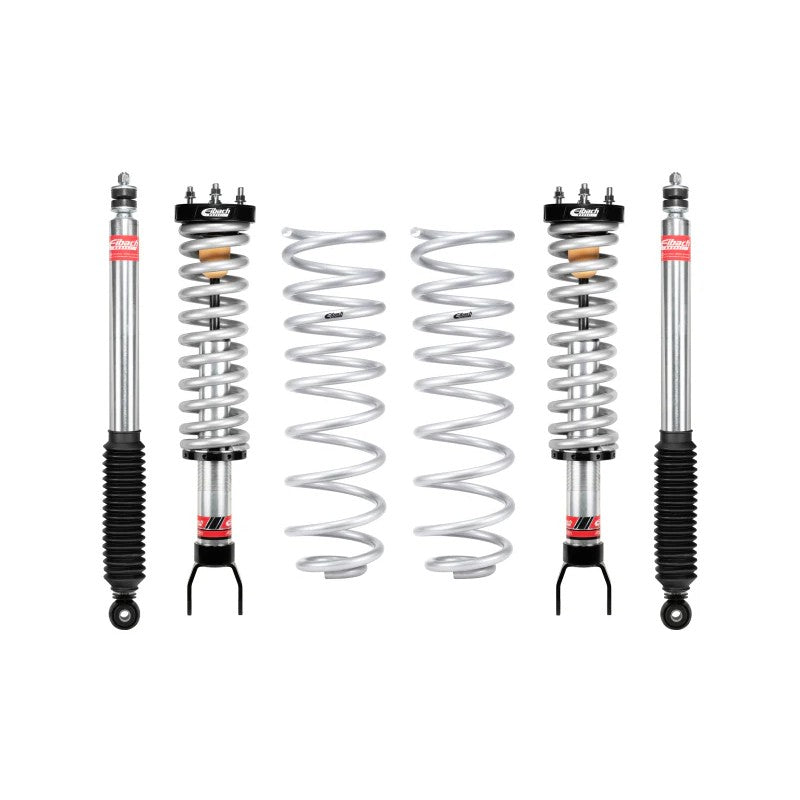

What's in the Box:

• (2) Pre-assembled Front PRO-TRUCK 2.0 Coilovers
• (2) Rear PRO-TRUCK Sport Shocks
• (2) Rear PRO-LIFT-KIT Springs
• (1) 6mm Adjustment Spanner Wrench
• All required mounting hardware and instructions

Exclusions:

Does NOT fit models equipped with factory air suspension (Active-Level Four-Corner Air). Does NOT fit Ram TRX or RHO models. Does NOT fit 2WD models.

Check fitment before you order. Vehicle fitment can vary by trim, engine, drivetrain, cab or bed configuration, and factory options — confirm this part matches your specific vehicle. Fitment data is a guide, and we can't guarantee fitment on vehicles that aren't officially supported by the manufacturer. If you're unsure, get in touch before ordering.
