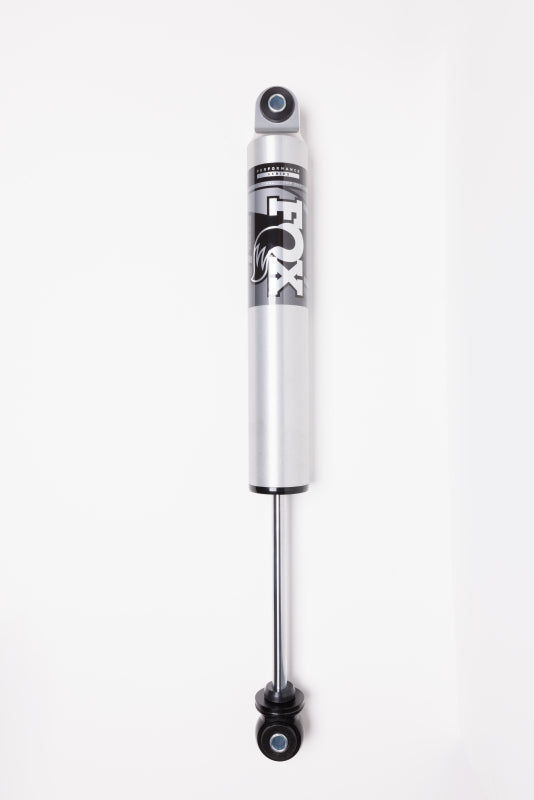

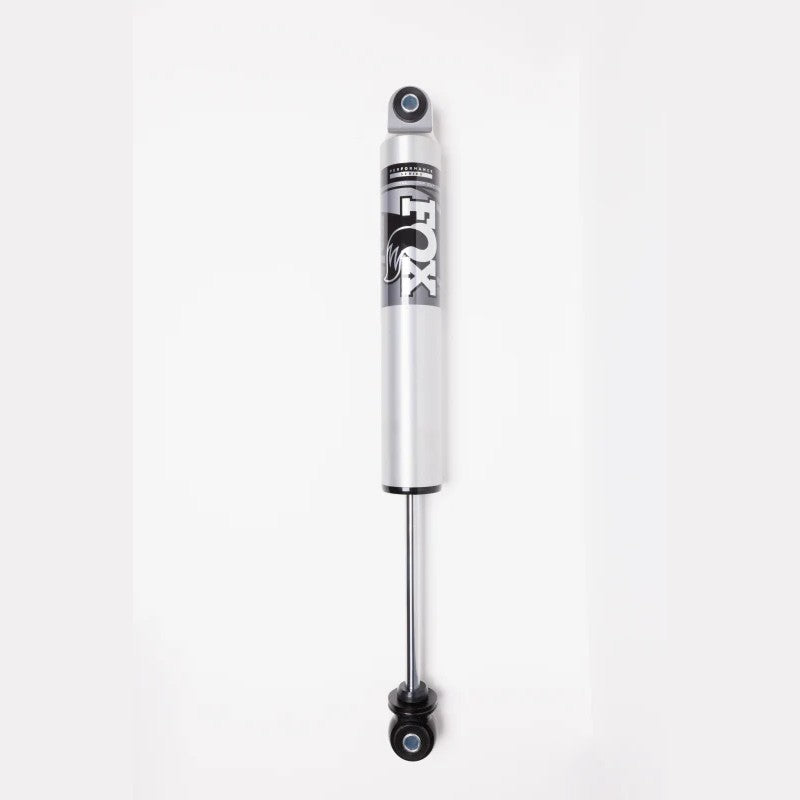

Fox 2.5 Performance Series IFP HTO Rear Shock for 2005-2016 Ford F-250/F-350 Super Duty (6-8in Lift)

Fits 2005-2016 Ford F-250 and F-350 Super Duty 4WD models equipped with 6 to 8 inches of rear lift.

The Fox 2.5 Performance Series IFP (Internal Floating Piston) HTO shocks are designed to provide consistent, fade-resistant damping for heavy-duty trucks in demanding off-road environments. These shocks feature a large-diameter 2.5-inch impact-extruded 6061-T6 aluminum body, which dissipates heat more effectively than standard steel bodies while providing superior corrosion resistance. The integrated Hydraulic Top Out (HTO) piston provides a controlled cushion at the end of the extension stroke, preventing harsh bottoming out and protecting the suspension during full droop travel.

Inside, the internal floating piston separates the high-pressure nitrogen gas from the shock oil, eliminating oil aeration and ensuring the velocity-sensitive damping remains predictable over rough terrain. This shock is fully serviceable and can be re-tuned or rebuilt to maintain performance for the life of the vehicle.

• Manufacturer Part Number: 987-24-057
• Shock Body: 2.5-inch impact extruded 6061-T6 aluminum
• Body Plating: Type II clear-anodized for corrosion resistance
• Shaft: 5/8-inch hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow manual damping
• Internal Technology: Internal Floating Piston (IFP) and Hydraulic Top Out (HTO)
• Adjustability: Fully rebuildable and re-tunable
