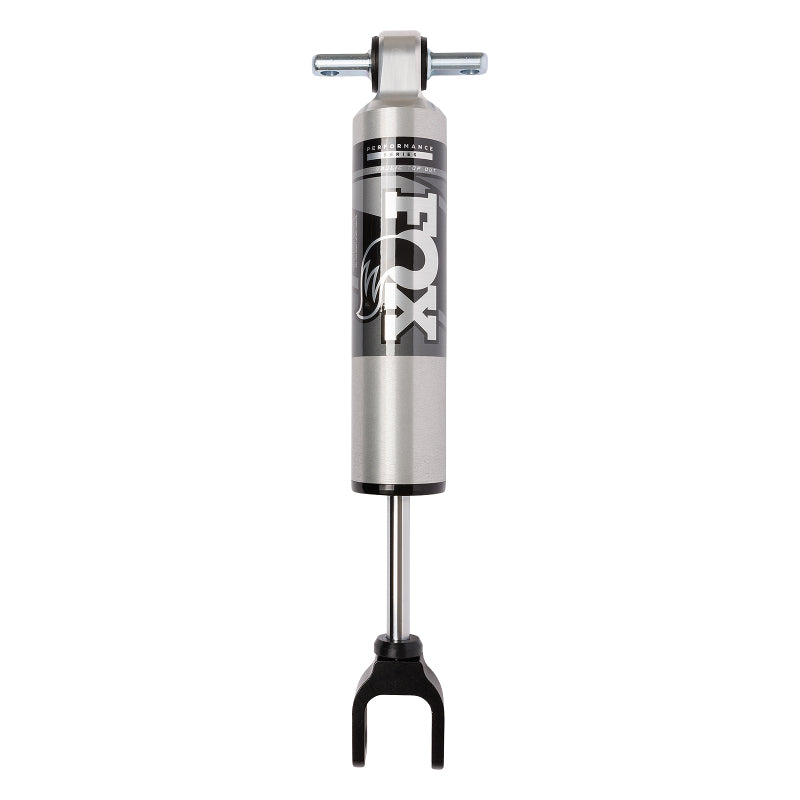

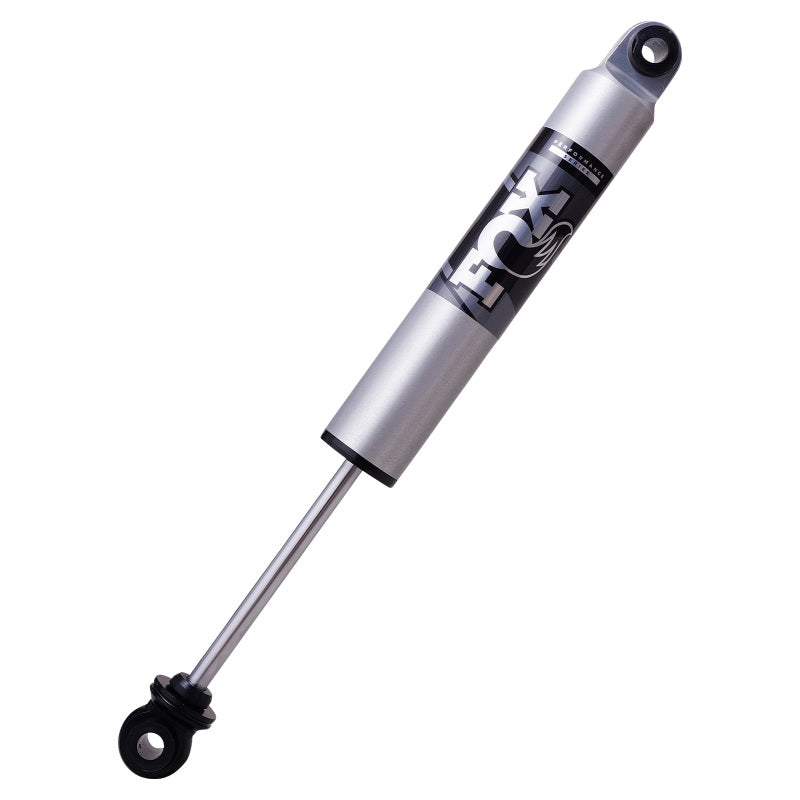

Fox 2.5 Performance Series Smooth Body IFP HTO Front Shock for 2011-2019 Silverado/Sierra 2500/3500 HD (1.5-3.5" Lift)

Fits 2011-2019 Chevrolet Silverado 2500 HD/3500 HD and GMC Sierra 2500 HD/3500 HD with 1.5-3.5" of front lift.

The Fox 2.5 Performance Series Smooth Body IFP HTO shock is designed to provide professional-grade damping for heavy-duty trucks. The larger 2.5-inch diameter impact-extruded aluminum body offers significantly higher oil capacity and heat dissipation compared to smaller shocks, reducing fade during demanding off-road use or heavy towing. This model features a Hydraulic Top Out (HTO) piston to manage extension forces and an Internal Floating Piston (IFP) to keep the high-pressure nitrogen gas separate from the oil, preventing aeration.

Constructed with a race-developed high-flow piston and application-specific valving, these shocks deliver a controlled, connected ride that minimizes vehicle sway on the pavement while maximizing drop-out travel off-road. The clear-anodized 6061-T6 aluminum body is resistant to corrosion and built to endure harsh environments. Every component is fully rebuildable and re-tunable, ensuring a lifetime of consistent performance.

• Manufacturer Part Number: 987-24-031
• Body Material: 2.5" impact-extruded 6061-T6 aluminum
• Finish: Type II clear-anodized plating
• Shaft: 5/8" hard chrome-plated heat-treated alloy steel
• Piston: Race-developed high-flow damping design
• Technology: Internal Floating Piston (IFP) and Hydraulic Top Out (HTO)
• Valving: Application-specific velocity-sensitive damping
• Serviceability: Fully rebuildable and re-tunable
