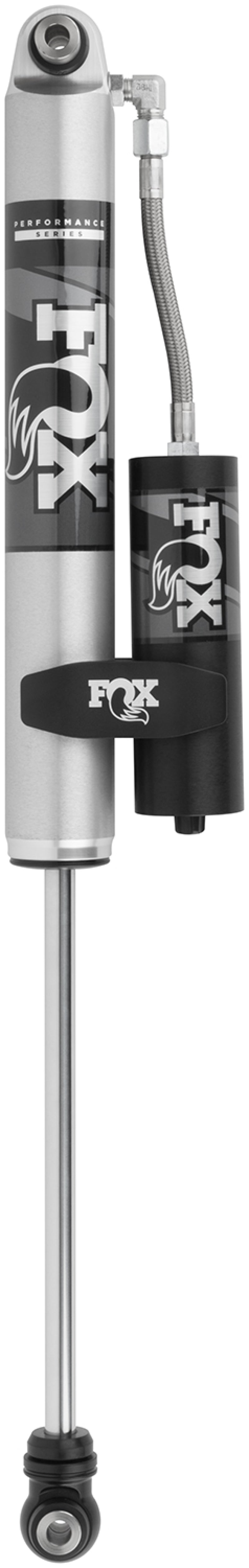

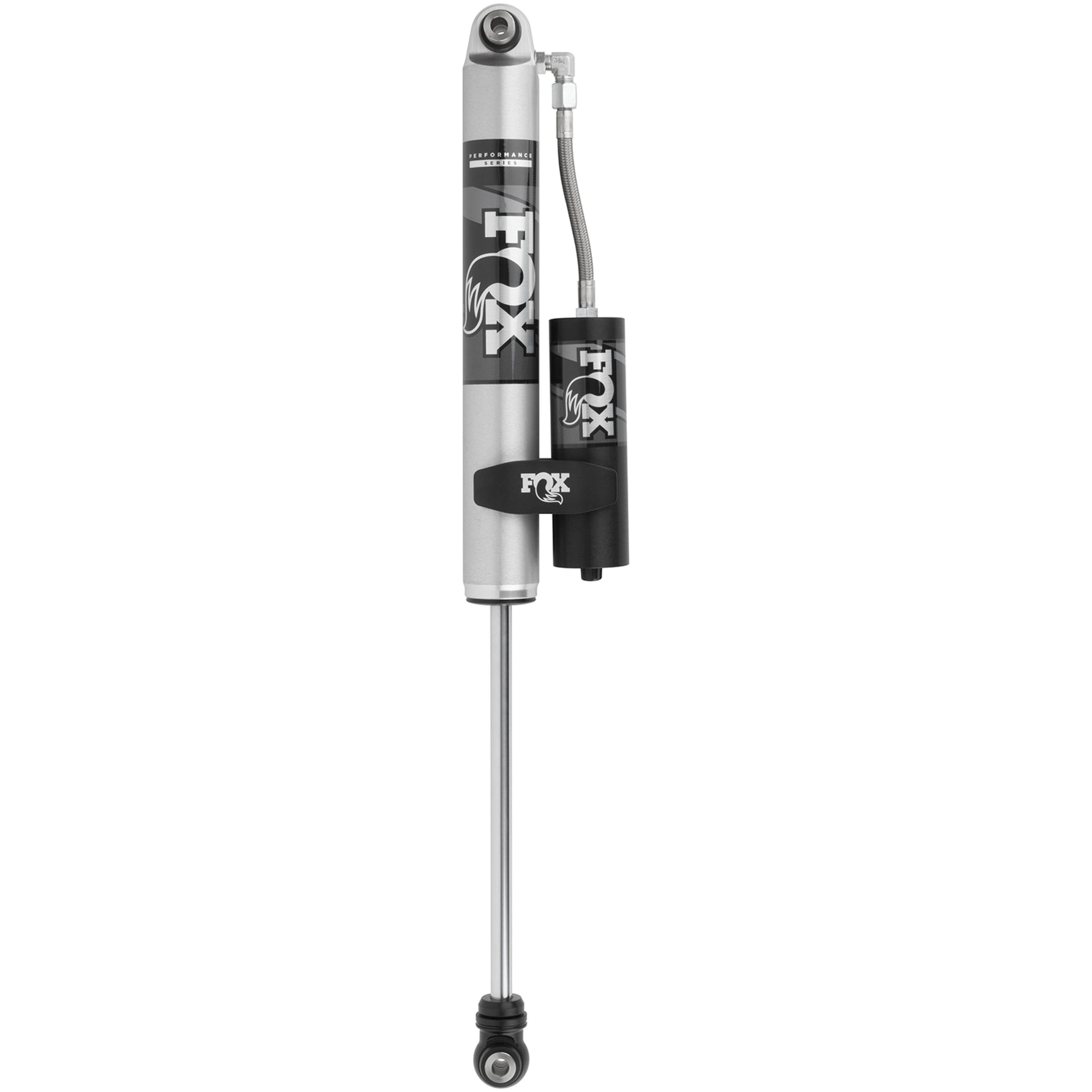

Fox 2.0 Performance Series Smooth Body Remote Reservoir Rear Shock for 2014-2025 Ram 3500 (4-6" Lift)

Fits 2014-2025 Ram 3500 models equipped with a 4-6" suspension lift.

The Fox 2.0 Performance Series Remote Reservoir (R/R) smooth body shock (MPN: 985-24-259) is engineered to handle the demands of heavy-duty trucks while providing a connected, controlled ride. By utilizing an external reservoir system, this shock increases oil and nitrogen capacity, significantly improving heat dissipation and preventing damping fade during long periods of off-road use or heavy towing. The shock body is constructed from 2.0-inch impact-extruded 6061-T6 aluminum, which dissipates heat four times faster than conventional steel bodies.

Equipped with a race-developed high-flow piston and an internal floating piston (IFP), this setup separates the shock oil from the high-pressure nitrogen gas to eliminate aeration. The application-specific valving is tuned to reduce vehicle sway and improve drop-out travel. Every unit is fully serviceable and built with CNC-machined components for a lifetime of performance.

• Manufacturer Part Number: 985-24-259
• Body Material: 2.0" Clear-anodized 6061-T6 aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow design
• Valving: Application-specific to maximize off-road and on-road performance
• Seals: Nitrile rubber redundant sealing system
• Bushings: Quiet nitrile rubber allows for increased suspension articulation
• Hardware: Includes aluminum reservoir clamp
