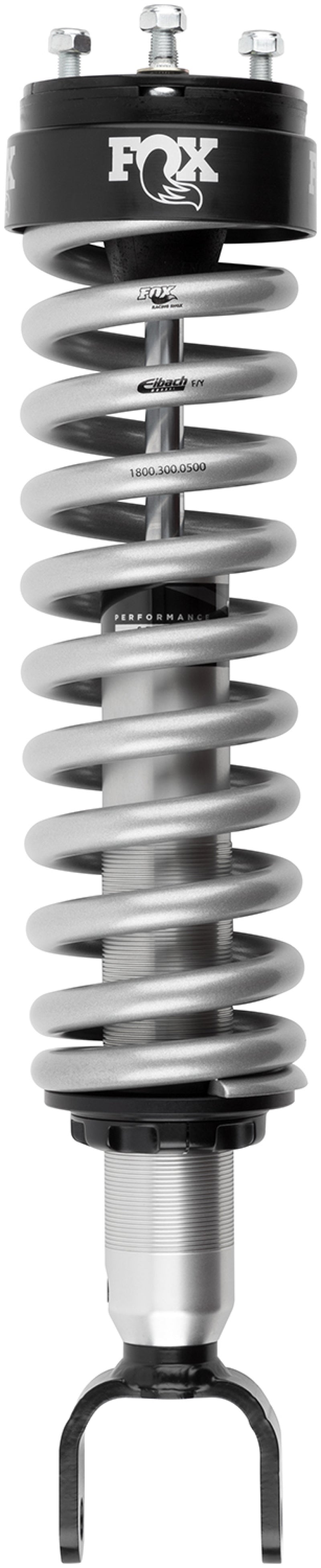

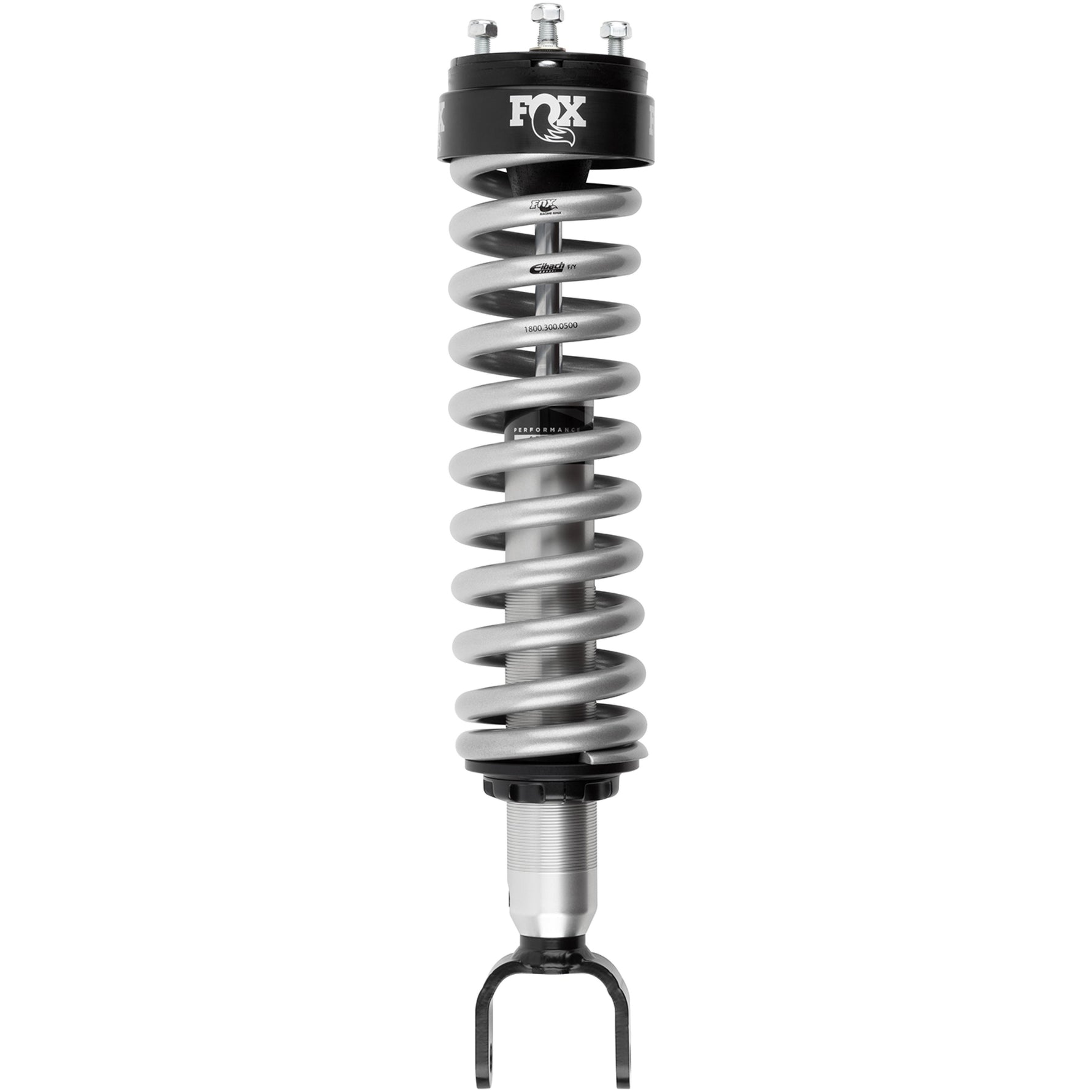

Fox 2.0 Performance Series IFP Coilover Shock, 5.4in Travel, 2014-2021 Ram 1500 4WD Diesel (0-2in Lift) 985-02-020

Fits select 2014-2021 Ram 1500 and Ram 1500 Classic 4WD Diesel models.

The Fox 2.0 Performance Series Internal Floating Piston (IFP) coilover is engineered to improve off-road capability and on-road comfort. By replacing the factory front suspension, this bolt-on solution provides up to 2 inches of lift, allowing for larger tires and increased ground clearance while extending drop-out travel. The 2.0-inch metal-impacted 6061-T6 aluminum body dissipates heat four times faster than conventional steel shocks, maintaining consistent damping even under heavy use.

Inside, the race-developed high-flow piston is paired with an IFP to separate the shock oil from the high-pressure nitrogen gas. This design eliminates oil aeration, ensuring fade-free performance across washboards and technical terrain. Every component is built for durability, featuring black-anodized CNC-machined aluminum parts and Teflon-lined heat-treated spherical bearings for long-lasting articulation.

• Fits 2014-2021 Ram 1500 / 1500 Classic 4WD Diesel models
• Lift Height: 0-2 inches of front lift
• Shock Travel: 5.4 inches
• Internal Floating Piston (IFP) eliminates oil aeration
• 6061-T6 clear-anodized aluminum body for superior heat dissipation
• Redundant sealing pack system: main seal, wiper seal, and scraper seal
• 100% serviceable and tunable for a lifetime of use
• Manufacturer Part Number: 985-02-020
