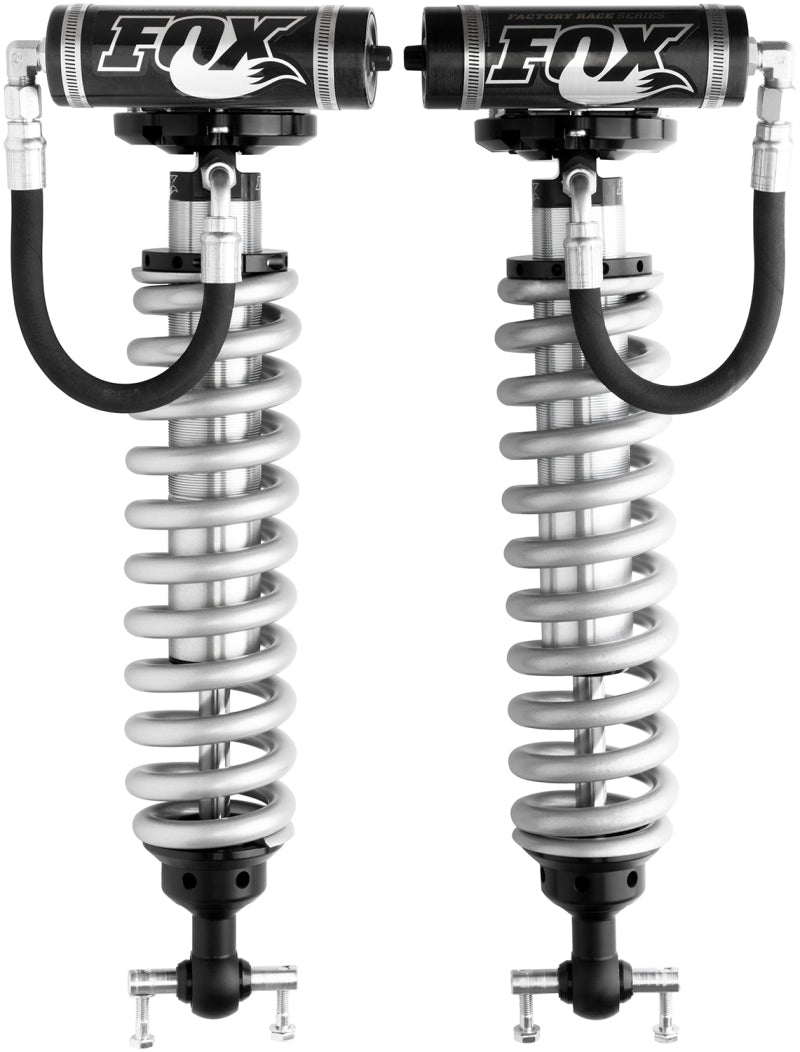

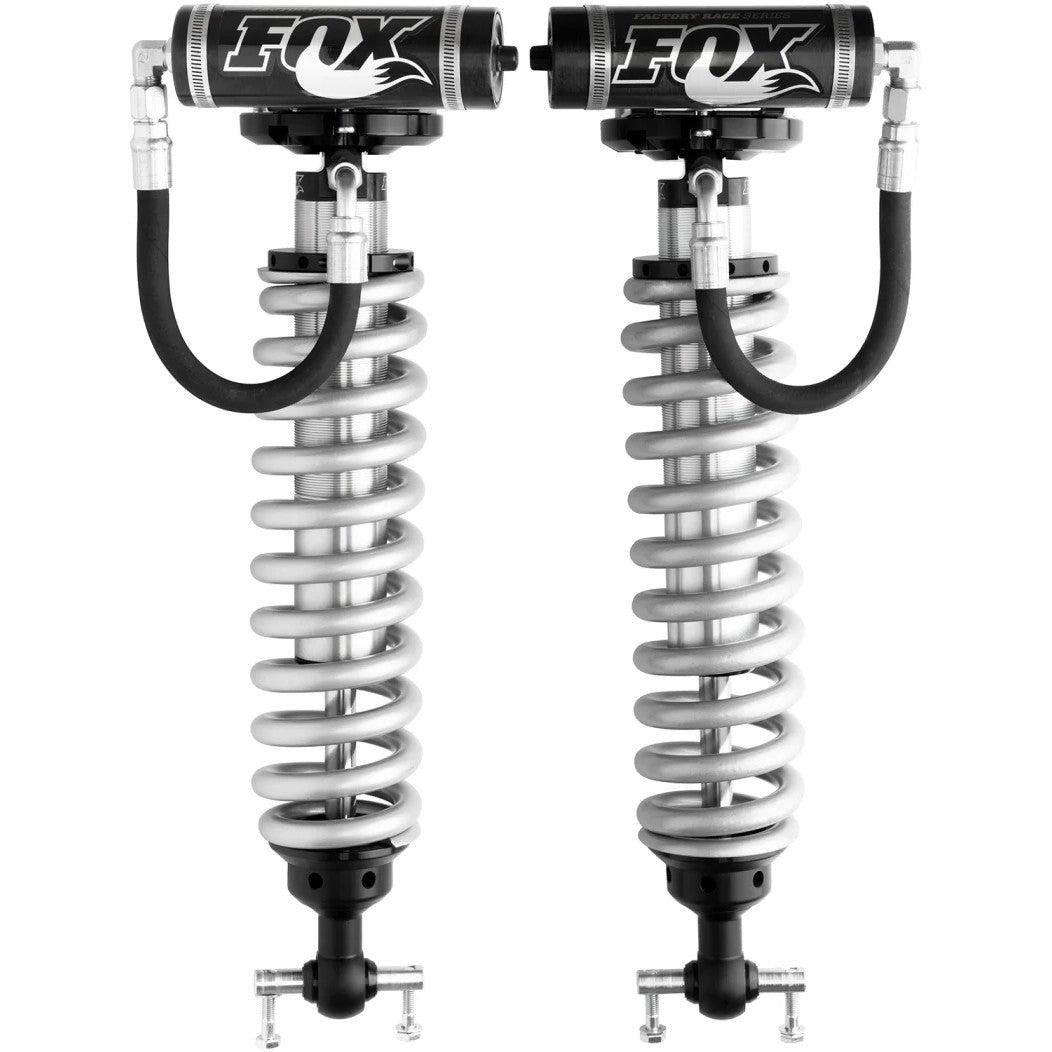

Fox Factory Series 2.5 Front Remote Reservoir Coilover Set, 5.3in Travel, 4-6in Lift for 2014-2020 Ford F-150 4WD

Fits select 2014-2020 Ford F-150 4WD models with 4-6 inches of lift (V6/V8).

The Fox Factory Series 2.5 Remote Reservoir Coilover Set (MPN: 883-02-114) delivers professional-grade suspension performance for lifted 2014-2020 Ford F-150s. Featuring patented internal bypass technology, these coilovers offer position-sensitive damping that adjusts to terrain in real-time. By allowing oil to bypass the piston at specific points in the stroke, Fox achieves a plush ride in the "ride zone" while maintaining massive bottom-out resistance and support at the extremes of suspension travel.

Built to dominate the harshest environments, these units feature 2.5-inch seamless alloy bodies with a durable zinc plating for long-term corrosion resistance. The external reservoir system increases oil capacity and improves heat dissipation, ensuring consistent damping performance without fade. Every component is CNC-machined from 6061-T6 aluminum and black anodized to provide a precise fit and high-end finish.

• Manufacturer Part Number: 883-02-114
• Body: 2.5-inch zinc-plated seamless alloy body
• Shaft: 7/8-inch hard chrome plated heat-treated alloy steel
• Reservoir: External reservoir for fast heat dissipation
• Travel: 5.3 inches of stroke
• Adjustment: Features Dual Speed Compression (DSC) adjustment
• Components: Black-anodized CNC-machined 6061-T6 aluminum
• Lift Compatibility: Engineered for vehicles with 4-6 inches of lift

Vehicle Fitment
