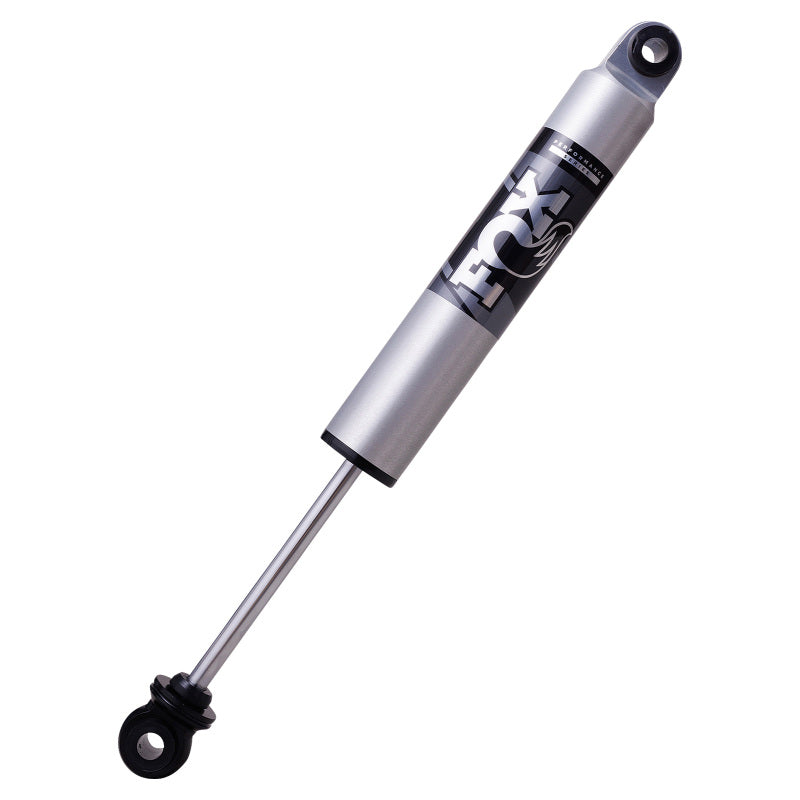

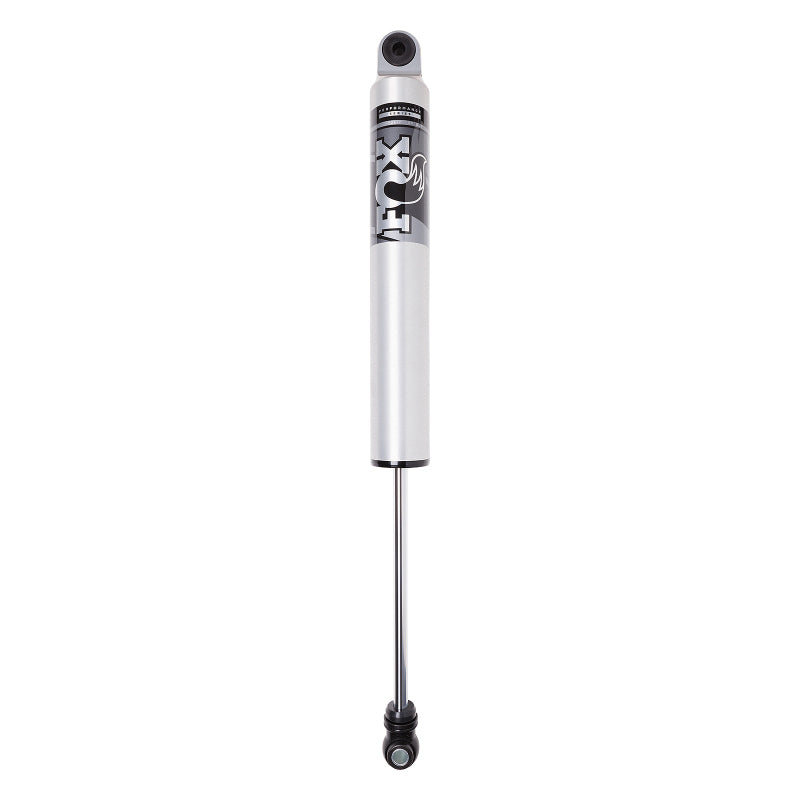

Fox 2.5 Performance Series Smooth Body IFP HTO Front Shock - Ram 2500/3500 4WD 2014-2025 (0-1.5in Lift)

Fits 2014-2025 Ram 2500 and 3500 4WD models.

The Fox 2.5 Performance Series Smooth Body shock provides the increased oil capacity and cooling needed for aggressive off-road use without sacrificing on-road composure. Designed to bolt into factory mounting points on Ram 2500/3500 trucks with 0-1.5 inches of front lift, this shock utilizes an internal floating piston (IFP) to separate gas and oil, preventing aeration and ensuring fade-resistant damping. The race-developed high-flow piston is paired with a Hydraulic Top Out (HTO) system to soften the impact of full extension during heavy travel events.

The 2.5-inch impact-extruded 6061-T6 aluminum body dissipates heat four times faster than steel and is protected by a Type II clear-anodized finish for superior corrosion resistance. This shock is fully serviceable and rebuildable, offering a long-term suspension solution for heavy-duty applications.

• Part Number: 987-24-004
• 2.5-inch impact extruded 6061-T6 aluminum shock body
• 5/8-inch hard chrome-plated heat-treated alloy steel shaft
• Internal Floating Piston (IFP) mono-tube design
• Hydraulic Top Out (HTO) piston for controlled extension
• High-flow velocity-sensitive damping
• Type II clear-anodized body plating
• Application-specific tuning for Ram 2500/3500 4WD
