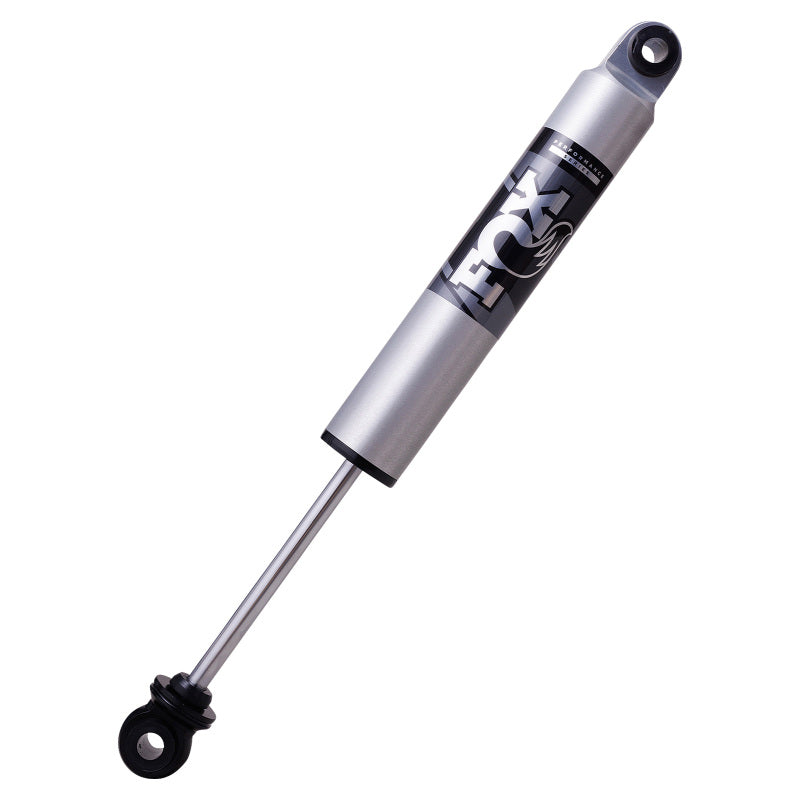

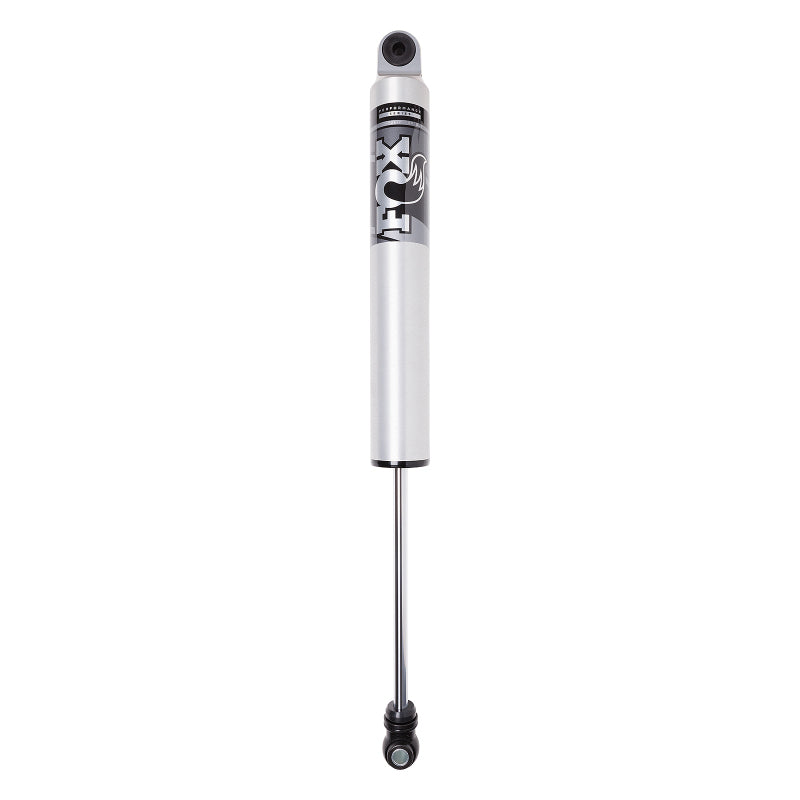

Fox 2.5 Performance Series Smooth Body IFP HTO Rear Shock for Select Ford 2017-2026 (2-3.5in Lift)

Fits select 2017-2026 Ford F-150, F-150 Lightning, F-250/F-350 Super Duty, Maverick, and Ranger models.

The Fox 2.5 Performance Series Smooth Body IFP HTO shock is engineered to provide superior heat dissipation and consistent damping for trucks with a 2-3.5 inch rear lift. The 2.5-inch impact-extruded 6061-T6 aluminum body provides four times the cooling capacity of traditional steel bodies, significantly reducing fade during extended off-road use. Featuring a race-developed high-flow piston and a dedicated Internal Floating Piston (IFP), this shock separates oil from the high-pressure nitrogen gas to prevent aeration and ensure predictable handling.

Equipped with a Hydraulic Top Out (HTO) piston, this shock manages the end of the extension stroke to prevent harsh clunking during aggressive suspension cycling. The clear-anodized Type II finish protects against corrosion in harsh environments, while the 5/8-inch hard chrome-plated heat-treated alloy steel shaft provides the strength needed for heavy-duty applications.

• 2.5-inch impact extruded 6061-T6 aluminum shock body
• Internal Floating Piston (IFP) eliminates oil aeration
• Hydraulic Top Out (HTO) piston for controlled extension
• 5/8-inch hard chrome-plated heat-treated alloy steel shaft
• High-flow, velocity-sensitive damping with application-specific tuning
• Type II clear-anodized finish for superior corrosion resistance
• Fully rebuildable and re-tunable design
• Manufacturer Part Number: 987-24-003
