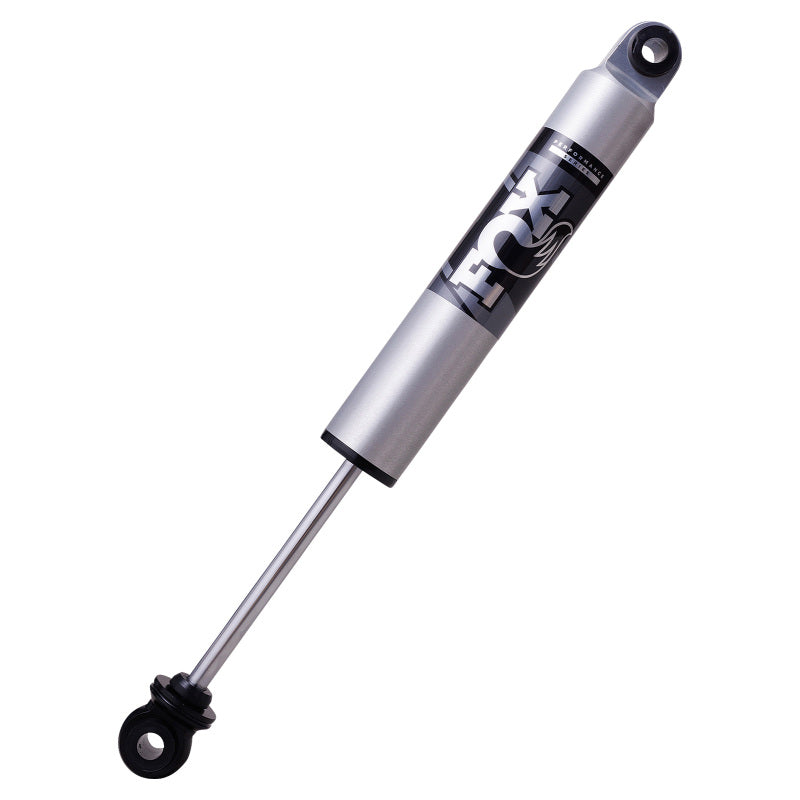

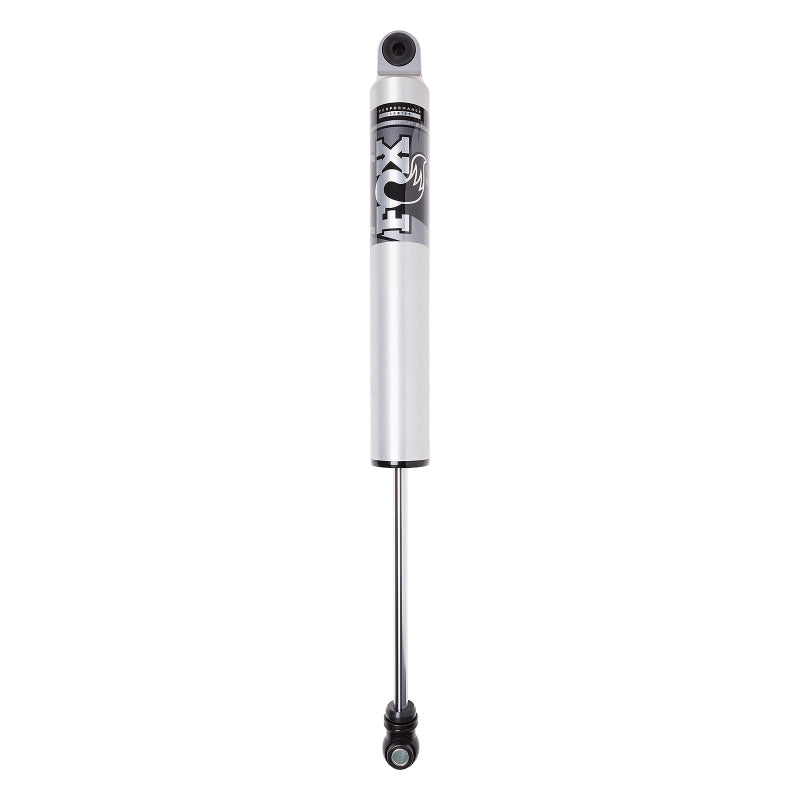

Fox 2.5 Performance Series Smooth Body IFP HTO Front Shock for 6-8in Lift - Select Ford 2005-2026

Fits select 2005-2026 Ford F-150, F-250 Super Duty, F-350 Super Duty, Maverick, and Ranger.

The Fox 2.5 Performance Series Smooth Body IFP HTO shock is engineered to manage the increased demands of 6-8 inch lift kits, providing superior off-road damping while maintaining a connected, comfortable ride on the street. The 2.5-inch impact-extruded 6061-T6 aluminum body is designed to dissipate heat four times faster than conventional steel shocks, ensuring fade-resistant performance in harsh environments. Featuring an Internal Floating Piston (IFP) to separate oil from the high-pressure nitrogen gas and a Hydraulic Top Out (HTO) piston, this shock provides a controlled, smooth feel throughout the entire suspension stroke.

• 2.5-inch impact-extruded 6061-T6 aluminum shock body with Type II clear-anodized plating
• Internal Floating Piston (IFP) design eliminates oil aeration and foaming
• Hydraulic Top Out (HTO) piston for controlled extension during drop-out
• 5/8-inch hard chrome-plated heat-treated alloy steel shaft
• High-flow velocity-sensitive damping with application-specific tuning
• Fully rebuildable and re-tunable for maximum service life
• Manufacturer Part Number: 987-24-022
