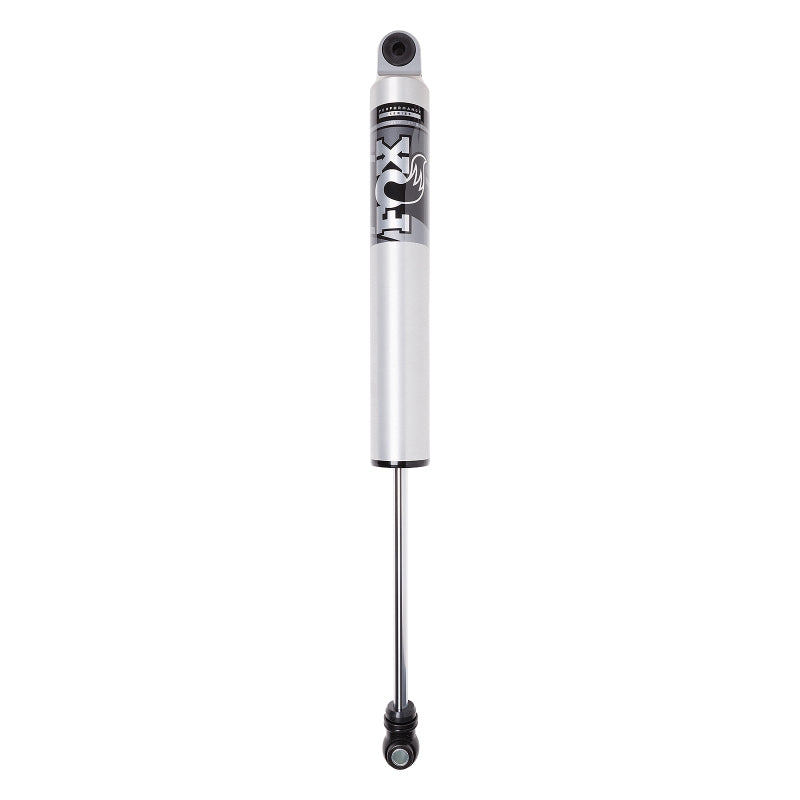

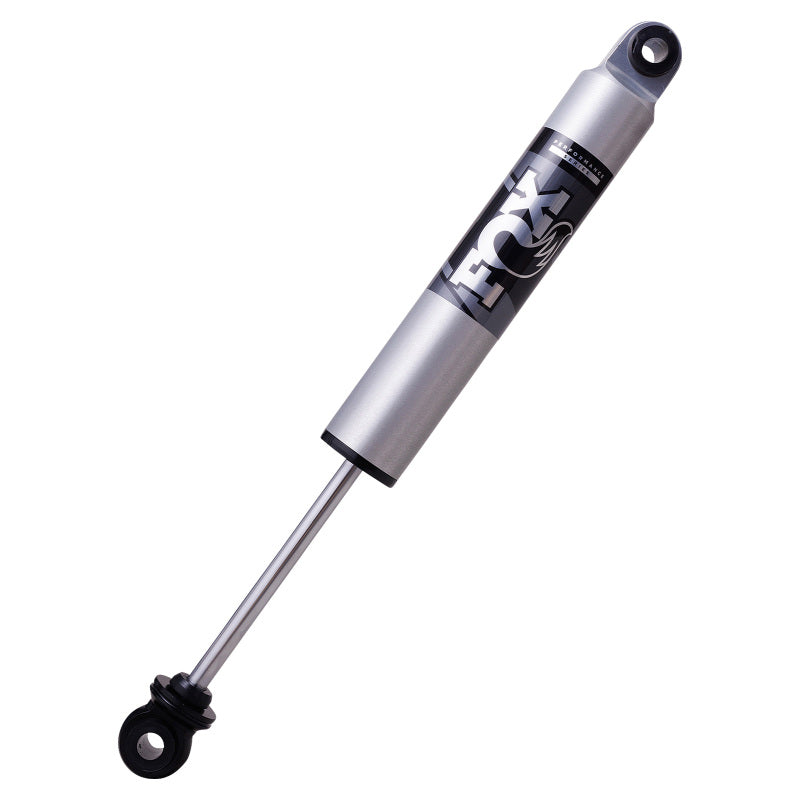

Fox 2.5 Performance Series Smooth Body IFP HTO Rear Shock for Select 2017-2026 Ford (6-8in Lift)

Fits select 2017-2026 Ford F-150, F-250/F-350 Super Duty, Maverick, and Ranger models equipped with a 6-8 inch rear lift.

This Fox 2.5 Performance Series Smooth Body shock is engineered to provide a connected on-road feel while increasing off-road capability by extending drop-out travel. The internal floating piston (IFP) separates the high-pressure nitrogen gas from the shock oil, preventing aeration and ensuring fade-resistant performance during aggressive use. To protect against harsh bottom-outs, the Hydraulic Top Out (HTO) piston provides additional damping at the end of the extension stroke.

Constructed from 2.5-inch impact-extruded 6061-T6 aluminum, the shock body dissipates heat four times faster than traditional steel alternatives. The Type II clear-anodized finish provides superior corrosion resistance in harsh environments. Every shock is fully serviceable and can be re-tuned to match specific vehicle weights or driving styles.

• Manufacturer Part Number: 987-24-023
• 2.5-inch impact extruded 6061-T6 aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Internal Floating Piston (IFP) gas/oil separation
• Hydraulic Top Out (HTO) piston for controlled extension
• High-flow, velocity-sensitive damping
• Fully rebuildable and re-tunable
• Type II clear-anodized body plating for corrosion resistance
